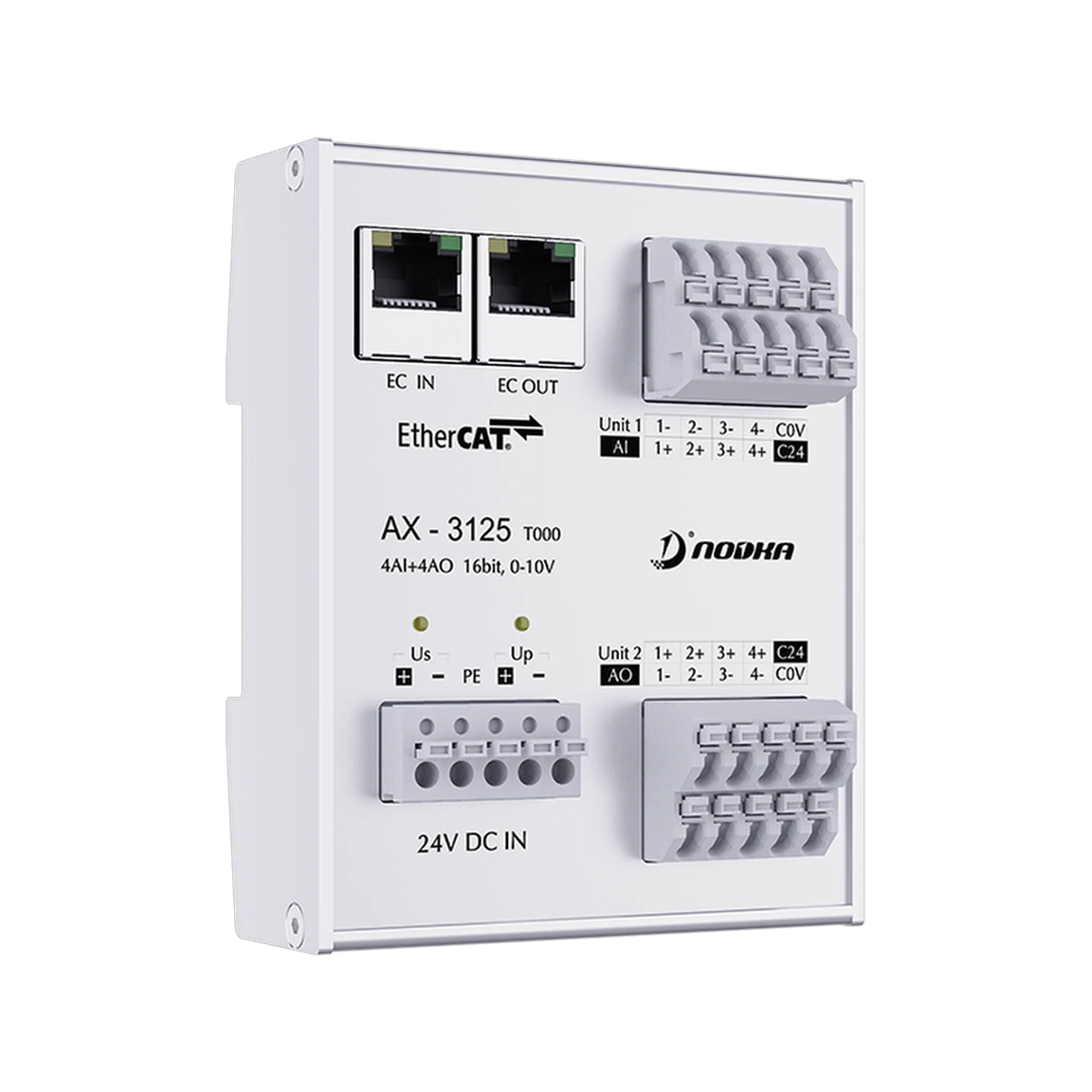

AX-3125-T000 | EtherCAT Analog I/O Module with 4AI/4AO
EtherCAT-based analog I/O module featuring 4 analog inputs, 4 analog outputs, 16-bit resolution, short conversion time, DIN-Rail mounting, and rugged IP30-rated aluminum alloy housing
- EtherCAT Analog I/O Module for high-speed real-time automation
- 4 x Analog Inputs (AI, 0V~10V, 16-bit resolution) for precise signal acquisition
- 4 x Analog Outputs (AO, 0V~10V, 16-bit resolution) for smooth signal control
- 16-bit resolution ensuring high accuracy in data conversion
- Short conversion time (~200µs) for real-time processing applications
- 500V Electrical Isolation between field voltage and EtherCAT communication
- DIN-Rail Mountable, IP30-rated Rugged Aluminum Alloy Housing
- Compact and robust design for industrial automation systems
- Supports 24VDC power input with overcurrent and reverse voltage protection
- Ideal for factory automation, motion control, and real-time analog signal processing
EtherCAT Analog I/O Module Product Information
| Technical Specifications | |
|---|---|
| Model Name | AX-3125-T000 |
| System | |
| Field Bus | EtherCAT |
| Number of Analog Inputs | 4 x AI (0V ~ 10V, 16-bit resolution) |
| Number of Analog Outputs | 4 x AO (0V ~ 10V, 16-bit resolution) |
| Resolution | 16-bit |
| Conversion Time | ~200µs |
| Measurement Error | < 0.1% (0°C to 55°C, relative to full scale value) |
| Input Impedance | ~10MΩ (Voltage) |
| Power | |
| Module Current Consumption | Typically 100mA |
| Electrical Isolation | 500V (EtherCAT/Field Voltage) |
| Chassis | |
| Structure | Rugged Aluminum Alloy Housing |
| Dimensions | 105mm (W) x 84mm (H) x 45mm (D) |
| Weight | Approx. 300g |
| Mounting | DIN-Rail |
| Environmental | |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95% (Non-condensing) |
| Vibration Resistance | 5~500Hz, 1.5Grms (IEC60068-2-64) |
| Shock Resistance | 20G peak acceleration (IEC60068-2-27) |
| Degree of Protection | IP30 |
| Approvals | CE |
| Ordering Information | |
|---|---|
| Model Name | AX-3125-T000 |
| Description | EtherCAT Analog I/O Module with **4 x Analog Inputs (0V ~ 10V, 16-bit resolution)** and **4 x Analog Outputs (0V ~ 10V, 16-bit resolution)**, **DIN-Rail mount**, and **IP30-rated aluminum alloy housing**. |
| Options | |
| Field Bus | EtherCAT |
| Analog Input Channels | 4 x AI (0V ~ 10V, 16-bit resolution) |
| Analog Output Channels | 4 x AO (0V ~ 10V, 16-bit resolution) |
| Resolution | 16-bit |
| Conversion Time | ~200µs |
| Mounting Option | DIN-Rail mount |
| Power Input | 24VDC (-15% / +20%), Overcurrent & Reverse Voltage Protection |
| Electrical Isolation | 500V (EtherCAT/Field Voltage) |
