Home > Products > Industrial Panel PCs > Arm-based Panel PCs > Panel PC ARM6000-CXXX-C8 Series

Select Filter:

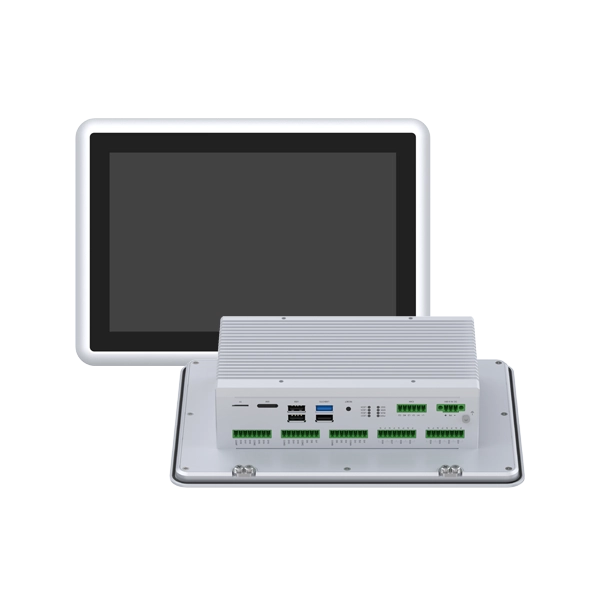

ARM6000-C101-R1-3568J-T

10.1″ fanless wide-temperature panel PC with Rockchip RK3568J industrial CPU, designed for EMS, inverter cabinets, and local HMI/SCADA. Features full I/O including CAN, RS485, DI/DO, ADC, 4 x LAN, HDMI, and M.2 storage

Learn More →

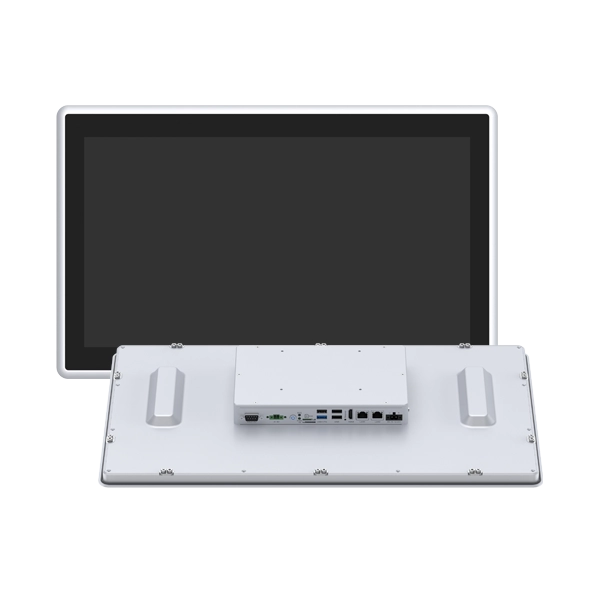

ARM6000-C215-C8

21.5″ industrial-grade ARM panel PC with Rockchip RK3568/RK3576/RK3588 CPU options, 4GB/8GB RAM, 32GB/64GB eMMC, full HD capacitive touchscreen, rich I/O, wireless expansion, and wide voltage input. Designed for panel-mount applications in automation and HMI

Learn More →
Contact Us

Fanless ARM Based Panel PC HMI Features

The ARM6000-CXXX-C8 Series ARM Panel PCs are available in a range of sizes (10.1", 12.5", 15", 15.6", and 21.5”) with high-brightness capacitive touchscreens and fanless aluminum-magnesium alloy housings. Powered by Rockchip RK3568, RK3576, or RK3588 processors, these systems offer up to 8GB RAM and 64GB eMMC storage, with expansion slots for M.2 SSDs and wireless modules. All models feature multiple USB, HDMI, and LAN ports, while the EMS (Energy Management System)-focused ARM6000-C101-R1-3568J-T adds isolated RS485, RS232, CAN, DI, DO, and ADC interfaces, as well as wide voltage and wide temperature operation.

Application Areas

The ARM6000-C8 Series supports a wide range of industrial applications, including MES (Energy Management System) terminals, factory automation HMI, EV charging interfaces, and smart manufacturing dashboards. The C101-R1-3568J-T model is tailored for EMS applications such as inverter cabinet gateways, protocol conversion between RS485/CAN and Ethernet, and data acquisition/control for battery and power systems. Larger models like the C215-C8 (21.5") are ideal for real-time energy monitoring, SCADA display terminals, and local control panels with high-resolution graphical interfaces.

ModelCPU OptionsDisplayKey I/O FeaturesTarget Applications
ARM6000-C101-R1-3568J-TRK3568J10.1", 1280×800, 500 cd/m²4 x LAN, 8 x RS485, 2 x RS232, 2 x CAN, 18 x DI, 8 x DO, 4 x ADCEMS Gateway, Inverter Cabinets, Data Acquisition, Protocol Conversion

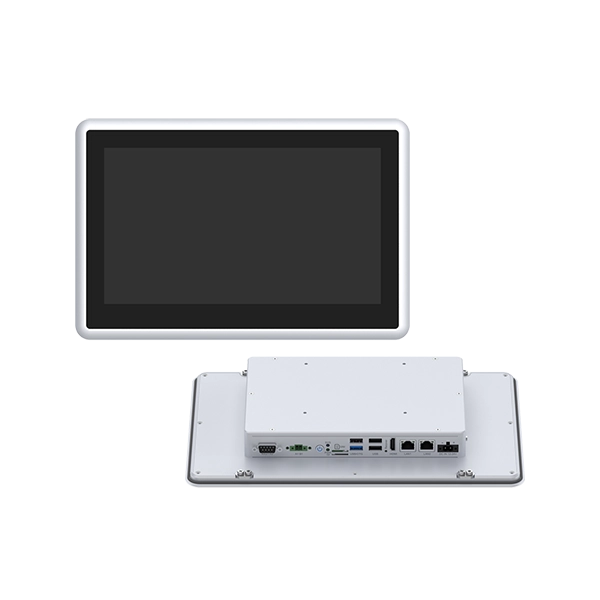

ARM6000-C125-C8RK3568 / RK3576 / RK358812.5", 1920×1080, 300 cd/m²2 x LAN, HDMI, USB, RS232/485 (opt.), Wi-Fi, M.2, Mini-PCIeFactory HMI, MES Display, EV Charging Panel

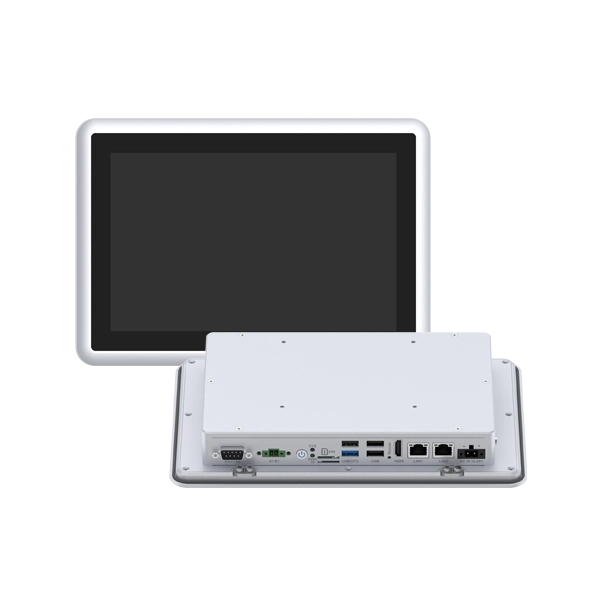

ARM6000-C101-C8RK3568 / RK3576 / RK358810.1", 1280 × 800, 500 cd/m²2 x LAN, HDMI, USB, RS232/485 (opt.), Wi-Fi, M.2, Mini-PCIeFactory HMI, MES Display, EV Charging Panel

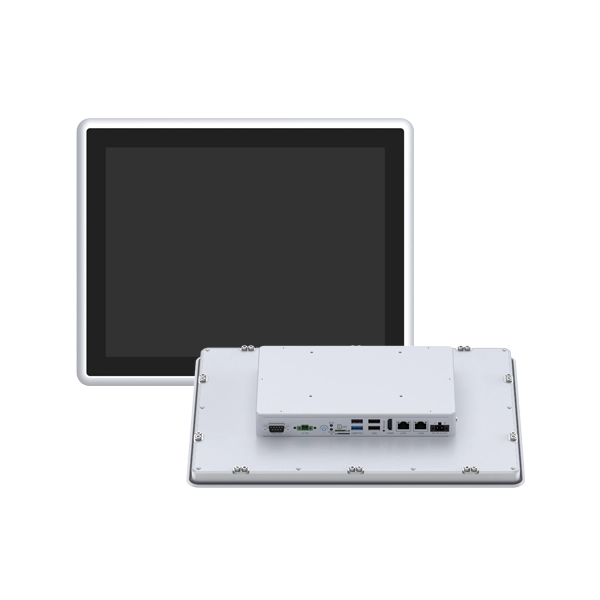

ARM6000-C150-C8RK3568 / RK3576 / RK358815", 1024×768, 350 cd/m²2 x LAN, HDMI, USB, RS232/485 (opt.), Wi-Fi, M.2, Mini-PCIeIndustrial Automation, Machine Interface, Line Terminal

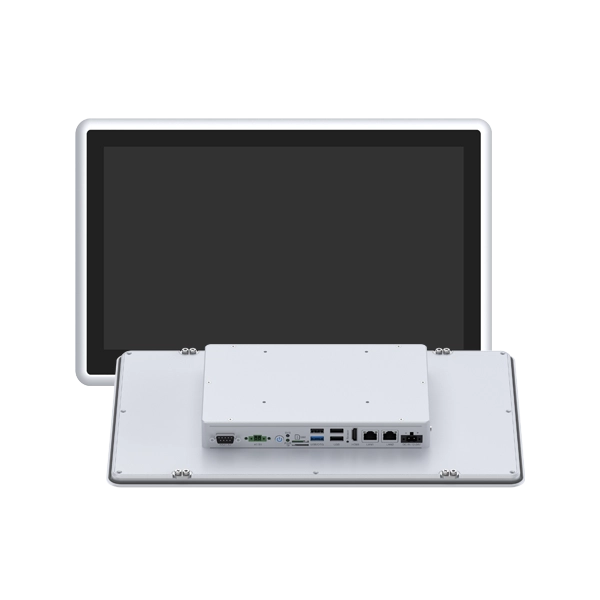

ARM6000-C156-C8RK3568 / RK3576 / RK358815.6", 1920×1080, 250 cd/m²2 x LAN, HDMI, USB, RS232/485 (opt.), Wi-Fi, M.2, Mini-PCIeManufacturing Dashboard, Control Console
ARM6000-C215-C8RK3568 / RK3576 / RK358821.5", 1920×1080, 250 cd/m²2 x LAN, HDMI, USB, RS232/485 (opt.), Wi-Fi, M.2, Mini-PCIeSCADA Terminal, Energy Visualization Panel, Smart Grid Interface
