Automation PC NP-6125/6135 Series
NP-6125 / NP-6135
Control cabinet industrial automation PC supports Intel Core processors (Max. 65W TDP), 2 x LAN, 2 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6125-8PoE / NP-6135-8PoE
Machine Vision automation PC supports Intel Core processors (Max. 65W TDP), 8 x PoE LAN, 2 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations.
NP-6125-CAN2 / NP-6135-CAN2
Control cabinet industrial automation PC supports Intel Core processors (Max. 65W TDP), 2 x CAN Bus, 2 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations

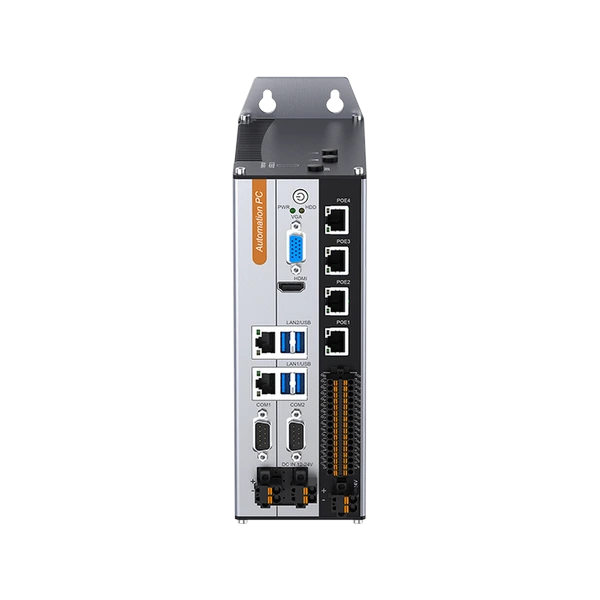

NP-6125-H1 / NP-6135-H1
Machine Vision Automation PC supports Intel Core processors (Max. 65W TDP), 4 x PoE LAN, 8DI/8DO, PWM Light Control, RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations

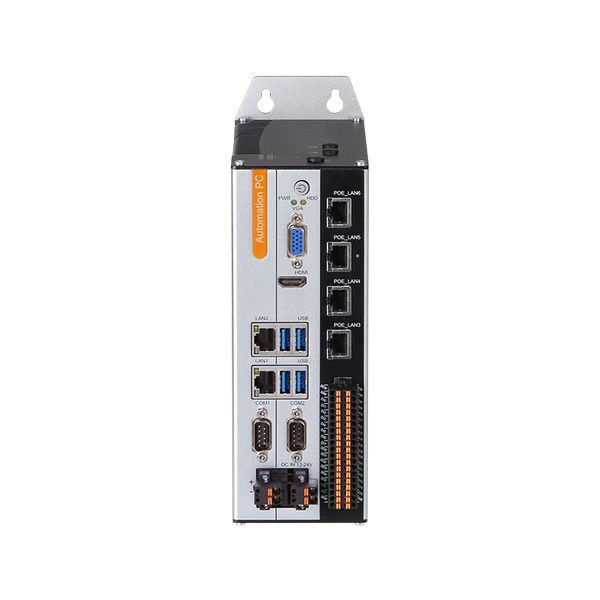

NP-6125-H1B / NP-6135-H1B
Machine Vision Automation PC supports Intel Core processors (Max. 65W TDP), 4 x PoE LAN, 16DI/16DO, RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6125-H1BP / NP-6135-H1BP
Machine Vision Automation PC supports Intel Core processors (Max. 65W TDP), 4 x PoE LAN, 16DI/16DO, RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6125-H7 / NP-6135-H7
Machine Vision Automation PC supports Intel Core processors (Max. 65W TDP), 8DI/8DO, 4 x PWM light control, 2 x LAN, 2 x RS232/RS485, M.2 & mSATA storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6125-JH2 / NP-6135-JH2
Machine Vision Automation PC supports Intel Core processors (Max. 65W TDP), 2 x PoE LAN, 8DI/8DO, PWM Light Control, RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6125-JH2B / NP-6135-JH2B
Machine Vision Automation PC supports Intel Core processors (Max. 65W TDP), 2 x PoE LAN, 16DI/16DO, RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6125-JH3 / NP-6135-JH3
Control cabinet industrial automation PC supports Intel Core processors (Max. 65W TDP), 2 x CAN Bus (Optional), 8DI/8DO, RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6125 / NP-6135 Series Automation PC Features
The NP-6125 / NP-6135 series are control cabinet automation PCs designed for flexible industrial use. They feature Intel® Core™ processors (6th–11th Gen) with scalable performance, front-access I/O for simplified wiring, and rugged fanless chassis. Standard configurations provide multiple GbE LAN ports, RS232/RS485, and expansion via miniPCIe and M.2. Models include options with PoE for machine vision camera connectivity, CAN bus for AGV/AMR integration, or additional Ethernet ports for motion control. Power input supports 12–24V DC with overcurrent and polarity protection. All units are designed with wide operating temperature ranges, shock and vibration resistance, and DIN-rail or wall-mount support for reliable cabinet installation.
Show More
Application Areas
NP-6125 and NP-6135 automation PCs serve as industrial gateways, edge controllers, and machine controllers. PoE variants are ideal for machine vision systems with camera and lighting control. Multi-Ethernet models support motion controllers and robotics with CodeSys and industrial Ethernet protocols. CAN bus models provide reliable AGV and AMR control in intralogistics and factory automation. Standard models operate as rugged industrial gateways for SCADA, MES, and IoT integration. With customizable branding and flexible OEM options, these PCs are well-suited for industrial automation, robotics, machine vision, motion control, transportation, and smart factory applications.
| Model | CPU Support | LAN / PoE | Serial | DIO / Light / CAN | Expansion & Storage | Mounting |
|---|---|---|---|---|---|---|
| NP-6125 | Intel® Core™ 6th–8th Gen (LGA1151) | 2× GbE | 2× RS232/RS485 | — | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-H1 | Intel® Core™ 6th–8th Gen (LGA1151) | 2× GbE + 4× PoE | 2× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-H1B | Intel® Core™ 6th–8th Gen (LGA1151) | 2× GbE + 4× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-H1BP | Intel® Core™ 6th–8th Gen (LGA1151) | 2× GbE + 4× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-H7 | Intel® Core™ 6th–8th Gen (LGA1151) | 2× GbE | 2× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light + Triggers | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-H7B | Intel® Core™ 6th–8th Gen (LGA1151) | 2× GbE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-8PoE | Intel® Core™ 6th–8th Gen (LGA1151) | 8× PoE + 2× GbE | 2× RS232/RS485 | — | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-L2 | Intel® Core™ 6th–8th Gen (LGA1151) | 4× GbE | 2× RS232/RS485 | — | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-CAN2 | Intel® Core™ 6th–8th Gen (LGA1151) | 2× GbE | 2× RS232/RS485 | 2× CAN 2.0 A/B | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-JH2 | Intel® Core™ 6th–8th Gen (LGA1151) | 2× GbE + 2× PoE | 2× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-JH2B | Intel® Core™ 6th–8th Gen (LGA1151) | 2× GbE + 2× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-JH3 | Intel® Core™ 6th–8th Gen (LGA1151) | 2× GbE | 4× COM | 8× DI, 8× DO; 2× CAN (opt.) | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-JH4 | Intel® Core™ 6th–8th Gen (LGA1151) | 2× GbE | 2× RS232/RS485 + 8× RS485 | 8× DI; 4× Relay DO | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6125-JH5 | Intel® Core™ 6th–8th Gen (LGA1151) | 3× GbE | 2× RS232/RS485 + 8× RS485 | 16× DI; 8× DO + 8× Relay DO | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 2× miniPCIe + 1× M.2 2230 Key-E (opt. CAN via module) | DIN-rail / Wall-mount |
| Model | CPU Support | LAN / PoE | Serial | DIO / Light / CAN | Expansion & Storage | Mounting |
|---|---|---|---|---|---|---|
| NP-6135 | Intel® Core™ 10th–11th Gen (LGA1200) | 2× GbE | 2× RS232/RS485 | — | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6135-H1 | Intel® Core™ 10th–11th Gen (LGA1200) | 2× GbE + 4× PoE | 2× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6135-H1B | Intel® Core™ 10th–11th Gen (LGA1200) | 2× GbE + 4× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6135-H1BP | Intel® Core™ 10th–11th Gen (LGA1200) | 2× GbE + 4× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6135-8PoE | Intel® Core™ 10th–11th Gen (LGA1200) | 8× PoE + 2× GbE | 2× RS232/RS485 | — | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6135-L2 | Intel® Core™ 10th–11th Gen (LGA1200) | 4× GbE | 2× RS232/RS485 | — | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6135-CAN2 | Intel® Core™ 10th–11th Gen (LGA1200) | 2× GbE | 2× RS232/RS485 | 2× CAN 2.0 A/B | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6135-JH2 | Intel® Core™ 10th–11th Gen (LGA1200) | 2× GbE + 2× PoE | 2× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6135-JH2B | Intel® Core™ 10th–11th Gen (LGA1200) | 2× GbE + 2× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6135-JH3 | Intel® Core™ 10th–11th Gen (LGA1200) | 2× GbE | 4× COM | 8× DI, 8× DO; 2× CAN (opt.) | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6135-JH5 | Intel® Core™ 10th–11th Gen (LGA1200) | 3× GbE | 2× RS232/RS485 + 8× RS485 | 16× DI; 8× DO + 8× Relay DO (NO) | 1× mSATA, 1× M.2 (B-Key 2280) SATA; 2× miniPCIe + 1× M.2 2230 Key-E (opt. CAN via module) | DIN-rail / Wall-mount |
