Fanless ARM-based Automation PC Series

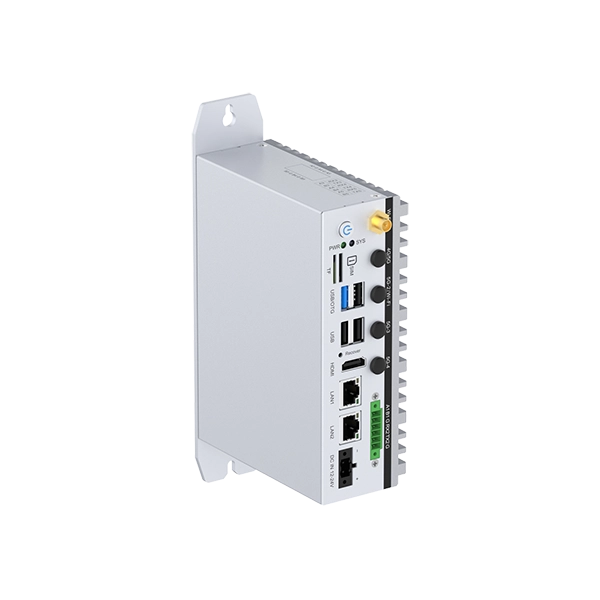

ABOX-3908
Compact AIOT gateway with RK3568/RK3576/RK3588 ARM processor options, rich I/O, fanless design, and support for 4G/5G wireless, ideal for edge computing, protocol conversion, and smart infrastructure deployment
ABOX-6108A
Fanless AIOT edge computing gateway with Rockchip RK3568/RK3576/RK3588, dual GbE, 2×CAN, RS232/RS485, optional isolated 6DI/6DO, TF plus mSATA/SATA storage expansion, Wi-Fi, optional 4G/5G, and DC12–24V input for wall-mount or DIN-rail installation.
ABOX-6108B
Fanless AIOT edge computing gateway with Rockchip RK3568/RK3576/RK3588, dual GbE, 2×CAN, RS232/RS485, optional isolated 6DI/6DO, TF plus mSATA/SATA storage expansion, Wi-Fi, optional 4G/5G, and DC12–24V input for wall-mount or DIN-rail installation.
ABOX-6116
Fanless RK3588 industrial controller with 5 GbE, 2×RS232, 2×RS485, 8×DI, 8×DO, HDMI, Wi-Fi, optional 4G, M.2 storage expansion, and DC 12–24V input for wall-mount or DIN-rail installation.

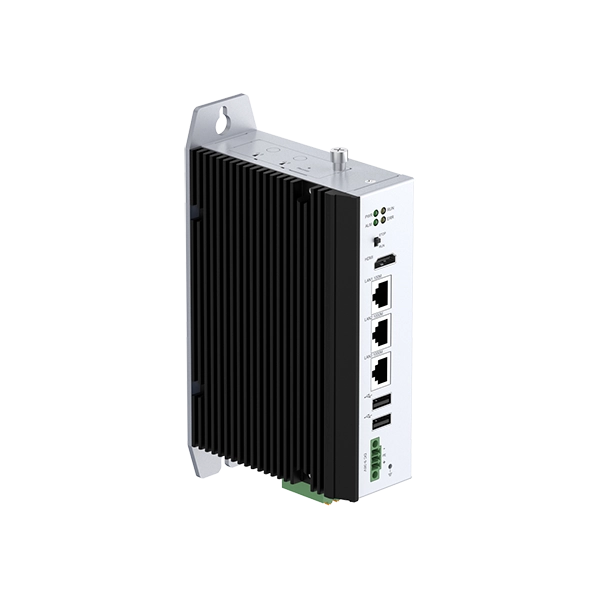

ABOX-6162
Compact RK3399-based fanless automation PC with rich I/O, including RS232, RS485, CAN, LAN, and HDMI, designed for AGV, motion control, and industrial protocol gateway applications

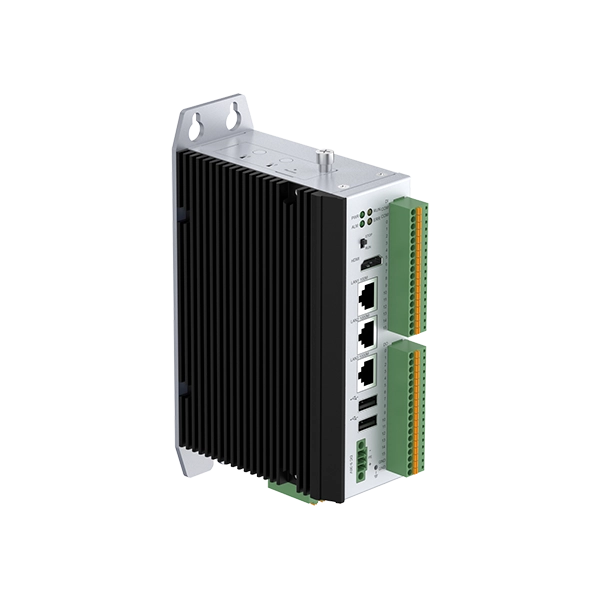

ABOX-6162-IO
DIN-Rail or wall-mountable RK3399-based automation PC with 16 DI, 16 DO, RS485, CAN, and multi-LAN, ideal for AGV control, industrial protocol gateways, and signal interfacing
Fanless ARM-based Automation PC Features
The ARM Based Automation PC Series is a family of fanless embedded systems built around Rockchip RK3399, RK3568, RK3576, and RK3588 platforms for compact cabinet-based industrial integration. Depending on model, the series offers 2 to 5 Gigabit LAN ports, RS-232 and RS-485 serial connectivity, CAN bus, optional isolated digital I/O, optional light control outputs, USB 2.0 and USB 3.0, HDMI display output up to 4K or 8K on selected RK3588 models, onboard eMMC storage with TF, mSATA, SATA, Mini-PCIe, or M.2 expansion options, and optional Wi-Fi, LTE 4G, or 5G wireless support. Mechanical options include aluminum alloy fanless chassis construction with wall-mount or DIN-rail installation, while power input ranges from DC 9~36V or DC 12~24V depending on model, supporting control cabinet, gateway, and embedded automation system requirements.
Show More
Application Areas
The ARM Based Automation PC Series is suitable for cabinet-based control systems, motion control, small robotic controllers, AIoT edge computing gateway deployment, industrial data acquisition, and protocol conversion between RS485, CAN, and Ethernet networks. Its combination of fanless design, wide DC input, multi-network connectivity, serial and CAN communication, optional isolated DIO, and optional 4G or 5G expansion makes it well suited for automation control cabinets, smart energy gateways, building automation systems, smart city edge nodes, remote monitoring systems, and compact machine control platforms that require stable industrial communication and long-term embedded operation.
| Model | CPU / Platform | LAN | Serial / CAN | DIO / Special I/O | Wireless / Expansion | Mounting |
|---|---|---|---|---|---|---|
| ABOX-3908 | RK3568 / RK3576 / RK3588 | 2 x GbE | 1 x RS485, 1 x RS232, optional 3 x RS232/485, no CAN listed | — | Wi-Fi, optional LTE 4G / Wi-Fi 6 via Mini-PCIe, optional 5G via M.2, TF, mSATA or SATA depending on platform | Wall-mount / DIN-rail |
| ABOX-6108A | RK3568 / RK3576 / RK3588 | 2 x GbE, optional additional 2 x GbE | 1 x RS485, 1 x RS232, 2 x CAN | Optional 6 x isolated DI and 6 x isolated DO | Wi-Fi, optional LTE 4G / Wi-Fi 6 via Mini-PCIe, optional 5G via M.2, optional audio, TF, mSATA or SATA depending on platform | Wall-mount / DIN-rail |
| ABOX-6108B | RK3568 / RK3576 / RK3588 | 2 x GbE | 1 x RS485, 1 x RS232, 2 x CAN, optional 3 x RS232/485 | Optional 6 x isolated DI and 6 x isolated DO | Wi-Fi, optional LTE 4G / Wi-Fi 6 via Mini-PCIe, optional 5G via M.2, optional audio, TF, mSATA or SATA depending on platform | Wall-mount / DIN-rail |
| ABOX-6116 | RK3588 | 5 x GbE | 2 x RS232, 2 x RS485 | 8 x isolated DI, 8 x isolated DO, optional 4 x PWM light control output and trigger interfaces | Wi-Fi, optional LTE 4G via Mini-PCIe, M.2 2280 SATA SSD or optional RK1820 power card | Wall-mount / DIN-rail |
| ABOX-6162 | RK3399 | 3 x LAN | 2 x RS232, 2 x RS485, 2 x CAN | — | Optional LTE 4G via M.2, TF storage expansion | Wall-mount / DIN-rail |
| ABOX-6162-IO | RK3399 | 3 x LAN | 2 x RS232, 2 x RS485, 2 x CAN | 16 x DI, 16 x DO | Optional LTE 4G via M.2, TF storage expansion | Wall-mount / DIN-rail |
