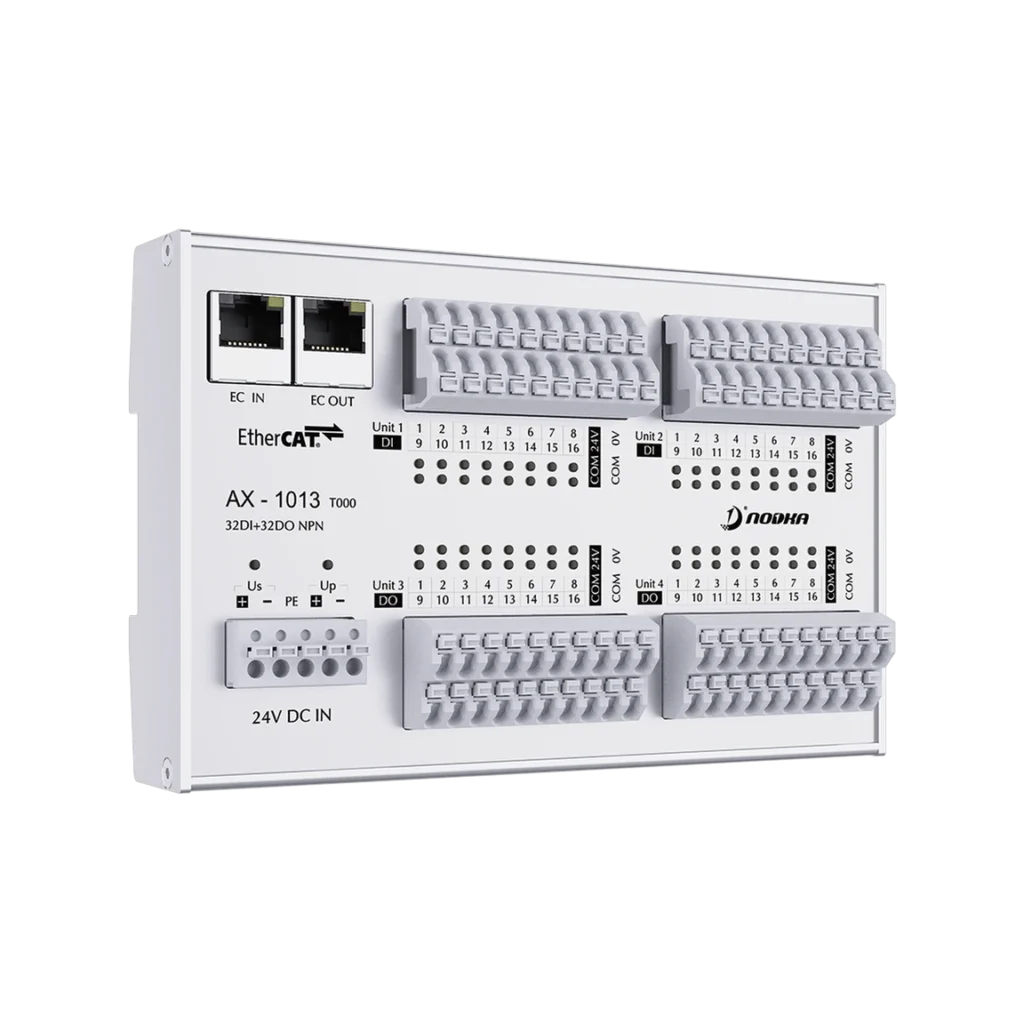

AX-1013-T000 | EtherCAT Digital I/O Module with 32DI/32DO
EtherCAT digital I/O module featuring 32 digital inputs, 32 digital outputs, short-circuit protection, DIN-Rail mounting, and rugged IP30-rated aluminum alloy housing
Features
- EtherCAT Digital I/O Module for high-speed real-time automation
- 32 x Digital Inputs (DI, NPN, 3ms filter) for industrial control signals
- 32 x Digital Outputs (DO, NPN, Imax: 0.5A, 24VDC, Short-circuit proof)
- 500V Electrical Isolation between field voltage and EtherCAT communication
- DIN-Rail Mountable, IP30-rated Rugged Aluminum Alloy Housing
- Compact and robust design for industrial automation systems
- Supports 24VDC power input with overcurrent and reverse voltage protection
- Ideal for factory automation, process control, and real-time I/O applications
EtherCAT Digital I/O Module Product Information
| Technical Specifications | |
|---|---|
| Model Name | AX-1013-T000 |
| System | |
| Field Bus | EtherCAT |
| Number of Inputs | 32 x DI, NPN, Filter: 3ms |
| Number of Outputs | 32 x DO, NPN, Imax: 0.5A, 24VDC |
| Nominal Input Voltage | 24VDC (-15% / +20%) |
| Input Signal Voltage "0" | 18V .. 30V |
| Input Signal Voltage "1" | 0V .. 7V |
| Output Current Per Channel | Max. 0.5A (Short-circuit proof) |
| Reverse Voltage Protection | Yes |
| Switching Time | TON: Typically 15us, TOFF: Typically 300us |
| Distributed Clocks | Not Supported |
| Power | |
| Module Current Consumption | Typically 100mA |
| Electrical Isolation | 500V (EtherCAT/Field Voltage) |
| Chassis | |
| Structure | Rugged Aluminum Alloy Housing |
| Dimensions | 105mm (W) x 164mm (H) x 45mm (D) |
| Weight | Approx. 300g |
| Mounting | DIN-Rail |
| Environmental | |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95% (Non-condensing) |
| Vibration Resistance | 5~500Hz, 1.5Grms (IEC60068-2-64) |
| Shock Resistance | 20G peak acceleration (IEC60068-2-27) |
| Degree of Protection | IP30 |
| Approvals | CE |
| Ordering Information | |
|---|---|
| Model Name | AX-1013-T000 |
| Description | EtherCAT Digital I/O Module with **32 x Digital Inputs (NPN, Filter: 3ms)** and **32 x Digital Outputs (NPN, Imax: 0.5A, 24VDC)**, **DIN-Rail mount**, and **IP30-rated aluminum alloy housing**. |
| Options | |
| Field Bus | EtherCAT |
| Input Channels | 32 x DI (NPN, Filter: 3ms) |
| Output Channels | 32 x DO (NPN, Imax: 0.5A, 24VDC, Short-circuit proof) |
| Mounting Option | DIN-Rail mount |
| Power Input | 24VDC (-15% / +20%), Overcurrent & Reverse Voltage Protection |
| Electrical Isolation | 500V (EtherCAT/Field Voltage) |
