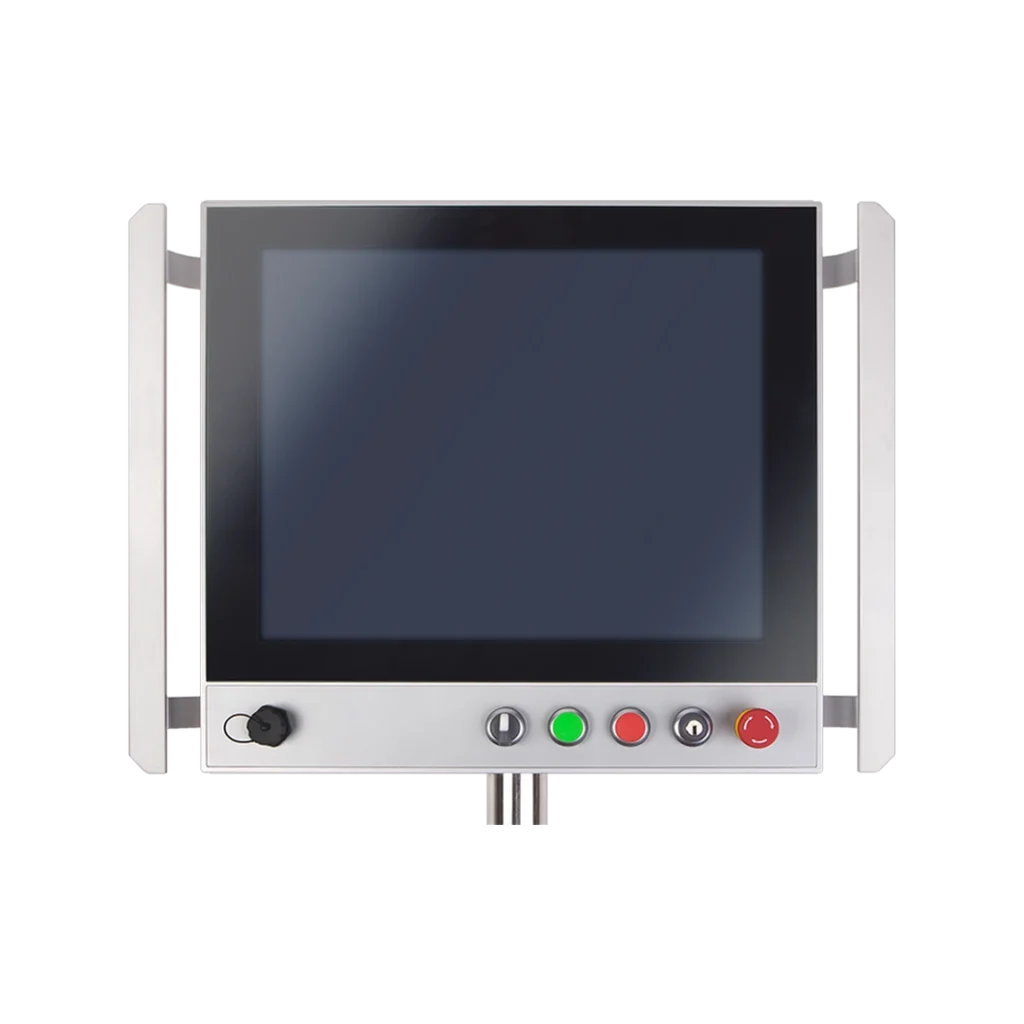

ICP6919 | 19” Arm-Mounted Button-Integrated HMI Panel PC

19” capacitive touchscreen arm-mounted fanless HMI panel PC with Intel CPU options, IP65 front design, and versatile industrial control functionality

Features

19″ 1280×1024 SXGA TFT capacitive multi-touch display
Intel(r) Celeron(r) 4205U / J1900 / CoreTM i5-7200U CPU options
2 x Intel 1000Mbps LAN ports, 4 x USB, 2 x RS232/485 with surge protection
Supports DDR3L/DDR4 memory up to 16GB and dual storage (mSATA + 2.5″ SATA)
IP65-rated aluminum front panel for industrial environments
Front panel with optional emergency stop, USB, key switch, and control buttons
Cantilever mounting bracket with up/down hanging support
Optional keyboard tray for control expansion
Wide input voltage DC12~24V with power protection

Arm-mounted Button-Integrated HMI Panel PC Product Information

Technical Specifications
Processor
CPU Support	Intel(r) CeleronTM 4205U / J1900 / CoreTM i5-7200U
Main Frequency	Dual Core 1.8GHz / Quad Core 2.0GHz / Dual Core 2.5GHz
L3 Cache	2MB / 2MB / 3MB
Memory	1 x DDR3L-1600 (max 8GB) / 1 x DDR4-2400 (max 16GB)
Storage	1 x 2.5" SATA HDD + 1 x mSATA
I/O Interfaces
Ethernet	2 x Intel 1000Mbps RJ-45 Ethernet interface
Audio	Optional
USB	4 x USB3.0 / 2.0 / 1.1
Serial Ports	2 x RS-232 / RS-485 with surge protection and auto flow control
Expansion Slot	1 x Mini-PCIe (supports 3G/WiFi)
Display
LCD Type	19" SXGA TFT
Resolution	1280 x 1024
Colors	16.7M
Active Area (W x H)	376.32mm x 301.06mm
Backlight	LED
MTBF	30,000 hrs
Pixel Pitch	0.294 x 0.294 mm
Luminance	250 cd/m²
Contrast Ratio	1000:1
Viewing Angle	(L) 85 / (R) 85 / (T) 80 / (B) 80
Touchscreen
Type	Capacitive Touch Screen
Transmittance	> 81%
Response Time	< 5ms
Surface Hardness	Mohs 7H
Click Life	250g / 100,000,000 times
Multi-touch	10-point
Mechanical
Dimensions (W x H x D)	573mm x 437mm x 139.5mm
Weight	11.3 kg
Handle	Standard
Keyboard Tray	Optional
Operation Button	USB, rotatable switch, push buttons (Red/Green), key switch, emergency stop (optional)
Cantilever Mount	Standard; supports up/down hanging
Power
Input Voltage	DC 12-24V with reverse, overvoltage, and overcurrent protection
Max Power Consumption	Depends on CPU configuration
OS Support
Operating Systems	Windows 7/8/10, Linux
Environmental
Operating Temperature	-10°C ~ 60°C
Storage Temperature	-20°C ~ 80°C
Humidity	5~95% RH (non-condensing)
Vibration	1.5 Grms, IEC 60068-2-64
Shock	10G, IEC 60068-2-27
EMC	CE/FCC Class B
Waterproof	IP65

Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information
Model Name	CPU	Description	Touch Type
ICP6919-C4205U	Intel(r) Celeron(r) 4205U	19" SXGA, 2 x LAN, 4 x USB, 2 x RS232/485, DC12~24V input, IP65 front	Capacitive
ICP6919-J1900	Intel(r) Celeron(r) J1900	19" SXGA, 2 x LAN, 4 x USB, 2 x RS232/485, DC12~24V input, IP65 front	Capacitive
ICP6919-i5-7200U	Intel(r) CoreTM i5-7200U	19" SXGA, 2 x LAN, 4 x USB, 2 x RS232/485, DC12~24V input, IP65 front	Capacitive
Options
Memory	DDR3L up to 8GB (J1900/4205U), DDR4 up to 16GB (i5-7200U)
Storage	2.5" SATA HDD/SSD: 128GB-1TB; mSATA: 64GB-512GB
Front Panel Buttons	USB port, rotatable switch, red/green push buttons, key switch, emergency stop
Mounting	Cantilever mount (standard), supports up/down hanging adjustment
Keyboard Tray	Optional tray for operator control panel extension
