ICP69215 | 21.5” Arm-Mounted Button-Integrated HMI Panel PC

21.5” capacitive touchscreen FHD fanless HMI panel PC with multiple CPU options, industrial aluminum chassis, and push-button front customization

Features

21.5″ 1920×1080 capacitive multi-touch display
Intel(r) Celeron(r) J1900 / 4205U / CoreTM i5-7200U processor options
2 x Intel 1000Mbps LAN ports, 4 x USB, 2 x RS232/485
Supports DDR3L/DDR4 memory up to 16GB and dual storage (mSATA + 2.5″ SATA)
Fanless full IP65 aluminum enclosure for harsh industrial environments

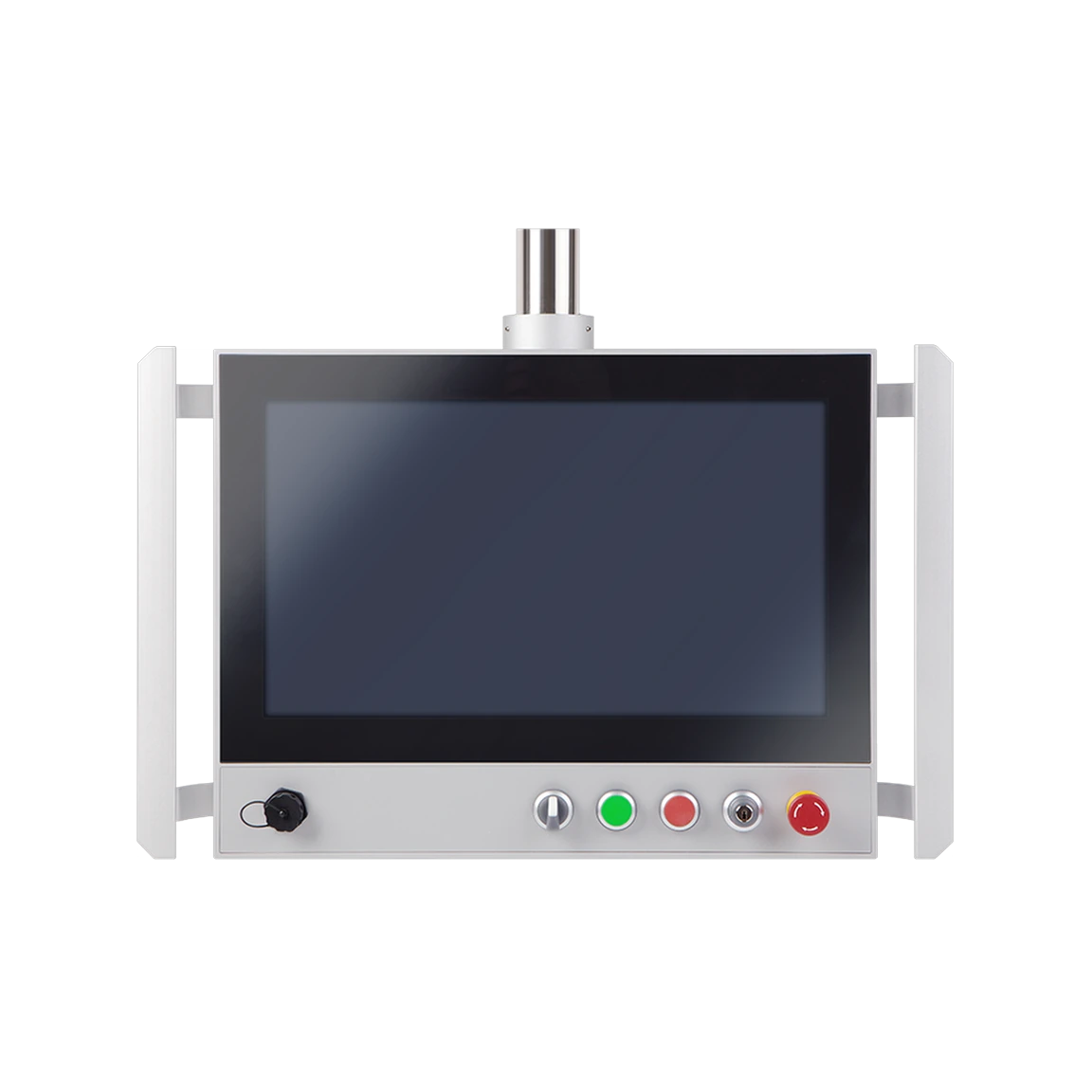

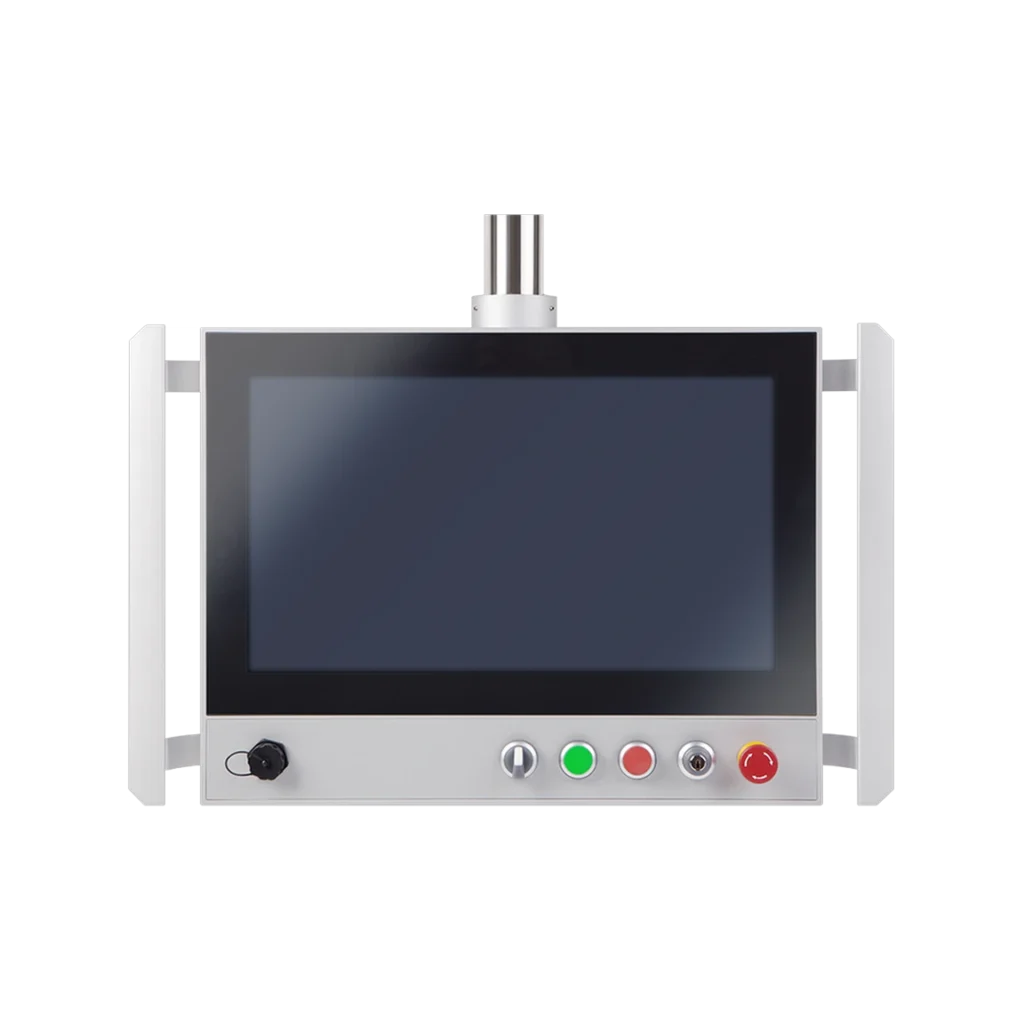

Customizable front panel with up to 6x Ø22 control buttons
Supports Swing ARM mounting (NODKA 4460 and Rittal CP 40)
Wide range 12~24V DC input with over-voltage and reverse polarity protection
OS support: Windows 7, Windows 10 IoT, Ubuntu, CentOS

Arm-mounted Button-Integrated HMI Panel PC Product Information

Technical Specifications
Processor
CPU Support	Intel(r) CeleronTM 4205U / J1900 / CoreTM i5-7200U
Main Frequency	Dual Core 1.8GHz / Quad Core 2.0GHz / Dual Core 2.5GHz
L3 Cache	2MB / 2MB / 3MB
Memory	1 x DDR3L-1600 (max 8GB) or 1 x DDR4 2400MHz (max 16GB)
Storage	1 x 2.5" SATA HDD + 1 x mSATA
I/O Interfaces
Ethernet	2 x Intel 1000Mbps RJ-45
Audio	Optional
USB	4 x USB3.0 / 2.0 / 1.1
Serial Ports	2 x RS-232 / RS-485 with surge protection and auto flow control
Expansion	1 x Mini-PCIe (for 3G/WiFi)
Display
LCD Type	21.5" Full HD TFT
Resolution	1920 x 1080
Colors	16.7M
Active Area (W x H)	476.64mm x 268.11mm
Backlight	LED
MTBF	30,000 hrs
Pixel Pitch	0.248 x 0.248 mm
Luminance	250 cd/m²
Contrast Ratio	3000:1
Viewing Angle	(L)89 / (R)89 / (T)89 / (B)89
Touchscreen
Type	Capacitive Touch Screen
Transmittance	> 81%
Response Time	< 5ms
Surface Hardness	Mohs 7H
Click Life	250g / 100,000,000 times
Multi-touch	10-point
Mechanical
Dimensions (W x H x D)	664mm x 411mm x 139.5mm
Weight	14.3 kg
Mounting Direction	Up or Down (optional)
ARM Mount Compatibility	Suitable for all series
Handle	Standard
Keyboard Tray	Optional
Front Panel Buttons	USB, rotatable switch, red/green push buttons, key switch, emergency stop (optional)
Power
Input Voltage	DC12~24V with reverse polarity, overvoltage, and overcurrent protection
Max Power Consumption	Depends on processor
OS Support
Operating Systems	Windows 7, 8, 10; Linux
Environmental
Operating Temperature	-10°C ~ 60°C
Storage Temperature	-20°C ~ 80°C
Humidity	5~95% RH (non-condensing)
Vibration	1.5 Grms, IEC 60068-2-64
Shock	10G, IEC 60068-2-27
EMC	CE/FCC Class B
Waterproof	IP65

Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information
Model Name	CPU	Description	Touch Type
ICP69215-C4205U	Intel(r) Celeron(r) 4205U	21.5" FHD, 2 x LAN, 4 x USB, 2 x RS232/485, DC12~24V input, IP65 front panel	Capacitive
ICP69215-J1900	Intel(r) Celeron(r) J1900	21.5" FHD, 2 x LAN, 4 x USB, 2 x RS232/485, DC12~24V input, IP65 front panel	Capacitive
ICP69215-i5-7200U	Intel(r) CoreTM i5-7200U	21.5" FHD, 2 x LAN, 4 x USB, 2 x RS232/485, DC12~24V input, IP65 front panel	Capacitive
Options
Memory	DDR3L up to 8GB (J1900/4205U), DDR4 up to 16GB (i5-7200U)
Storage	2.5" SATA HDD/SSD: 128GB-1TB; mSATA: 64GB-512GB
Front Panel Buttons	USB, rotatable switch, red/green push buttons, key switch, emergency stop (configurable)
Mounting Options	Supports all-series cantilever/arm mounting, up/down hanging direction
Keyboard Tray	Optional integrated operator tray
