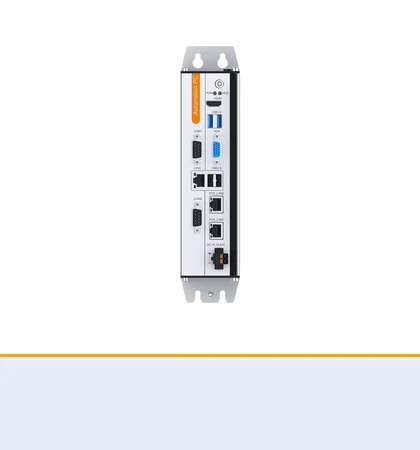

NP-6113 Series | Fanless Automation PC
Compact fanless Automation PC with Intel® J6412/N97/Core™ i3-N305 options, 2 x PoE LAN, 1 x GbE, 2 x COM, 4 x USB, mSATA, dual mini PCIe, VGA/HDMI, and wall-mount or DIN-rail installation.
Features
- Fanless Automation PC with Intel® Celeron® J6412, Intel® Processor N97, or Intel® Core™ i3-N305
- 2 x Intel GbE PoE LAN and 1 x Intel i210-AT GbE LAN
- 1 x RS232/RS485 and 1 x RS232 for industrial device connectivity
- 2 x USB3.0, 2 x USB2.0, plus 1 x onboard USB2.0 Type-A for dongle
- 1 x SO-DIMM DDR4-3200 memory slot, up to 32GB
- 1 x mSATA storage interface for compact solid-state deployment
- 2 x full-size Mini PCIe slots with SIM holder for Wi-Fi, 3G, 4G, or CAN expansion
- VGA and HDMI display outputs for local visualization or service display
- DC12~24V input with overcurrent, overvoltage, and reverse polarity protection
- Aluminum-magnesium alloy fanless chassis for wall-mount or DIN-rail installation
Machine Vision Fanless Automation PCs Product Information
| Technical Specifications | ||||
|---|---|---|---|---|
| Model Name | NP-6113-J6412 | NP-6113-N97 | NP-6113-N305 | |
| System | ||||
| CPU | Intel® Celeron® J6412, 2.0GHz, 4 Cores / 4 Threads, 1.5MB L2 Cache | Intel® N97, 2.0GHz, 4 Cores, 6MB Intel® Smart Cache | Intel® Core™ i3-N305, 2.0GHz, 8 Cores / 8 Threads, 6MB Intel® Smart Cache | |
| TDP | 10W | 12W | 15W | |
| BIOS | AMI UEFI BIOS | |||
| Memory | 1 x SO-DIMM DDR4-3200MT/s (up to 32GB) | |||
| Storage | 1 x mSATA, SATA3.0 | |||
| USB | 2 x USB3.0, 2 x USB2.0 1 x USB2.0 Type-A on the board for USB dongle | |||
| COM | 1 x RS232/RS485 (COM1), Maximum baud rate: 115.2kbit/s 1 x RS232 (COM2), Maximum baud rate: 115.2kbit/s | |||
| PoE LAN | 2 x Intel GbE PoE LAN controller, maximum 15W per channel, IEEE 802.3af, Power supply mode: Alternative A (Power supply by 1/2 and 3/4 line pairs) | |||
| Ethernet | 1 x Intel i210-AT GbE LAN controller | |||
| Remote | 1 x SW | |||
| VGA | Support up to 1920 x 1080 @60Hz | |||
| HDMI | Support up to 3840 x 2160 @30Hz | |||
| Expansion | 2 x Full-size PCIe Mini slot with SIM card holder, expansion WIFI / 3G / 4G / CAN modules | |||
| Watch Dog | 1~255 levels programmable | |||
| TPM | fTPM | dTPM: SLB9672XU2.0 | ||
| OS | ||||
| Microsoft Windows | Windows 10, Windows 11 | |||
| Linux | Ubuntu, Debian | |||
| Power | ||||
| Voltage Input | DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection | |||
| Power Consumption | Max. 90W | Max. 120W | ||
| Chassis | ||||
| Structure | Aluminum-magnesium alloy box, fanless, wall-mounted or DIN-Rail | |||
| Dimensions | (L)200mm x (W)150.5mm x (H)57.6mm | |||
| Net Weight | 1.9Kg | |||
| Environment | ||||
| Work Temperature | -20ºC ~ 60ºC (-4℉ ~ 140℉) with air flow (SSD) | |||
| Storage Temperature | -40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD) | |||
| Relative Humidity | 95%@40℃ (Non-condensing) | |||
| Operating Vibration | 5~500Hz, 3Grms@with SSD and Wall-mounted, Follow IEC60068-2-64 | |||
| Operating Shock | 30G peak acceleration (11ms duration) with SSD and Wall-mounted, Follow IEC60068-2-27 | |||
| EMC | CE EMC, Follow IEC/EN61000-6-2, IEC/EN 61000-6-4, FCC Class A | |||
| Safety | Follow IEC/EN 62368-1 | |||
Click the link below to download datasheets or drivers:
| Ordering Information | |||
|---|---|---|---|
| Model Name | NP-6113-J6412 | NP-6113-N97 | NP-6113-N305 |
| Description | CPU:J6412, RAM:null, mSATA:null, 1 x RS-232/485, 1 x RS232, 2 x PoE LAN, 1 x LAN, 2 x USB3.0, 2 x USB2.0, VGA/HDMI display, DC12~24V DC IN | CPU:N97, RAM:null, mSATA:null, 1 x RS-232/485, 1 x RS232, 2 x PoE LAN, 1 x LAN, 2 x USB3.0, 2 x USB2.0, VGA/HDMI display, DC12~24V DC IN | CPU:N305, RAM:null, mSATA:null, 1 x RS-232/485, 1 x RS232, 2 x PoE LAN, 1 x LAN, 2 x USB3.0, 2 x USB2.0, VGA/HDMI display, DC12~24V DC IN |
| Options | |||
| Memory | DDR4-3200MHz: 4GB, 8GB, 16GB, 32GB | ||
| mSATA SSD | 64GB, 128GB, 256GB, 512GB, 1TB | ||
| Wifiset | mini PCIE: Intel 7260 | ||
| 3G/4G Module | mini PCIE: EC20, EG25, EC25 | ||
| Mount Option | DIN-Rail | ||
