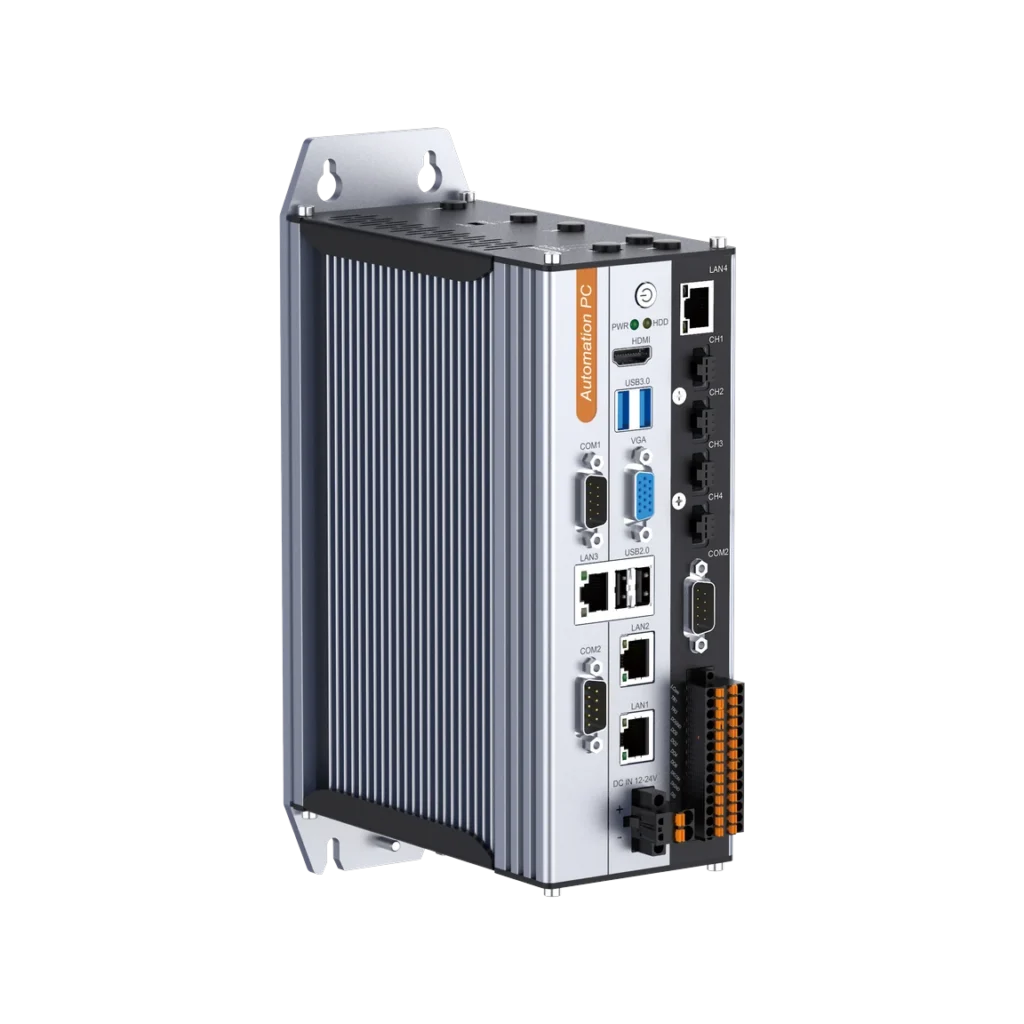

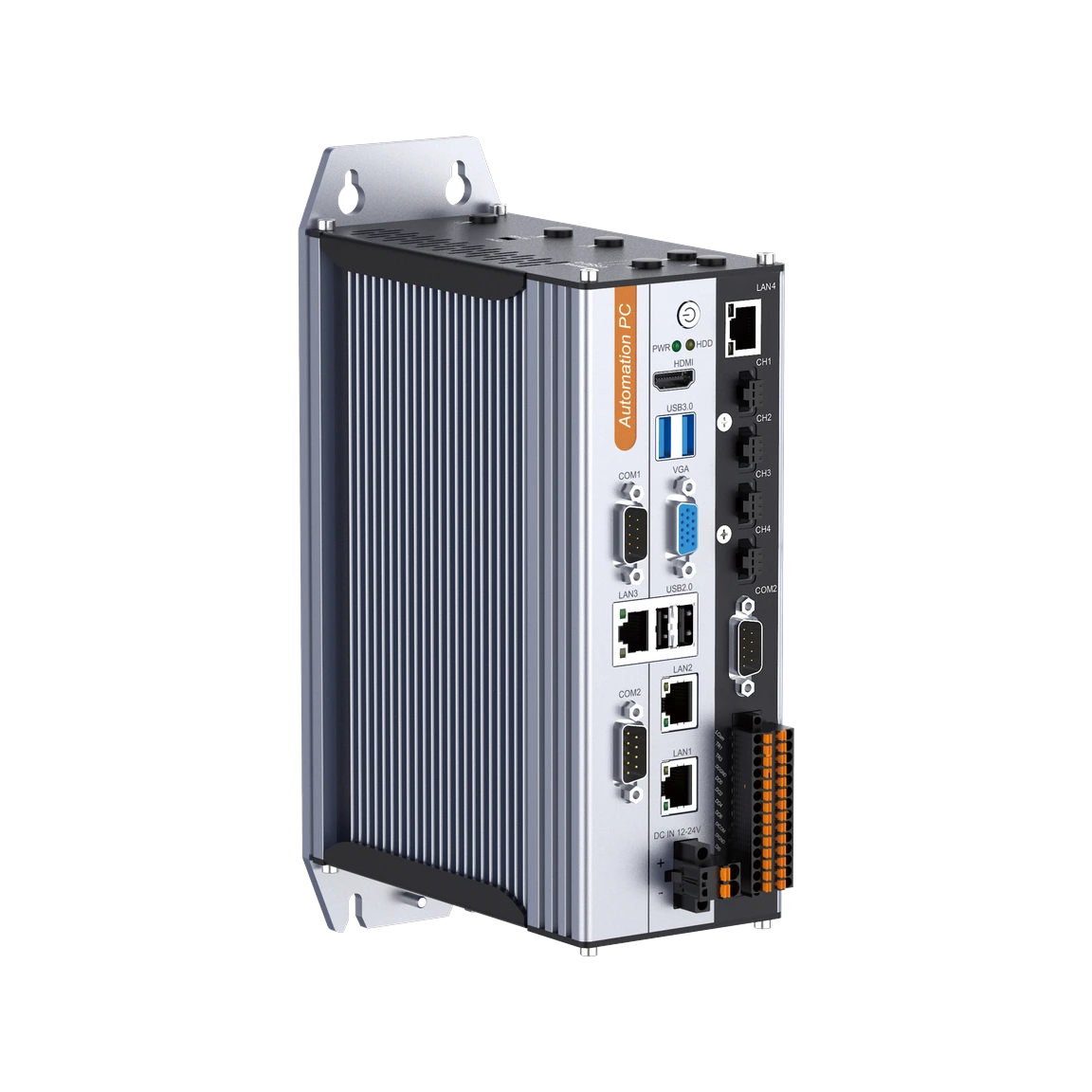

NP-6113-MVS-L1 Series | Fanless Automation PC
Fanless Automation PC with Intel® J6412/N97/Core™ i3-N305, 2 x PoE LAN, 2 x GbE, 1 x RS232/485, 1 x RS232, 1 x RS485, 8 x DI, 8 x DO, 4 x PWM light control, external trigger input, mSATA, dual Mini PCIe, VGA/HDMI, and wall-mount or DIN-rail installation.
Features
- Fanless Automation PC with Intel® Celeron® J6412, Intel® N97, or Intel® Core™ i3-N305
- 1 x additional Intel GbE LAN controller extended through the Mini PCIe expansion slot
- 4 x PWM light control with 4 x external trigger input for machine vision integration
- 8 x DI (NPN/PNP) and 8 x DO (NPN) for industrial signal handling
- 2 x Intel GbE PoE LAN and 1 x Intel i210-AT GbE LAN
- 1 x RS232/RS485, 1 x RS232, and 1 x RS485 for equipment communication
- 2 x USB3.0, 2 x USB2.0, plus 1 x onboard USB2.0 Type-A for dongle
- 1 x SO-DIMM DDR4-3200 memory slot, up to 32GB
- 1 x mSATA storage interface for compact solid-state deployment
- 2 x Full-size Mini PCIe slots with SIM card holder for Wi-Fi, 3G, 4G, or CAN expansion
- VGA and HDMI display outputs for local display integration
- DC12~24V input with overcurrent, overvoltage, and reverse polarity protection
- Must use DC24V input when light control functionality is used
- Aluminum-magnesium alloy fanless chassis for wall-mount or DIN-rail installation
Fanless Automation PC Product Information
| Technical Specifications | |||
|---|---|---|---|
| Model Name | NP-6113-MVS-L1-J6412 | NP-6113-MVS-L1-N97 | NP-6113-MVS-L1-N305 |
| System | |||
| CPU | Intel® Celeron® J6412, 2.0GHz, 4 Cores / 4 Threads, 1.5MB L2 Cache | Intel® N97, 2.0GHz, 4 Cores, 6MB Intel® Smart Cache | Intel® Core™ i3-N305, 2.0GHz, 8 Cores / 8 Threads, 6MB Intel® Smart Cache |
| TDP | 10W | 12W | 15W |
| BIOS | AMI UEFI BIOS | ||
| Memory | 1 x SO-DIMM DDR4-3200MT/s (up to 32GB) | ||
| Storage | 1 x mSATA, SATA3.0 | ||
| USB | 2 x USB3.0, 2 x USB2.0 1 x USB2.0 Type-A on the board for USB dongle | ||
| COM | 1 x RS232/RS485 (COM1), Maximum baud rate: 115.2kbit/s 1 x RS232 (COM2), Maximum baud rate: 115.2kbit/s 1 x RS485 (COM3), Maximum baud rate: 115.2kbit/s | ||
| PoE LAN | 2 x Intel GbE PoE LAN controller, maximum 15W per channel, IEEE 802.3af, Power supply mode: Alternative A (Power supply by 1/2 and 3/4 line pairs) | ||
| Ethernet | 1 x Intel i210-AT GbE LAN controller | ||
| Extended LAN | 1 x Intel i210 GbE LAN controller (Extended through the mini PCIe expansion slot) | ||
| Light Control | 4 x PWM Light Control, Imax: 1A per channel 4 x External trigger input | ||
| DI | 8 x DI, NPN/PNP | ||
| DO | 8 x DO, NPN, Imax: 0.5A | ||
| Remote | 1 x SW | ||
| VGA | Support up to 1920 x 1080 @60Hz | ||
| HDMI | Support up to 3840 x 2160 @30Hz | ||
| Expansion | 2 x Full-size PCIe Mini slot with SIM card holder, expansion WIFI / 3G / 4G / CAN modules | ||
| Watch Dog | 1~255 levels programmable | ||
| TPM | fTPM | dTPM: SLB9672XU2.0 | |
| OS | |||
| Microsoft Windows | Windows 10, Windows 11 | ||
| Linux | Ubuntu, Debian | ||
| Power | |||
| Voltage Input | DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection (Must be DC24V when using Light Control) | ||
| Power Consumption | Max. 200W | ||
| Chassis | |||
| Structure | Aluminum-magnesium alloy box, fanless, wall-mounted or DIN-Rail | ||
| Dimensions | (L)200mm x (W)150.5mm x (H)74.6mm | ||
| Environment | |||
| Work Temperature | -20ºC ~ 60ºC (-4℉ ~ 140℉) with air flow (SSD) | ||
| Storage Temperature | -40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD) | ||
| Relative Humidity | 95%@40℃ (Non-condensing) | ||
| Operating Vibration | 5~500Hz, 3Grms@with SSD and Wall-mounted, Follow IEC60068-2-64 | ||
| Operating Shock | 30G peak acceleration (11ms duration) with SSD and Wall-mounted, Follow IEC60068-2-27 | ||
| EMC | CE EMC, Follow IEC/EN61000-6-2, IEC/EN 61000-6-4, FCC Class A | ||
| Safety | Follow IEC/EN 62368-1 | ||
| Ordering Information | |||
|---|---|---|---|
| Model Name | NP-6113-MVS-L1-J6412 | NP-6113-MVS-L1-N97 | NP-6113-MVS-L1-N305 |
| Description | CPU:J6412, RAM: null, mSATA: null, 1 x RS-232/485, 1 x RS232, 1 x RS485, 2 x PoE LAN, 2 x LAN, 2 x USB3.0, 2 x USB2.0, 8 x DI, 8 x DO, 4 x PWM Light control support external Trigger input, VGA/HDMI display, DC12~24V DC IN (Must be DC24V power input when using light control functionalities) | CPU:N97, RAM: null, mSATA: null, 1 x RS-232/485, 1 x RS232, 1 x RS485, 2 x PoE LAN, 2 x LAN, 2 x USB3.0, 2 x USB2.0, 8 x DI, 8 x DO, 4 x PWM Light control support external Trigger input, VGA/HDMI display, DC12~24V DC IN (Must be DC24V power input when using light control functionalities) | CPU:N305, RAM: null, mSATA: null, 1 x RS-232/485, 1 x RS232, 1 x RS485, 2 x PoE LAN, 2 x LAN, 2 x USB3.0, 2 x USB2.0, 8 x DI, 8 x DO, 4 x PWM Light control support external Trigger input, VGA/HDMI display, DC12~24V DC IN (Must be DC24V power input when using light control functionalities) |
| Options | |||
| 2pin Power Supply Terminal | JF7.000041.00.D03, 5.08mm 1*2pin | ||
| 28pin IO-terminal | JF7.000025.00.D03, 3.5mm 2*14pin | ||
| DIN-Rail Kit | C78.DGAZ03.00.NDJ | ||
| Wall-mounted Kit | L21.000225.10.NKC | ||
