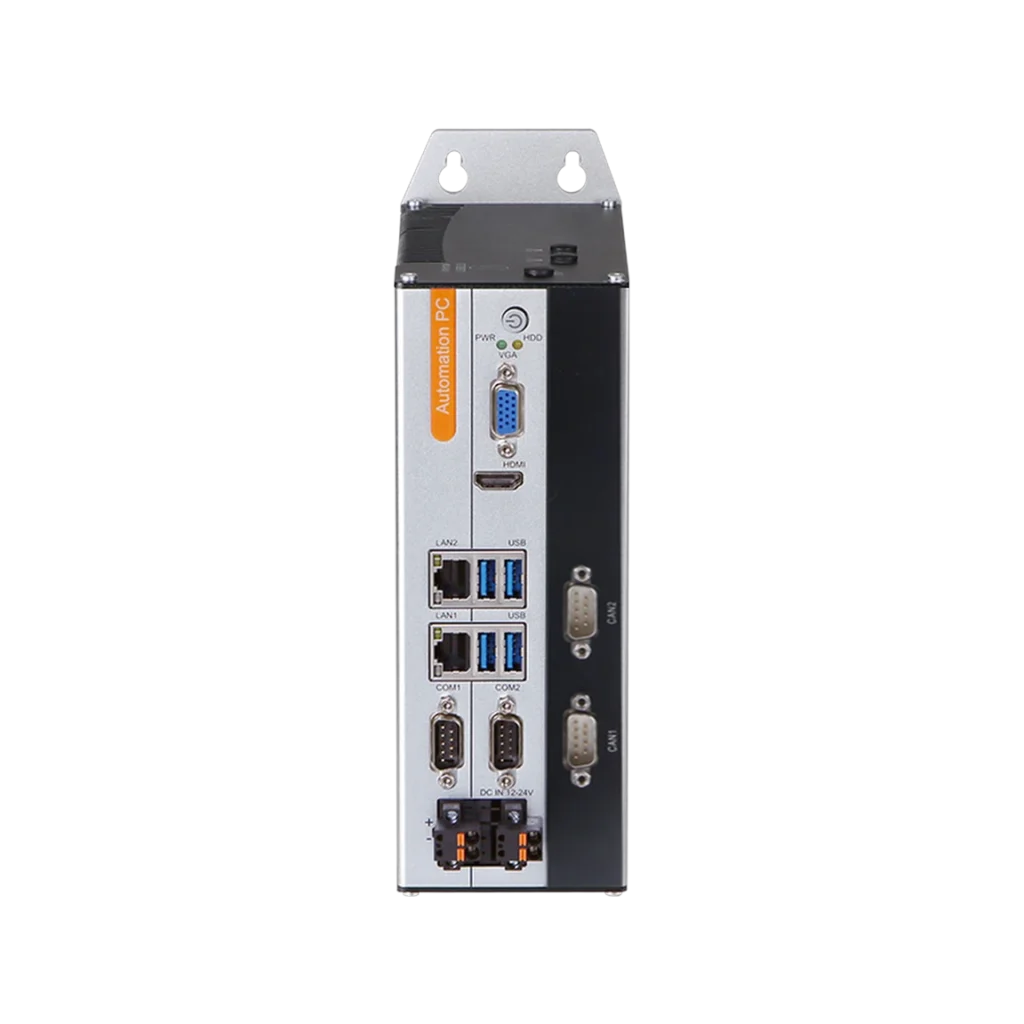

NP-6125-CAN2 / NP-6135-CAN2 | Control Cabinet Industrial Automation PC with CAN Bus
Control cabinet industrial automation PC supports Intel Core CPUs (Max. 65W TDP), 2 x CAN Bus, 2 x RS232/RS485, and multiple I/O interfaces.
Features
- Control Cabinet Industrial PC with DIN Rail & wall-mounting support for easy integration
- Supports Intel® Core™ 6th-8th Gen i7/i5/i3 / 10th-11th Gen i9/i7/i5/i3 processors (Max. 65W TDP)
- 2 x CAN Bus 2.0 A/B for motion control, robotic systems, and industrial networking
- 2 x Gigabit LAN ports for industrial Ethernet communication
- 2 x RS232/RS485 (DB-9), selectable RS232 or RS485 mode, RS485 supports auto flow control
- Dual video output: VGA (1920×1080 @60Hz) & HDMI (3840×2160 @60Hz) for industrial HMI applications
- Wide-range DC12~24V power input with overcurrent, overvoltage, and polarity protection
- Fan-embedded aluminum chassis designed for continuous 24/7 operation in harsh environments
Control Cabinet Industrial Automation PCs Product Information
| Technical Specifications | ||
|---|---|---|
| Model Name | NP-6125-CAN2 | NP-6135-CAN2 |
| System | ||
| CPU | Supports Intel(r) CoreTM 6th-8th Gen i7/i5/i3/Pentium/Celeron (LGA1151, Max. 65W TDP) | Supports Intel(r) CoreTM 10th-11th Gen i9/i7/i5/i3 (LGA1200, Max. 65W TDP) |
| BIOS | AMI UEFI 64Mbit | |
| Memory | 2 x SO-DIMM DDR4, max up to 32GB | |
| Storage | 1 x mSATA bay, 1 x M.2 (B Key, Type 2280) bay supporting SATA | |
| I/O Interfaces | ||
| USB | 4 x USB3.0, 1 x USB2.0 Type A (for USB dongle) | |
| Serial Ports | 2 x RS232/RS485 (DB-9), selectable RS232 or RS485 mode, RS485 supports auto flow control | |
| Ethernet | 2 x Intel GbE LAN controller | |
| CAN Bus | 2 x CAN Bus 2.0 A/B | |
| Display | VGA (1920x1080 @60Hz), HDMI (3840x2160 @60Hz) | VGA (1920x1200 @60Hz), HDMI (3840x2160 @60Hz) |
| Expansion Slots | ||
| Mini-PCIe Slots | 1 x Full-size PCIe Mini slot with SIM card holder (USB signal support) | |
| Power | ||
| Voltage Input | DC12~24V ±10%, overcurrent, overvoltage, and polarity inverse protection | |
| Power Consumption | Max. 120W | |
| Chassis | ||
| Structure | Aluminum-magnesium alloy BOX with fan-embedded cooling, Wall-mounted or DIN-Rail fixing style | |
| Dimensions | (L)200mm x (W)154.5mm x (H)74.6mm | |
| Net Weight | 2.0Kg | |
| Environmental | ||
| Operating Temperature | -20ºC ~ 60ºC (-4℉~140℉) with air flow (SSD) | |
| Storage Temperature | -40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD) | |
| Relative Humidity | 5~95% (Non-condensing) | |
| Operating Vibration | 5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64 | |
| Operating Shock | 20G peak acceleration (11ms duration) with SSD, Follow IEC60068-2-27 | |
| EMC | CE/FCC Class A | |
| Ordering Information | ||
|---|---|---|
| Model Name | NP-6125-CAN2 | NP-6135-CAN2 |
| Description | Control cabinet industrial automation PC, supports Intel Core 6th-8th Gen CPU, 2 x LAN, 2 x CAN Bus, 2 x RS232/RS485, mSATA & M.2 storage, DC12~24V input | Control cabinet industrial automation PC, supports Intel Core 10th-11th Gen CPU, 2 x LAN, 2 x CAN Bus, 2 x RS232/RS485, mSATA & M.2 storage, DC12~24V input |
| Options | ||
| CPU | Supports Intel(r) CoreTM 6th-8th Gen i7/i5/i3/Pentium/Celeron (LGA1151, Max. 65W TDP) | Supports Intel(r) CoreTM 10th-11th Gen i9/i7/i5/i3 (LGA1200, Max. 65W TDP) |
| Memory | DDR4 SO-DIMM, Up to 32GB | |
| Storage | mSATA: 64GB, 128GB, 256GB, 512GB, 1TB M.2 SATA: 128GB, 256GB, 512GB, 1TB, 2TB | |
| WiFi Module | M.2 2230 Key-E WiFi Kit (Optional) | |
| 3G/4G Module | Mini-PCIe: EC20, EG25, EC25 (Optional) | |
| Mounting Option | Wall-mount & DIN Rail mounting | |
