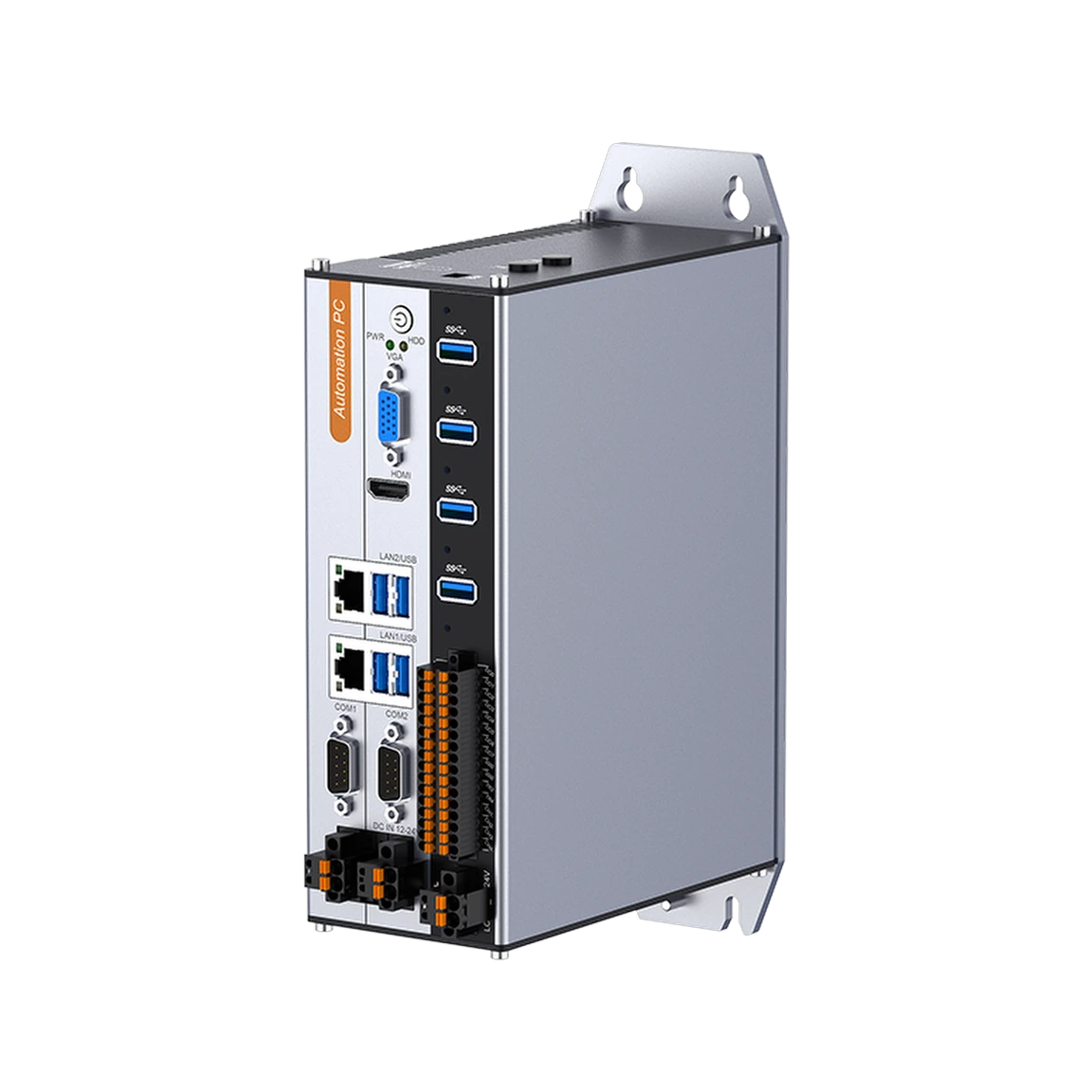

NP-6125-H7 / NP-6135-H7 | Machine Vision Automation PC
Machine Vision Automation PC supports Intel Core CPUs (Max. 65W TDP), 8DI/8DO, PWM light control, and multiple I/O interfaces
Features
- Machine Vision Automation PC with DIN Rail & wall-mount support
- Supports Intel® Core™ 6th–8th Gen / 10th–11th Gen processors (Max. 65W TDP)
- 8 x DI / 8 x DO Digital I/Os for reliable industrial control
- 4 x PWM Light Control + 4 x Trigger Input, DC24V (1A per channel)
- Dual Gigabit LAN and RS232/RS485 communication ports
- HDMI (4K @60Hz) and VGA display outputs for HMI and visual applications
- Wide-range DC12~24V power input with protection features
- Aluminum chassis with fan for stable 24/7 operation in harsh environments
Machine Vision Automation PC Product Information
| Technical Specifications | ||
|---|---|---|
| Model Name | NP-6125-H7 | NP-6135-H7 |
| System | ||
| CPU | Intel(r) CoreTM 6th/7th/8th Gen i3/i5/i7, Pentium, Celeron (LGA1151) | Intel(r) CoreTM 10th/11th Gen i9/i7/i5/i3 (LGA1200) |
| TDP | Max. 65W | |
| BIOS | AMI UEFI 64Mbit | |
| Memory | 2 x DDR4 SO-DIMM, up to 32GB | |
| Storage | 1 x mSATA bay, 1 x M.2 (B Key, Type 2280) SATA SSD bay | |
| I/O Interfaces | ||
| USB | 8 x USB3.0, 1 x USB2.0 (onboard for dongle) | |
| Serial Ports | 2 x RS232/RS485 (DB9), switch selectable, RS485 supports auto flow control | |
| Ethernet | 2 x Intel GbE LAN | |
| Digital I/O | 8 x DI (NPN/PNP), 8 x DO (Transistor, Imax 0.5A) | |
| Light Control | 4 x PWM Control, 4 x External Trigger, DC24V, Imax 1A per channel | |
| Display | VGA (1920x1080 @60Hz), HDMI (3840x2160 @60Hz) | |
| Expansion | ||
| Mini-PCIe | 1 x Full-size Mini-PCIe with SIM slot | |
| Power | ||
| Input Voltage | DC12~24V ±10%, over-current, over-voltage, reverse polarity protection | |
| Power Consumption | Max. 120W (Light powered separately, configure supply accordingly) | |
| Chassis | ||
| Structure | Aluminum-magnesium alloy chassis with fan, wall or DIN-Rail mounting | |
| Dimensions | 200mm x 154.5mm x 74.6mm | |
| Net Weight | 2.4 kg | |
| Environment | ||
| Operating Temperature | -20ºC ~ 60ºC with airflow (SSD) | |
| Storage Temperature | -40ºC ~ 80ºC with airflow (SSD) | |
| Humidity | 5~95% RH (Non-condensing) | |
| Vibration | 5~500Hz, 1.5Grms (IEC60068-2-64) | |
| Shock | 20G peak, 11ms duration (IEC60068-2-27) | |
| EMC | CE/FCC Class A | |
| OS Support | ||
| Operating Systems | Windows 10, Ubuntu, CentOS, Debian | |
| Ordering Information | ||
|---|---|---|
| Model Name | NP-6125-H7 | NP-6135-H7 |
| Description | Machine Vision Automation PC, supports Intel Core 6th-8th Gen CPUs, 2 x LAN, 2 x RS232/485, 8DI/8DO, 4 x PWM Light Control, mSATA & M.2 SATA SSD, DC12~24V input | Machine Vision Automation PC, supports Intel Core 10th-11th Gen CPUs, 2 x LAN, 2 x RS232/485, 8DI/8DO, 4 x PWM Light Control, mSATA & M.2 SATA SSD, DC12~24V input |
| Options | ||
| CPU | Intel(r) CoreTM 6th/7th/8th Gen i3/i5/i7, Pentium, Celeron (LGA1151, Max. 65W TDP) | Intel(r) CoreTM 10th/11th Gen i9/i7/i5/i3 (LGA1200, Max. 65W TDP) |
| Memory | DDR4 SO-DIMM, 4GB, 8GB, 16GB, 32GB | |
| Storage | mSATA: 64GB, 128GB, 256GB, 512GB, 1TB M.2 SATA: 128GB, 256GB, 512GB, 1TB, 2TB |
|
| Wireless Module | M.2 2230 Key-E WiFi module (Optional) | |
| 3G/4G Module | Mini-PCIe: EC20, EG25, EC25 (Optional) | |
| Mounting Options | Wall-mount & DIN Rail mounting | |
