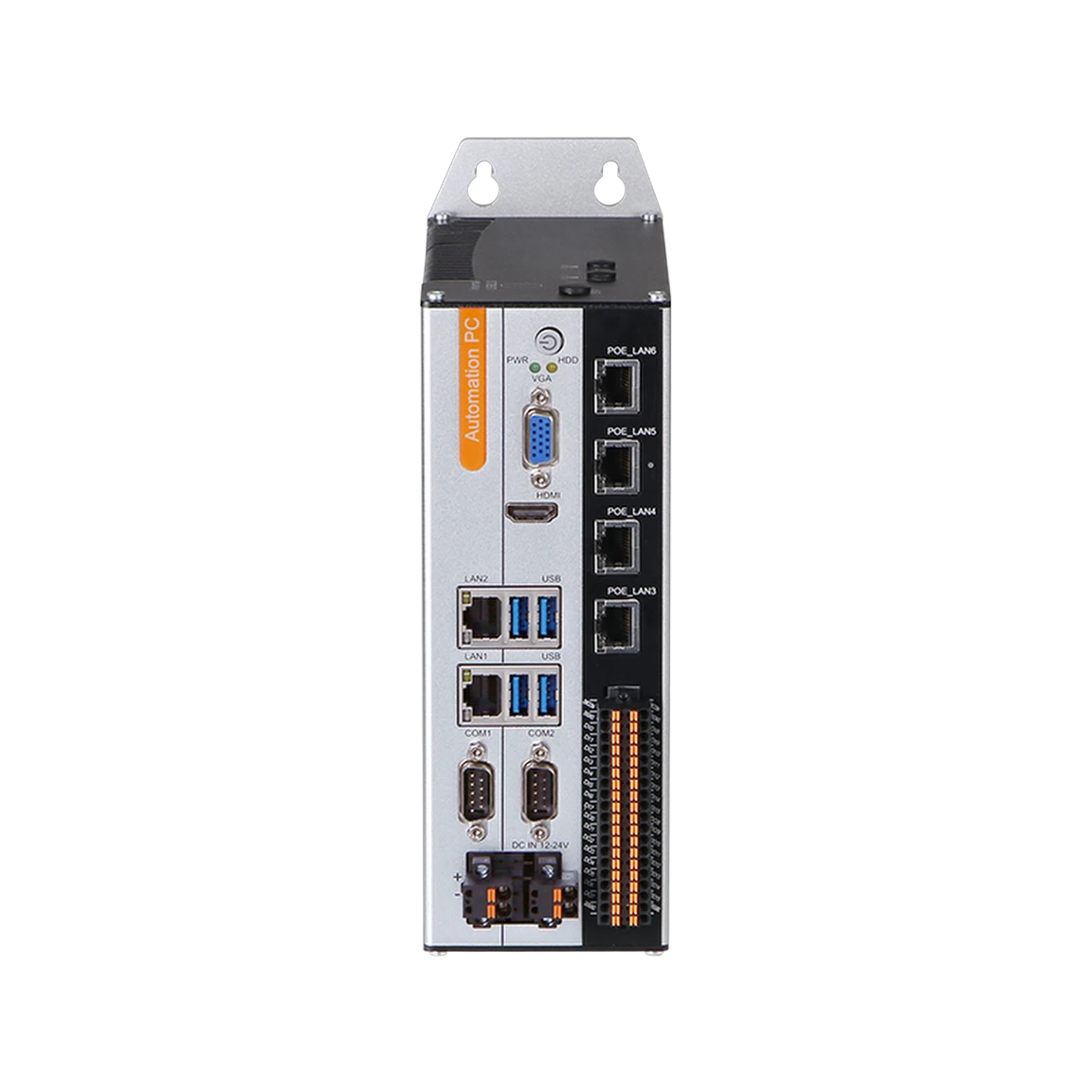

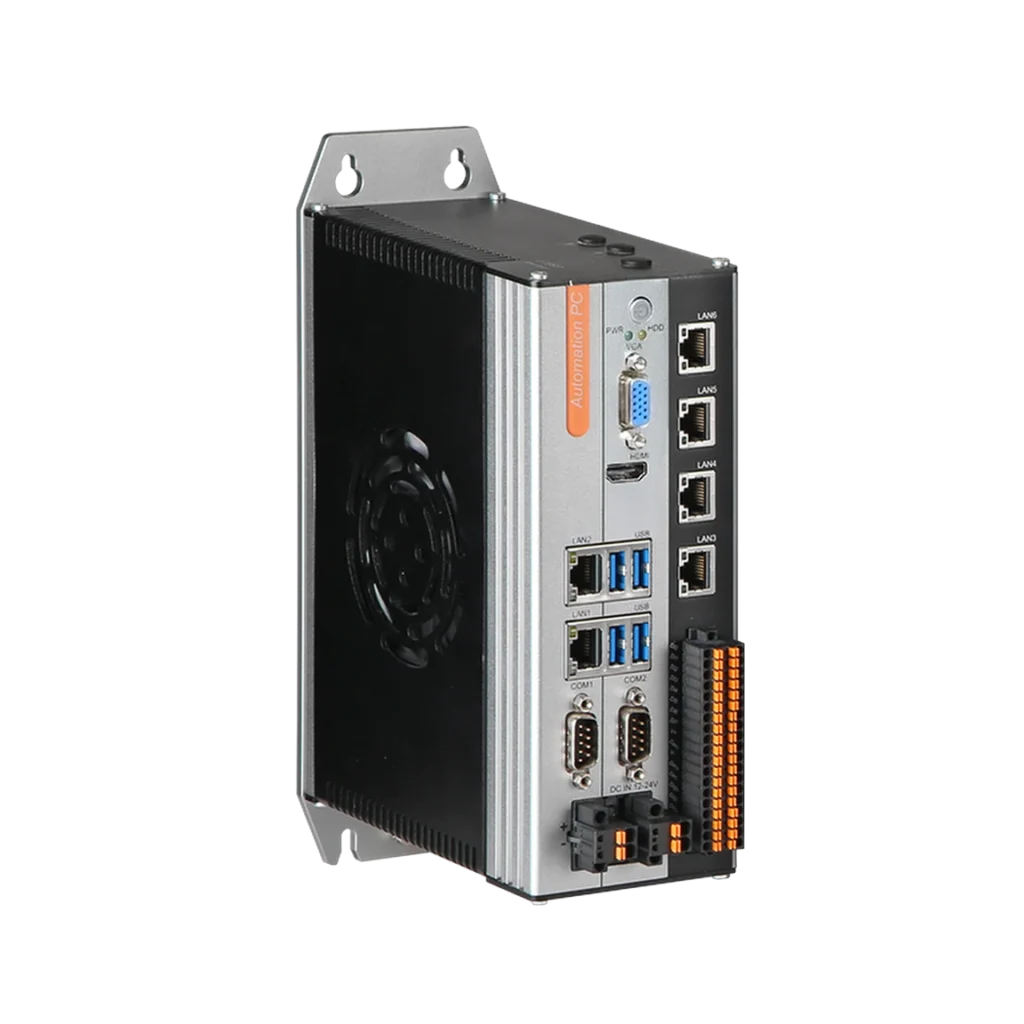

NP-6135-H1B Ultra Automation PC | PoE, 16DI/16DO
Industrial automation PC with Intel® Core™ Ultra CPUs, 4 x PoE LAN, 2 x RS232/RS485, 16DI/16DO, mSATA, M.2 2280 SATA, and DC12~24V input.
Features
- Supports Intel® Core™ Ultra 125H and Intel® Core™ Ultra 255H processors
- Integrated Intel® Arc graphics and Intel® AI Boost for advanced automation workloads
- 2 x Intel i210-AT GbE LAN plus 4 x Intel GbE PoE LAN for machine, camera, and network integration
- 2 x RS232/RS485 serial ports for field device and controller communication
- 16 x DI and 16 x DO for high-density machine I/O interfacing
- 4 x USB3.0 plus 1 x onboard USB2.0 Type-A for USB dongle use
- Supports VGA and HDMI dual display output
- 1 x mSATA plus 1 x M.2 2280 KEY-B SATA3.0 storage interface
- 1 x full-size Mini PCIe slot with SIM card holder for Wi-Fi, 3G, 4G, or CAN expansion
- DC12~24V power input with overcurrent, overvoltage, and reverse-polarity protection
Control Cabinet Industrial Automation PC Product Information
| Technical Specifications -- NP-6135-H1B Ultra | ||
|---|---|---|
| Model Name | NP-6135-H1B-125H | NP-6135-H1B-255H |
| System | ||
| CPU | Intel® Core™ Ultra 125H CPU, 14 cores/18 threads, Base Frequency 1.2GHz(P-core)/700MHz(E-core) | Intel® Core™ Ultra 255H CPU, 16 cores/16 threads, Base Frequency 2GHz(P-core)/1.5GHz(E-core) |
| TDP | 28W | |
| BIOS | AMI UEFI BIOS | |
| GPU | Intel® Arc graphics | Intel® Arc 140T GPU |
| NPU | Intel® AI Boost | |
| Peak TOPS | 33 (GPU18+NPU11) | 96 (GPU74+NPU13) |
| Memory | 2 x SO-DIMM DDR5-5600MT/s (up to 96GB) | |
| Storage | 1 x mSATA, SATA3.0 1 x M.2 2280 KEY-B, SATA3.0 |
|
| USB | 4 x USB3.0 1 x USB2.0, Type-A on the board for USB dongle |
|
| COM | 2 x RS232/RS485 (COM1 and COM2), Maximum baud rate: 115.2kbit/s | |
| Ethernet | 2 x Intel i210-AT GbE LAN controller | |
| PoE LAN | 4 x Intel GbE PoE LAN controller, maximum 15W per channel, IEEE 802.3af, Power supply mode: Alternative A (Power supply by 1/2 and 3/4 line pairs) | |
| Remote | 1 x SW | |
| DI | 16 x DI, NPN/PNP | |
| DO | 16 x DO, NPN, Imax: 0.5A | |
| VGA | Support up to 1920 x 1080 @60Hz | |
| HDMI | Support up to 3840 x 2160 @60Hz | |
| Expansion | 1 x Full-size PCIe Mini slot with SIM card holder, expansion WIFI/3G/4G/CAN modules | |
| Watch Dog | 1~255 levels programmable | |
| TPM | dTPM: SLB9672XU2.0 | |
| OS | ||
| Microsoft Windows | Windows 10, Windows 11 | |
| Linux | Ubuntu, Debian | |
| Power | ||
| Voltage Input | DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection | |
| Power Consumption | Max. 150W | |
| Chassis | ||
| Structure | Aluminum-magnesium alloy BOX with fan embedded to assist cooling, Wall-mounted or DIN-Rail fixing style. | |
| Dimensions | (L)200mm x (W)150.5mm x (H)74.6mm | |
| Net Weight | 1.9Kg | |
| Environment | ||
| Work Temperature | -20ºC ~ 60ºC (-4℉ ~ 140℉) with air flow (SSD) | |
| Storage Temperature | -40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD) | |
| Relative Humidity | 95%@40 ℃ (Non-condensing) | |
| Operating Vibration | 5~500Hz, 3Grms@with SSD and Wall-mounted, Follow IEC60068-2-64 | |
| Operating Shock | 30G peak acceleration (11ms duration) with SSD and Wall-mounted, Follow IEC60068-2-27 | |
| EMC | CE EMC, Follow IEC/EN61000-6-2, IEC/EN 61000-6-4, FCC Class A | |
| Safety | Follow IEC/EN 62368-1 | |
| Ordering Information -- NP-6135-H1B Ultra | ||
|---|---|---|
| Model Name | NP-6135-H1B-125H | NP-6135-H1B-255H |
| Part No. | B73.61350.0R.0008 | B73.61350.0R.0005 |
| Description | CPU: Ultra 125H, RAM: NULL, mSATA: NULL, M.2 SATA: NULL, 2 x RS232/485, 2 x LAN, 4 x USB3.0, 4 x PoE LAN, 16 x DI, 16 x DO, HDMI/VGA display, DC12-24V DC IN | CPU: Ultra 255H, RAM: NULL, mSATA: NULL, M.2 SATA: NULL, 2 x RS232/485, 2 x LAN, 4 x USB3.0, 4 x PoE LAN, 16 x DI, 16 x DO, HDMI/VGA display, DC12-24V DC IN |
| Options | ||
| Memory | DDR5-5600MHz: 4GB, 8GB, 16GB, 32GB, 48GB | |
| mSATA SSD | 64GB, 128GB, 256GB, 512GB, 1TB | |
| M.2 SATA 2280 | 128GB, 256GB, 512GB, 1TB, 2TB | |
| Wifi Set | mini PCIE: Intel 7260 | |
| 3G/4G Module | mini PCIE: EC20, EG25, EC25 | |
| Mount Option | DIN-Rail | |
| Parts Information Reference -- NP-6135-H1B Ultra | ||
| Name | Part No. | Specification / Qty for JH2B/H1B |
| 2pin power supply terminal | JF7.000037.00.D03 | 5.08mm 1*2pin / 2 |
| 38pin IO-terminal | JF7.000027.00.D03 | 3.5mm 2*19pin / 1 |
| DIN-Rail | C78.DGAZ03.00.NDJ | DIN-Rail / 1 |
| Wall-mounted | L21.000225.10.NKC | Hanging panel / 1 |
