| Technical Specifications |
|---|
| System |
|---|
| CPU | ARM T507 Quad-core CortexTM-A53 1.5GHz |
| Memory | LPDDR4 2GB |
| Storage | eMMC 5.0 16GB |
| USB | 1 x USB Type-C OTG |
| COM | 1 x RS485, Max. baud rate: 115200bps |
| Ethernet | 2 x RJ45 10/100 Mbit/s |
| EtherCAT | 1 x RJ45 EtherCAT |
| I/O Expansions | E-BUS |
| Indicators & Controls |
|---|
| LEDs | 1 x PWR (green), 1 x LINK (green), 4 x Programmable LEDs (RUN, ERR, ALM, FB) |
| Watchdog | 1-255 levels programmable |
| OS Support |
|---|
| Linux | Ubuntu |
| Power |
|---|
| Voltage Input | DC 24V ±15%~20%, with overcurrent, overvoltage, and polarity inverse protection, super capacitor hold for 10s |
| Power Consumption | Max. 24W |
| Chassis |
|---|
| Dimensions | 103.73mm (L) x 53.6mm (W) x 80mm (H) |
| Net Weight | 190g |
| Environment |
|---|
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -40°C ~ 80°C |
| Relative Humidity | 5-95% RH (non-condensing) |
| Vibration | 5-500Hz, 1.5Grms, IEC60068-2-64 |
| Shock | 20G peak, 1ms, IEC60068-2-27 |
| EMC | CE / FCC Class A |
| Ordering Information |
|---|
| Model | CPU | Description |

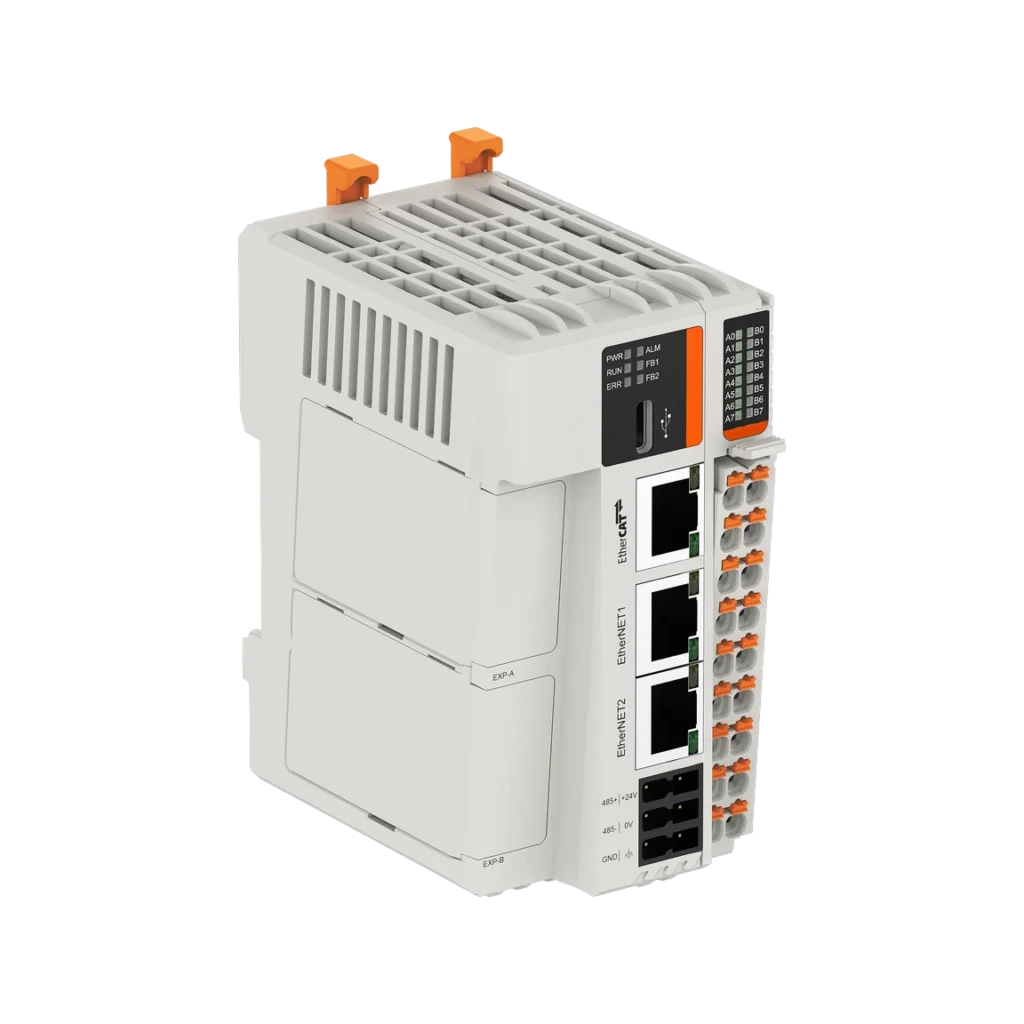

| AC-1181 | ARM T507 Quad-core CortexTM-A53 1.5GHz | Fanless ARM-based DIN-rail controller with 2 x LAN, 1 x RS485, 1 x USB Type-C, 1 x EtherCAT, 8 x DI, 8 x DO, eMMC 16GB, DC24V input |
| Optional Items |
|---|
| EXP-A | AC-1181-CAN-485 |
| EXP-B | AC-1181-RTC |
