AX-1313-T000 / AX-1323-T000 | EtherCAT 32DI + 32DO PNP Digital I/O Modules
High-density PNP 32 input and 32 output EtherCAT modules for distributed automation systems, with selectable input filtering speeds
Features
- 32 digital inputs + 32 digital outputs (PNP type)
- 24VDC nominal input with ±20% tolerance
- Max 0.5A output current per channel with short-circuit protection
- Reverse voltage protection included
- Available with 3ms input filter (AX-1313) or 10μs fast input filter (AX-1323)
- EtherCAT communication with dual RJ45 ports
- Fast switching: TON ~15μs, TOFF ~300μs
- Compact IP30 aluminum enclosure, DIN-rail mountable
- Wide operating temperature range: -25°C to +60°C
DIN-Rail Ethernet I/O Module Product Information
| Technical Specifications | ||
|---|---|---|
| Item | AX-1313-T000 | AX-1323-T000 |
| Number of Inputs | 32 | |
| Nominal Voltage of the Inputs | 24VDC (-15% / +20%) | |
| Input Signal Type | PNP | |
| Signal Voltage "0" | -3V to +5V | |
| Signal Voltage "1" | 11V to 30V | |
| Input Current | Typically 3mA | |
| Input Filter | Typically 3ms | Typically 10μs |
| Number of Outputs | 32 | |
| Output Signal Type | PNP | |
| Output Current per Channel | Max. 0.5A (short-circuit proof) | |
| Reverse Voltage Protection | Yes | |
| Switching Times | TON: typically 15μs; TOFF: typically 300μs | |
| Distributed Clocks | - | |
| Module Current Consumption | Typically 100mA | |
| Electrical Isolation | 500V (EtherCAT/Field voltage) | |
| Operating Temperature Range | -25°C to +60°C | |
| Storage Temperature Range | -40°C to +85°C | |
| Relative Humidity | 95%, no condensation | |
| Dimensions (W x H x D) | 105mm × 164mm × 45mm | |
| Weight | Approx. 300g | |
| Mounting | DIN-Rail | |
| Approvals | CE | |
| Degree of Protection | IP30 | |
| Ordering Information | ||
|---|---|---|
| Model | Description | Notes |

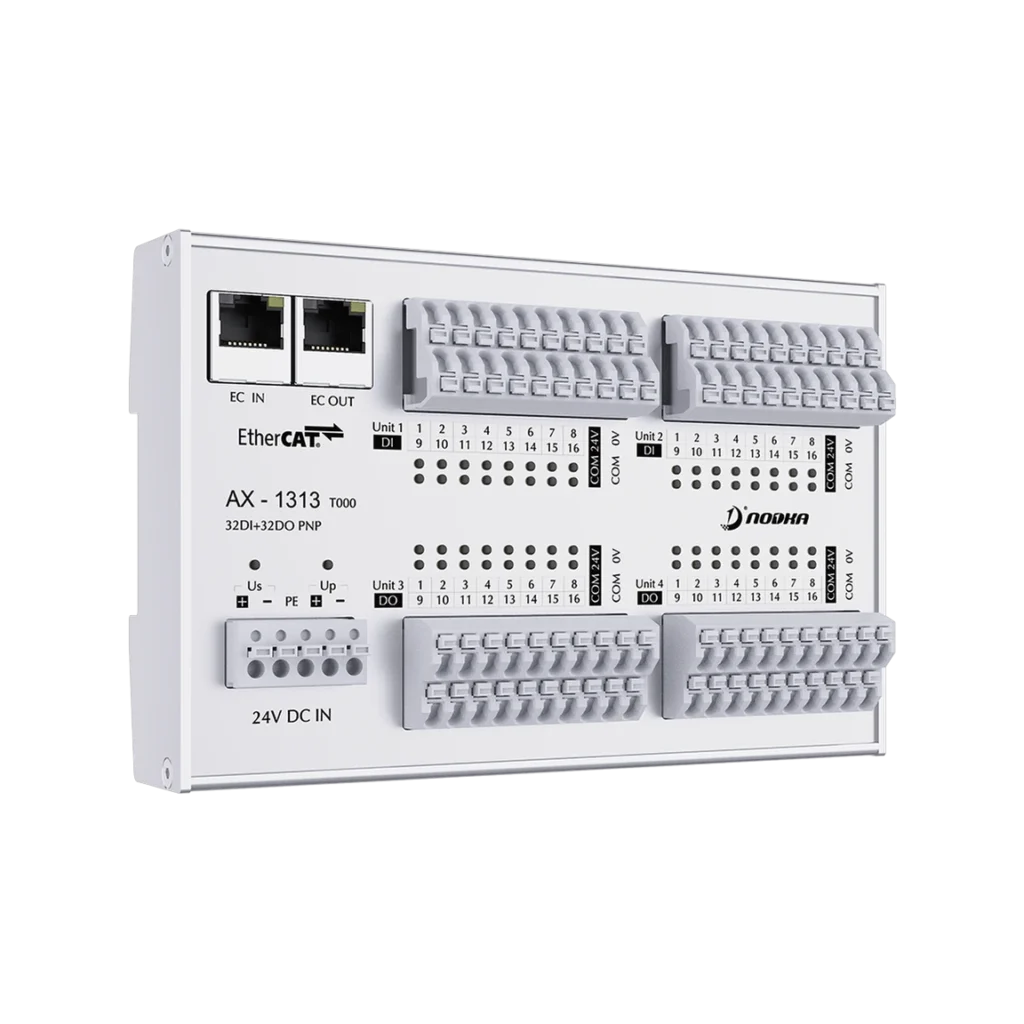

| AX-1313-T000 | 32 DI + 32 DO PNP Digital I/O Module, EtherCAT, 3ms input filter, DIN-Rail Mount | Standard input filter version |

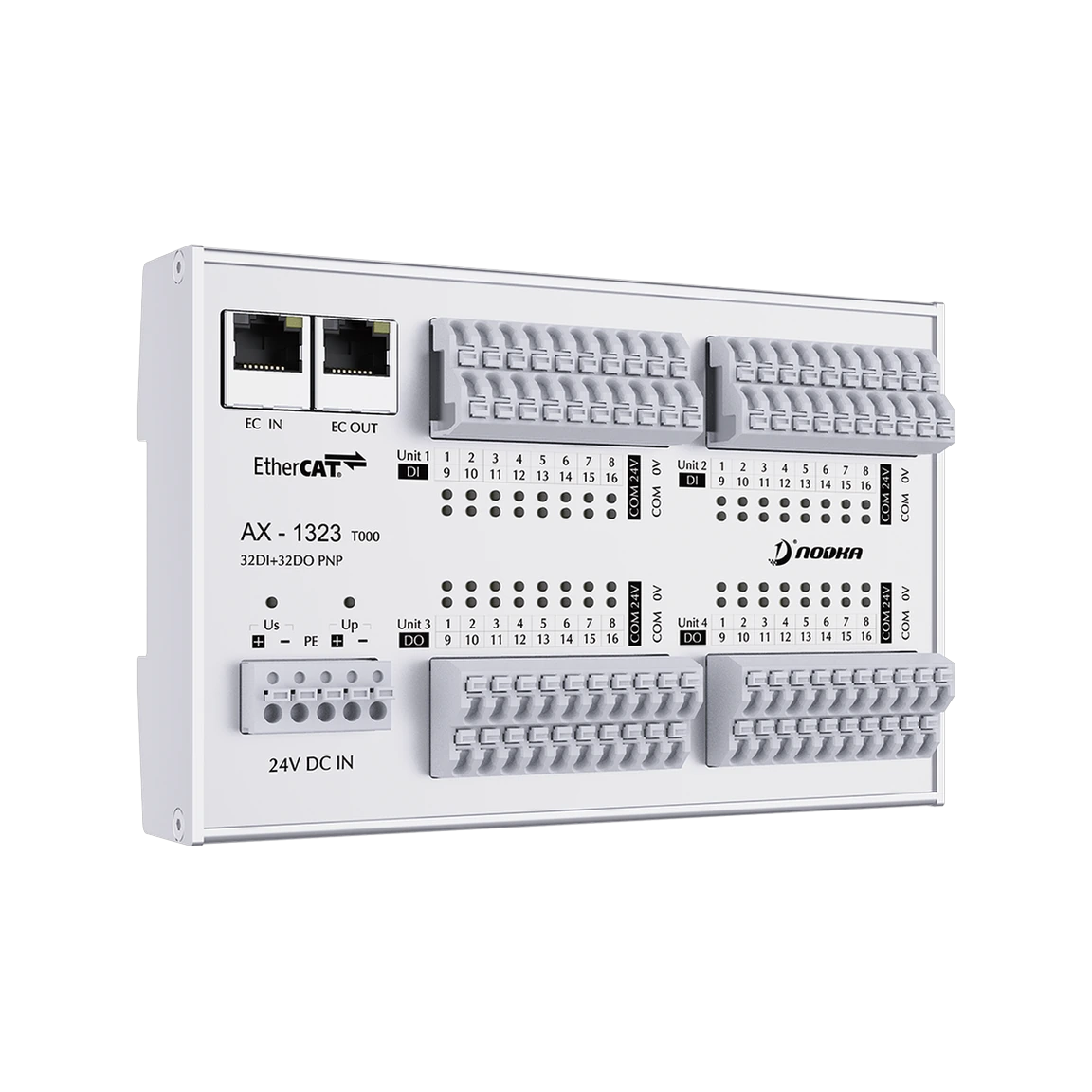

| AX-1323-T000 | 32 DI + 32 DO PNP Digital I/O Module, EtherCAT, 10μs fast input filter, DIN-Rail Mount | High-speed input filter version |
