ABOX-3908 ARM AIOT Edge Gateway
AIOT edge computing gateway with RK3588/RK3576/RK3568 ARM SoC, RS485/232, LAN, HDMI, and wireless expansion
Features
- Available with Rockchip RK3568, RK3576, or RK3588 CPU options
- 4GB/8GB LPDDR4 RAM and 32GB/64GB eMMC onboard storage
- Supports TF card, mSATA (Mini-PCIe), SATA SSD (RK3576/3588)
- 2 x GbE LAN, 3 x USB2.0, 1 x USB3.0 (OTG), 1 x RS232, 1 x RS485
- Optional 3 x RS232/RS485 via internal expansion module
- 1 x HDMI video output (4K on RK3568/3576, 8K on RK3588)
- Onboard Wi-Fi + Bluetooth, Mini-PCIe for Wi-Fi 6/4G, M.2 for 5G
- DC 12~24V wide-range input with electrical protection
- Fanless rugged design, DIN-Rail and wall-mount options
- Supports Android 11/13/14 and Debian 11/12, Ubuntu 20.04
Fanless Control Cabinet Industrial PCs Product Information
| Technical Specifications | |
|---|---|
| Model Name | ABOX-3908 |
| CPU | |
| Processor Options | Rockchip RK3568 (Quad-core Cortex-A55 up to 2.0GHz) Rockchip RK3576 (8-core: 4×Cortex-A72 + 4×Cortex-A53 up to 2.2GHz) Rockchip RK3588 (8-core: 4×Cortex-A55 + 4×Cortex-A76 up to 2.4GHz) |
| GPU | G52 GPU (RK3568) G52 MC3 (RK3576) Mali-G610 MP4 (RK3588) |
| NPU | 1 TOPS (RK3568) 6 TOPS (RK3576 / RK3588) |
| Memory | |
| RAM | Onboard LPDDR4 4GB / 8GB |
| Storage | |
| eMMC | Onboard 32GB / 64GB |
| TF Card | 1 x TF card slot, storage expansion supported |
| Mini-PCIe | 1 x Mini-PCIe (supports mSATA/SATA 3.0 SSD, reused with 4G/Wi-Fi 6 module) |
| SATA 3.0 | 1 x SATA 3.0 (supported with RK3576/RK3588 only) |
| I/O Interfaces | |
| LAN | 2 x 10/100/1000Mbps RJ-45 Ethernet |
| Wi-Fi / Bluetooth | Onboard 2.4G/5G Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.0 |
| Expansion | 1 x Mini-PCIe (4G/Wi-Fi 6), 1 x M.2 (5G module) |
| USB | 3 x USB2.0, 1 x USB3.0 (OTG multiplexed) |
| Serial Ports | 1 x RS485, 1 x RS232, optional 3 x RS232/RS485 via module |
| SIM | 1 x Micro SIM card slot |
| Display | 1 x HDMI (up to 4K / 8K output) |
| Buttons | 1 x Recovery/Flashing button |
| LED | 1 x Power LED (green), 1 x System LED (blue) |
| Operating System | |
| Android | Android 11 (RK3568) Android 14 (RK3576) Android 13 (RK3588) |
| Linux | Debian 11, Ubuntu 20.04 (RK3568) Debian 12, Ubuntu 20.04 (RK3576) Debian 11, Ubuntu 20.04 (RK3588) |
| Power | |
| Input Voltage | DC 12~24V ±10% with overcurrent, overvoltage, reverse polarity protection |
| Power Consumption | ≤ 20W |
| Chassis | |
| Structure | Aluminum-magnesium alloy, fanless, supports wall or DIN-Rail mount |
| Dimensions | 156mm x 112mm x 53.2mm (excluding bracket) |
| Weight | 1.5 kg |
| Environmental | |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -40°C ~ 80°C |
| Humidity | 5-95% @ 40°C, non-condensing |
| Vibration | 1.5Grms, 5-500Hz, 1 hr/axis (IEC 60068-2-64) |
| Shock | 20G peak, 11ms (IEC 60068-2-27) |
| EMC | CE / FCC Class A |
Click the link below to download datasheets or drivers:
| Ordering Information | ||
|---|---|---|
| Part No. | Model | Description |
| B81.A3908.38.0001 | ABOX-3908-4G32-3568 | RK3568, 4GB RAM, 32GB eMMC, 2 x LAN, 3 x USB2.0, 1 x USB3.0 (OTG), 1 x RS232, 1 x RS485, HDMI, Wi-Fi/Bluetooth, Mini-PCIe, M.2, -20~70°C |
| B81.A3908.38.0002 | ABOX-3908-8G64-3568 | RK3568, 8GB RAM, 64GB eMMC, same as above |
| B81.A3908.76.0001 | ABOX-3908-4G32-3576 | RK3576, 4GB RAM, 32GB eMMC, supports SATA SSD, HDMI up to 4K |
| B81.A3908.76.0002 | ABOX-3908-8G64-3576 | RK3576, 8GB RAM, 64GB eMMC, same as above |
| B81.A3908.58.0001 | ABOX-3908-4G32-3588 | RK3588, 4GB RAM, 32GB eMMC, supports 8K HDMI, SATA SSD |
| B81.A3908.58.0002 | ABOX-3908-8G64-3588 | RK3588, 8GB RAM, 64GB eMMC, same as above |
| Options | ||
| Power Adapter | KPL-040F-v1, 40W AC adapter, 12V output with plug (selectable) | |
| Wi-Fi Antenna | Glue-stick or 3M magnetic mount antenna | |
| mSATA SSD | Optional: 128GB / 256GB / 512GB / 1TB | |
| SATA SSD | For RK3576/3588 only: 128GB / 256GB / 512GB / 1TB | |
| Wi-Fi 6 Module | Mini-PCIe module BL-M8852BP3 (802.11 a/b/g/n/ac/ax + BT 5.2) | |
| 3G/4G Module | Mini-PCIe: EC20, EG25, EC25 | |
| 5G Module | M.2: Quectel RM500U module set | |

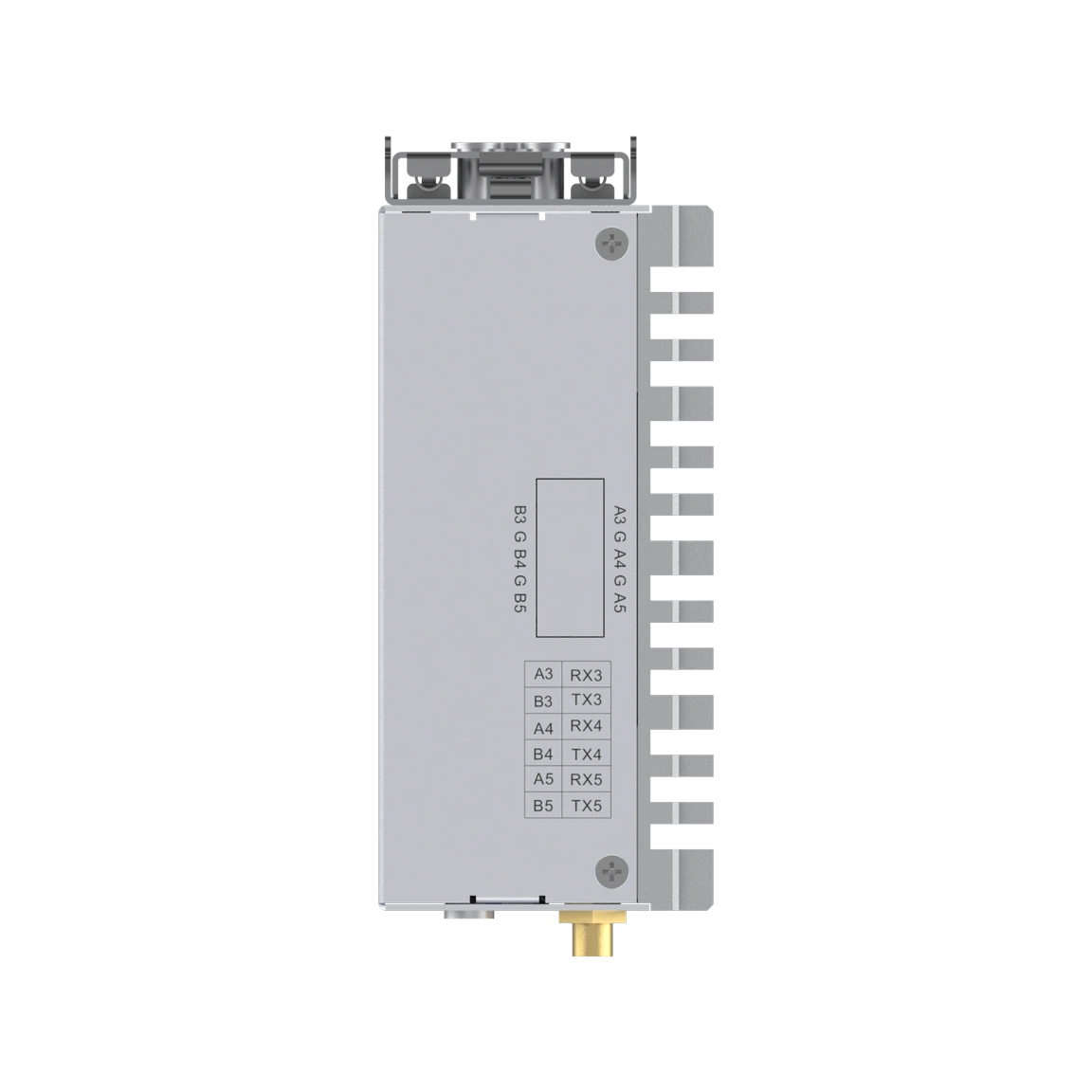

| 3 x RS232/RS485 Module | Optional, user configurable RS232 or RS485 | |
| Mounting | DIN-Rail or wall-mount (default bracket included) | |
