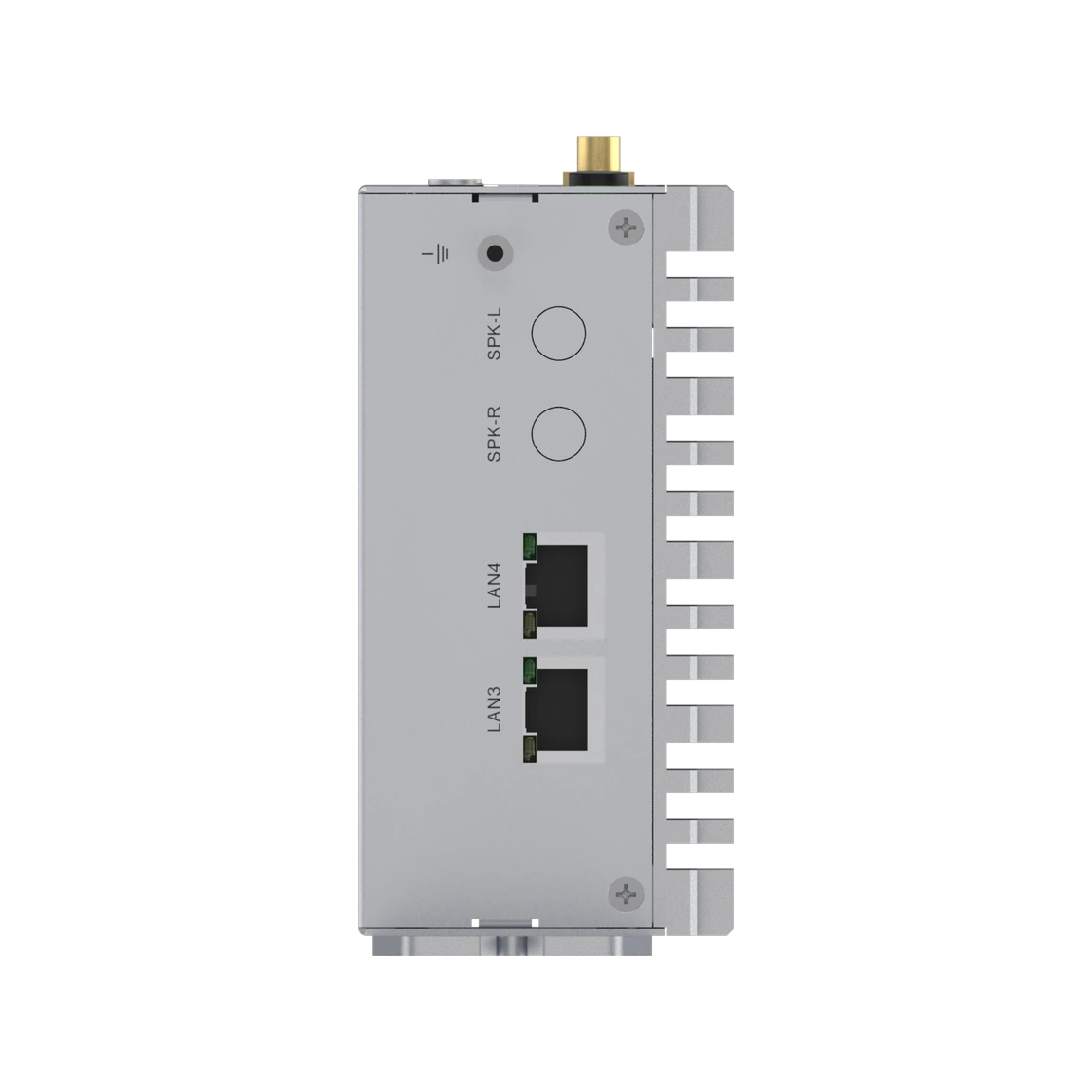

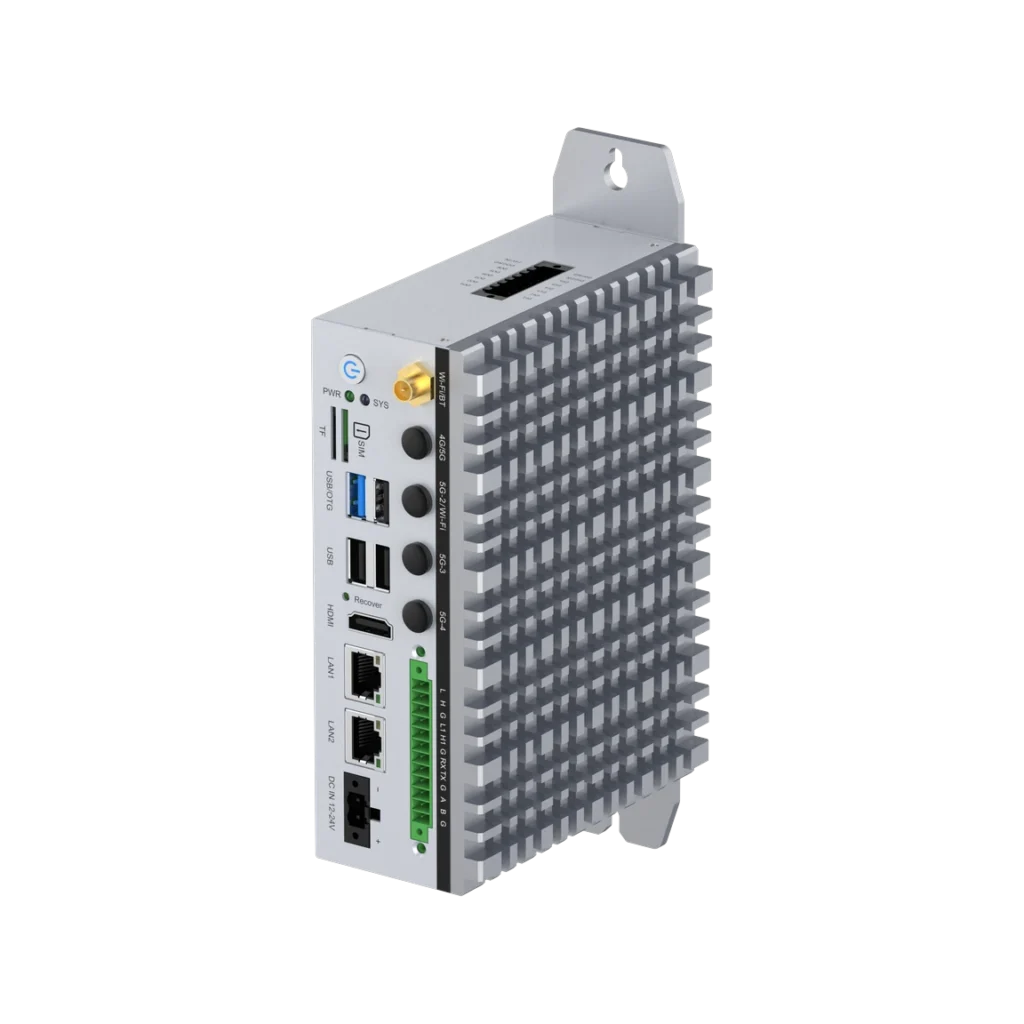

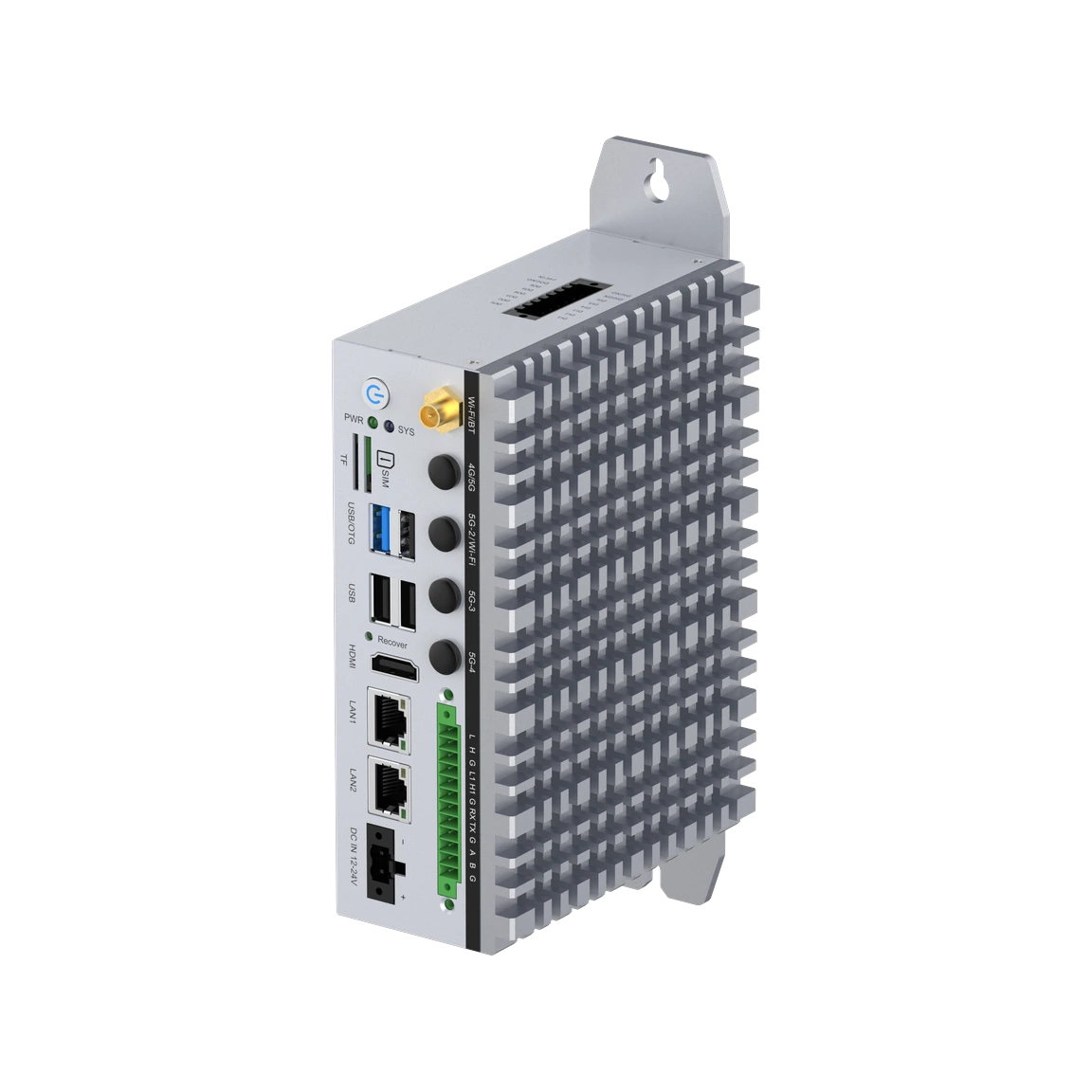

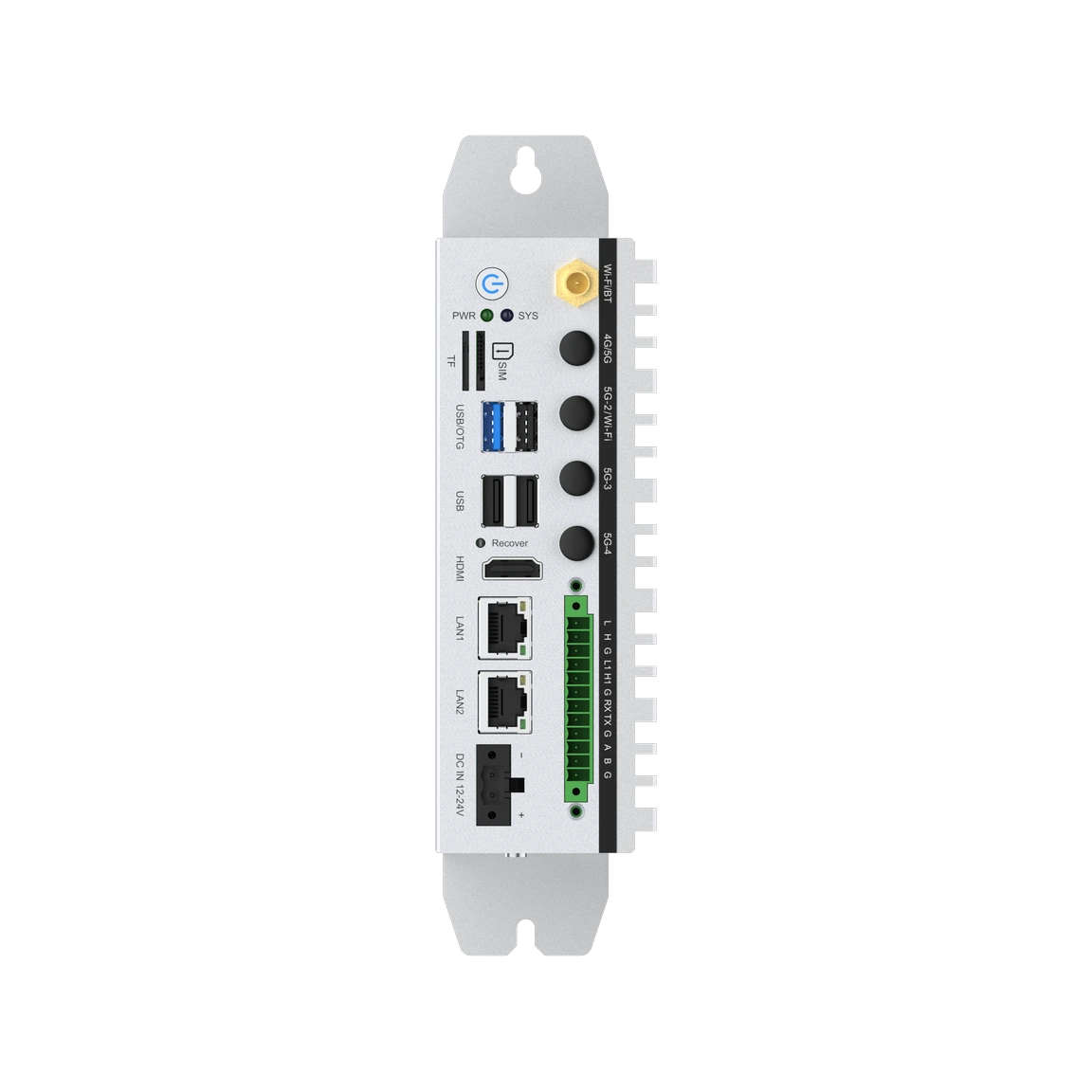

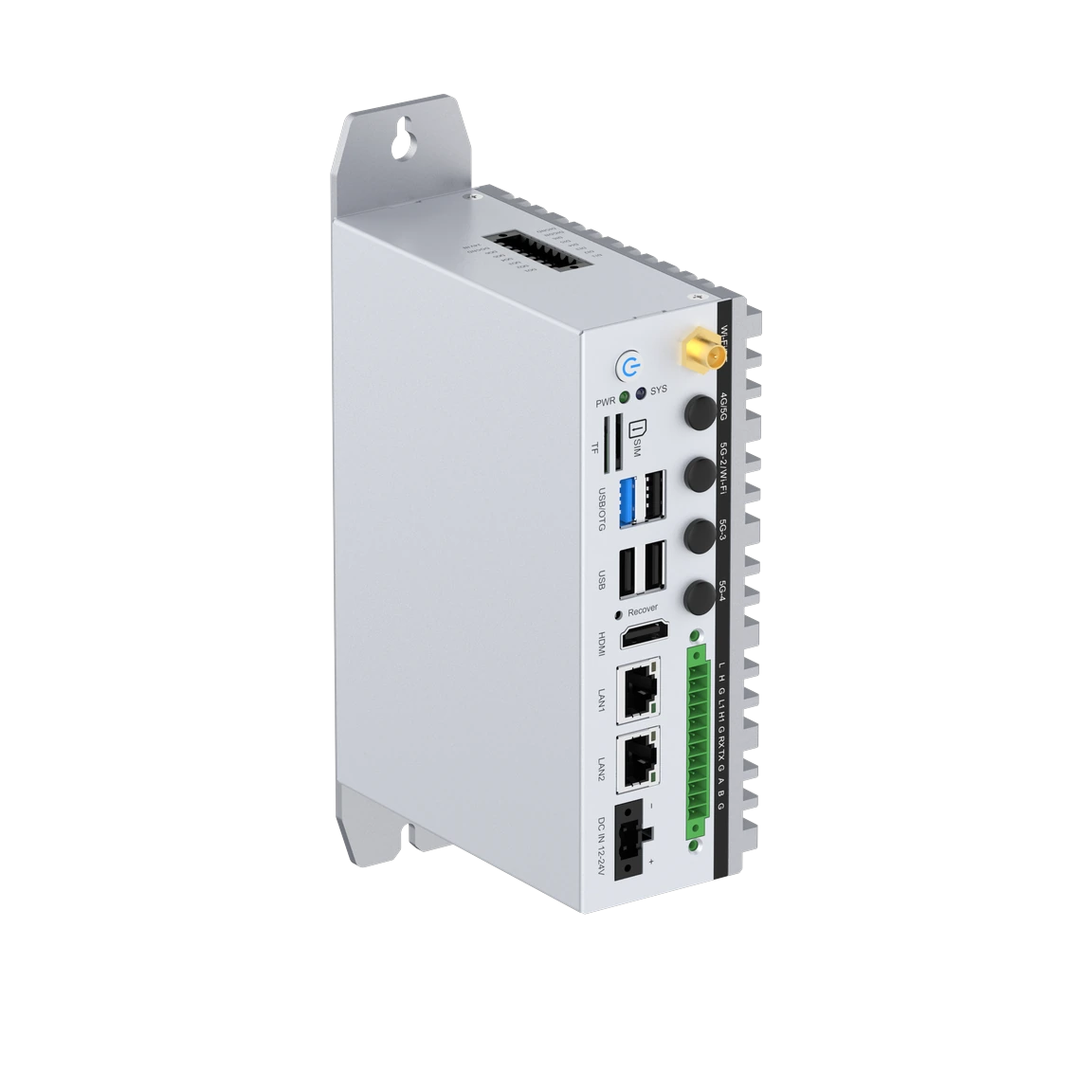

ABOX-6108A | Fanless AIOT Edge Computing Gateway

Fanless Rockchip RK3568/RK3576/RK3588 industrial gateway with 2×GbE, 1×RS232, 1×RS485, 2×CAN, optional 6×DI and 6×DO, HDMI, Wi-Fi, optional 4G/5G, and wall-mount or DIN-rail installation.

Features

Rockchip RK3568, RK3576, and RK3588 processor options
Fanless aluminum-magnesium alloy chassis for rugged embedded deployment
2 x Gigabit Ethernet with optional additional 2 x Gigabit Ethernet module
1 x RS485, 1 x RS232, and 2 x CAN-Bus for industrial device communication
Optional 6 x isolated DI and 6 x isolated DO with PNP/NPN selection
Onboard 2.4G/5G Wi-Fi with optional LTE 4G, Wi-Fi 6, and 5G expansion
1 x TF slot plus Mini-PCIe and SATA or mSATA storage expansion depending on platform
1 x HDMI display output up to 4K, with 8K support on RK3588
Supports wall-mount or DIN-Rail installation
Wide DC 12~24V input with overcurrent, overvoltage, and reverse-polarity protection
Wide operating temperature range from -20 to 70°C

Fanless Control Cabinet Industrial PCs Product Information

Technical Specifications
Model Name	ABOX-6108A
CPU
	Item	RK3568	RK3576	RK3588
	CPU	Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz	Rockchip RK3576 8-core 4Cortex-A72 + 4Cortex-A53 up to 2.2GHz	Rockchip RK3588 8-core 4Cortex-A55 + 4Cortex-A76 up to 2.4GHz
	GPU	G52 GPU	G52 MC3	Mali-G610 MC4
	NPU	1TOPS (INT8)	6TOPS (INT8)	6TOPS (INT8)
Memory
	Type Capacity	Onboard LPDDR4 4GB / 8GB
Storage
	eMMC	Onboard 32GB / 64GB eMMC
	TF	1 x TF card slot, supporting storage expansion
	Mini-PCIe	1 x Mini-PCIe slot supports mSATA SATA 3.0 SSD (RK3568 / RK3588 support, reuse with 4G / Wi-Fi 6)
	SATA 3.0	1 x SATA 3.0, supports mSATA SATA 3.0 SSD (RK3576 / RK3588 support)
I/O
	Network	2 x 10/100/1000Mbps RJ-45 Ethernet Interface Onboard 2.4G/5G Wi-Fi, support Wi-Fi 802.11 a/b/g/n/ac protocol + Bluetooth 5.0 1 x Mini-PCIe slot, support LTE 4G / Wi-Fi 6 modules (optional) 1 x M.2, support 5G modules (optional)
	USB	3 x USB2.0, 1 x USB3.0 (OTG multiplexing)
	COM / CAN	1 x RS485, 1 x RS232, 3.5mm spacing 12PIN terminal; 2 x CAN-Bus
	Audio	2 x Ø3.5 phone jack (8Ω 6W, optional)
	DIO Modules	6 x DI (isolated), PNP/NPN selectable, supports up to 24V input 6 x DO (isolated), PNP/NPN selectable, PNP high-level output 24V (optional)
	Ethernet Modules	2 x i210 / RTL8111H Gigabit Ethernet (optional)
	SIM	1 x Micro SIM card slot
	LED	1 x Power LED (green on), 1 x System LED (blue on)
	Display	1 x HDMI interface, supporting up to 4K (38402160) / 8K (76804320, RK3588) output
	Key	1 x Recover flashing button, 1 x Power button
OS
	Android	Android 11	Android 14	Android 13
	Linux	Debian 11, Ubuntu 20.04	Debian 12, Ubuntu 22.04	Debian 11, Ubuntu 20.04
Power Supply
	Voltage Input	DC 12~24V ±10%, overcurrent, overvoltage and polarity inverse protection
	Power Consumption	≤20Watt
Chassis
	Structure	Aluminum-magnesium alloy BOX, fanless design, wall-mounted or DIN-Rail fixing style
	Dimensions	156mm x 112mm x 53.2mm (excluding bracket)
	Net Weight	1.5kg
Environment
	Work Temperature	-20 ~ 70°C
	Storage Temperature	-40 ~ 80°C
	Relative Humidity	5~95% @40°C (non-condensing)
	Operating Vibration	SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis
	Operating Shock	20G peak acceleration (11ms duration) with SSD, follow IEC60068-2-27
	EMC	CE/FCC Class A

Click the link below to download datasheets or drivers:

Datasheet Downloads

Ordering Information
Part No.	Product	Description
B83.A6108.38.0001	ABOX-6108A-3568-4G-32G	RK3568, 4GB memory, 32GB eMMC, DC IN 12~24V, 2 x CAN, 2 x GLAN, 3 x USB2.0, 1 x 2.4G/5G Wi-Fi, 1 x Mini-PCIe supports LTE 4G / Wi-Fi 6, 1 x M.2 supports 5G, 2 x GLAN (optional), 2 x Ø3.5 phone jack (optional), operating temperature: -20°C~70°C
B83.A6108.38.0002	ABOX-6108A-3568-8G-64G	RK3568, 8GB memory, 64GB eMMC, DC IN 12~24V, 2 x CAN, 2 x GLAN, 3 x USB2.0, 1 x 2.4G/5G Wi-Fi, 1 x Mini-PCIe supports LTE 4G / Wi-Fi 6, 1 x M.2 supports 5G, 2 x GLAN (optional), 2 x Ø3.5 phone jack (optional), operating temperature: -20°C~70°C
B83.A6108.76.0001	ABOX-6108A-3576-4G-32G	RK3576, 4GB memory, 32GB eMMC, DC IN 12~24V, 2 x CAN, 2 x GLAN, 3 x USB2.0, 1 x 2.4G/5G Wi-Fi, 1 x Mini-PCIe supports LTE 4G / Wi-Fi 6, 1 x M.2 supports 5G, 2 x GLAN (optional), 2 x Ø3.5 phone jack (optional), operating temperature: -20°C~70°C
B83.A6108.76.0002	ABOX-6108A-3576-8G-64G	RK3576, 8GB memory, 64GB eMMC, DC IN 12~24V, 2 x CAN, 2 x GLAN, 3 x USB2.0, 1 x 2.4G/5G Wi-Fi, 1 x Mini-PCIe supports LTE 4G / Wi-Fi 6, 1 x M.2 supports 5G, 2 x GLAN (optional), 2 x Ø3.5 phone jack (optional), operating temperature: -20°C~70°C
B83.A6108.58.0001	ABOX-6108A-3588-4G-32G	RK3588, 4GB memory, 32GB eMMC, DC IN 12~24V, 2 x CAN, 2 x GLAN, 3 x USB2.0, 1 x 2.4G/5G Wi-Fi, 1 x Mini-PCIe supports LTE 4G / Wi-Fi 6, 1 x M.2 supports 5G, 2 x GLAN (optional), 2 x Ø3.5 phone jack (optional), operating temperature: -20°C~70°C
B83.A6108.58.0002	ABOX-6108A-3588-8G-64G	RK3588, 8GB memory, 64GB eMMC, DC IN 12~24V, 2 x CAN, 2 x GLAN, 3 x USB2.0, 1 x 2.4G/5G Wi-Fi, 1 x Mini-PCIe supports LTE 4G / Wi-Fi 6, 1 x M.2 supports 5G, 2 x GLAN (optional), 2 x Ø3.5 phone jack (optional), operating temperature: -20°C~70°C

Options
Parts	Description
Power adapter	KPL-040F-v1 40W adapter kit, DC out 12V, with national standard power cord
Wi-Fi external antenna	Glue stick antenna, suction cup 3M antenna
mSATA SSD	128GB, 256GB, 512GB, 1TB
SATA 3.0 SSD kit	128GB, 256GB, 512GB, 1TB
Wi-Fi 6 Set kit	miniPCIe Wi-Fi set kit (BL-M8852BP3), supports Wi-Fi 802.11 a/b/g/n/ac/ax protocol + Bluetooth 5.2
3G/4G Module kit	mini PCIe, EC20, EG25, EC25
5G Module kit	M.2 set kit (Quectel_RM500U)
2 Gigabit Ethernet kit	2 x i210 / RTL8111H Gigabit Ethernet modules
6DIO Module kit	6 x DI, 6 x DO (isolated), switchable between PNP and NPN
Mount Option	Wall-mounted, DIN-Rail
