ABOX-6116 | Fanless AIOT Multi Functional Visual Controller
Fanless Rockchip RK3588 industrial controller with 5×GbE, 2×RS232, 2×RS485, 8×isolated DI, 8×isolated DO, HDMI, Wi-Fi, optional 4G, and wall-mount or DIN-rail installation.
Features
- Rockchip RK3588 8-core AI processor with Mali-G610 MC4 GPU
- 5 x Gigabit Ethernet including 4 x Intel i210 camera network ports
- 8 x isolated DI and 8 x isolated DO for industrial signal interfacing
- 2 x RS232 and 2 x RS485 serial interfaces for controller and device connectivity
- Optional 4 x PWM light source control output for machine vision and visual control systems
- Onboard 2.4G/5G Wi-Fi with optional LTE 4G expansion via Mini-PCIe
- 1 x M.2 supports 2280 SATA SSD or optional RK1820 power card
- HDMI display output supporting up to 8K resolution
- Fanless aluminum-magnesium alloy chassis for reliable cabinet integration
- Supports wall-mount or DIN-rail installation with DC 12~24V input
- Wide operating temperature range from -20 to 70°C
Fanless Control Cabinet Industrial PCs Product Information
| Technical Specifications | ||
|---|---|---|
| Model Name | ABOX-6116 | |
| CPU | ||
| CPU | Rockchip RK3588 8-core 4*Cortex-A55 + 4*Cortex-A76 up to 2.4GHz | |
| GPU | Mali-G610 MC4 | |
| NPU | 6TOPS (INT8), 1 x M.2 supports RK1820 power card, 20TOPS (optional) | |
| Memory | ||
| Type Capacity | Onboard LPDDR5 8GB | |
| Storage | ||
| eMMC | Onboard 64GB eMMC | |
| M.2 | 1 x M.2 supports M.2 2280 SATA3 SSD (optional, either with RK1820 computing power) | |
| I/O | ||

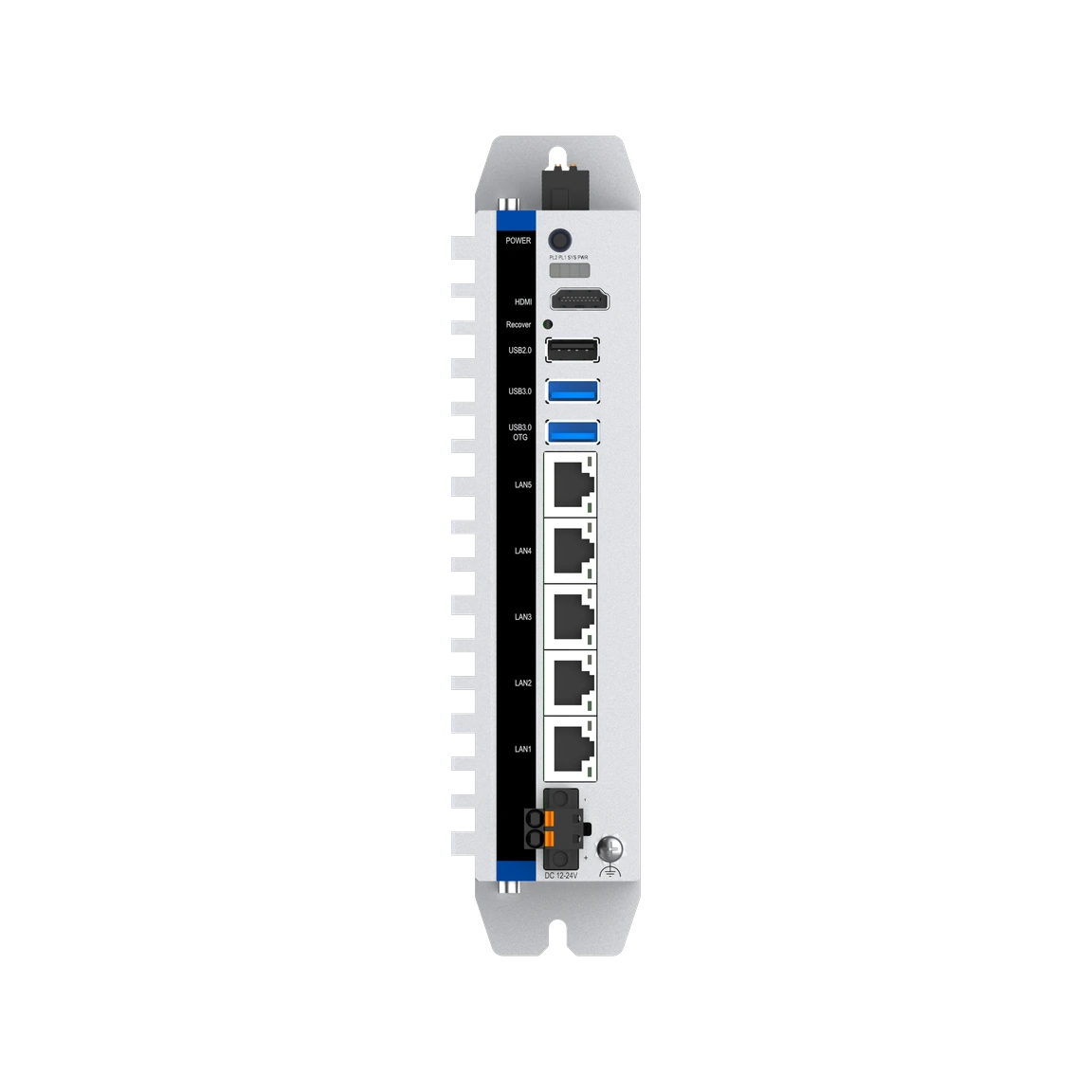

| Network | 5 x 10/100/1000Mbps RJ-45 Ethernet Interface (4*Intel i210 Camera network, 1*RTL8211F Data network) Onboard 2.4G/5G Wi-Fi, support Wi-Fi 802.11 a/b/g/n/ac protocol + Bluetooth 5.0 1 x Mini-PCIe slot, support LTE 4G modules (optional) | |
| USB | 1 x USB 2.0, 1 x USB 3.0 (OTG multiplexing), 1 x USB 3.0 (USB 3.0 supports single port 5V@2A) | |
| COM/SW | 2 x RS485, 2 x RS232 (3.5mm-2x5P Phoenix terminals), 1 x SW remote switch | |

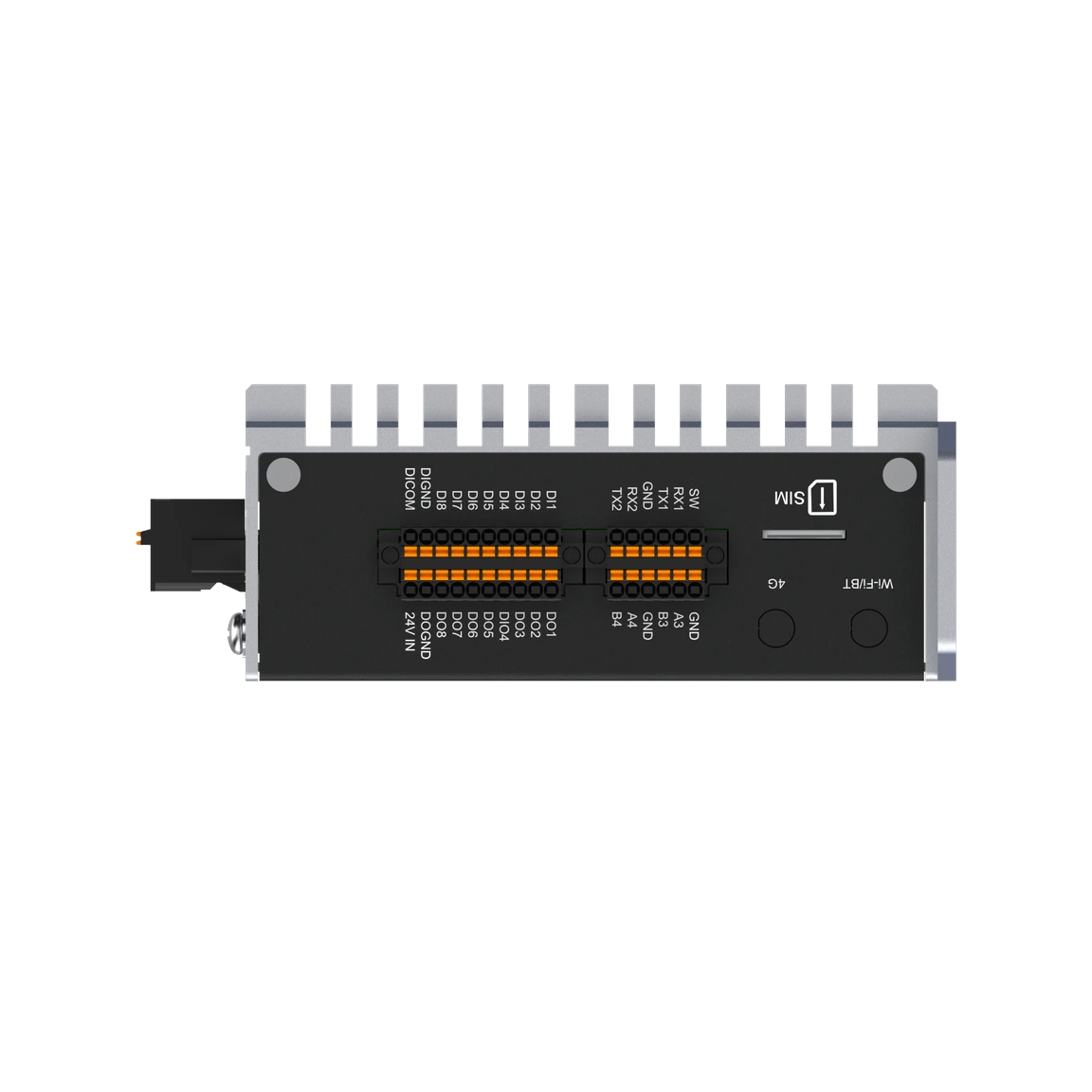

| DIO | 8 x coupling isolation DI, self switching between dry and wet nodes, isolation voltage 2500Vrms (DI and DICOM connected to wet nodes) 8 x coupling isolation DO, NPC/PNP switchable (dip code), isolation voltage 2500Vrms | |
| Light Source Control | 4 x PWM light source control output, supports external hardware triggering (DC 5~24V), maximum current of 1A per channel (optional) 1 x Light DC IN (optional) | |
| SIM | 1 x Micro SIM card slot | |
| LEDs | 1 x Power LED light (green on), 1 x System LED light (blue on), 2 x PL LED light (blue on) | |
| Display | 1 x HDMI interface, supporting up to 8K (7680*4320) output | |
| Key | 1 x Recover flashing button, 1 x Power button | |
| OS | ||
| Android | Android 13 | |
| Linux | Debian 11, Ubuntu 20.04 | |
| Power Supply | ||
| Voltage Input | DC 12~24V ±10%, overcurrent, overvoltage and polarity inverse protection | |
| Power Consumption | ≤20Watt | |
| Chassis | ||

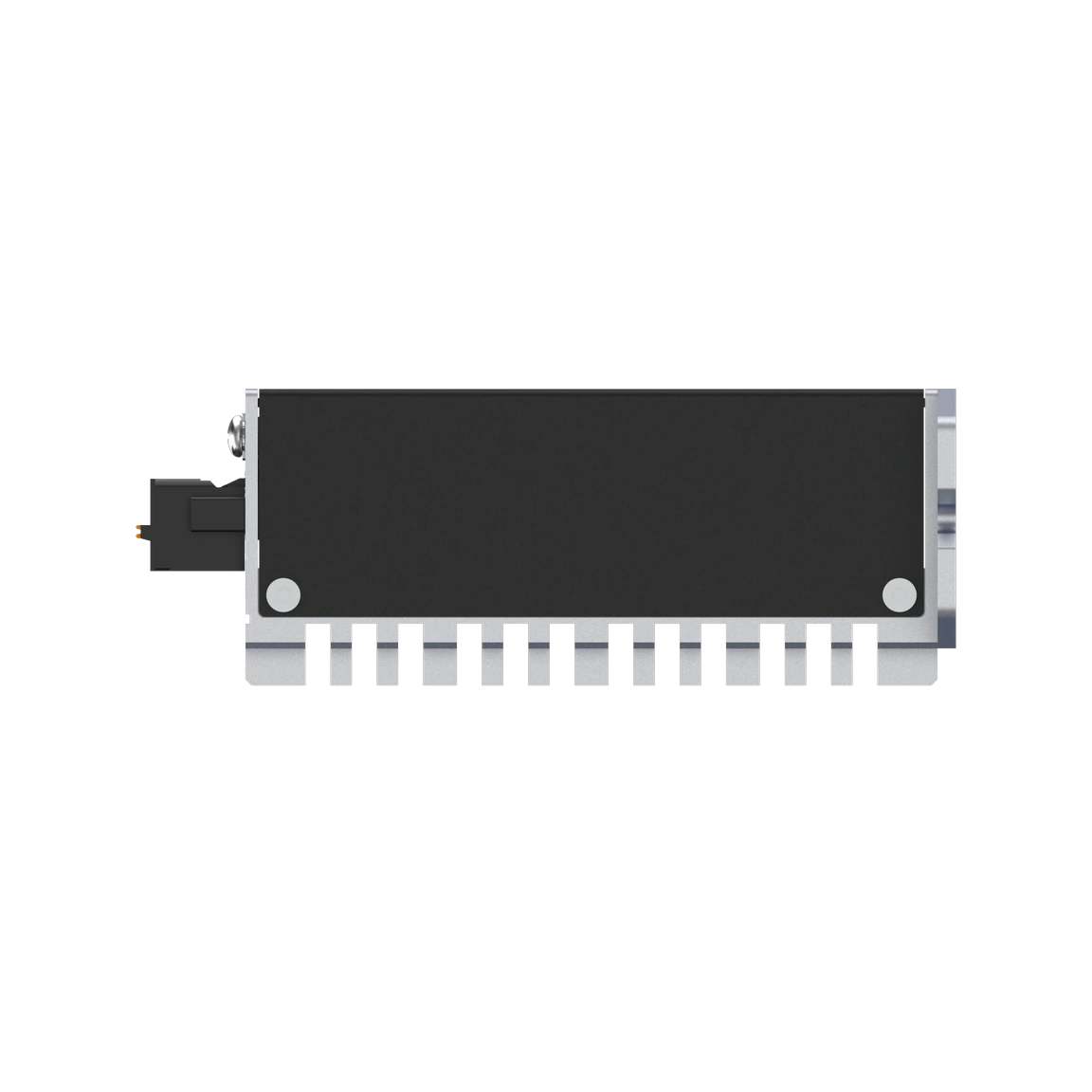

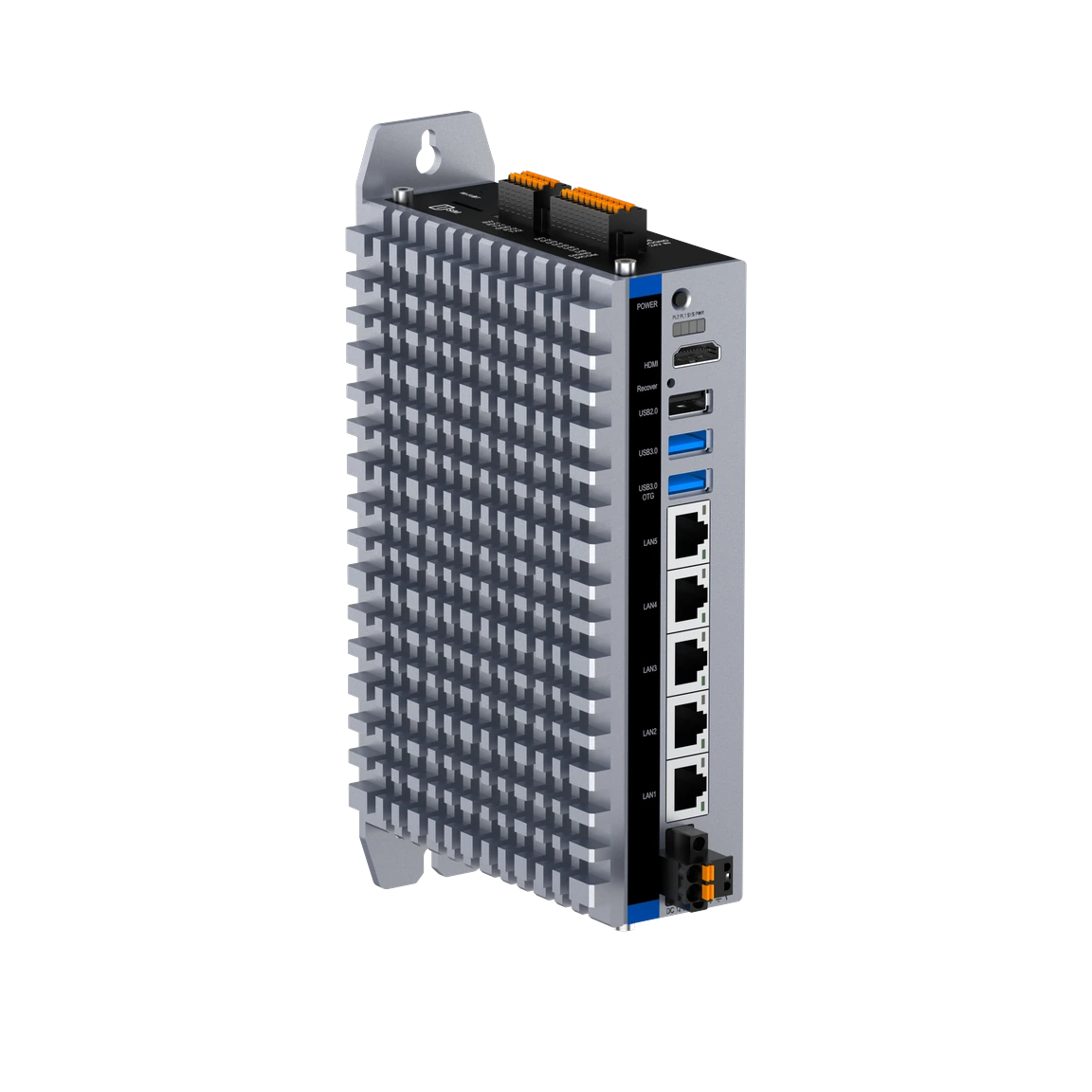

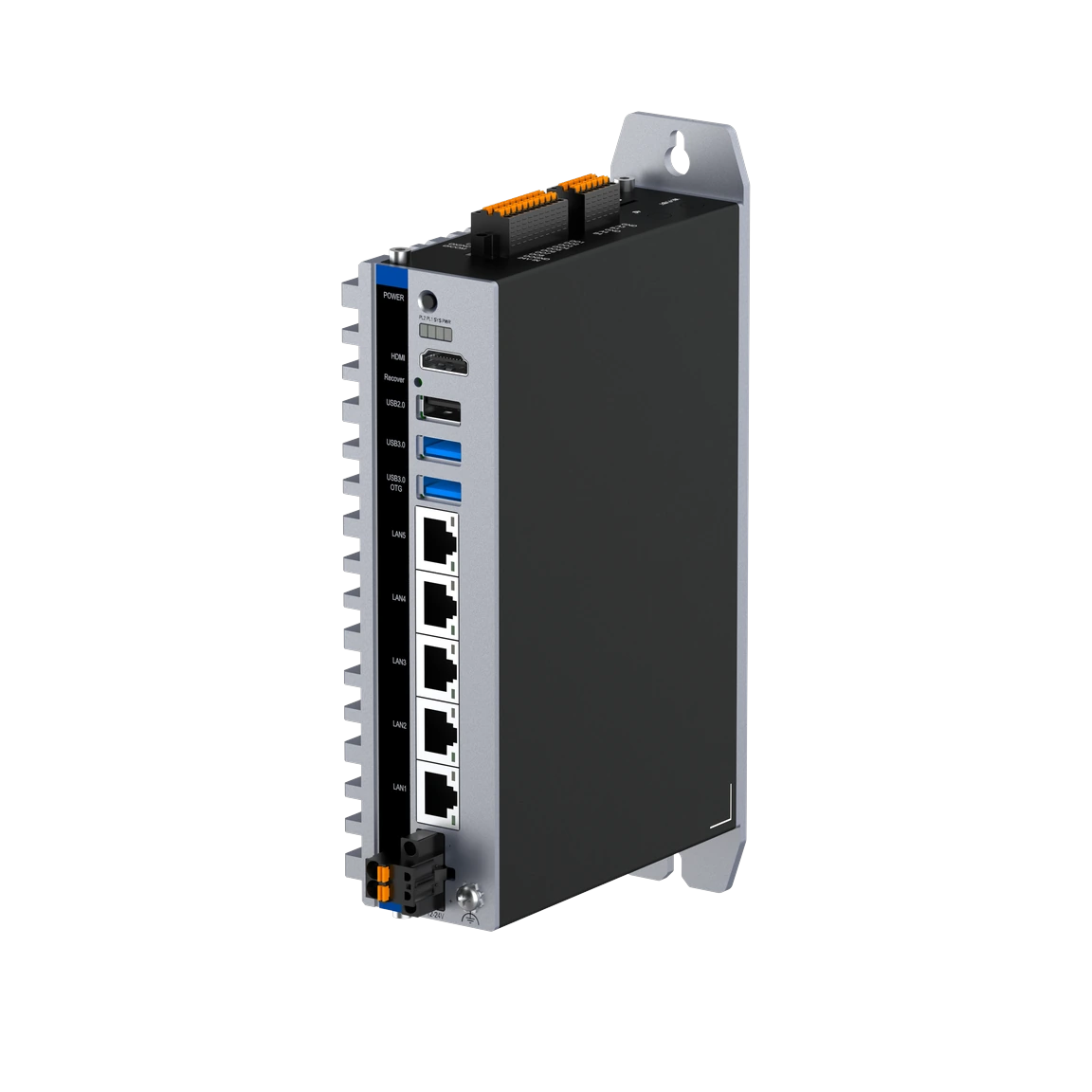

| Structure | Aluminum-magnesium alloy BOX, fanless design, Wall-mounted or DIN-Rail fixing style | |
| Dimensions | 170mm x 112mm x 48mm (excluding bracket) | |
| Net Weight | 1.5kg | |
| Environment | ||
| Work Temperature | -20 ~ 70°C | |
| Storage Temperature | -40 ~ 80°C | |
| Relative Humidity | 5~95% @40°C (non-condensing) | |
| Operating Vibration | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis | |
| Operating Shock | 20G peak acceleration (11ms duration) with SSD, follow IEC60068-2-27 | |
| EMC | CE/FCC Class A | |
| Ordering Information | ||
|---|---|---|
| Part No. | Product | Description |
| B83.ABOX6.58.0003 | ABOX-6116-3588-8G-64G | RK3588, 8GB memory, 64GB eMMC, DC IN 12~24V, 5 x GLAN, 1 x USB2.0, 2 x USB3.0 (OTG multiplexing), 2 x RS232, 2 x RS485, 8 x isolated DI dry/wet, 8 x isolated DO NPN/PNP, 1 x 2.4G/5G Wi-Fi, 1 x Mini-PCIe supports LTE 4G, 1 x M.2 supports M.2 2280 SATA SSD / RK1820 power card, operating temperature: -20~70°C |
| B83.A6116.58.0001 | ABOX-6116-MVS-3588-8G-64G | RK3588, 8GB memory, 64GB eMMC, DC IN 12~24V, 5 x GLAN, 2 x USB3.0, 1 x USB2.0, 2 x RS232, 2 x RS485, 8 x DI, 8 x DO, 4 x light source control output, 1 x Light DC IN, 4 x light hard triggering |
| Options | |
|---|---|
| Parts | Description |
| Power adapter | KPL-040F-v1 40W adapter kit, DC out 12V |
| Wi-Fi external antenna | Glue stick antenna, suction cup 3M antenna |
| M.2 2280 SSD | 128GB, 256GB, 512GB, 1TB, 2TB |
| 3G/4G Module kit | mini PCIe, EC20, EG25, EC25 |
| Mount Option | Wall-mounted, DIN-Rail |
