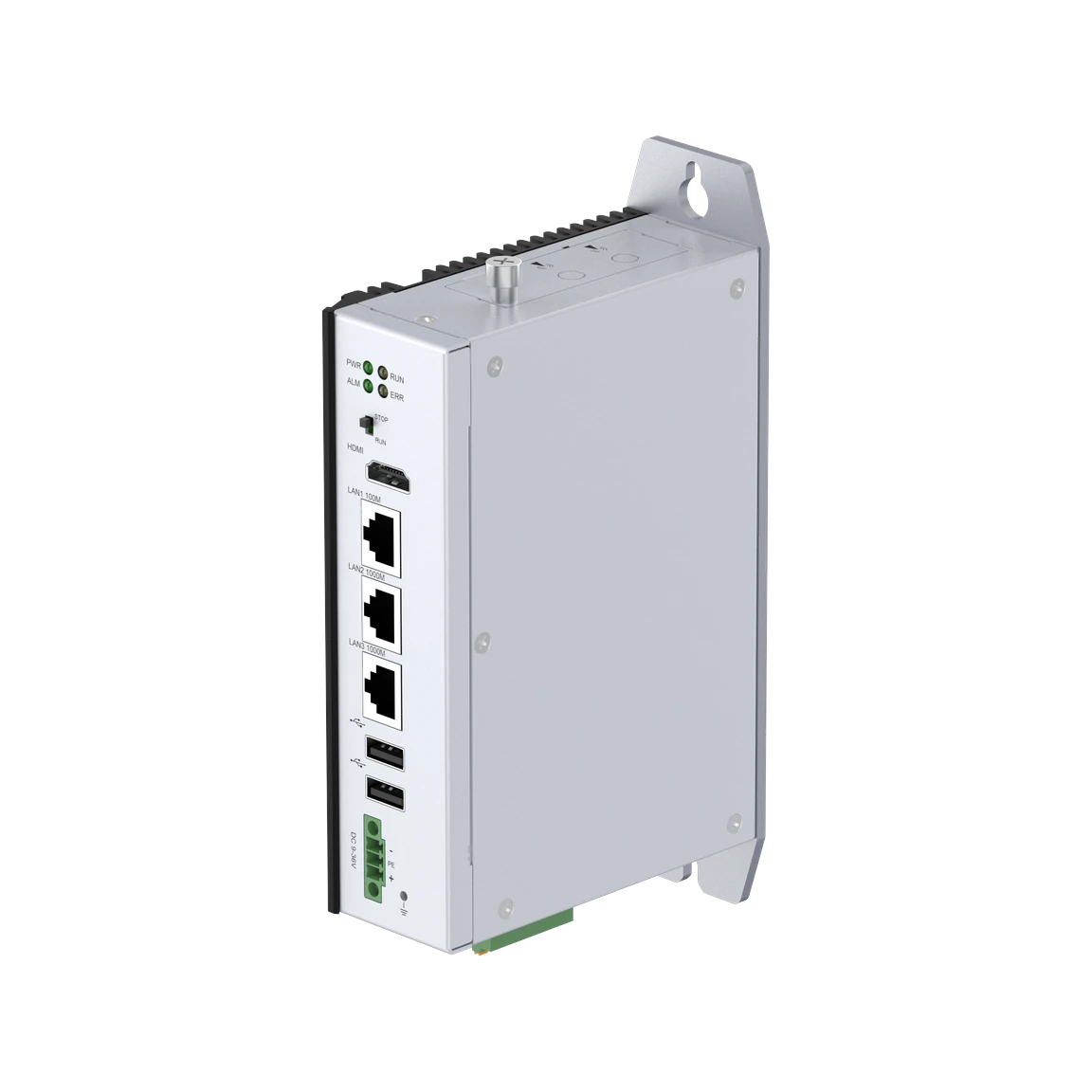

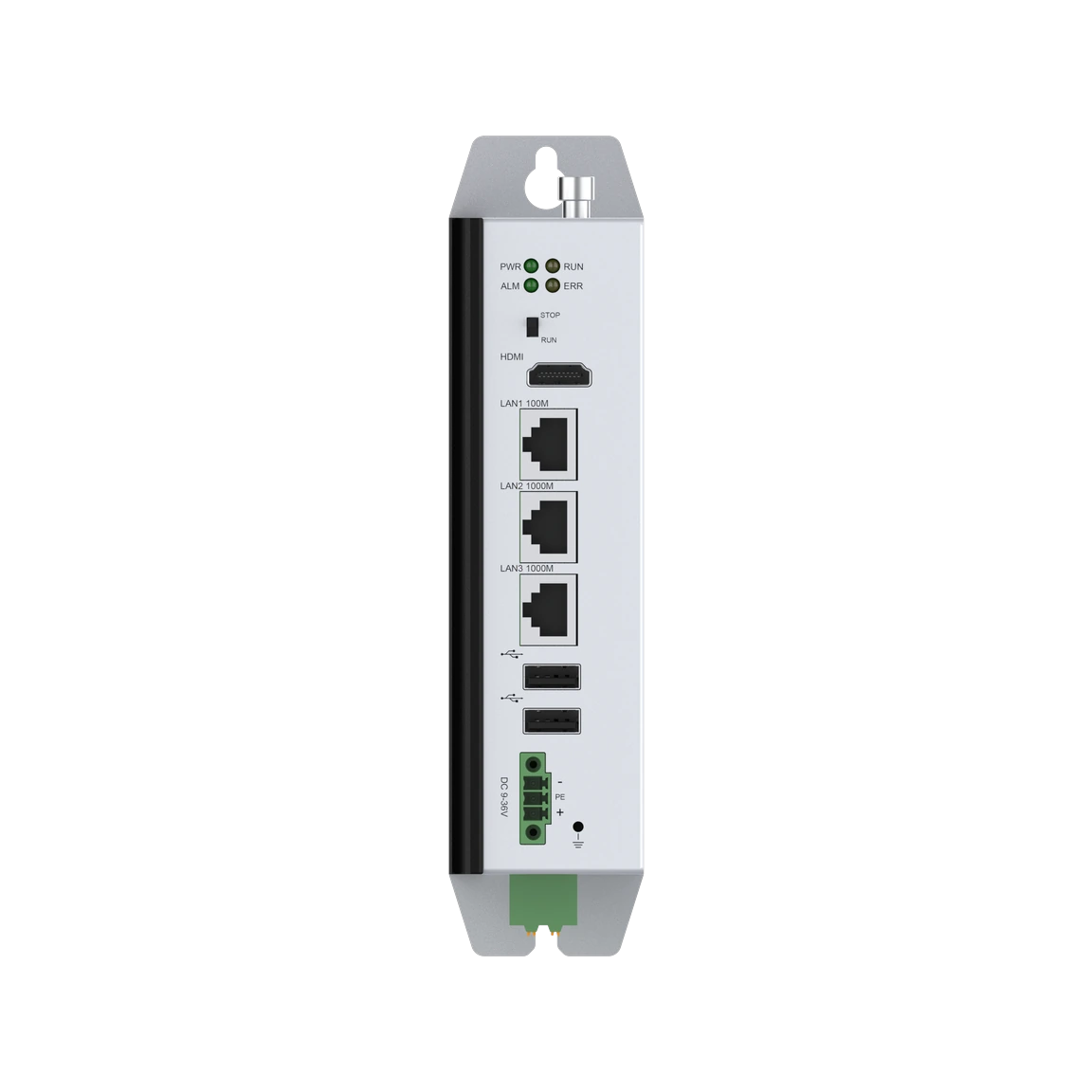

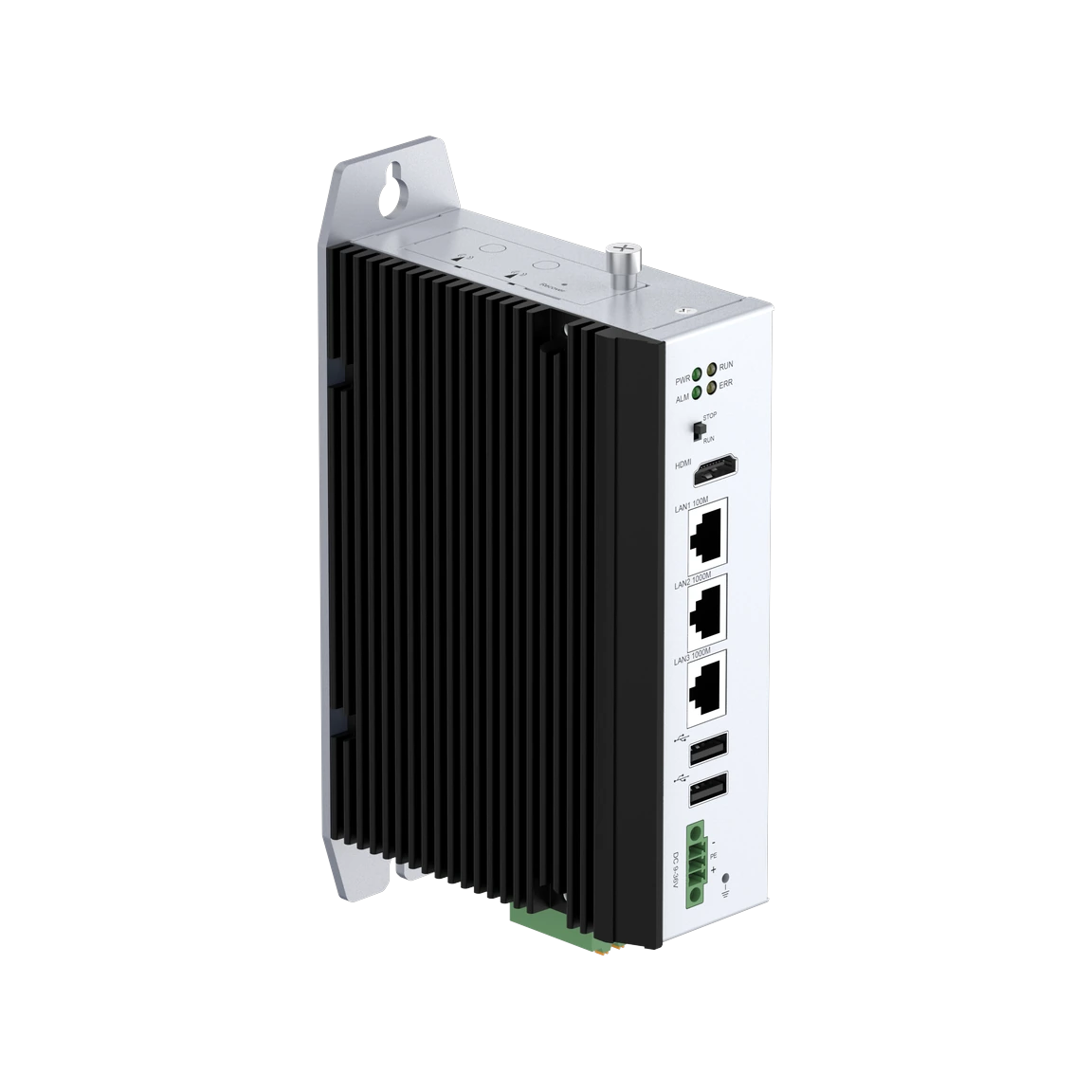

ABOX-6162 ARM Automation PC
RK3399-based fanless controller with multi-LAN, RS485, CAN, and HDMI for industrial automation
Features
- Rockchip RK3399 processor with dual-core Cortex-A72 + quad-core Cortex-A53
- 4GB onboard LPDDR4 RAM and 16GB eMMC storage
- 3 x LAN (2 x Gigabit + 1 x 100M), 2 x RS232, 2 x RS485, 2 x CAN
- 2 x USB2.0, 1 x HDMI output (up to 4K resolution)
- Micro SIM slot and M.2 expansion for 4G communication
- DIN-Rail or wall-mount ready, compact metal chassis
- Fanless operation with wide 9~36V DC input and -20~60°C range
- Supports Debian 10 and Ubuntu 20.04 OS
Fanless Control Cabinet Industrial PCs Product Information
| Technical Specifications | |
|---|---|
| Model Name | ABOX-6162 |
| CPU | |
| Processor | Rockchip RK3399, Dual-core Cortex-A72 + Quad-core Cortex-A53, up to 1.8GHz |
| GPU | Mali-T860 MP4 quad-core GPU |
| Memory | |
| RAM | Onboard LPDDR4 4GB |
| Storage | |
| eMMC | Onboard 16GB eMMC |
| TF Slot | 1 x TF card slot, supports storage expansion |
| I/O Interfaces | |
| LAN | 2 x 10/100/1000Mbps RJ-45, 1 x 10/100Mbps RJ-45 |
| USB | 2 x USB2.0 |
| OTG | 1 x micro USB OTG |
| Serial Ports | 2 x RS485, 2 x RS232 |
| CAN | 2 x CAN2.0 A/B |
| HDMI | 1 x HDMI interface, supports up to 4K (3840 × 2160) |
| SIM | 1 x Micro SIM card slot |
| Expansion Slot | 1 x M.2 slot, supports optional LTE 4G module |
| LED Indicators | 4 x LEDs: Power (blue), Run (green), Alarm (yellow), Error (red) |
| Switch | Mode selection switch: Run or Stop |
| Operating System | |
| Supported OS | Debian 10, Ubuntu 20.04 |
| Power | |
| Input Voltage | DC 9-36V ±10%, with overcurrent, overvoltage, and reverse polarity protection |
| Power Consumption | ≤ 20W |
| Chassis | |
| Structure | Aluminum-magnesium alloy, fanless design |
| Mounting | Wall-mount or DIN-Rail mounting supported |
| Dimensions | 150 mm × 105 mm × 36 mm (L × W × H) |
| Weight | 1.5 kg |
| Environmental | |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Humidity | 5-95% @ 40°C, non-condensing |
| Vibration | 1.5Grms, 5~500Hz, 1 hr/axis (with SSD), IEC 60068-2-64 |
| Shock | 20G peak acceleration, 11ms duration (with SSD), IEC 60068-2-27 |
| EMC | CE / FCC Class A |
Click the link below to download datasheets or drivers:
| Ordering Information | ||
|---|---|---|
| Part No. | Model | Description |
| A81.A6162.39.0001 | ABOX-6162 | RK3399, 4GB RAM, 16GB eMMC, 2 x RS232, 2 x RS485, 2 x CAN, 3 x LAN (2 x GLAN + 1 x 100M), 2 x USB2.0, 1 x HDMI, M.2 slot, DC 9-36V input, fanless, DIN-Rail/wall-mountable, -20~60°C |
| Options | ||
| Mounting Kit | DIN-Rail bracket or wall-mount bracket (selectable) | |
| M.2 Wireless Module | Optional LTE 4G module (M.2 form factor) | |
| Power Adapter | Optional 40W 12V power adapter with AC plug | |
| TF Card | Optional industrial-grade TF card (8GB-128GB) | |
