ARM6000-C101-C8 Series Panel PC
10.1” fanless ARM panel PC with RK3568/3576/3588 CPU, rich I/O, and panel mount for industrial cabinet integration
Features

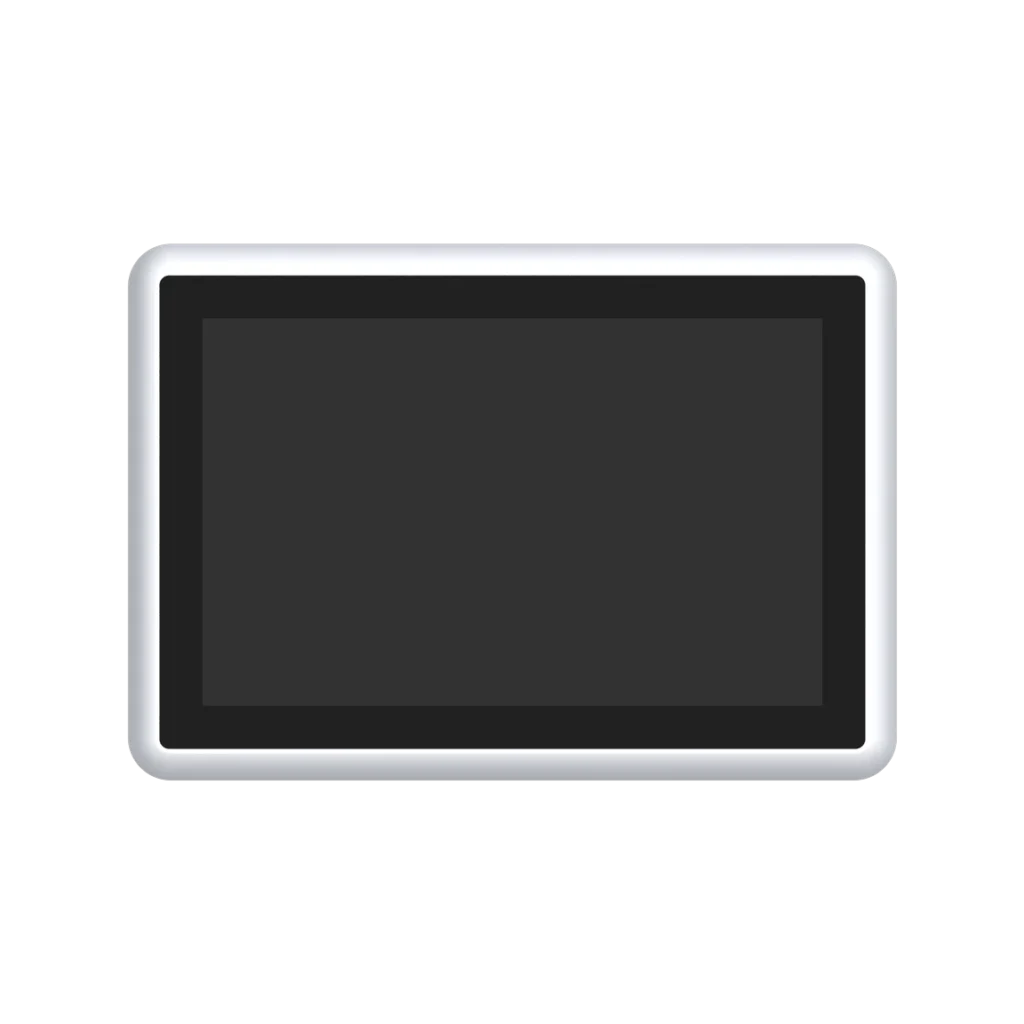

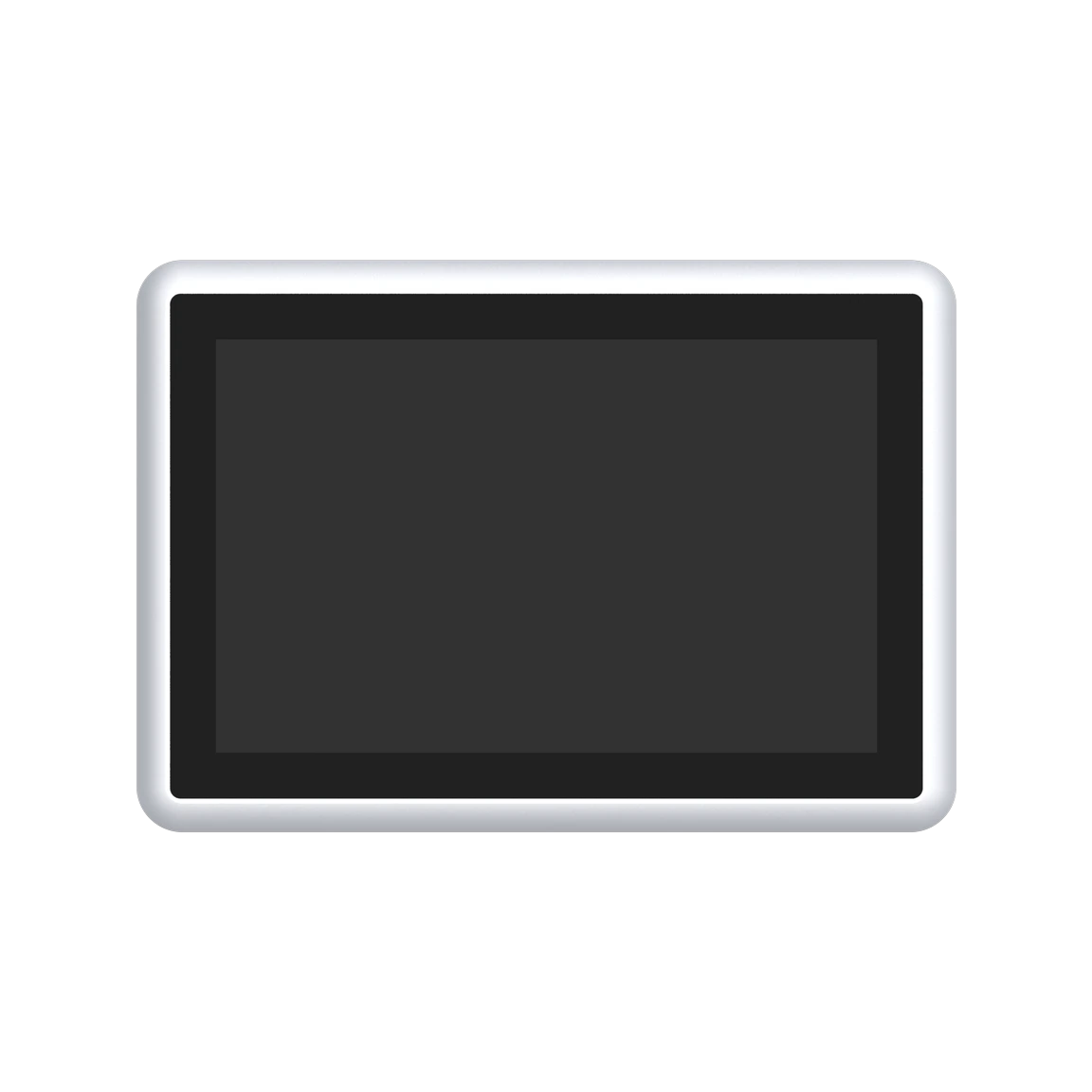

- 10.1” TFT display with 1280×800 resolution and 500 cd/m² brightness
- Rockchip RK3568 / RK3576 / RK3588 CPU options
- Capacitive multi-touch screen with >87% transmittance

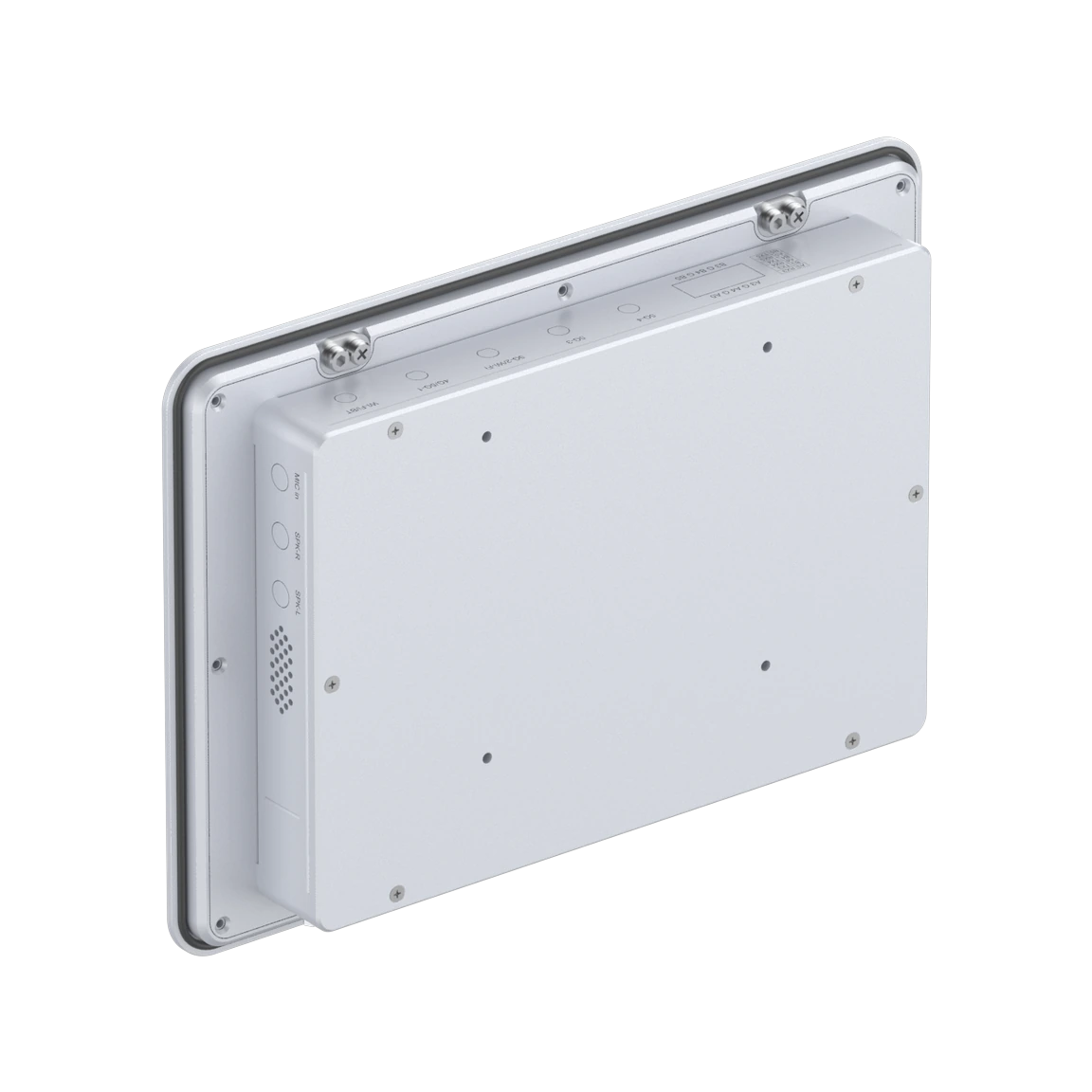

- Fanless aluminum alloy design with panel mounting for cabinet integration
- Onboard 4GB/8GB RAM and 32GB/64GB eMMC

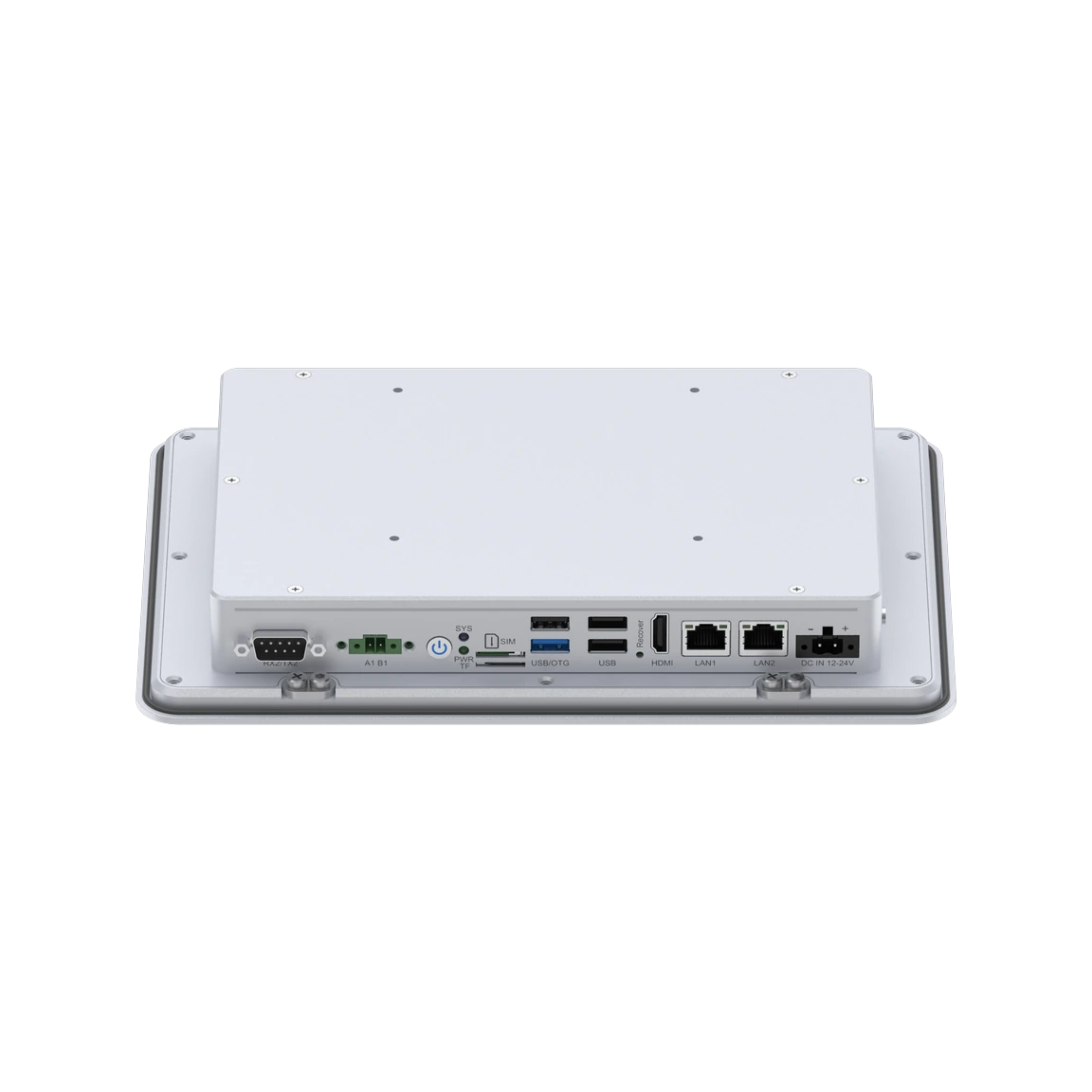

- 2 x GbE LAN, 3 x USB2.0, 1 x USB3.0 (OTG)
- 1 x RS232, 1 x RS485, optional 3 x RS232/485
- Wi-Fi/Bluetooth onboard, optional 4G (Mini-PCIe) and 5G (M.2)
- Wide voltage input DC 12~24V ±10%
- Wide operating temperature: -20~70°C
ARM Based Touch Panel PC Product Information
| Technical Specifications | |||
|---|---|---|---|
| Model Name | ARM6000-C101-C8-3568-TH | ARM6000-C101-C8-3576-TH | ARM6000-C101-C8-3588-TH |
| System | |||
| CPU | Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz | Rockchip RK3576 8-core (4×Cortex-A72 + 4×Cortex-A53) up to 2.2GHz | Rockchip RK3588 8-core (4×Cortex-A55 + 4×Cortex-A76) up to 2.4GHz |
| GPU | G52 GPU | G52 MC3 | Mali-G610 MP4 |
| NPU | 1 TOPS (INT8) | 6 TOPS (INT8) | 6 TOPS (INT8) |
| Memory | Onboard LPDDR4 4GB / 8GB | ||
| Storage | Onboard 32GB / 64GB eMMC 1 x TF card slot (storage expansion) 1 x Mini-PCIe (supports mSATA SSD, shared with Wi-Fi/4G modules) 1 x SATA 3.0 (RK3576/RK3588 support) | ||
| I/O Interfaces | |||
| Ethernet | 2 x 10/100/1000Mbps RJ-45 | ||
| Wi-Fi / Bluetooth | Onboard 2.4G/5G Wi-Fi (802.11 a/b/g/n/ac) + Bluetooth 5.0 | ||
| USB | 3 x USB2.0, 1 x USB3.0 (OTG multiplexing) | ||
| Serial | 1 x RS485, 1 x RS232, 3 x RS232/RS485 (Optional) | ||
| Audio | 2 x Ø3.5mm phone jack for speaker (8Ω 6W), 1 x Mic in (Optional) | ||
| SIM | 1 x Micro SIM card slot | ||
| Expansion | 1 x Mini-PCIe (supports 4G/Wi-Fi 6), 1 x M.2 (supports 5G) | ||
| Video Output | 1 x HDMI (supports up to 4K/8K with RK3588) | ||
| Buttons | 1 x Power button, 1 x Recovery flash button | ||
| Display | |||
| Screen Size | 10.1" TFT | ||
| Resolution | 1280 × 800 | ||
| Brightness | 500 cd/m² | ||
| Backlight Life | 30,000 hrs | ||
| Touchscreen | |||
| Touch Type | Multipoint Capacitive Touch | ||
| Transmittance | >87% | ||
| Touch Interface | USB | ||
| Operating System | |||
| Android | Android 11 | Android 14 | Android 13 |
| Linux | Debian 11, Ubuntu 20.04 | Debian 12, Ubuntu 22.04 | Debian 11, Ubuntu 20.04 |
| Power | |||
| Input Voltage | DC 12-24V ±10%, with overcurrent, overvoltage, and reverse polarity protection | ||
| Power Consumption | ≤ 20W | ||
| Chassis | |||

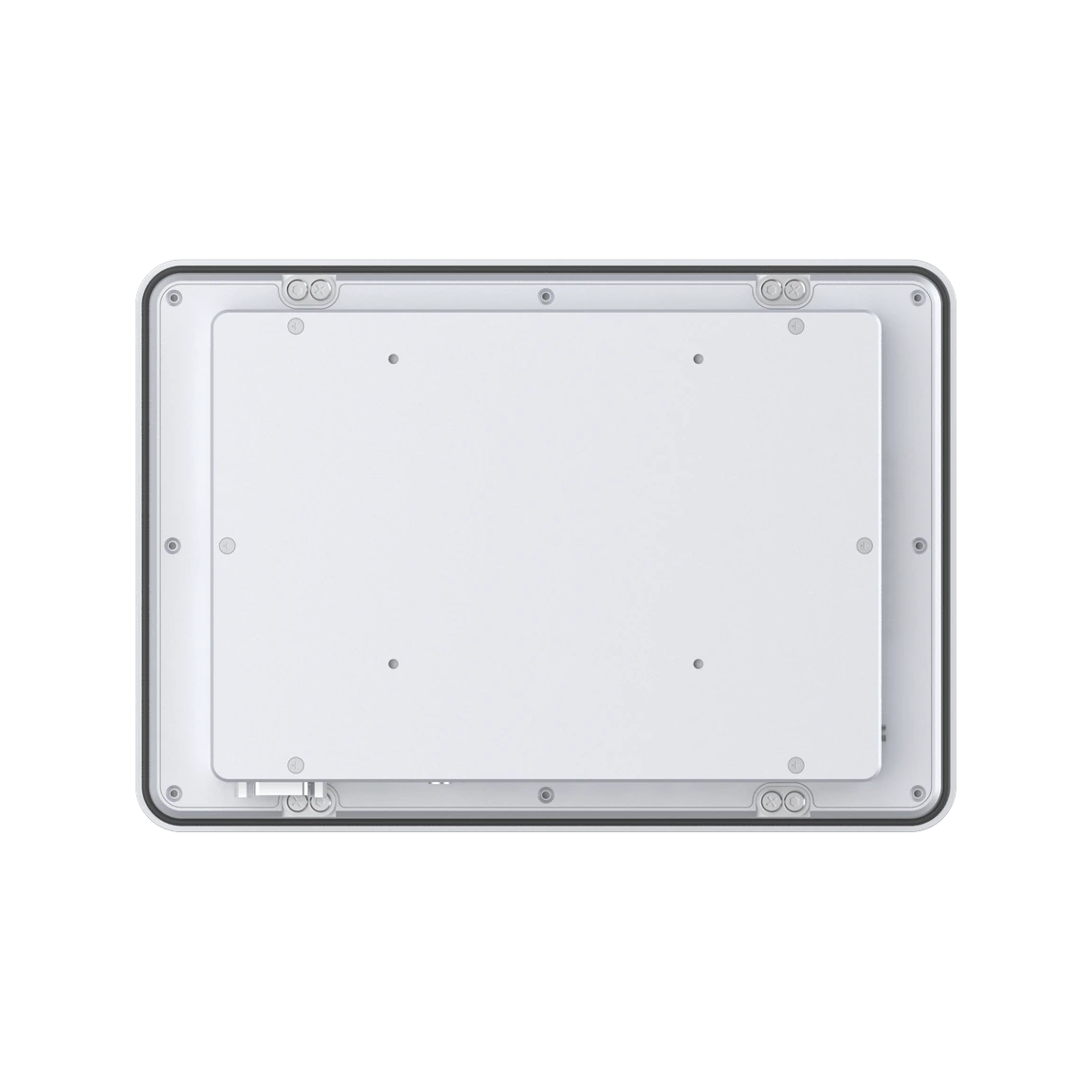

| Structure | Aluminum magnesium alloy shell, fanless design; supports panel and VESA mounting | ||
| Dimensions (W x H x D) | 269.2 mm × 187.8 mm × 42 mm | ||
| Mounting Cutout | 261.16 mm × 179.8 mm | ||
| Net Weight | 1 kg | ||
| Environmental | |||
| Operating Temperature | -20°C ~ 70°C | ||
| Storage Temperature | -40°C ~ 85°C | ||
| Humidity | 5-95% @40°C, non-condensing | ||
| Vibration | 1.5Grms, 5~500Hz, 1hr/axis, IEC60068-2-64 (SSD) | ||
| Shock | 20G peak (11ms), IEC60068-2-27 (SSD) | ||
| EMC | CE/FCC Class A | ||
| Ordering Information | ||
|---|---|---|
| Part No. | Model | Description |
| B81.AC101.38.0002 | ARM6000-C101-C8-4G32-3568-TH | 10.1", RK3568, 4GB RAM, 32GB eMMC, Capacitive touch, 1280×800, DC 12~24V input, 2× GLAN, 3× USB2.0, 1× USB3.0, 1× RS232, 1× RS485, 3× RS232/485 (Optional), onboard Wi-Fi, Mini-PCIe (4G/Wi-Fi 6), M.2 (5G), speaker and mic (optional), operating temp: -20~70°C |
| B81.AC101.38.0003 | ARM6000-C101-C8-8G64-3568-TH | 10.1", RK3568, 8GB RAM, 64GB eMMC, Capacitive touch, 1280×800, DC 12~24V input, same features as above |
| B81.AC101.76.0001 | ARM6000-C101-C8-4G32-3576-TH | 10.1", RK3576, 4GB RAM, 32GB eMMC, Capacitive touch, 1280×800, same I/O and wireless options, operating temp: -20~70°C |
| B81.AC101.76.0002 | ARM6000-C101-C8-8G64-3576-TH | 10.1", RK3576, 8GB RAM, 64GB eMMC, same features as above |
| B81.AC101.58.0001 | ARM6000-C101-C8-4G32-3588-TH | 10.1", RK3588, 4GB RAM, 32GB eMMC, Capacitive touch, 1280×800, full I/O and wireless expansion, operating temp: -20~70°C |
| B81.AC101.58.0002 | ARM6000-C101-C8-8G64-3588-TH | 10.1", RK3588, 8GB RAM, 64GB eMMC, same features as above |
| Optional Items | ||
| Power Adapter | KPL-040F-v1, 40W adapter kit, DC out 12V with national standard power cord | |
| Wi-Fi Antenna | Glue stick antenna or suction cup 3M antenna | |
| mSATA SSD | 128GB, 256GB, 512GB, 1TB | |
| SATA 3.0 SSD | 128GB, 256GB, 512GB, 1TB | |
| Wi-Fi 6 Module | mini-PCIe module (BL-M8852BP3), supports 802.11 a/b/g/n/ac/ax + Bluetooth 5.2 | |
| 3G/4G Module | Mini PCIe: EC20, EG25, EC25 | |
| 5G Module | M.2 Set: Quectel RM500U | |
| 3 x RS232/485 Module | Configurable as either RS232 or RS485 (optional module) | |
| Mounting Option | VESA Mount | |
