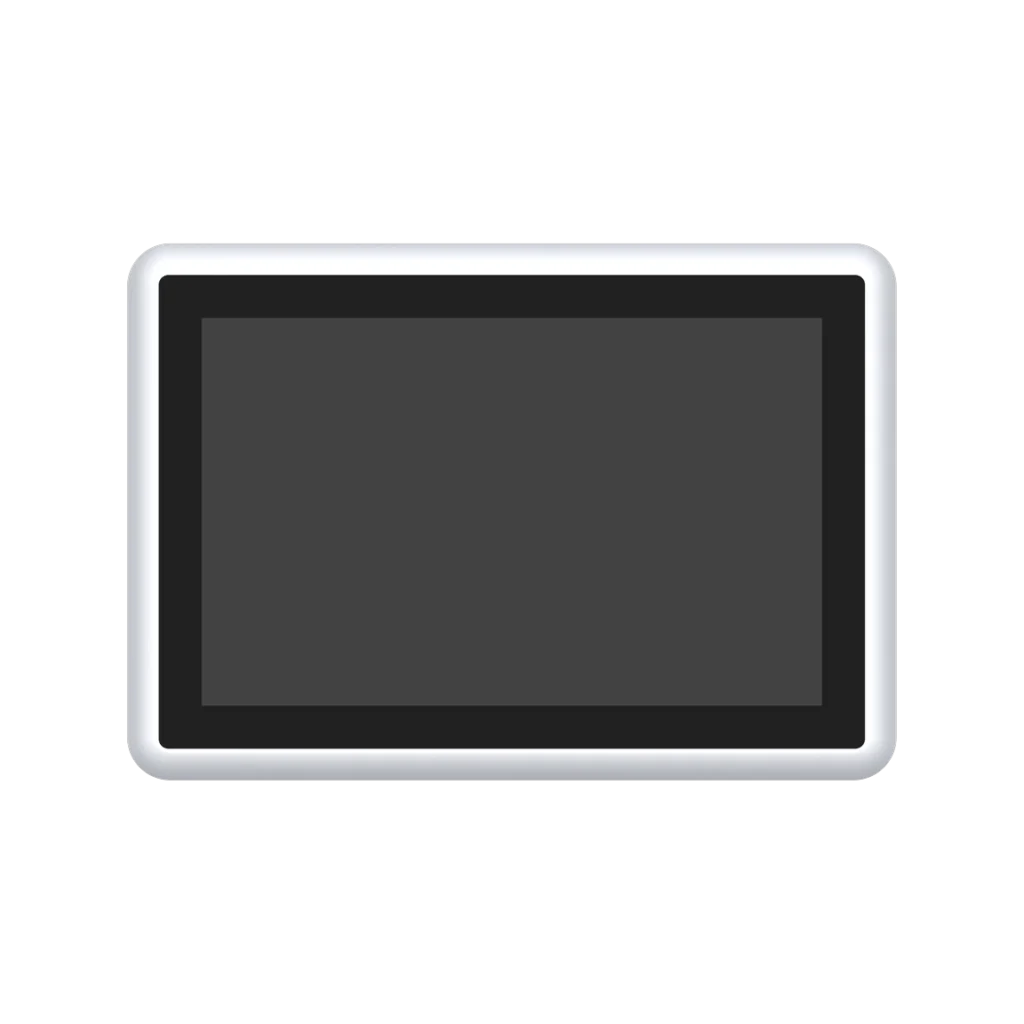

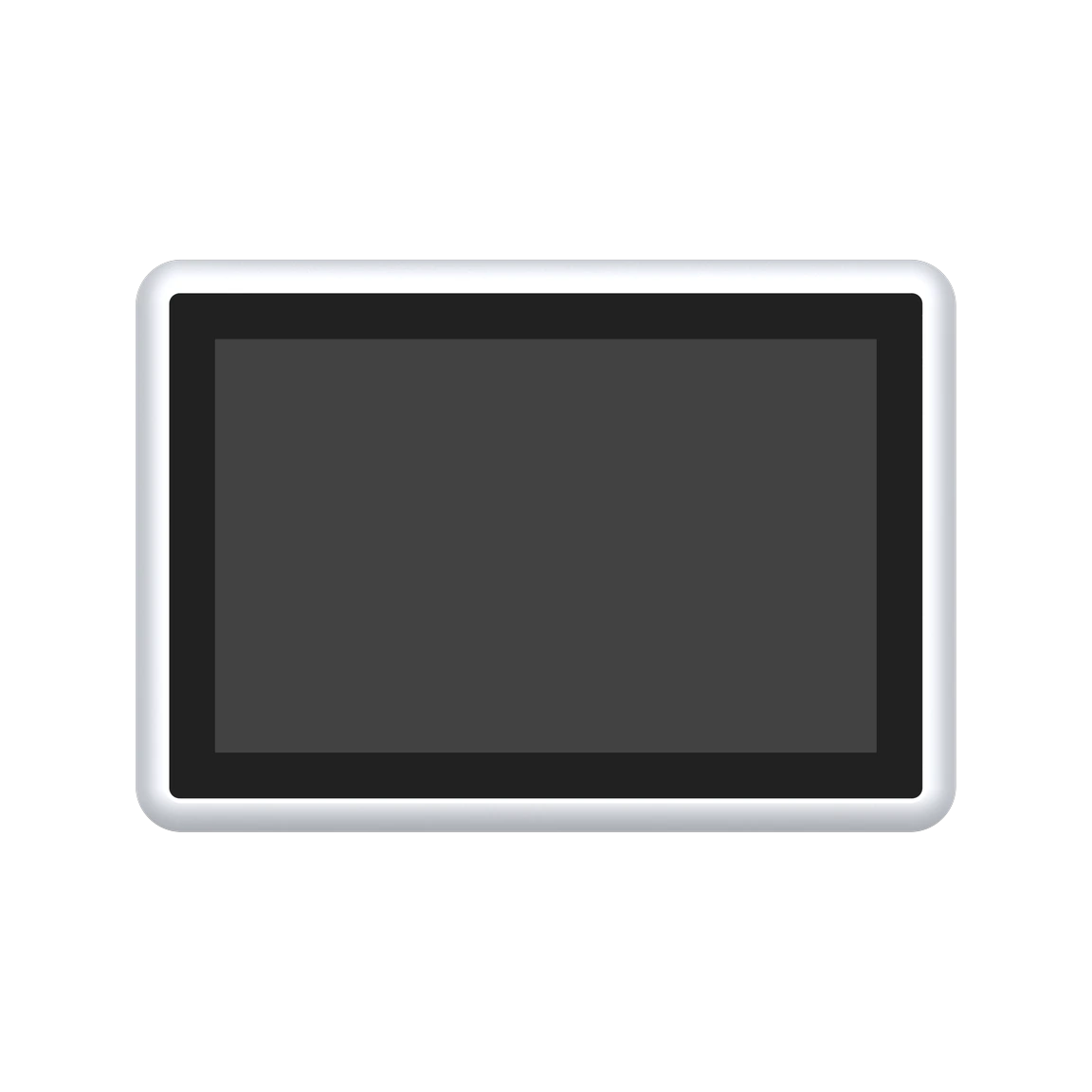

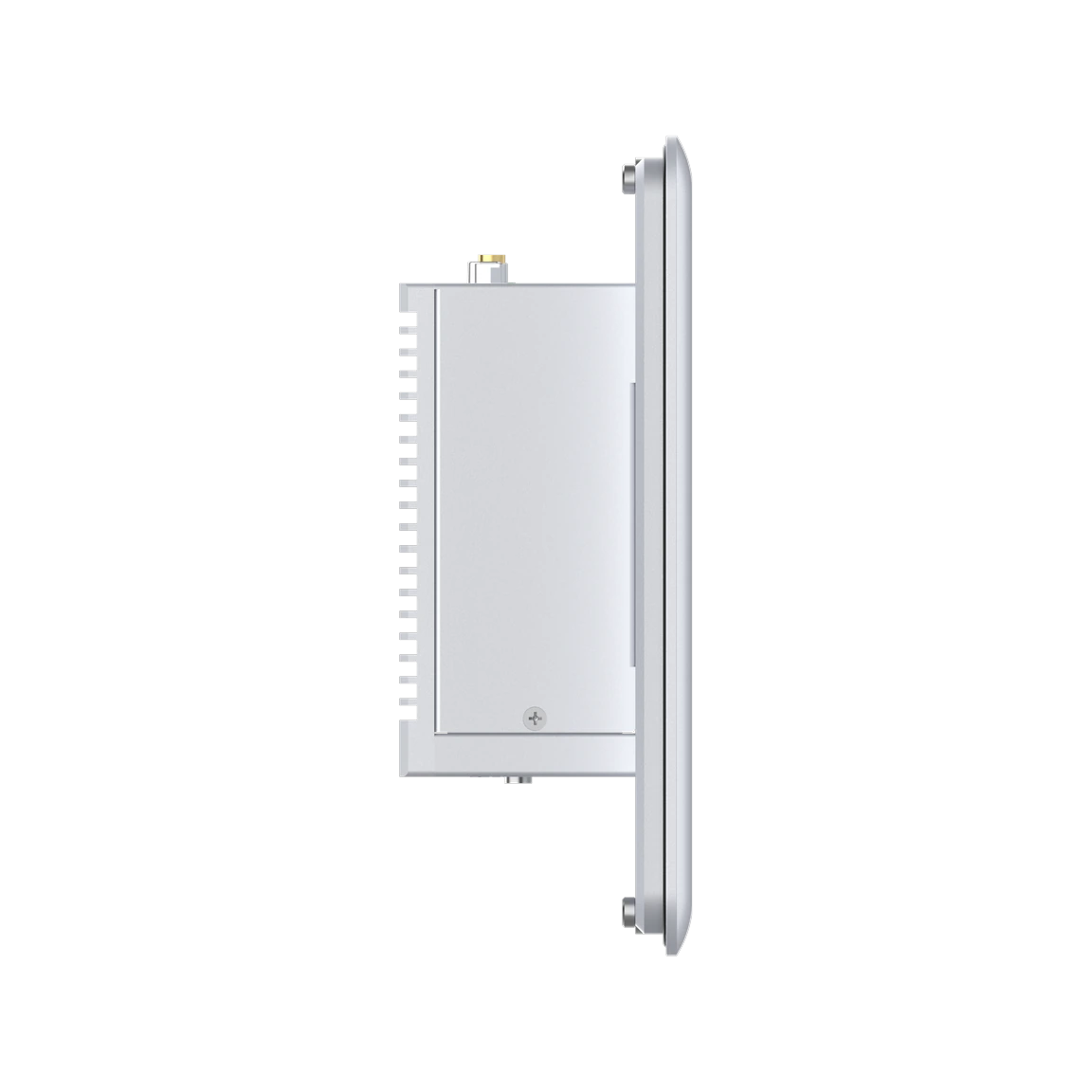

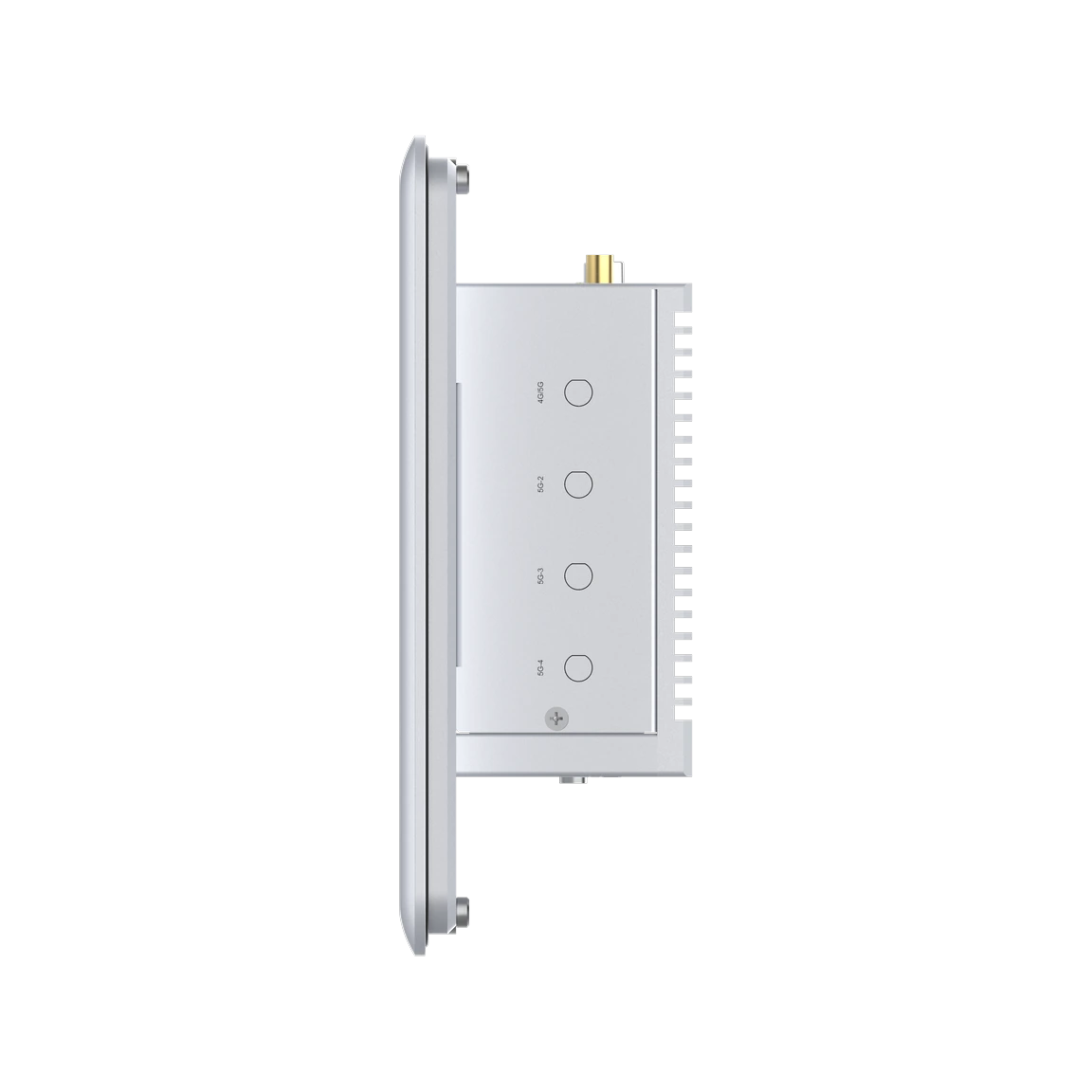

ARM6000-C101-R1-3568J-T Series Panel PC
10.1” fanless wide-temperature ARM panel PC with full I/O for EMS and industrial HMI applications
Features
- 10.1” TFT display, 1280×800 resolution, 500 cd/m² brightness
- RK3568J industrial CPU, wide temperature support
- 4 x GbE LAN, 8 x RS485, 2 x RS232, 2 x CAN (all isolated)
- 18 x DI (opto-isolated), 8 x DO (relay), 4 x ADC (0–10V)
- HDMI + DVI-I (LVDS) dual video output
- USB: 3 x USB2.0, 1 x USB3.0 (OTG)
- Mini-PCIe and M.2 expansion for 4G/5G and SSD
- DC 9~36V wide-range input with full protection

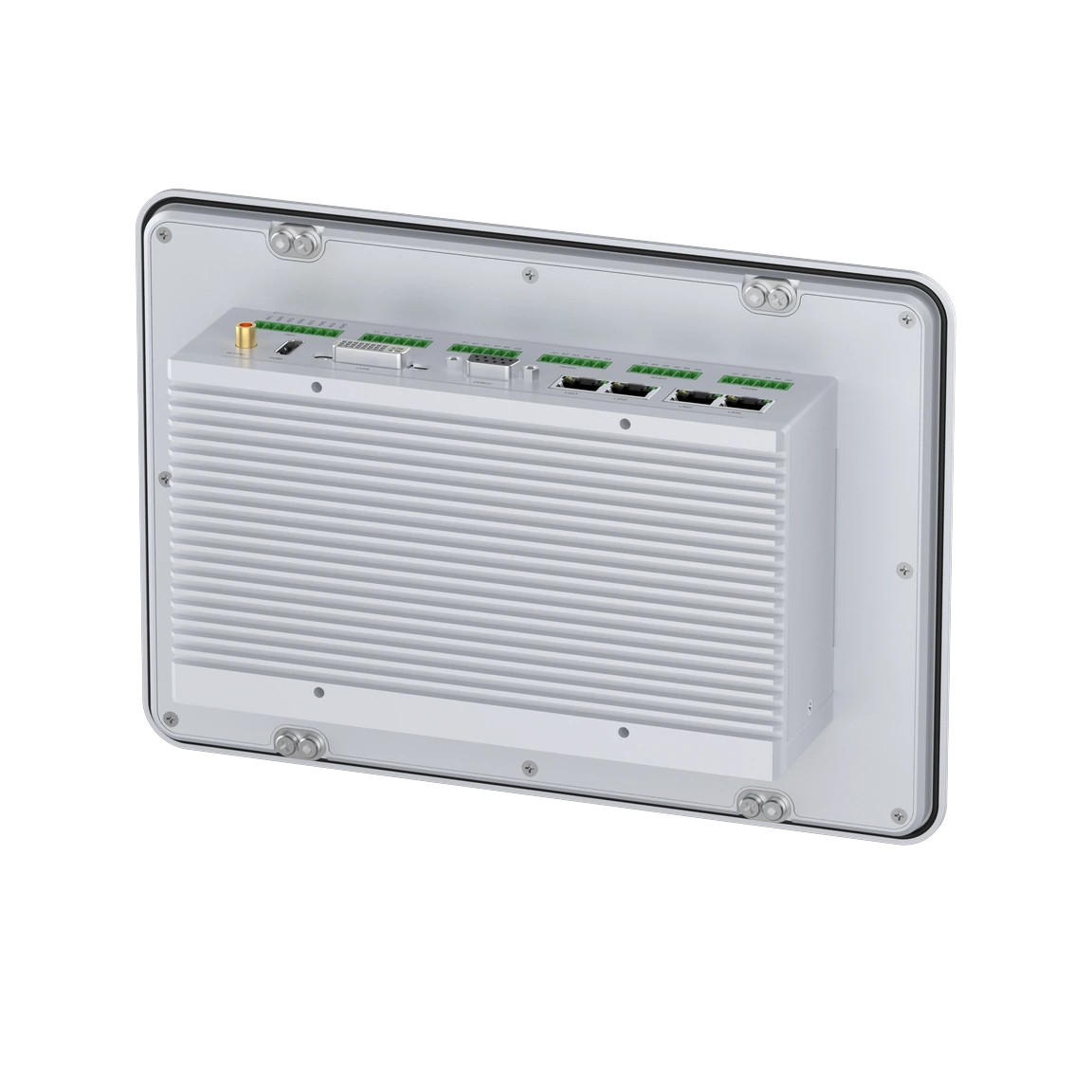

- Fanless aluminum-magnesium housing, wall/DIN rail mountable
ARM Based Touch Panel PC Product Information
| Technical Specifications | |
|---|---|
| Model Name | ARM6000-C101-R1-3568J-T |
| CPU | |
| Processor | Rockchip RK3568J Quad-core Cortex-A55 up to 1.4GHz |
| GPU | G52 GPU |
| NPU | 1 TOPS |
| Memory | |
| RAM | Onboard LPDDR4 4GB / 8GB |
| Storage | |
| eMMC | Onboard 32GB / 64GB |
| TF Card | 1 x TF card slot, supports storage expansion |
| M.2 | 1 x M.2 2242 Key, supports SSD up to 512GB |

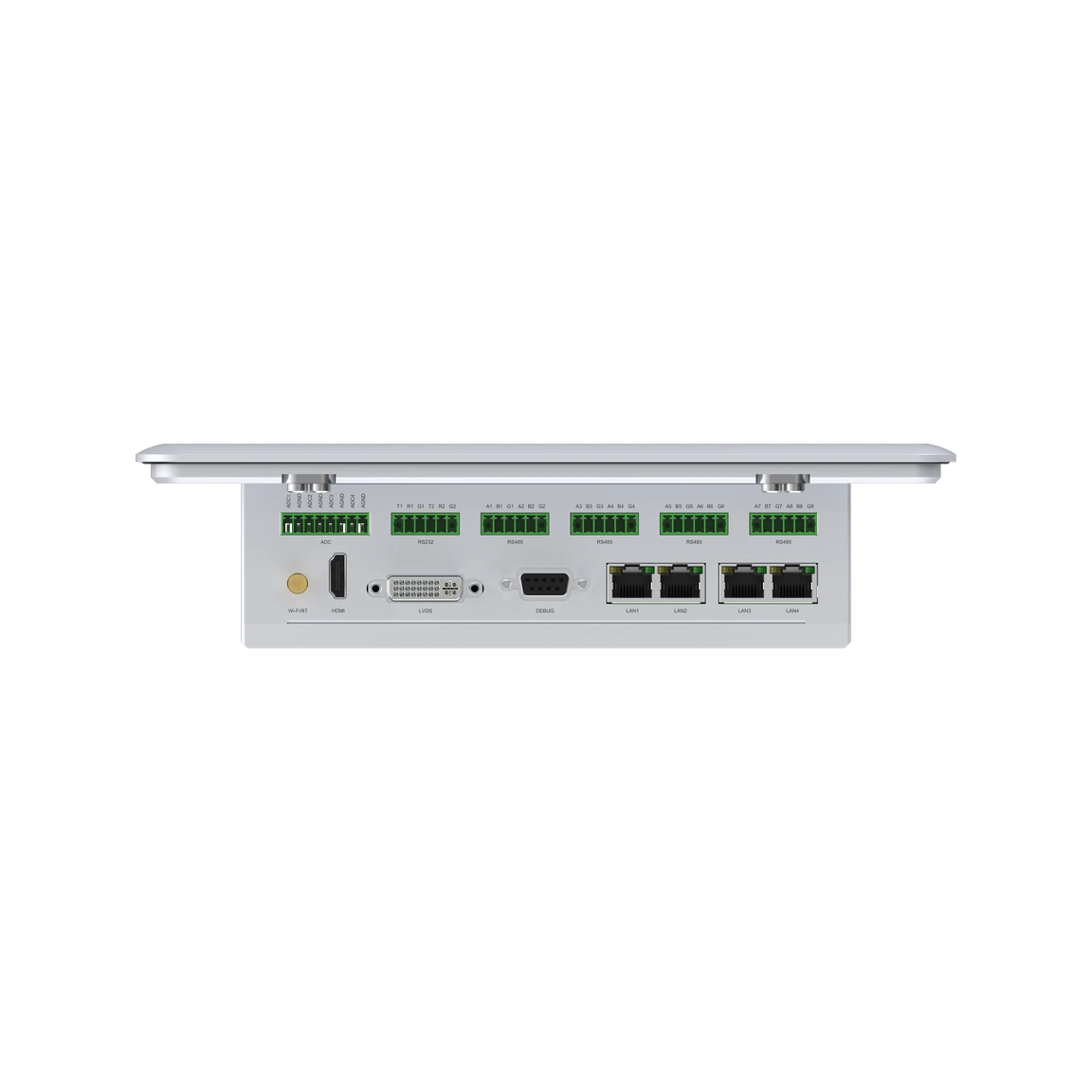

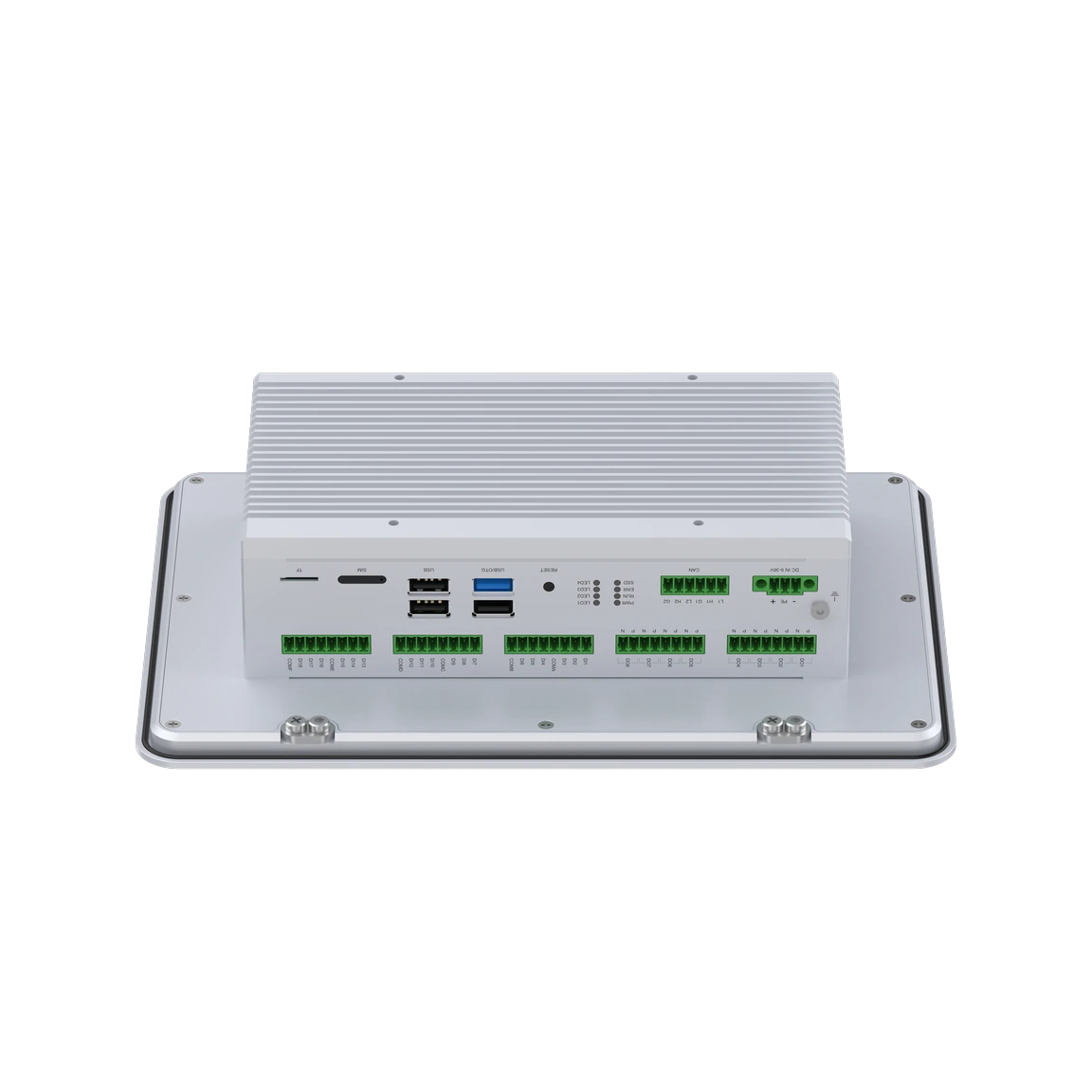

| I/O Interfaces | |
| Ethernet | 4 x 10/100/1000Mbps RJ-45 |
| Wi-Fi / Bluetooth | 2.4G/5G Wi-Fi (802.11 a/b/g/n/ac) + Bluetooth 5.0 |
| Mini-PCIe | 1 x Mini-PCIe, supports LTE 4G/5G modules (optional) |
| USB | 3 x USB2.0, 1 x USB3.0 (OTG multiplexed) |
| Serial Ports | 8 x RS485 (isolated), 2 x RS232 (isolated), 1 x RS232 debug (DB9) |
| CAN | 2 x CAN-Bus (isolated) |
| DI | 18 x Digital Inputs (12 dry contact, 6 wet contact, opto-isolated) |
| DO | 8 x Digital Outputs (relay isolated, 3A/5A 250VAC/30VDC) |
| ADC | 4 x Analog Inputs (0-10V, isolated) |
| SIM Slot | 1 x Micro SIM card slot (with holder) |
| LED Indicators | Power, System (RUN), Error, SSD, 4 x programmable LEDs |
| Video Output | 1 x HDMI (up to 4K), 1 x DVI-I (LVDS 24-bit) |
| Reset Key | 1 x Reset (hidden), shared with U-Boot |
| Display | |
| Size | 10.1" TFT |
| Resolution | 1280 × 800 |
| Brightness | 500 cd/m² |
| Backlight Life | 30,000 hrs |
| Touchscreen | |
| Type | Capacitive multi-point touch |
| Transmittance | >87% |
| Interface | USB |
| Operating System | |
| Linux | Debian 11, Ubuntu 20.04 |
| Power | |
| Input | DC 9-36V ±10%, with overcurrent/overvoltage/reverse protection |
| Power Consumption | ≤ 20W |
| Chassis | |
| Material | Aluminum-magnesium alloy, fanless |
| Mounting | Wall-mounted or DIN-Rail |
| Dimensions | 232 mm × 113 mm × 60 mm |
| Panel Cutout | 261.16 mm × 179.8 mm |
| Weight | 2 kg |
| Environment | |
| Operating Temperature | -20°C ~ 70°C (motherboard: -40°C ~ 80°C) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 5-95% @40°C, non-condensing |
| Vibration | 1.5Grms, 5~500Hz, 1 hr/axis (IEC 60068-2-64) |
| Shock | 20G peak, 11 ms (IEC 60068-2-27) |
| EMC | CE / FCC Class A |
| Ordering Information | ||
|---|---|---|
| Part No. | Model | Description |
| B83.A3907.3J.0001 | ARM6000-C101-R1-4G32-3568J-T | 10.1", RK3568J, 4GB RAM, 32GB eMMC, 4 x LAN, 8 x RS485, 2 x RS232, 2 x CAN, 18 x DI, 8 x DO, 4 x ADC, HDMI, Wi-Fi, USB3.0/2.0, SIM, M.2, Mini-PCIe, -20~70°C |
| B83.A3906.3J.0001 | ARM6000-C101-R1-8G64-3568J-T | 10.1", RK3568J, 8GB RAM, 64GB eMMC, same features as above |
| Options | ||
| Power Adapter | KPL-040F-v1, 40W AC adapter, 12V DC output, national standard plug | |
| Wi-Fi Antenna | Glue-stick antenna or magnetic 3M antenna | |
| M.2 SSD | Optional: 128GB, 256GB, 512GB | |
| Mini-PCIe Wireless Modules | Optional: EC20/EC25/EG25 (4G), RM500U (5G) | |
| Mounting Accessories | Wall mount bracket or DIN rail mount kit | |
