ARM6000-C150-C8 Series Panel PC
15” fanless ARM panel PC with RK3568/3576/3588, HDMI, COM, USB, and panel mount support
Features

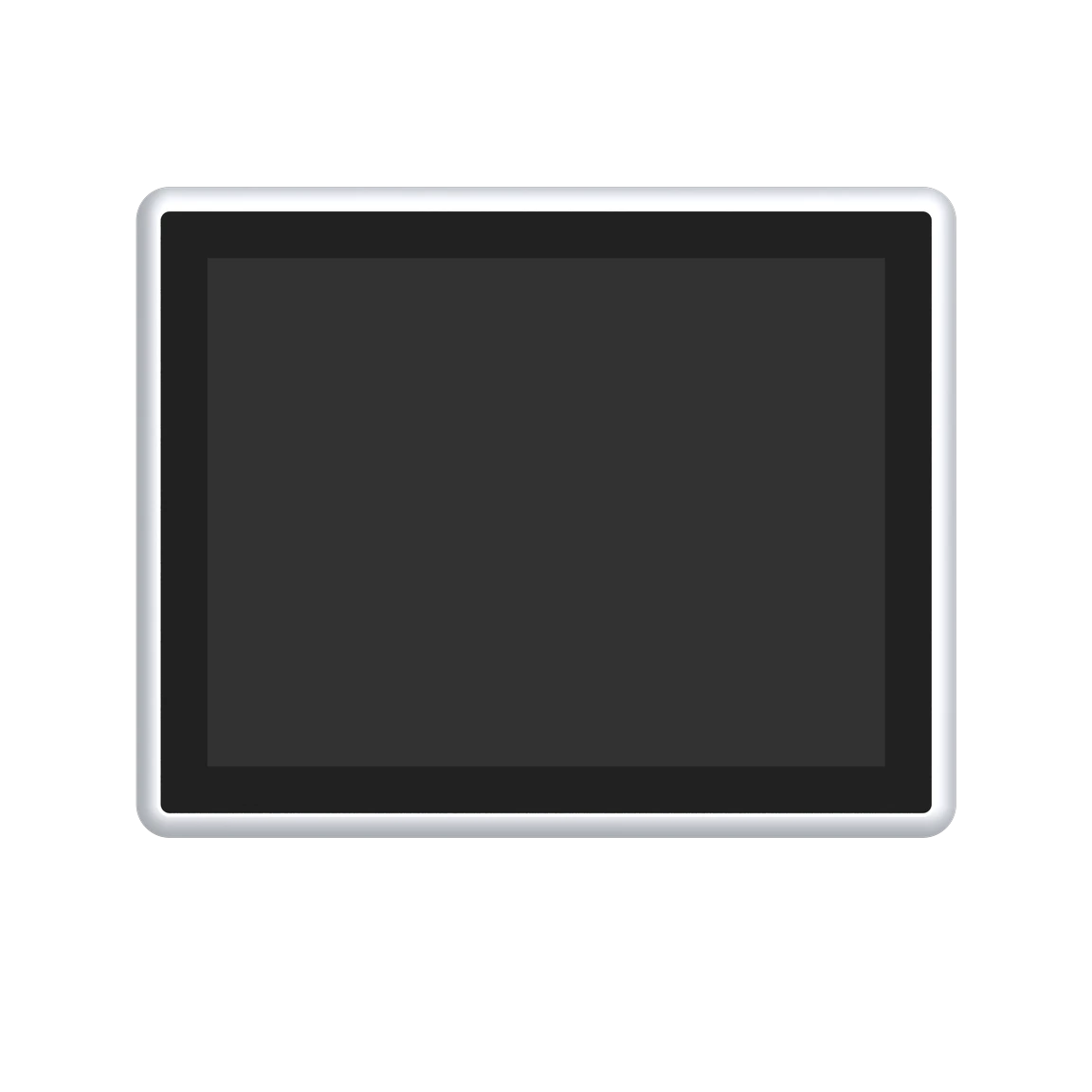

- 15” TFT display with 1024×768 resolution and 350 cd/m² brightness
- Rockchip RK3568 / RK3576 / RK3588 processor options
- Capacitive multi-touch screen with >87% transmittance

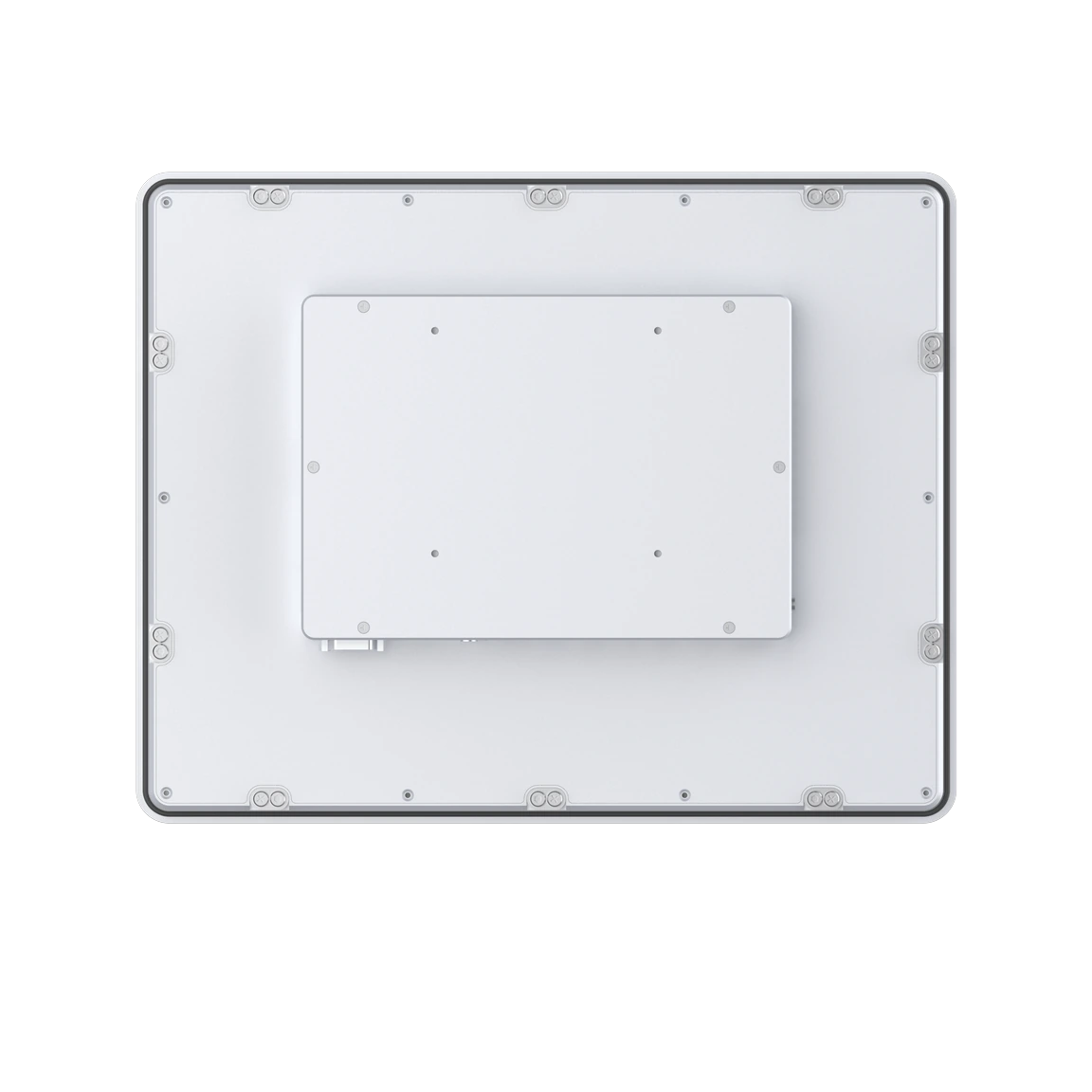

- Fanless aluminum-magnesium alloy housing with panel mount support
- Onboard 4GB/8GB LPDDR4 RAM and 32GB/64GB eMMC

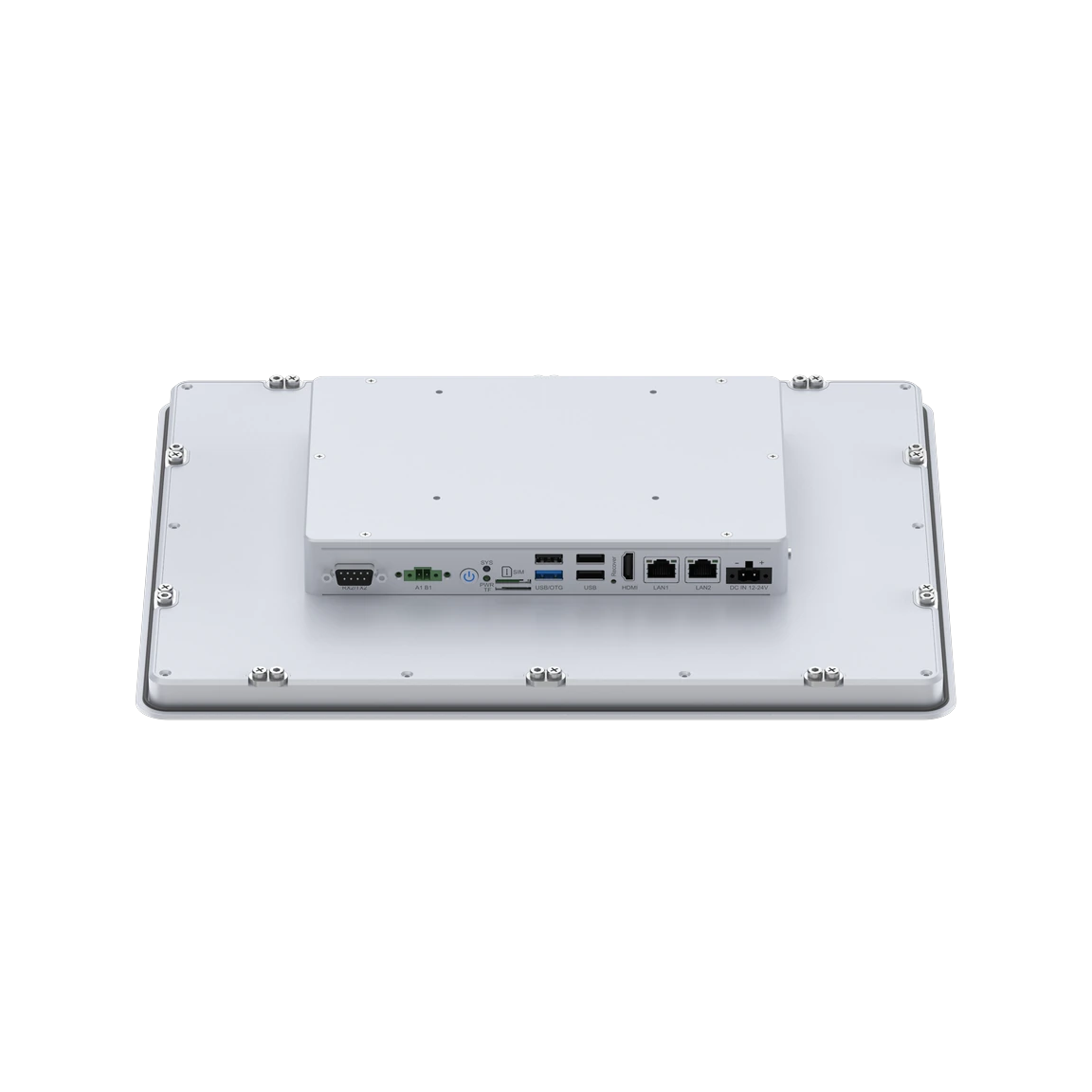

- 2 x GbE LAN, 3 x USB2.0, 1 x USB3.0 (OTG)
- 1 x RS232, 1 x RS485, optional 3 x RS232/485
- Built-in Wi-Fi/Bluetooth, optional 4G (Mini-PCIe) and 5G (M.2)
- HDMI output supports 4K (RK3568) and up to 8K (RK3588)
- Wide voltage DC 12~24V input with multiple protection circuits
ARM Based Touch Panel PC Product Information
| Technical Specifications | |||
|---|---|---|---|
| Model Name | ARM6000-C150-C8-3568-T | ARM6000-C150-C8-3576-T | ARM6000-C150-C8-3588-T |
| System | |||
| CPU | Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz | Rockchip RK3576 8-core (4×Cortex-A72 + 4×Cortex-A53) up to 2.2GHz | Rockchip RK3588 8-core (4×Cortex-A55 + 4×Cortex-A76) up to 2.4GHz |
| GPU | G52 GPU | G52 MC3 | Mali-G610 MP4 |
| NPU | 1 TOPS (INT8) | 6 TOPS (INT8) | 6 TOPS (INT8) |
| Memory | Onboard LPDDR4 4GB / 8GB | ||
| Storage | Onboard 32GB / 64GB eMMC 1 x TF card slot (expansion) 1 x Mini-PCIe slot (supports mSATA SSD, reused with 4G/Wi-Fi 6) 1 x SATA 3.0 (available for RK3576 / RK3588) | ||
| I/O Interfaces | |||
| Ethernet | 2 x 10/100/1000Mbps RJ-45 | ||
| Wi-Fi / Bluetooth | Onboard 2.4G/5G Wi-Fi (802.11 a/b/g/n/ac) + Bluetooth 5.0 | ||
| USB | 3 x USB2.0, 1 x USB3.0 (OTG) | ||
| Serial | 1 x RS232 (DB9), 1 x RS485 (2-pin terminal), optional 3 x RS232/RS485 | ||
| Audio | 2 x Ø3.5mm jack for speaker, 1 x mic in (optional), 1 x built-in 2.5W speaker (optional) | ||
| SIM | 1 x Micro SIM card slot | ||
| Expansion | 1 x Mini-PCIe (for 4G/Wi-Fi 6), 1 x M.2 (for 5G) | ||
| Video Output | 1 x HDMI (up to 4K or 8K with RK3588) | ||
| Buttons | 1 x Power, 1 x Recovery (flash) | ||
| LEDs | 1 x Power (green), 1 x System (blue) | ||
| Display | |||
| Screen Size | 15" TFT | ||
| Resolution | 1024 × 768 | ||
| Brightness | 350 cd/m² | ||
| Backlight Life | 50,000 hrs | ||
| Touchscreen | |||
| Touch Type | Multipoint Capacitive Touch | ||
| Transmittance | >87% | ||
| Touch Interface | USB | ||
| Operating System | |||
| Android | Android 11 | Android 14 | Android 13 |
| Linux | Debian 11, Ubuntu 20.04 | Debian 12, Ubuntu 22.04 | Debian 11, Ubuntu 20.04 |
| Power | |||
| Input Voltage | DC 12-24V ±10%, overcurrent, overvoltage, reverse protection | ||
| Power Consumption | ≤ 20W | ||
| Chassis | |||
| Structure | Aluminum-magnesium alloy, fanless, panel and VESA mount supported | ||
| Dimensions (W x H x D) | 368.2 mm × 292.2 mm × 48.8 mm | ||
| Panel Cutout Size | 360.2 mm × 284.2 mm | ||
| Net Weight | 1.9 kg | ||
| Environmental | |||
| Operating Temperature | -20°C ~ 70°C | ||
| Storage Temperature | -40°C ~ 85°C | ||
| Humidity | 5-95% @40°C, non-condensing | ||
| Vibration | 1.5Grms, 5~500Hz, 1 hr/axis, IEC60068-2-64 | ||
| Shock | 20G peak, 11ms, IEC60068-2-27 | ||
| EMC | CE/FCC Class A | ||
| Ordering Information | ||
|---|---|---|
| Part No. | Model | Description |
| B81.AC150.38.0003 | ARM6000-C150-C8-4G32-3568-T | 15", RK3568, 4GB RAM, 32GB eMMC, capacitive touch, 1024×768, DC 12~24V input, 2× GLAN, 3× USB2.0, 1× USB3.0, 1× RS232, 1× RS485, optional 3× RS232/485, onboard 2.4G/5G Wi-Fi, Mini-PCIe (4G/Wi-Fi 6), M.2 (5G), audio jack, built-in speaker (optional), mic in (optional), -20~70°C |
| B81.AC150.38.0004 | ARM6000-C150-C8-8G64-3568-T | 15", RK3568, 8GB RAM, 64GB eMMC, same features as above |
| B81.AC150.76.0001 | ARM6000-C150-C8-4G32-3576-T | 15", RK3576, 4GB RAM, 32GB eMMC, same features as above, SATA 3.0 supported |
| B81.AC150.76.0002 | ARM6000-C150-C8-8G64-3576-T | 15", RK3576, 8GB RAM, 64GB eMMC, same features as above |
| B81.AC150.58.0001 | ARM6000-C150-C8-4G32-3588-T | 15", RK3588, 4GB RAM, 32GB eMMC, same features as above, HDMI supports up to 8K |
| B81.AC150.58.0002 | ARM6000-C150-C8-8G64-3588-T | 15", RK3588, 8GB RAM, 64GB eMMC, same features as above |
| Options | ||
| Power Adapter | KPL-040F-v1, 40W adapter kit, DC out 12V with national standard power cord | |
| Wi-Fi External Antenna | Glue stick antenna, suction cup 3M antenna | |
| mSATA SSD | 128GB, 256GB, 512GB, 1TB | |
| SATA 3.0 SSD | 128GB, 256GB, 512GB, 1TB | |
| Wi-Fi 6 Module | Mini-PCIe: BL-M8852BP3, supports 802.11 a/b/g/n/ac/ax + Bluetooth 5.2 | |
| 3G/4G Module | Mini-PCIe: EC20, EG25, EC25 | |
| 5G Module | M.2: Quectel RM500U | |
| 3 x RS232/485 Module | Optional module configurable as RS232 or RS485 | |
| Mount Option | VESA-mounted | |
