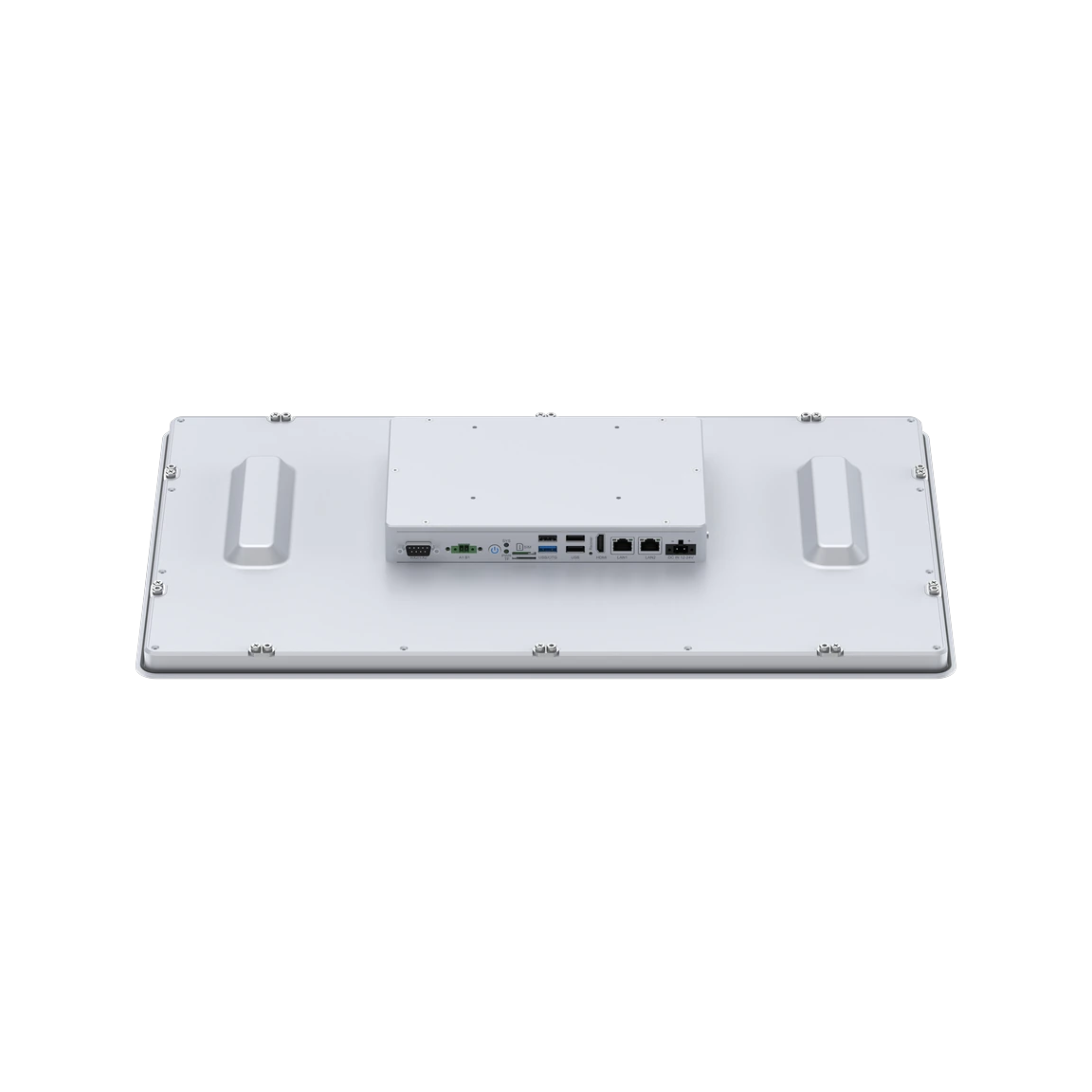

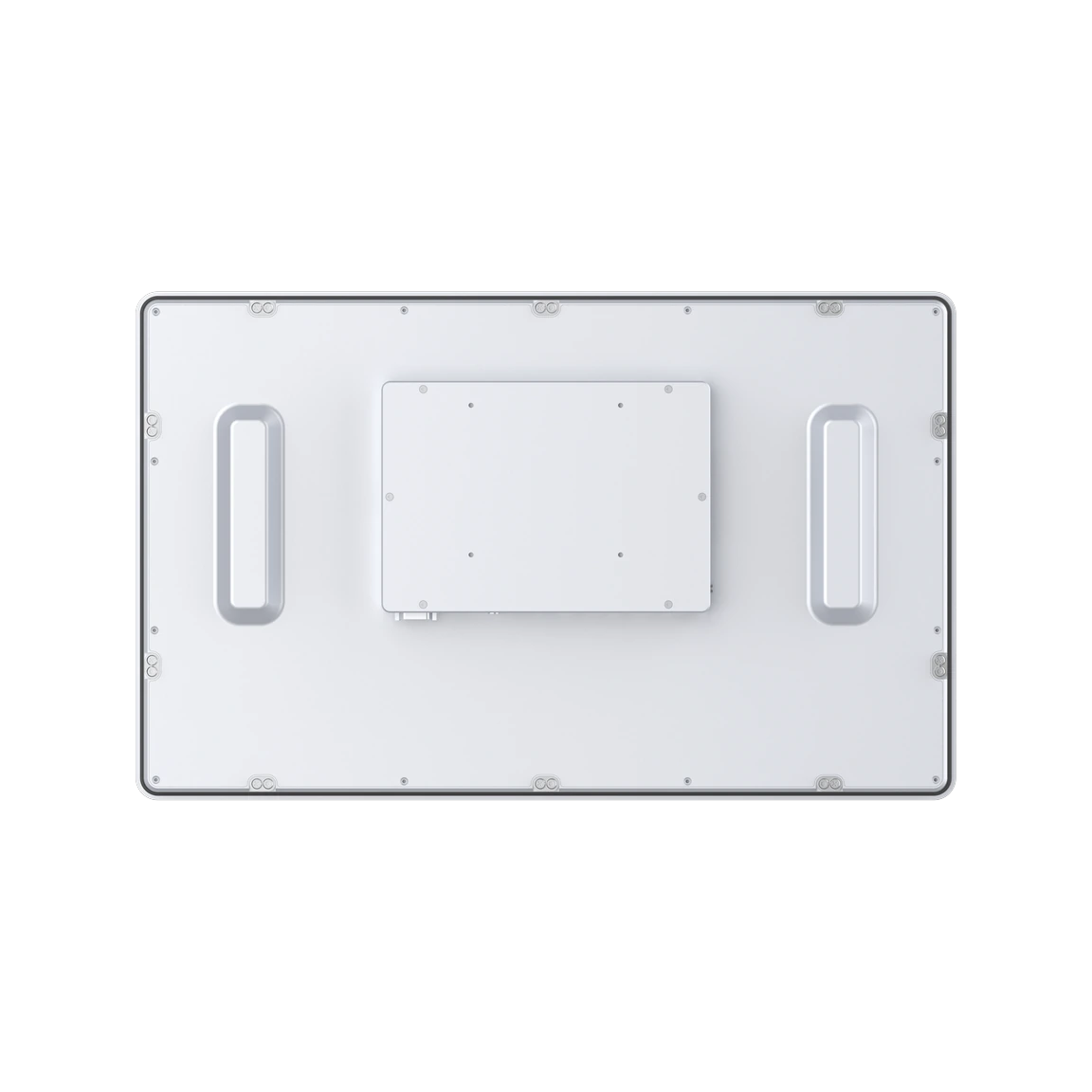

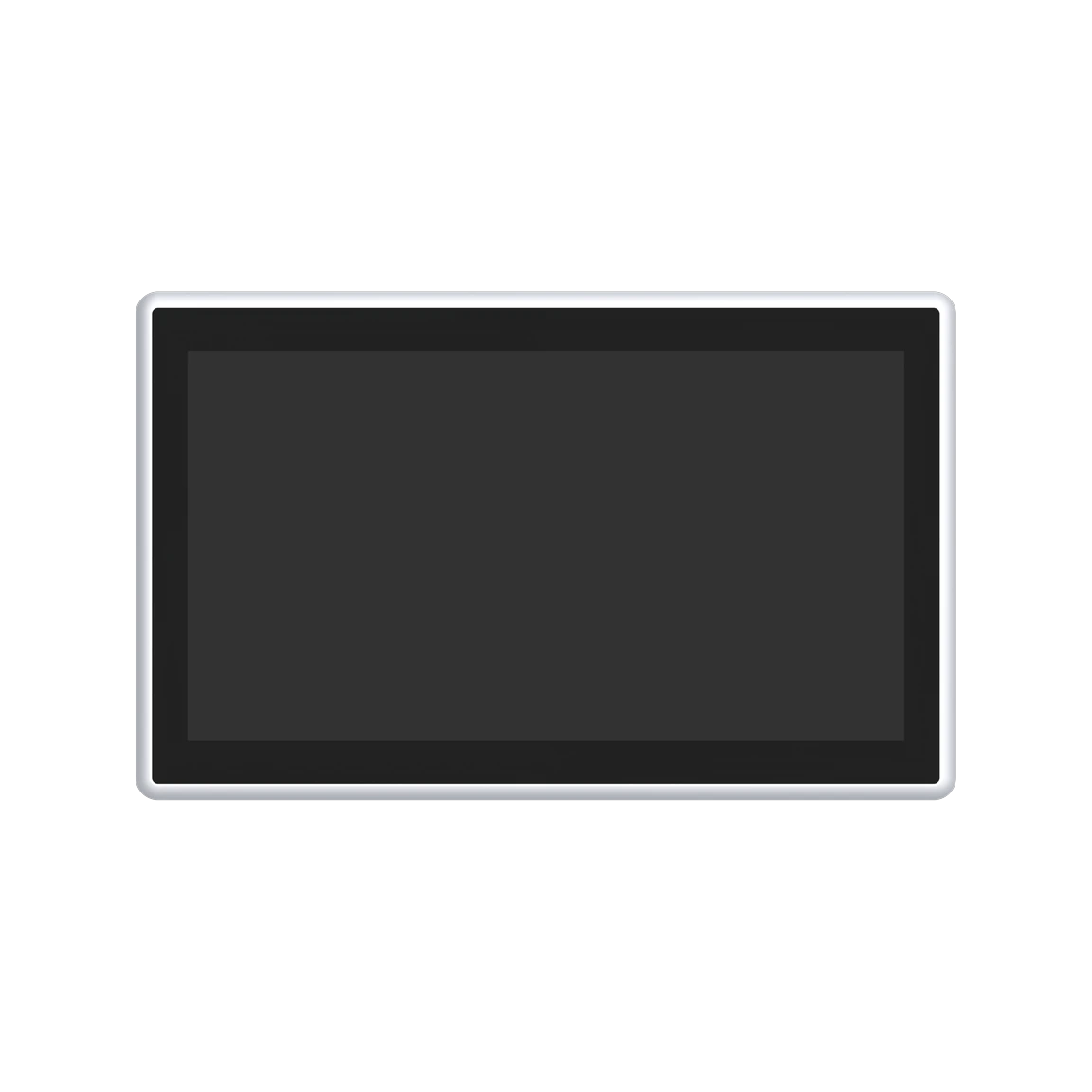

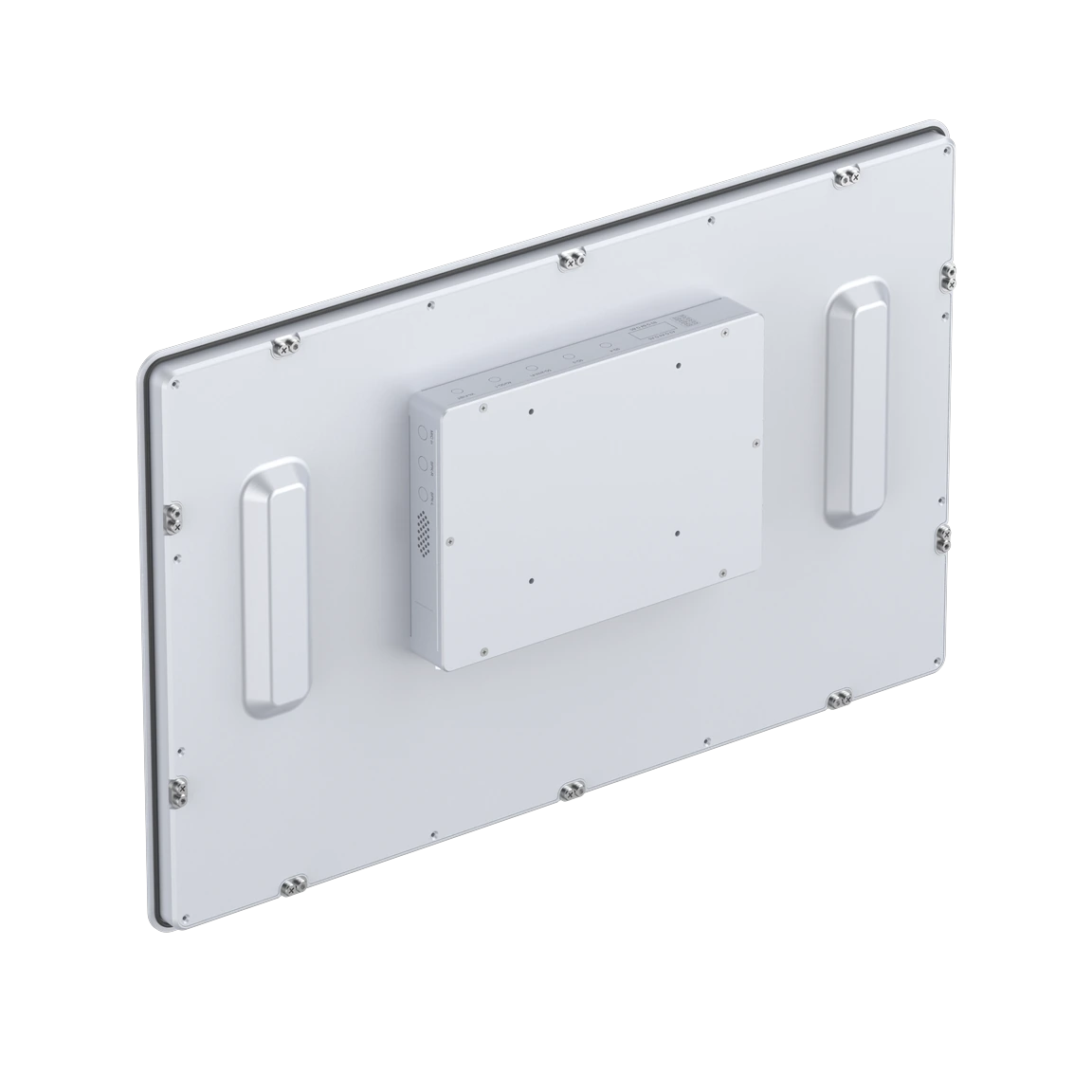

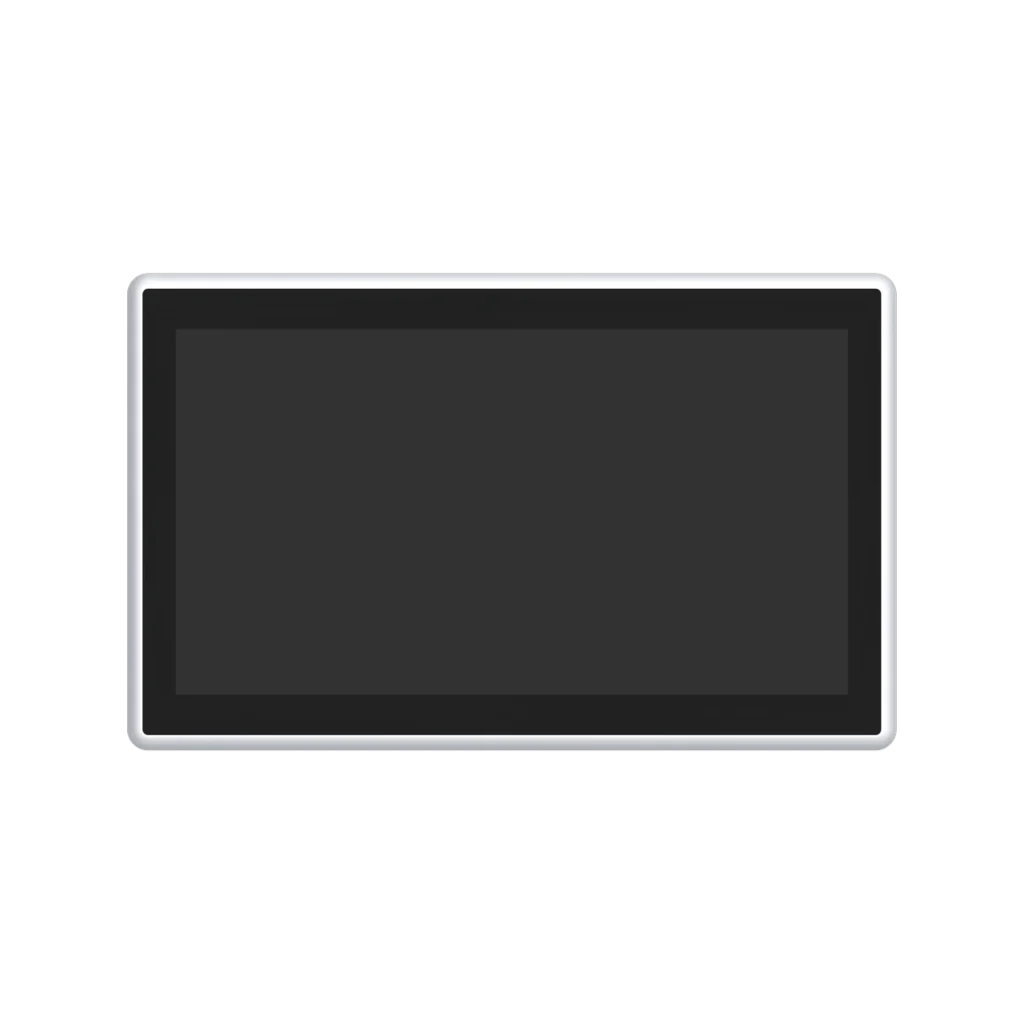

ARM6000-C215-C8 Series Panel PC
21.5” full HD fanless ARM panel PC with Rockchip CPU, HDMI, LAN, and panel mounting for industrial applications
Features
- 21.5” TFT display with 1920×1080 resolution and 250 cd/m² brightness
- Rockchip RK3568 / RK3576 / RK3588 CPU options
- Capacitive multi-touch screen with >87% transmittance
- Fanless aluminum-magnesium alloy chassis with panel and VESA mount support
- 4GB/8GB LPDDR4 RAM and 32GB/64GB eMMC onboard
- 2 x GbE LAN, 3 x USB2.0, 1 x USB3.0 (OTG)
- 1 x RS232, 1 x RS485, optional 3 x RS232/RS485
- Built-in Wi-Fi/Bluetooth, Mini-PCIe (4G/Wi-Fi 6), M.2 (5G)
- HDMI output supports 4K/8K video (RK3588)
- Wide voltage input DC 12~24V with overcurrent, overvoltage, reverse protection
ARM Based Touch Panel PC Product Information
| Technical Specifications | |||
|---|---|---|---|
| Model Name | ARM6000-C215-C8-3568-T | ARM6000-C215-C8-3576-T | ARM6000-C215-C8-3588-T |
| System | |||
| CPU | Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz | Rockchip RK3576 8-core (4×Cortex-A72 + 4×Cortex-A53) up to 2.2GHz | Rockchip RK3588 8-core (4×Cortex-A55 + 4×Cortex-A76) up to 2.4GHz |
| GPU | G52 GPU | G52 MC3 | Mali-G610 MP4 |
| NPU | 1 TOPS (INT8) | 6 TOPS (INT8) | 6 TOPS (INT8) |
| Memory | Onboard LPDDR4 4GB / 8GB | ||
| Storage | Onboard 32GB / 64GB eMMC 1 x TF card slot (expansion) 1 x Mini-PCIe (mSATA, reused with 4G/Wi-Fi 6, RK3568/RK3588 only) 1 x SATA 3.0 (available with RK3576 / RK3588) | ||
| I/O Interfaces | |||
| Ethernet | 2 x 10/100/1000Mbps RJ-45 | ||
| Wi-Fi / Bluetooth | 2.4G/5G Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.0 | ||
| USB | 3 x USB2.0, 1 x USB3.0 (OTG multiplexed) | ||
| Serial | 1 x RS485 (terminal), 1 x RS232 (DB9), 3 x RS232/RS485 (Optional) | ||
| Audio | 2 x Ø3.5mm speaker jack (8Ω 6W), 1 x Mic in (Optional), built-in 8Ω 2.5W speaker (Optional) | ||
| SIM | 1 x Micro SIM card slot (with holder) | ||
| Expansion | 1 x Mini-PCIe (4G/Wi-Fi 6), 1 x M.2 (5G) | ||
| Video Output | 1 x HDMI (up to 4K/8K with RK3588) | ||
| Buttons | 1 x Power, 1 x Recovery | ||
| LED | 1 x Power LED (green), 1 x System LED (blue) | ||
| Display | |||
| Screen Size | 21.5" TFT | ||
| Resolution | 1920 × 1080 | ||
| Brightness | 250 cd/m² | ||
| Backlight Life | 30,000 hrs | ||
| Touchscreen | |||
| Touch Type | Multipoint Capacitive Touch | ||
| Transmittance | >87% | ||
| Touch Interface | USB | ||
| Operating System | |||
| Android | Android 11 | Android 14 | Android 13 |
| Linux | Debian 11, Ubuntu 20.04 | Debian 12, Ubuntu 22.04 | Debian 11, Ubuntu 20.04 |
| Power | |||
| Input Voltage | DC 12-24V ±10% with overcurrent, overvoltage, reverse polarity protection | ||
| Power Consumption | ≤ 20W | ||
| Chassis | |||
| Structure | Aluminum-magnesium alloy, fanless, supports panel and VESA mounting | ||
| Dimensions (W x H x D) | 548.8 mm × 340.3 mm × 48.8 mm | ||
| Panel Cutout Size | 540.8 mm × 332.3 mm | ||
| Net Weight | 5.5 kg | ||
| Environmental | |||
| Operating Temperature | 0°C ~ 50°C | ||
| Storage Temperature | -40°C ~ 85°C | ||
| Humidity | 5-95% @40°C, non-condensing | ||
| Vibration | 1.5Grms, 5~500Hz, 1 hr/axis (SSD), IEC60068-2-64 | ||
| Shock | 20G peak, 11ms, IEC60068-2-27 (SSD) | ||
| EMC | CE/FCC Class A | ||
| Ordering Information | ||
|---|---|---|
| Part No. | Model | Description |
| B81.AC215.38.0003 | ARM6000-C215-C8-4G32-3568-T | 21.5", RK3568, 4GB RAM, 32GB eMMC, capacitive touch, 1920×1080, DC 12~24V input, 2× GLAN, 3× USB2.0, 1× USB3.0, 1× RS232, 1× RS485, optional 3× RS232/485, HDMI, Wi-Fi/Bluetooth, Mini-PCIe (4G/Wi-Fi 6), M.2 (5G), optional mic and speaker, operating temp: 0~50°C |
| B81.AC215.38.0004 | ARM6000-C215-C8-8G64-3568-T | 21.5", RK3568, 8GB RAM, 64GB eMMC, same features as above |
| B81.AC215.76.0001 | ARM6000-C215-C8-4G32-3576-T | 21.5", RK3576, 4GB RAM, 32GB eMMC, same features as above with SATA SSD support |
| B81.AC215.76.0002 | ARM6000-C215-C8-8G64-3576-T | 21.5", RK3576, 8GB RAM, 64GB eMMC, same features as above |
| B81.AC215.58.0001 | ARM6000-C215-C8-4G32-3588-T | 21.5", RK3588, 4GB RAM, 32GB eMMC, HDMI supports 8K, otherwise same as above |
| B81.AC215.58.0002 | ARM6000-C215-C8-8G64-3588-T | 21.5", RK3588, 8GB RAM, 64GB eMMC, same features as above |
| Options | ||
| Power Adapter | KPL-040F-v1, 40W adapter kit, 12V output with national standard AC plug | |
| Wi-Fi Antenna | Glue stick antenna or suction-cup 3M antenna | |
| mSATA SSD | Optional: 128GB, 256GB, 512GB, 1TB | |
| SATA SSD | Optional (for RK3576/3588): 128GB, 256GB, 512GB, 1TB | |
| Wi-Fi 6 Module | Mini-PCIe module (BL-M8852BP3), 802.11 a/b/g/n/ac/ax + Bluetooth 5.2 | |
| 3G/4G Module | Mini-PCIe module: EC20, EG25, EC25 | |
| 5G Module | M.2 module: Quectel RM500U | |
| 3 x RS232/485 Module | Optional configurable COM module (RS232 or RS485) | |
| Mount Option | Supports panel and VESA mounting | |
