NK-6170 | 3.5" Intel J6412 Embedded SBC with Quad Display, Dual M.2, and Dual LAN
Compact industrial SBC featuring quad display support, M.2 and Mini PCIe expansion, wide voltage DC input, and rugged design for embedded computing
Features
- Intel Celeron J6412, 4-core processor with low 10W TDP
- Supports up to 32GB DDR4 SO-DIMM
- Triple independent display: DP + HDMI + LVDS/eDP
- 2 x Intel® GbE LAN ports
- 6 x COM ports (2 x RS232/485, 4 x TTL), 4 x USB ports
- Dual M.2 slots: 1 x SATA SSD, 1 x wireless/5G with SIM
- 1 x Mini PCIe for additional expansion
- 12–24V DC wide range input with Phoenix connector
- CE/FCC Class A compliance, -10°C to 60°C operating temperature
Embedded Industrial SBC Motherboard Product Information
| Technical Specifications | |
|---|---|
| System | |
| CPU | Intel(r) Celeron(r) J6412, 4-core, 2.0GHz (up to 2.6GHz), TDP 10W |
| Chipset | Intel(r) SoC Integrated |
| BIOS | AMI 128Mb UEFI BIOS |
| Memory | |
| Type | DDR4 3200MHz, Non-ECC, Single Channel |
| Slot | 1 x DDR4 260-pin SO-DIMM, up to 32GB |
| Storage | |
| SATA | 1 x SATA 3.0 port |
| M.2 (SSD) | 1 x M.2 2242 B-Key (SATA 3.0 signal) |
| Graphics | |
| Controller | Intel(r) UHD Graphics integrated |
| External Display | 1 x DP 1.4 (up to 4096×2160@60Hz), 1 x HDMI (up to 4096×2160@30Hz) |
| Internal Display | 1 x LVDS (1920×1200@60Hz), 1 x eDP 1.3 (4096×2160@60Hz) |
| Audio | |
| Codec | Realtek ALC897 |

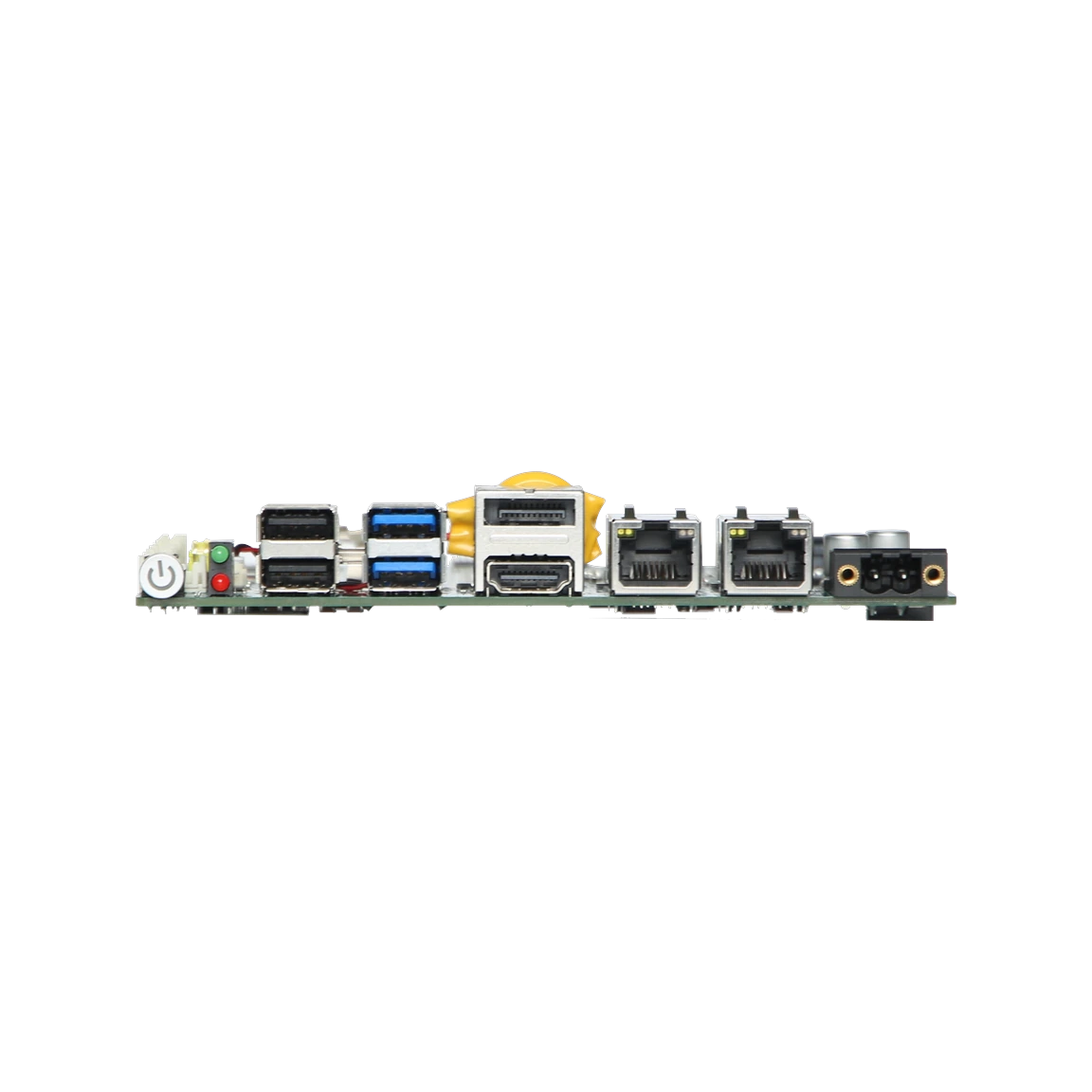

| Rear I/O | |
| Ethernet | 2 x GbE (RJ45), Realtek 8111H |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Buttons | 1 x Power Button (white ON, blinking sleep, off OFF) |
| LED Indicators | 1 x Power LED (Green), 1 x SATA LED (Red) |
| Internal I/O | |
| COM | 1 x RS232/485, 1 x RS232, 4 x TTL (wafer) |
| USB | 2 x USB 2.0 (wafer) |
| Audio | 1 x Mic-in/Line-out (2×5pin wafer) |
| Fan | 1 x Smart Fan (4pin wafer) |
| GPIO | 1 x 8-bit GPIO (2×5pin) |
| SMBus | 1 x SMBus wafer |
| eSPI | 1 x eSPI header (for debug) |
| Front Panel | 1 x Front Panel wafer (Power/Reset/HDD LED/Power LED) |
| Expansion Slots | |
| M.2 Slots | 1 x M.2 2230 E-Key (PCIe/USB2.0, for Wi-Fi) 1 x M.2 3042 B-Key with Nano-SIM (for 5G module; shares connector with 2242 SSD slot) |
| Mini PCIe | 1 x Mini PCIe slot with Nano-SIM (PCIe/USB) |
| Watchdog Timer | |
| Interval | 1-255 seconds, system reset |
| Power | |
| Input | 12-24V DC ±10% |
| Connector | 2-pin Phoenix terminal block |
| Power Consumption | Idle: 16.3W / Typical: 17.5W |
| OS Support | |
| Windows | Windows 10 / 11 |
| Linux | Supported |
| Mechanical | |
| Dimensions | 146mm (L) × 102mm (W) |
| Weight | 0.165 kg |
| Environment | |
| Operating Temperature | -10°C ~ 60°C (with SSD) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 5-95% RH (non-condensing) |
| Vibration | 5-500Hz, 3Grms (IEC60068-2-64) |
| Shock | 20G, 1ms (IEC60068-2-27) |
| Ordering Information | |||
|---|---|---|---|
| Part No. | Model | CPU | Description |
| F32.617003.10.NEK | NK-6170 | Intel(r) Celeron(r) J6412 | 3.5" embedded board with DDR4 SO-DIMM, M.2 SSD slot, 2 GbE, HDMI, DP, LVDS/eDP, 6 COM, USB, Mini PCIe, M.2 expansion, 12-24V DC input |
| Packing List | ||
|---|---|---|
| Part No. | Qty | Description |
| KF0.001046.00.L54 | 2 | COM cable, 2x5pin wafer to DB9, 150mm |
| KF0.001049.00.L54 | 1 | SATA cable (combined signal and power) |
| JF7.000041.00.D03 | 1 | 2-pin Phoenix terminal block, 5.08mm pitch |
| Optional Accessories | ||
|---|---|---|
| Part No. | Description | Notes |
| C2Z.612001.0A.NDJ | NK-6170 Heatsink | Passive cooling accessory |
| C3Z.NKEB01.10.NDJ | AEB-4COM00 I/O Expansion | 2 x RS485/422/232 (DB9), 2 x RS232 wafer |
| C3Z.0001.00.NDJ | 12V/60W Adapter | CM-060W-CWT0 with 180cm power cord |
| C3Z.0002.00.NDJ | 12V/84W Adapter | CM-090W-HKA with 180cm power cord |
| KF0.001047.00.L54 | USB Cable | 1x4pin wafer to USB2.0 Type-A, 150mm |
| KF0.001048.00.L54 | USB Y Cable | 2 x USB2.0 Type-A Y cable with bracket, 150mm |
| KF0.000949.00.Y09 | Audio Cable | 2x5pin wafer to Mic-in/Line-out, 300mm |
