iTPC-H1502 Series | 15" Fanless Industrial Panel PC with IP65 Front Panel

15″ fanless industrial panel PC with capacitive touchscreen, Intel Celeron J3455/J1900, Core i5, dual LAN & multiple COM ports, and flexible mounting options

Features

15” XGA (1024×768) capacitive touchscreen for industrial applications
Supports Intel® Celeron® J3455, J1900, and Core™ i5-7200U processors
Dual Intel 1000Mbps LAN ports for reliable networking
2 x COM (RS232, optional RS485) with surge protection for industrial communication
4 x USB (1 x USB3.0, 3 x USB2.0) for multiple peripheral connections
Flexible storage options: mSATA SSD (Available in 64GB, 128GB, 256GB, 512GB)
Fanless aluminum chassis for silent and durable operation
Mounting options: Panel Mount & VESA Mount
IP65 front panel for dust & water resistance

Multi-Touch Industrial Panel PCs Product Information

Technical Specifications
Model Name	iTPC-H1502-J3455	iTPC-H1502-J1900	iTPC-H1502-SL7200U
LCD
Size	15" XGA TFT LCD
Resolution	1024x768
Brightness	420 cd/m²
Contrast Ratio	800:1
Viewing Angle	(L)80/ (R)80/ (T)60/ (B)80
Backlight	LED
MTBF	30,000 hours
System
CPU	Intel® Celeron J3455 (Quad-Core 2.3GHz)	Intel® Celeron J1900 (Quad-Core 2.0GHz)	Intel® Core™ i5-7200U (Dual-Core 2.5GHz)
Cache	2MB	2MB	3MB
Chipset	Intel Apollo Lake / Bay Trail / Integrated PCH-LP
Memory	DDR3L-1333 MHz, 1 x 204-pin SODIMM, Up to 8GB
Storage	1 x mSATA SSD (64GB, 128GB, 256GB, 512GB options)
I/O Interfaces
Network (LAN)	2 x Intel i211 or i225 Gbe LAN controllers, RJ-45
USB	1 x USB3.0, 3 x USB2.0
Serial Ports	2 x RS-232 (RS-485 optional) with surge protection
Expansion Slot	1 x Mini-PCIe slot (Supports 3G, WiFi modules)

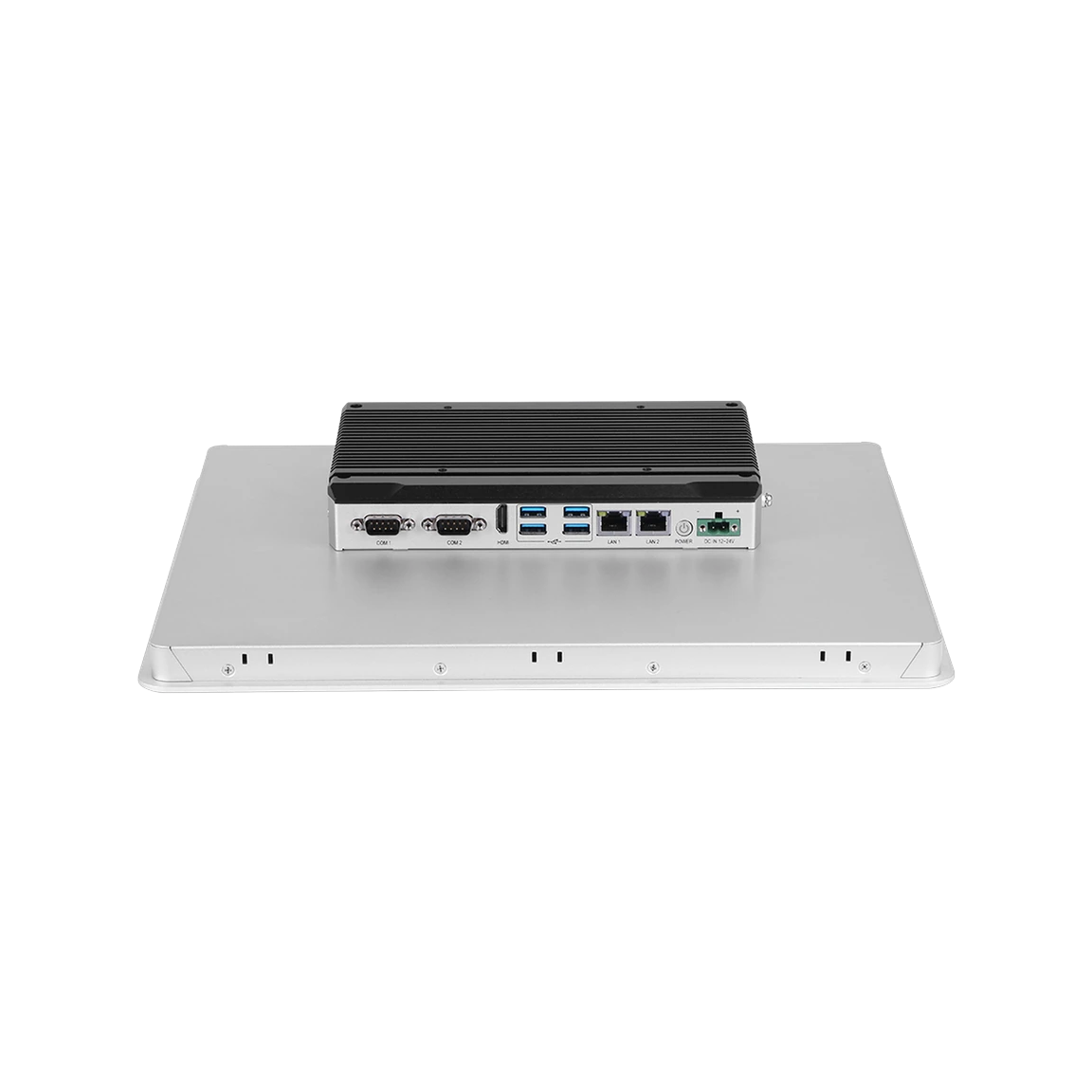

Rear I/O	2x GLAN, 4 x USB, 2 x COM, DC IN
Power
Input Voltage	DC12~24V
Power Consumption	38.6W
Touch Screen
Type	Multi-point Capacitive Touch Screen
Transmittance	>87%
Controller	USB interface
Driver Support	Windows 7, Windows 8, Windows 10, Linux
Surface Hardness	Mohs Hardness 7H
Multi-Touch	10 points under Windows system
Physical
Size (WxHxD)	368 mm x 292mm x 55mm
Cabinet Cut Size (WxH)	358mm x 282mm
Net Weight	3.98kg
Environmental
Operating Temperature	-10~50°C (14°F ~ 122°F) with wide temperature SSD
Storage Temperature	-20~70°C (-4°F ~ 158°F)
Relative Humidity	10~95% RH @ 40°C, non-condensing
Vibration Resistance	5~500Hz, 1.5Grms (IEC 60068-2-64) with SSD
Shock Resistance	10G peak acceleration (IEC 60068-2-27, 11ms duration)
EMC	CE/FCC Class A
Front Panel Protection	IP65 Compliant

Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information
Model Name	iTPC-H1502-J3455	iTPC-H1502-J1900	iTPC-H1502-SL7200U
Description	15" LCD, 1024x768, Capacitive Touch, Intel® Celeron® J3455, 2 x LAN, 2 x COM, 4 x USB, DC12~24V Input	15" LCD, 1024x768, Capacitive Touch, Intel® Celeron® J1900, 2 x LAN, 2 x COM, 4 x USB, DC12~24V Input	15" LCD, 1024x768, Capacitive Touch, Intel® Core™ i5-7200U, 2 x LAN, 2 x COM, 4 x USB, DC12~24V Input
Options
CPU	Intel® Celeron® J3455 (Quad-Core 2.3GHz)	Intel® Celeron® J1900 (Quad-Core 2.0GHz)	Intel® Core™ i5-7200U (Dual-Core 2.5GHz)
Memory	DDR3L 2GB, 4GB, 8GB
Storage	mSATA SSD (Available in 64GB, 128GB, 256GB, 512GB)
WiFi Kit	Mini-PCIe WiFi Kit (Supports 3G, WiFi)
3G/4G Module	Mini-PCIe 3G/4G Module
Mounting Option	Panel Mount & VESA Mount
