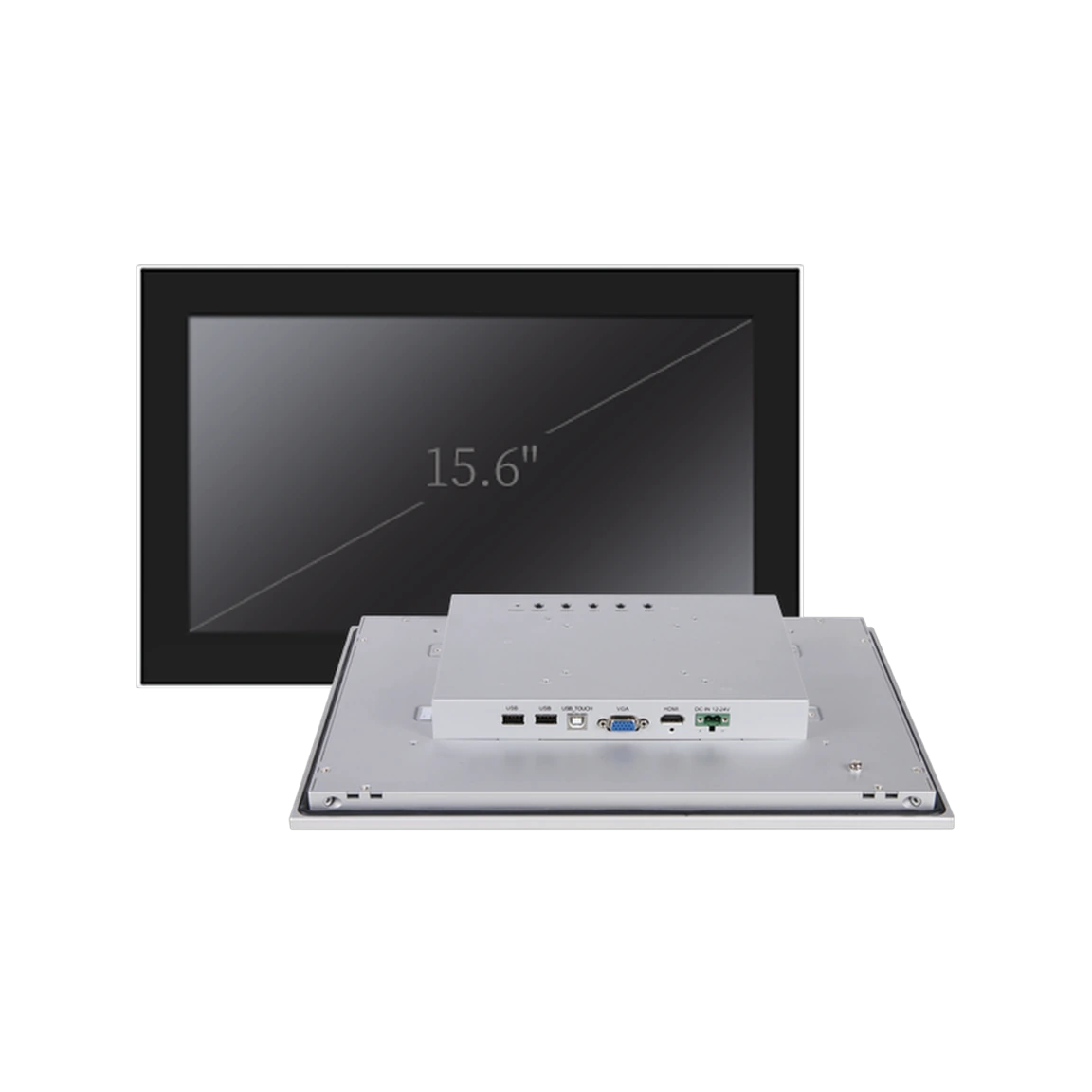

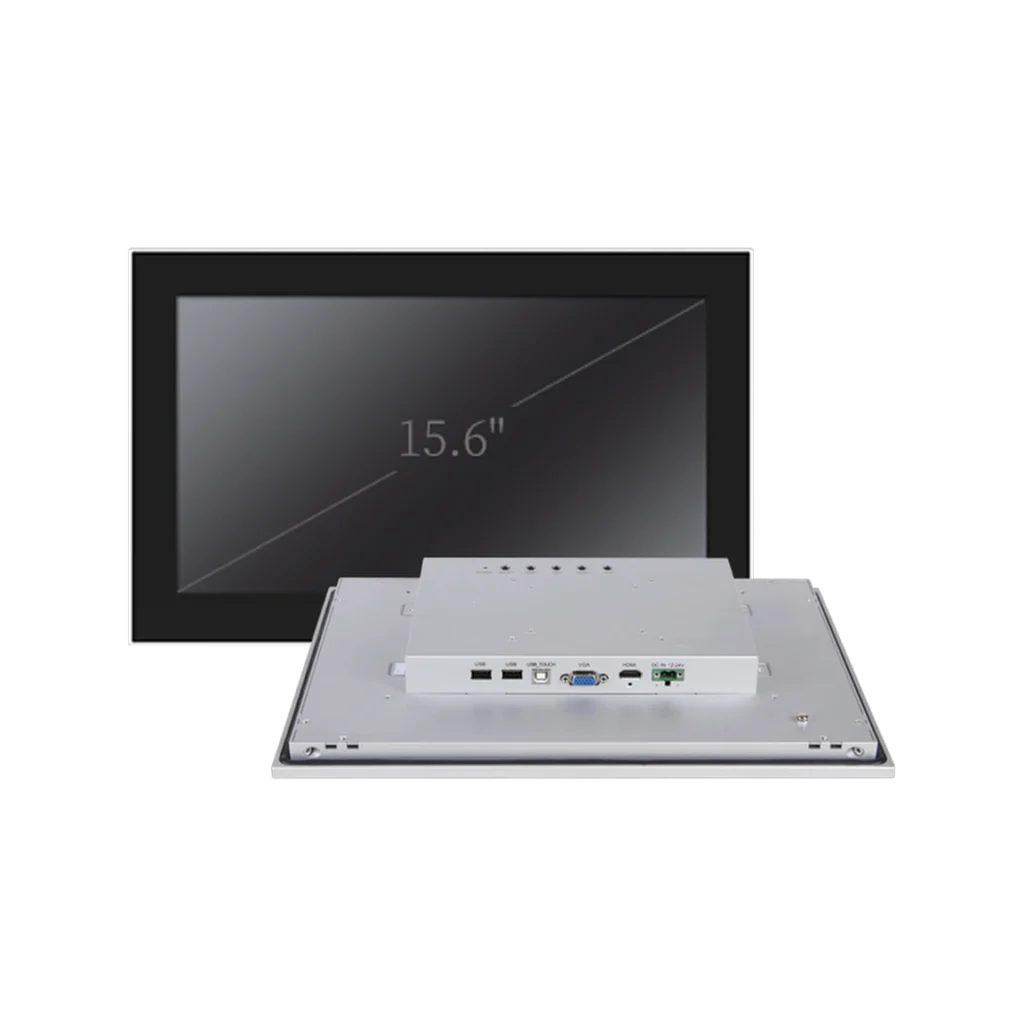

PANEL5000-C1563-L | 15.6" Multi-Touch Industrial Monitor with IP65 Front Panel
15.6″ industrial multi-touch monitor with capacitive touchscreen, VGA & HDMI input, wide voltage support, and multiple mounting options
Features
- 15.6″ TFT LCD with 1366×768 or Full HD (1920×1080) resolution
- Multi-point capacitive touch (10 points for Windows systems)
- High durability with Mohs’ 7H surface hardness
- Multiple mounting options (Panel-mounted, Wall-mounted, Desktop, VESA 75×75 & 100×100)
- VGA & HDMI signal input for high compatibility
- Wide voltage input (DC12-24V) for flexible power options
- IP65-rated front panel for dust & water resistance
- Long lifespan LED backlight with MTBF of 50,000 hours
Multi-Touch Industrial Monitor Product Information
| Technical Specifications | ||||
|---|---|---|---|---|
| Model Name | PANEL5000-C1563-L | PANEL5000-C1563-LH | ||
| General | ||||
| Control Buttons | Set Contrast ratio and Luminance via OSD at the back panel | |||
| Dimensions (WxHxD) | 405mm x 258mm x 47mm | |||
| Cut-out Size (W x H) | 387mm x 240mm | |||
| Box Structure | Front panel frame: Aluminum-magnesium alloy Back cover: SGCC, Silver |
|||
| Mounting Options | Panel-mounted, Wall-mounted, Desktop (VESA 75x75 & 100x100) | |||
| Power Supply | DC 12-24V | |||
| Power Consumption | 12W | |||

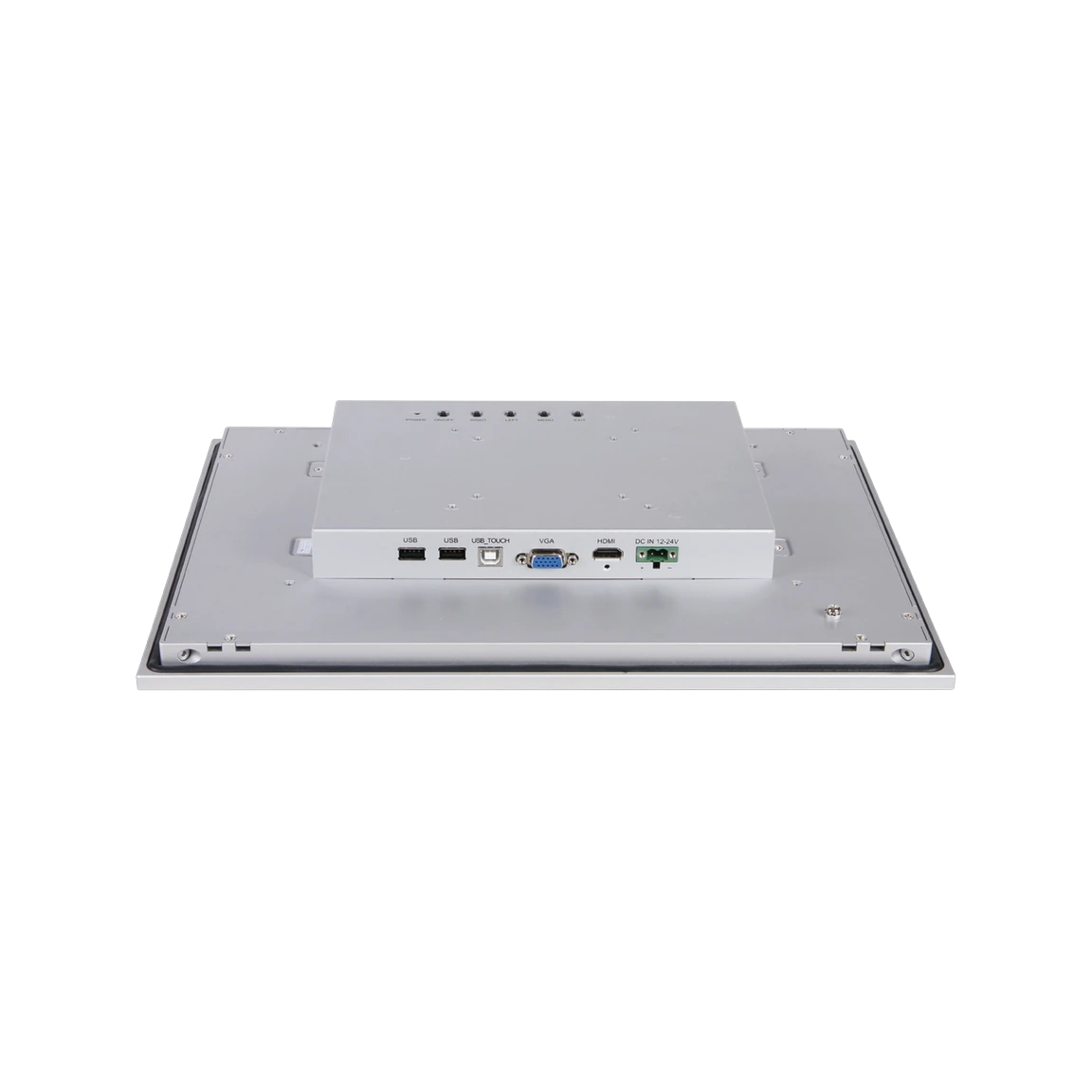

| Signal Input | VGA & HDMI | |||
| Weight | 3.8kg | |||
| LCD | ||||
| LCD Size | 15.6" TFT | |||
| Resolution | 1366x768 | 1920x1080 (Full HD) | ||
| Colors | 16.7M | |||
| Active Area (WxH) | 344.232mm x 193.536mm (13.55" x 7.62") | |||
| Backlight | LED | |||
| MTBF | 50,000 hrs | |||
| Pixel Pitch (HxV) | 0.252 x 0.252 mm | |||
| Luminance | 400 cd/m² | 250 cd/m² (Full HD) | ||
| Contrast Ratio | 800:1 | 3000:1 (Full HD) | ||
| Viewing Angle | (L) 85° / (R) 85° / (T) 50° / (B) 80° | 89° / 89° / 89° / 89° (Full HD) | ||
| Touchscreen | ||||
| Type | Multi-point Capacitive Touch Screen | |||
| Transmittance | >> 87% | |||
| Controller Interface | USB | |||
| Driver Support | Windows 7, Windows 8, Windows 10, Linux | |||
| Multi-touch | 10 points (Windows system) | |||
| Surface Hardness | Mohs' 7H | |||
| Environmental | ||||
| Operating Temperature | -20~60°C | 0~50°C (Full HD) | ||
| Storage Temperature | -30~80°C | |||
| Relative Humidity | 5~95% RH @40°C, non-condensing | |||
| Vibration Resistance | 5~500Hz, 1.5Grms @with SSD, IEC 60068-2-64 | |||
| Shock Resistance | 10G peak acceleration (11ms duration), IEC 60068-2-27 | |||
| EMC | CE/FCC Class B | |||
| Front Panel Protection | IP65 Compliant | |||
| Accessories | ||||
| Included Cables | VGA Cable (1.8M), USB Cable (1.8M), Adapter (12V/3.33A, 40W 2-pin Phoenix terminal) | |||
| Optional Accessories | VGA Cable (3M / 5M) USB Cable (3M / 5M) HDMI Cable (1.8M / 3M / 5M) Power Cord (1.8M / 3M / 5M) |
|||
| Ordering Information | ||
|---|---|---|
| Model Name | Description | |
| PANEL5000-C1563-L | 15.6" Capacitive Touchscreen Monitor, 1366x768 resolution, Multi-point capacitive touch, VGA & HDMI input, Wide voltage input (DC12-24V), IP65 front panel, Multiple mounting options (Panel-mounted, Wall-mounted, Desktop, VESA 75x75 & 100x100). | |
| PANEL5000-C1563-LH | 15.6" Capacitive Touchscreen Monitor, 1920x1080 Full HD resolution, Multi-point capacitive touch, VGA & HDMI input, Wide voltage input (DC12-24V), IP65 front panel, Multiple mounting options (Panel-mounted, Wall-mounted, Desktop, VESA 75x75 & 100x100). | |
| Options | ||
|---|---|---|
| Display Size | 15.6" TFT LCD | |
| Resolution | 1366x768 | 1920x1080 (Full HD) |
| Touch Technology | Multi-point Capacitive Touch (10 points for Windows) | |
| Signal Input | VGA & HDMI | |
| Mounting Options | Panel-mounted, Wall-mounted, Desktop, VESA 75x75 & 100x100 | |
| Power Input | DC 12-24V | |
| Brightness | 400 cd/m² | 250 cd/m² (Full HD) |
| Contrast Ratio | 800:1 | 3000:1 (Full HD) |
| Waterproof Rating | IP65 (Front Panel) | |
| Operating Temperature | -20 ~60°C | 0 ~ 50°C (Full HD) |
| Included Accessories | VGA Cable (1.8M), USB Cable (1.8M), Adapter (12V/3.33A, 40W 2-pin Phoenix terminal) | |
| Optional Accessories | VGA Cable (3M / 5M) USB Cable (3M / 5M) HDMI Cable (1.8M / 3M / 5M) Power Cord (1.8M / 3M / 5M) |
|
