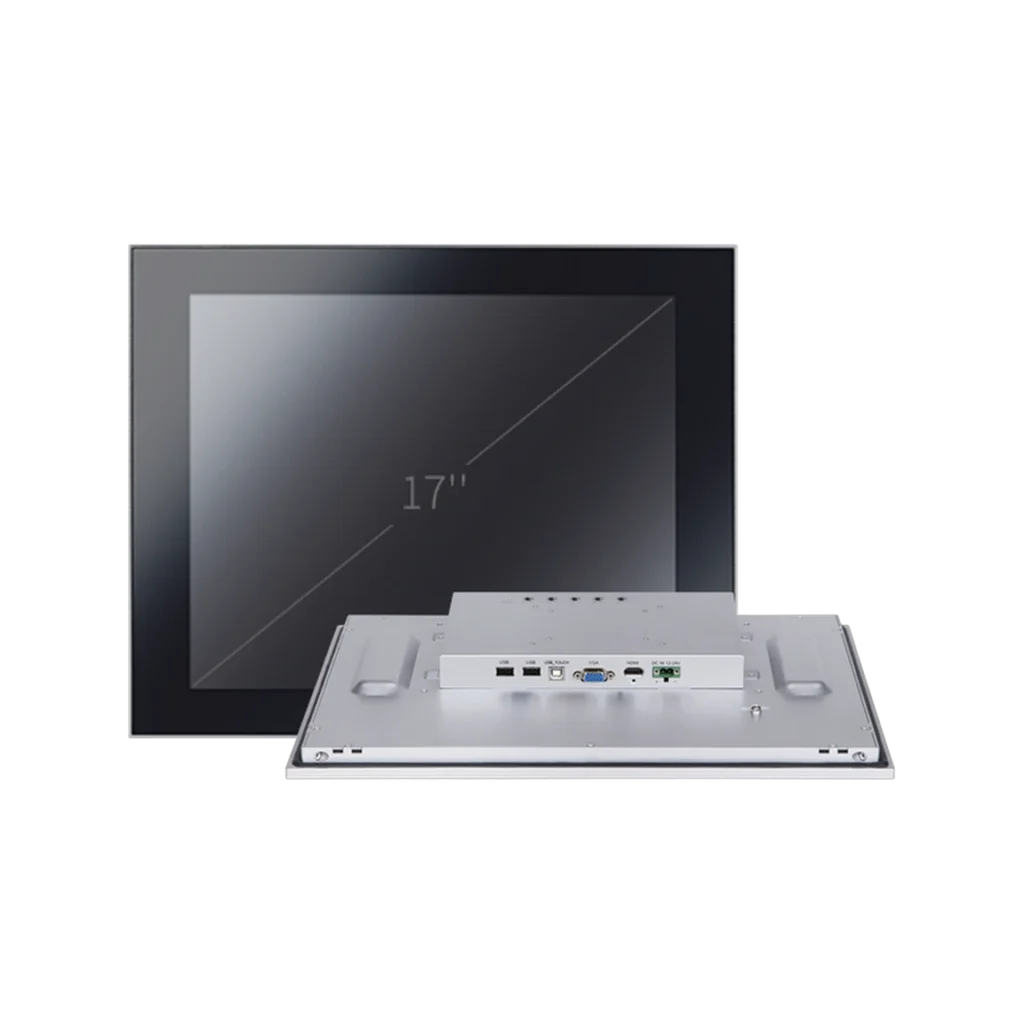

PANEL5000-C173-L | 17" Multi-Touch Industrial Monitor with IP65 Front Panel
17″ industrial multi-touch monitor with capacitive touchscreen, VGA & HDMI input, wide voltage support, and multiple mounting options
Features
- 17” SXGA TFT LCD (1280×1024) with 250 cd/m² brightness
- Multi-point capacitive touch (10 points for Windows systems)
- High durability with Mohs’ 7H surface hardness
- Multiple mounting options (Panel-mounted, Wall-mounted, Desktop, VESA mounting)
- VGA & HDMI signal input for high compatibility
- Wide voltage input (DC12-24V) for flexible power options
- IP65-rated front panel for dust & water resistance
- Long lifespan LED backlight with MTBF of 30,000 hours
Multi-Touch Industrial Monitor Product Information
| Technical Specifications | ||||
|---|---|---|---|---|
| Model Name | PANEL5000-C173-L | |||
| General | ||||
| Control Buttons | Set contrast ratio and luminance via OSD at the back panel | |||
| Dimensions (WxHxD) | 428mm x 342mm x 47mm (16.85" x 13.46" x 1.85") | |||
| Cut-out Size (WxH) | 411mm x 325mm (16.18" x 12.80") | |||
| Box Structure | Front panel: Aluminum-magnesium alloy, anodized coating Back cover: SGCC, Ground isolation protection |
|||
| Mounting Options | Panel-mounted, Wall-mounted, Desktop, VESA mounting | |||
| Power Supply | DC 12-24V | |||
| Power Dissipation | 12W | |||
| Signal Input | VGA & HDMI | |||
| Net Weight | 4.34kg (9.57 lb) | |||
| LCD | ||||
| LCD Size | 17" SXGA TFT | |||
| Resolution | 1280x1024 | |||
| Colors | 16.7M | |||
| Active Area (WxH) | 338mm x 270mm (13.31" x 10.63") | |||
| Backlight | LED | |||
| MTBF | 30,000 hrs | |||
| Pixel Pitch (HxV) | 0.264 x 0.264 mm | |||
| Luminance | 250 cd/m² | |||
| Contrast Ratio | 1000:1 | |||
| Viewing Angle | (L) 85° / (R) 85° / (T) 80° / (B) 80° | |||
| Touchscreen | ||||
| Type | Multi-point Capacitive Touch Screen | |||
| Transmittance | 87% | |||
| Controller Interface | USB 2.0 Type B | |||
| Driver Support | Windows XP, Windows 7, Windows 8, Windows 10, Linux | |||
| Multi-touch | 10 points (Windows system) | |||
| Surface Hardness | Mohs' Number 7H | |||
| Environmental | ||||
| Operating Temperature | -20~60°C (-4~140°F) | |||
| Storage Temperature | -30~80°c (-22~176°F) | |||
| Relative Humidity | 10~95% RH @40°C, non-condensing | |||
| Vibration Resistance | 1.5 Grms, IEC 60068-2-64, 5~500 Hz, 1 hr/axis | |||
| Shock Resistance | 10G peak acceleration (11ms duration), IEC 60068-2-27 | |||
| EMC | CE/FCC Class B | |||
| Front Panel Protection | IP65 Compliant | |||
| Accessories | ||||
| Included Cables | VGA Cable (1.8M), USB Cable (1.8M), Adapter (12V/3.33A, 40W 2-pin Phoenix terminal) | |||
| Optional Accessories | VGA Cable (3M / 5M) USB Cable (3M / 5M) HDMI Cable (1.8M / 3M / 5M) Power Cord (1.8M / 3M / 5M) |
|||
Click the link below to download datasheets or drivers:
| Ordering Information | ||
|---|---|---|
| Model Name | Description | |
| PANEL5000-C173-L | 17" Capacitive Touchscreen Monitor, 1280x1024 resolution, Multi-point capacitive touch, VGA & HDMI input, Wide voltage input (DC12-24V), IP65 front panel, Multiple mounting options (Panel-mounted, Wall-mounted, Desktop, VESA mounting). | |
| Options | ||
|---|---|---|
| Display Size | 17" SXGA TFT LCD (1280x1024) | |
| Touch Technology | Multi-point Capacitive Touch (10 points for Windows) | |
| Signal Input | VGA & HDMI | |
| Mounting Options | Panel-mounted, Wall-mounted, Desktop, VESA mounting | |
| Power Input | DC 12-24V | |
| Brightness | 250 cd/m² | |
| Contrast Ratio | 1000:1 | |
| Waterproof Rating | IP65 (Front Panel) | |
| Operating Temperature | -20~60°C (-4 ~ 140°F) | |
| Included Accessories | VGA Cable (1.8M), USB Cable (1.8M), Adapter (12V/3.33A, 40W 2-pin Phoenix terminal) | |
| Optional Accessories | VGA Cable (3M / 5M) USB Cable (3M / 5M) HDMI Cable (1.8M / 3M / 5M) Power Cord (1.8M / 3M / 5M) |
|
