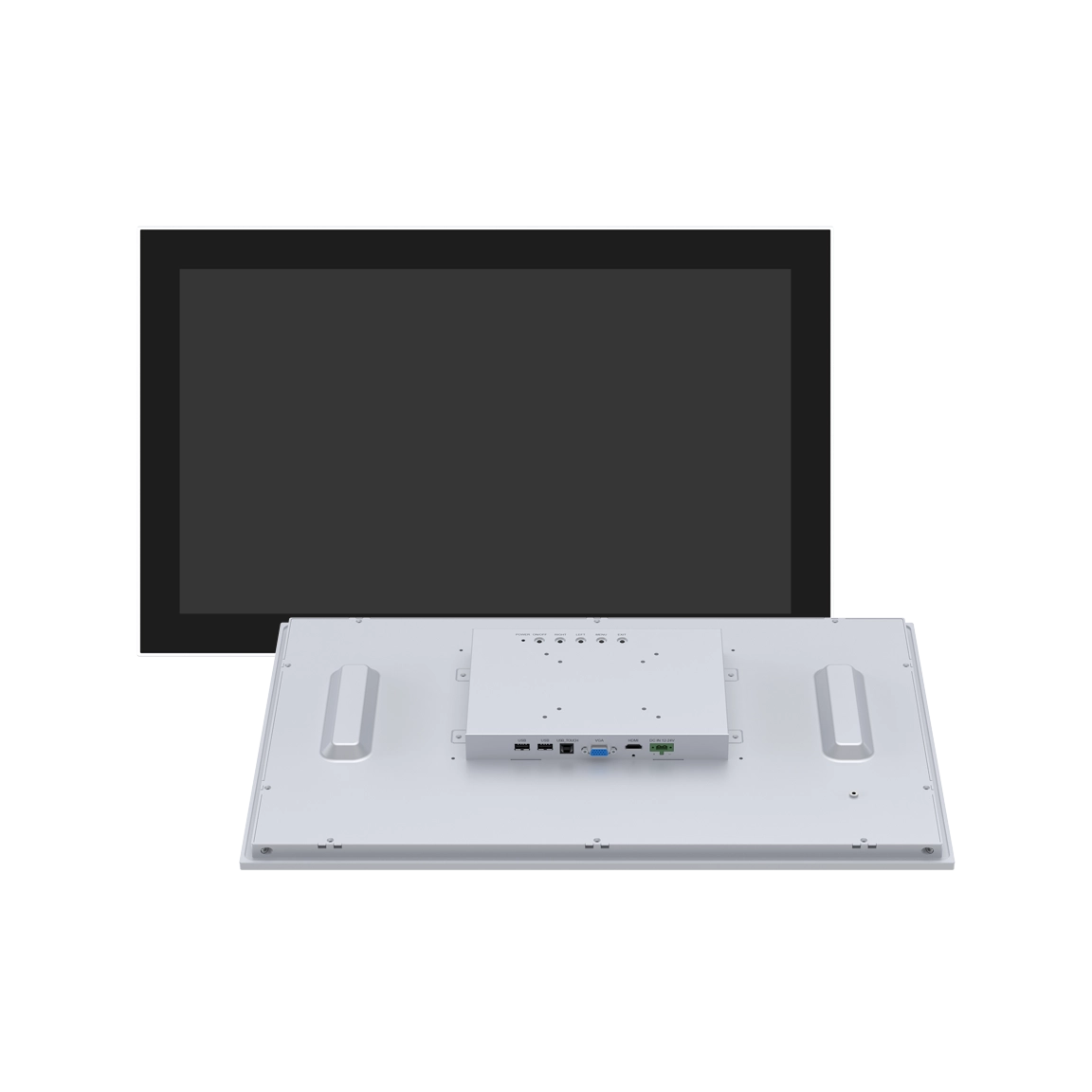

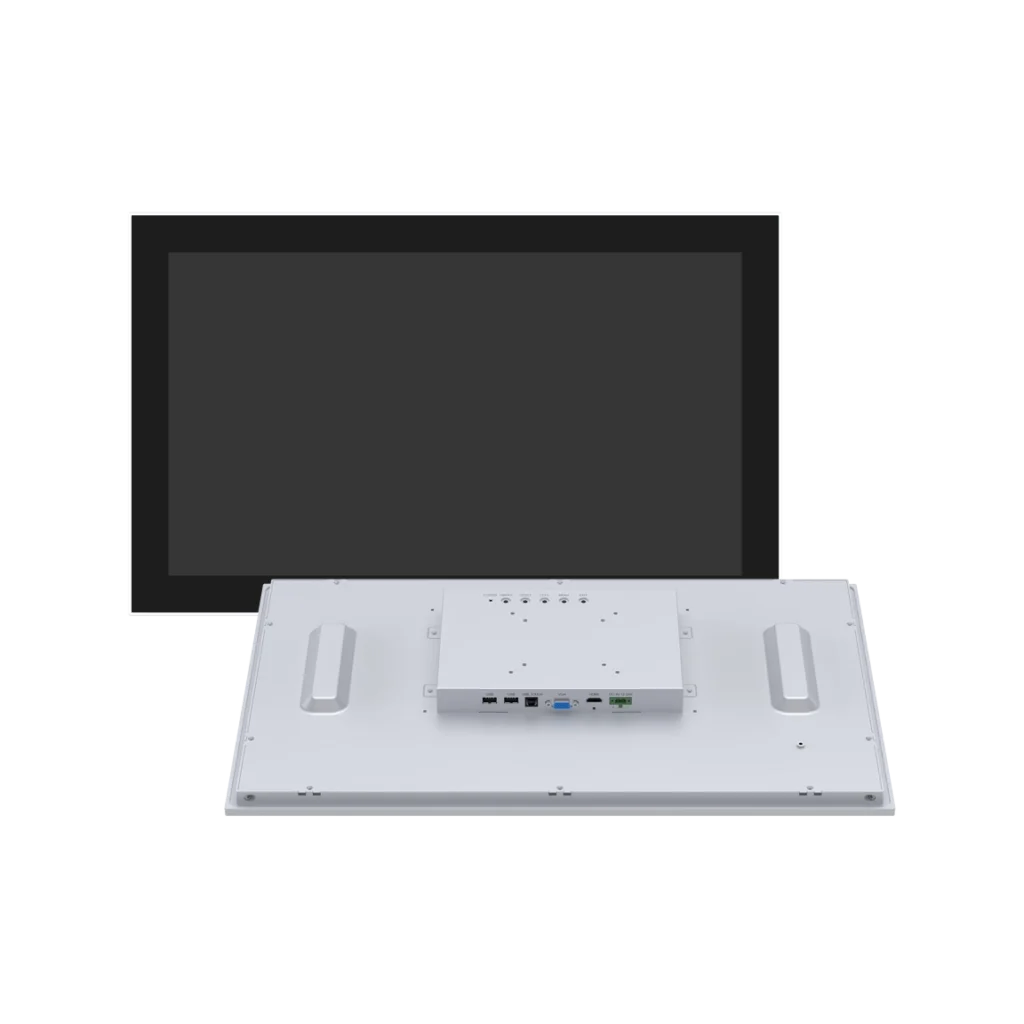

PANEL5000-C238W-L | 23.8" Multi-Touch Industrial Monitor with IP65 Front Panel
23.8” Full HD touch monitor with HDMI/VGA input and USB capacitive interface for industrial panel mounting
Features
- 23.8” TFT LCD with 1920×1080 resolution and 550 cd/m² brightness
- Multipoint capacitive touchscreen with USB interface
- VGA and HDMI input for compatibility with PC, PLC, or control units
- Wide input voltage support: DC 12~24V
- Rugged aluminum-magnesium front panel with IP65 protection
- Supports panel, wall, or VESA mounting (75×75 / 100×100)
- USB-B for touch control, 2 x USB2.0 for additional use
- Compact 47 mm depth for slim cabinet integration
- Supports -20~60°C storage and 0~50°C operation
- EMC Class B compliance for industrial environments
Multi-Touch Industrial Monitor Product Information
| Technical Specifications | |
|---|---|
| Model Name | PANEL5000-C2383-L |
| Display | |
| Screen Size | 23.8" FHD TFT |
| Resolution | 1920 × 1080 |
| Brightness | 300 cd/m² |
| MTBF | 30,000 hours |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 89° (L/R/T/B) |
| Touch Screen | |
| Type | Multipoint Capacitive Touch Screen |
| Transmittance | ≥ 87% |
| Controller Interface | USB 2.0 Type B |
| Input Interfaces | |
| Video Input | 1 x VGA, 1 x HDMI |

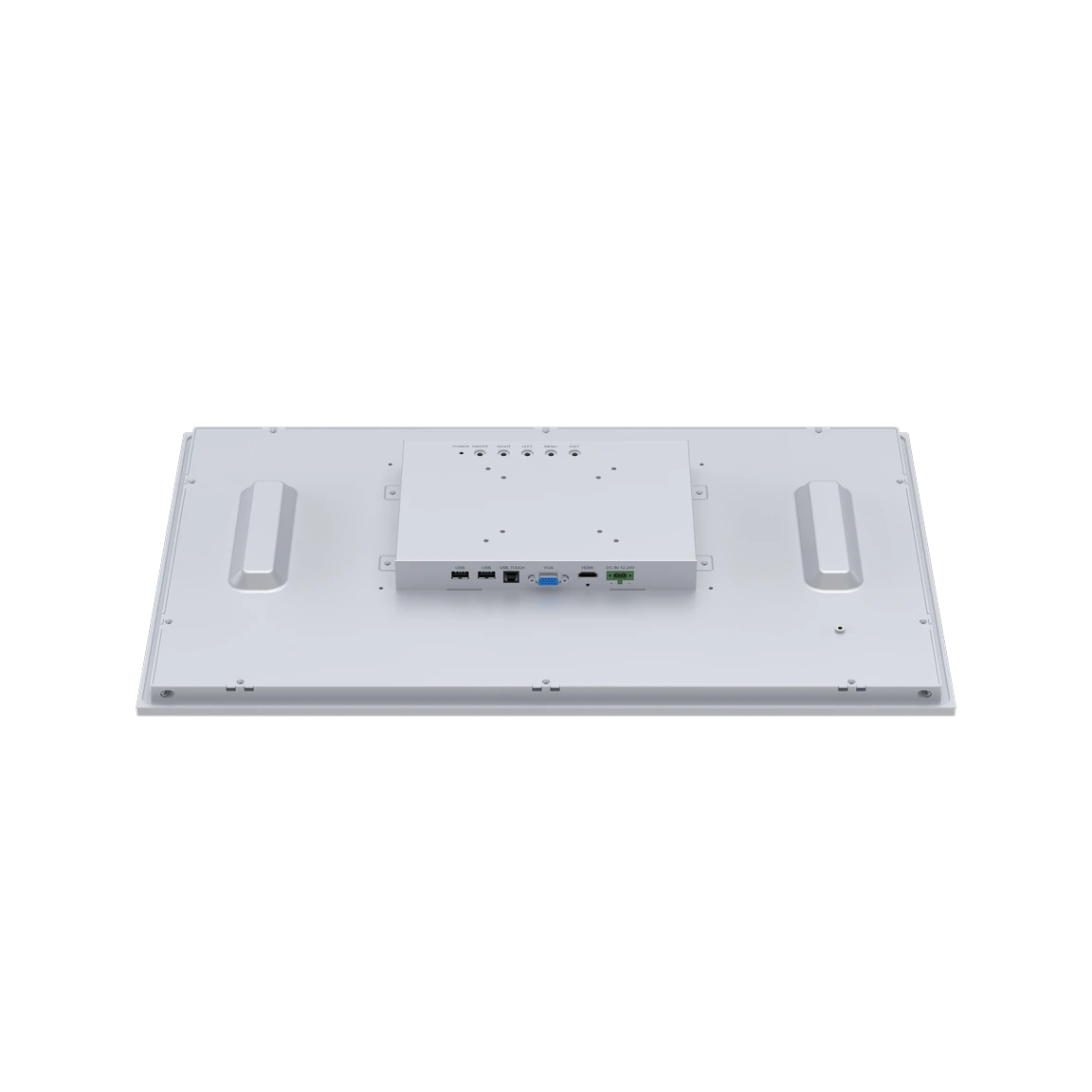

| USB Ports | 2 x USB 2.0, 1 x USB-B for Touch |
| Power Input | 1 x DC IN (12-24V) |
| Power | |
| Input Voltage | DC 12-24V |
| Maximum Power | < 40W |
| Chassis | |
| Structure | Front: aluminum-magnesium alloy, anodized Back: SGCC, ground isolation protection |

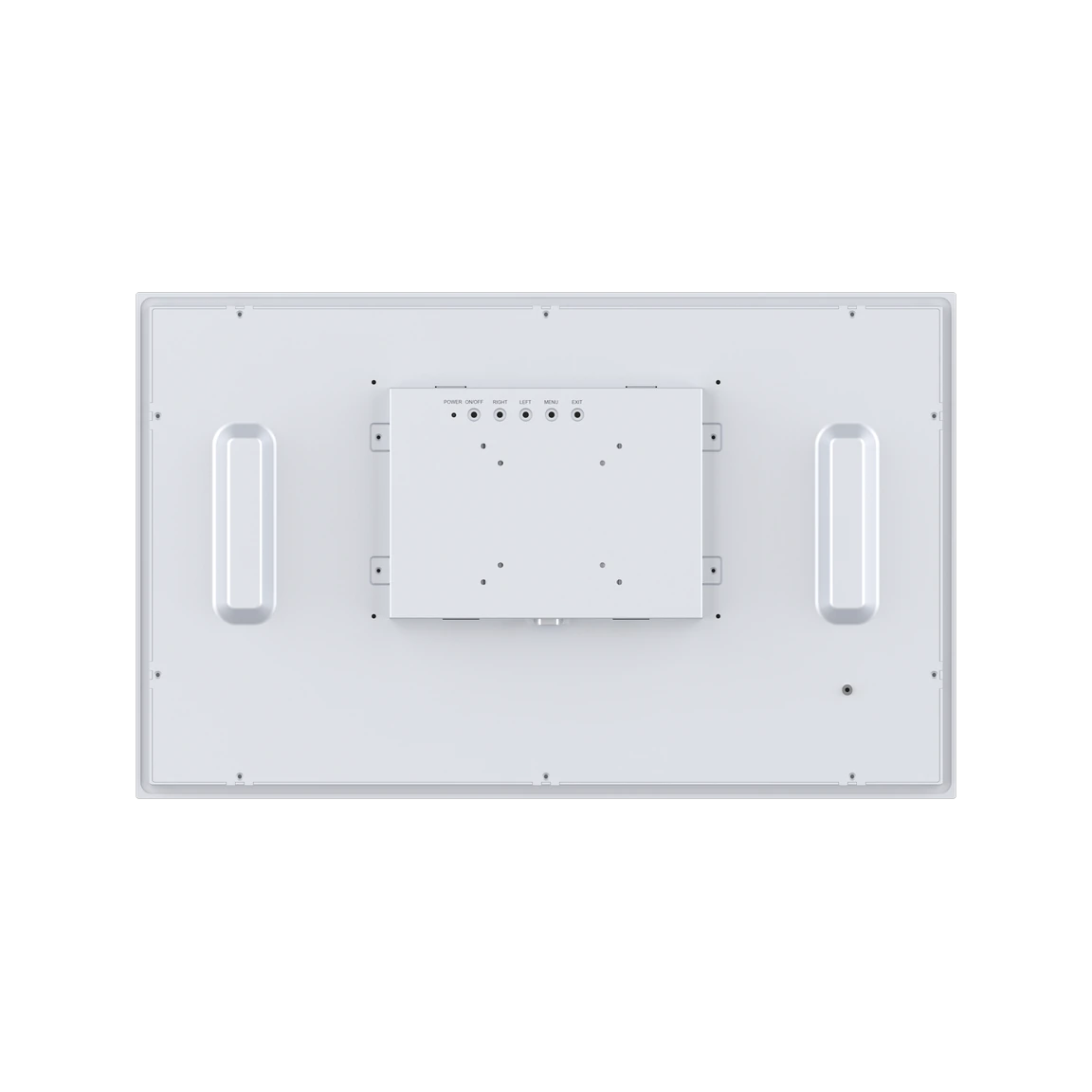

| Mounting | Panel mount / Wall mount / VESA 75x75 & 100x100 |
| Dimensions (W × H × D) | 602.8 × 372.2 × 47 mm |
| Cutout Size (W × H) | 586 × 355 mm |
| Weight | -- |
| Environmental | |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 95% @ 40°C, non-condensing |
| Vibration | 1.5Grms, IEC 60068-2-64, random 5~500Hz, 1hr/axis (SSD applied) |
| Shock | 10G, IEC 60068-2-27, 11ms (SSD applied) |
| EMC | CE/FCC Class B |
| Ordering Information | ||
|---|---|---|
| Model | Description | Power Input |
| PANEL5000-C2383-L | 23.8" FHD 1920×1080 capacitive touch monitor, VGA + HDMI input, USB touch, aluminum front panel | DC 12~24V |
| Options | ||
| Mounting Accessories | Optional panel mounting clips, wall-mount brackets, or VESA mount kits | |
| Power Adapter | Optional 60W 12V/24V AC to DC adapter with region-specific plug | |
| USB Cable | USB 2.0 Type-A to Type-B for touch interface | |
| VGA / HDMI Cable | Standard signal cables available on request | |
