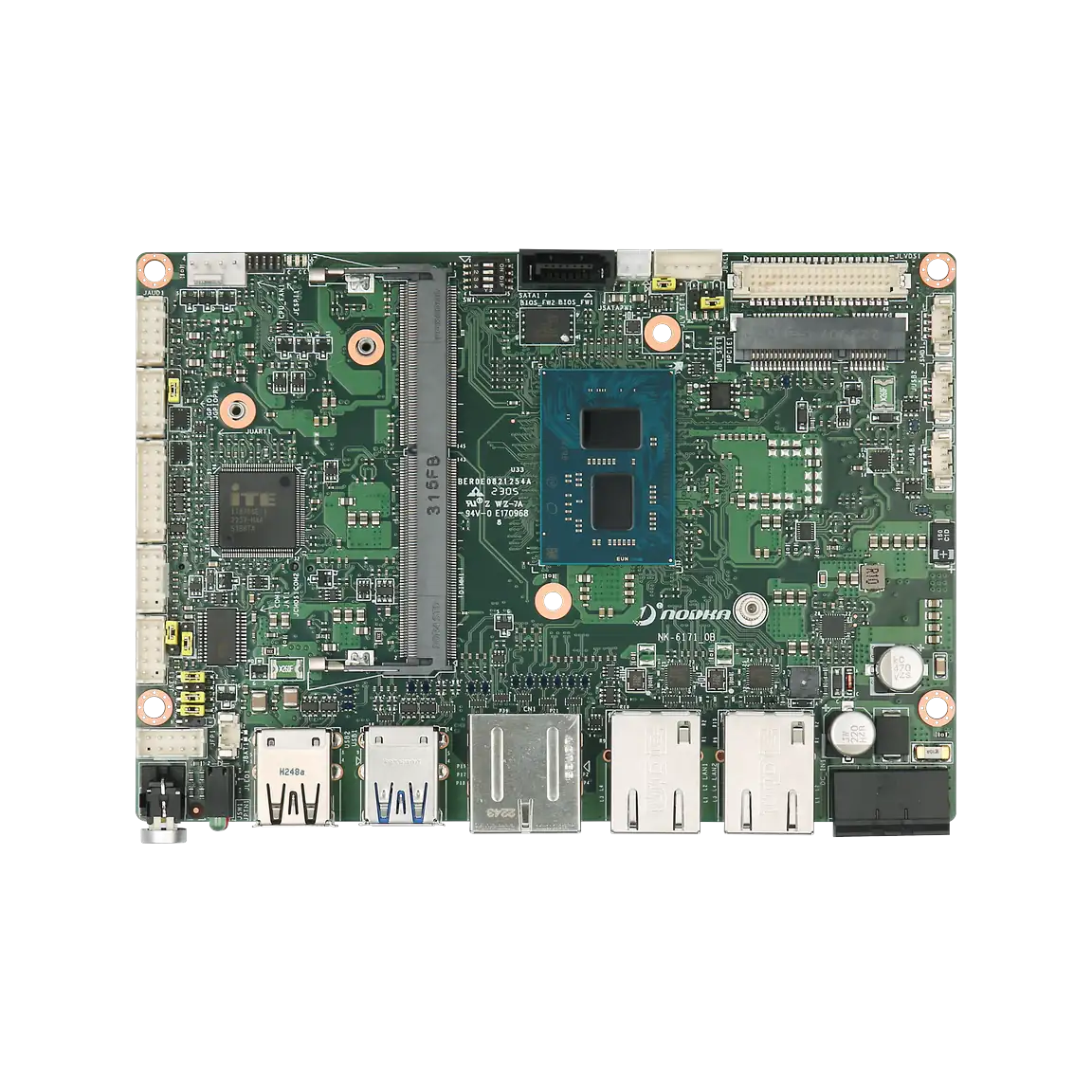

NK-6171 | 3.5" Embedded SBC with Intel J6412, Quad Display, Dual M.2, Dual LAN
Compact 3.5″ industrial SBC featuring rich I/O, 4K-capable multi-display output, M.2 expansion for SSD and 5G/Wi-Fi, and wide voltage DC input
Features
- Intel® Celeron J6412, Quad-core 2.0GHz (up to 2.6GHz), 10W TDP
- Up to 32GB DDR4 SO-DIMM memory
- Display outputs: DP 1.4, HDMI, LVDS, and eDP (triple display support)
- Dual GbE LAN with Realtek 8111H controllers
- 6 x COM, 4 x USB, 1 x 8-bit GPIO
- 1 x M.2 2242 B-Key SATA SSD, 1 x SATA 3.0
- M.2 2230 for Wi-Fi, M.2 3042 B-Key with SIM for 5G/4G
- 1 x Mini PCIe with SIM slot (PCIe/USB2.0)
- Phoenix terminal power input: 12–24V DC ±10%
- Supports TPM 2.0 (fTPM)
Embedded Industrial SBC Motherboard Product Information
| Technical Specifications | |
|---|---|
| System | |
| CPU | Intel(r) Celeron(r) J6412 processor, 2.0GHz (up to 2.6GHz), 4 cores, TDP 10W |
| Chipset | Intel(r) SoC integrated |
| BIOS | AMI 256Mb UEFI BIOS |
| Memory | |
| Type | DDR4 3200MHz, Single Channel, Non-ECC |
| Slot | 1 x DDR4 260-pin SO-DIMM slot, up to 32GB |
| Storage | |
| SATA | 1 x SATA 3.0 port |
| M.2 | 1 x M.2 2242 M-Key SSD slot (SATA3.0) |
| Graphics | |
| Controller | Intel(r) UHD Graphics integrated |
| External Display | 1 x DP 1.4 (4096×2160@60Hz), 1 x HDMI (4096×2160@30Hz) |
| Internal Display | 1 x LVDS (1920×1200@60Hz), 1 x eDP 1.3 (4096×2160@60Hz shared) |
| Audio | |
| Codec | Realtek ALC897 |
| Rear I/O | |
| LAN | 2 x GbE RJ45 (Realtek 8111H) |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Buttons | 1 x Power Button |
| LED Indicators | 1 x Power LED (Green), 1 x SATA LED (Red) |
| Internal I/O | |
| COM Ports | 1 x RS232/485, 1 x RS232, 4 x TTL (2x8pin wafer) |
| USB | 2 x USB 2.0 wafer (1x4pin) |
| Audio | 1 x Mic-in/Line-out (2x5pin wafer) |
| GPIO | 1 x 8-bit GPIO (2x5pin) |
| Fan | 1 x Smart Fan wafer (1x4pin) |
| SMBus | 1 x SMBus wafer (1x4pin) |
| eSPI | 1 x eSPI debug header |
| Front Panel | 1 x Wafer (Power LED, HDD LED, Power, Reset) |
| Expansion | |
| M.2 Slots | 1 x M.2 2230 E-Key (Wi-Fi), 1 x M.2 3042 B-Key with Nano-SIM (shares connector with 2242 SSD) |
| Mini PCIe | 1 x Mini PCIe slot with Nano-SIM socket |
| Security | |
| TPM | fTPM 2.0 supported |
| Watchdog Timer | |
| Interval | 1-255 seconds, system reset |
| Power | |
| Input | 12-24V DC, ±10% tolerance |
| Connector | 2-pin Phoenix terminal block |
| Power Consumption | 16.3W (Idle), 17.5W (Typical) |
| OS Support | |
| Windows | Windows 10 / 11 |
| Linux | Ubuntu and other distributions |
| Mechanical | |
| Dimensions | 146mm (L) x 102mm (W) |
| Weight | 0.165 kg |
| Environment | |
| Operating Temperature | -10°C ~ 60°C (with SSD) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 5-95% RH (non-condensing) |
| Vibration | 5-500Hz, 3Grms (IEC60068-2-64) |
| Ordering Information | |||
|---|---|---|---|
| Part No. | Model | CPU | Description |
| F32.617103.10.NEK | NK-6171 | Intel(r) Celeron(r) J6412 | 3.5" embedded board with J6412 CPU, DDR4 SO-DIMM, M.2 2242 SSD slot, 2 GbE, HDMI, DP, LVDS/eDP, 6 COM, 4 USB, Mini PCIe, dual M.2 expansion, 12-24V DC input |
| Packing List | ||
|---|---|---|
| Part No. | Qty | Description |
| KF0.001046.00.L54 | 2 | COM cable, 2x5pin wafer to DB9, 150mm |
| KF0.001049.00.L54 | 1 | SATA cable (combined signal + power) |
| JF7.000041.00.D03 | 1 | 2-pin Phoenix terminal block (5.08mm pitch) |
| Optional Accessories | ||
|---|---|---|
| Part No. | Description | Notes |
| C2Z.612001.0A.NDJ | NK-6171 Heatsink | Passive cooling |
| C3Z.NKEB01.10.NDJ | AEB-4COM00 Expansion Kit | 2 x RS485/422/232 (DB9), 2 x RS232 (wafer) |
| C3Z.0001.00.NDJ | 12V/60W Adapter | CM-060W-CWT0 with 180cm power cord |
| C3Z.0002.00.NDJ | 12V/84W Adapter | CM-090W-HKA with 180cm power cord |
| KF0.001047.00.L54 | USB Cable | 1x4pin wafer to USB2.0 Type-A, 150mm |
| KF0.001048.00.L54 | USB Y Cable | 2 x USB2.0 Type-A with bracket, 150mm |
| KF0.000949.00.Y09 | Audio Cable | 2x5pin wafer to Mic-in/Line-out, 300mm |
