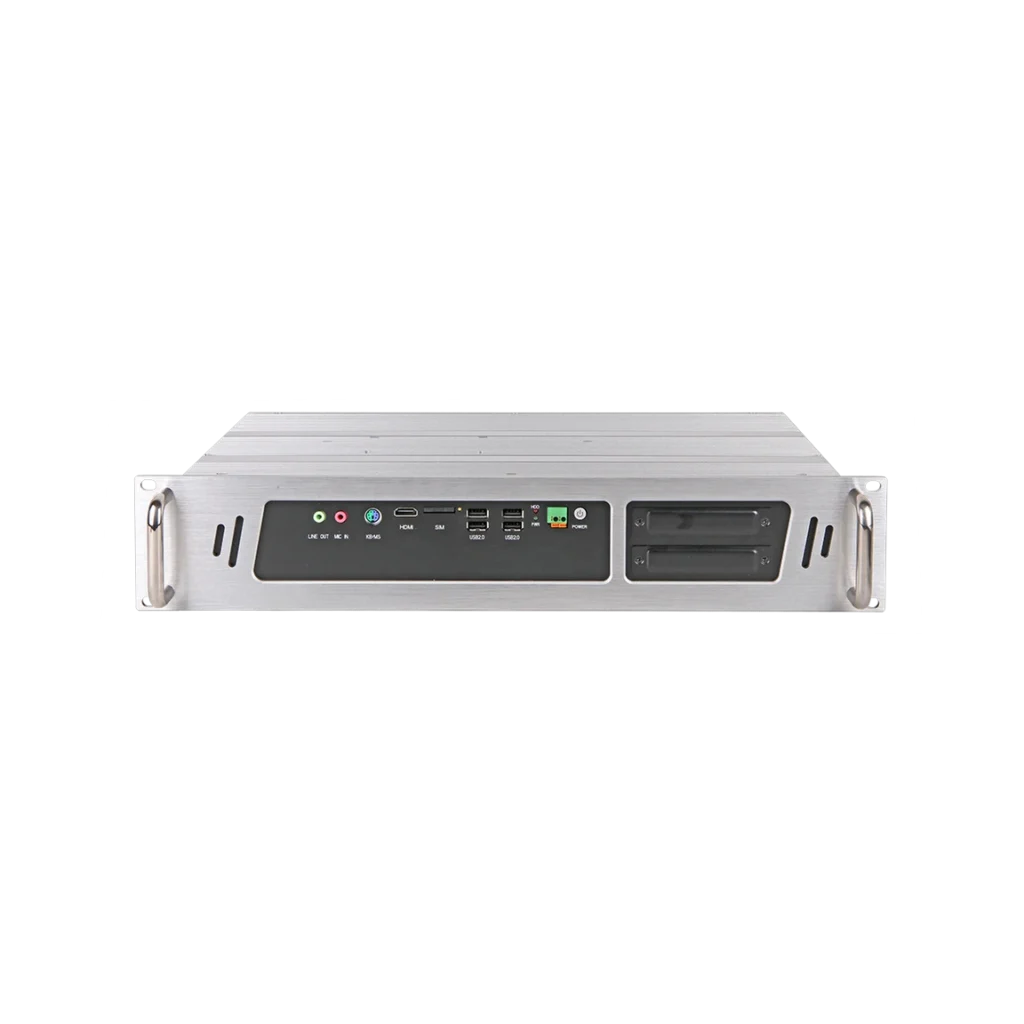

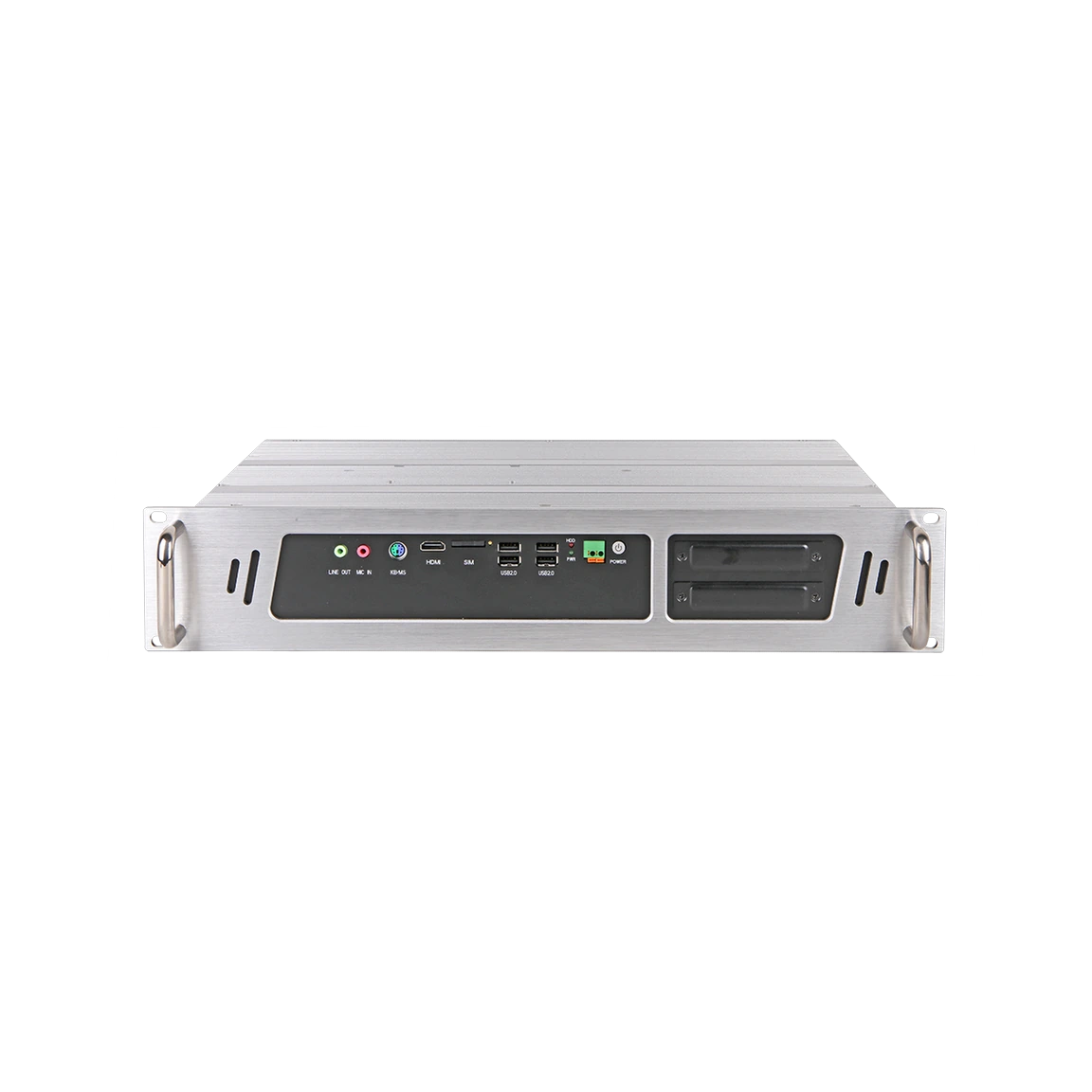

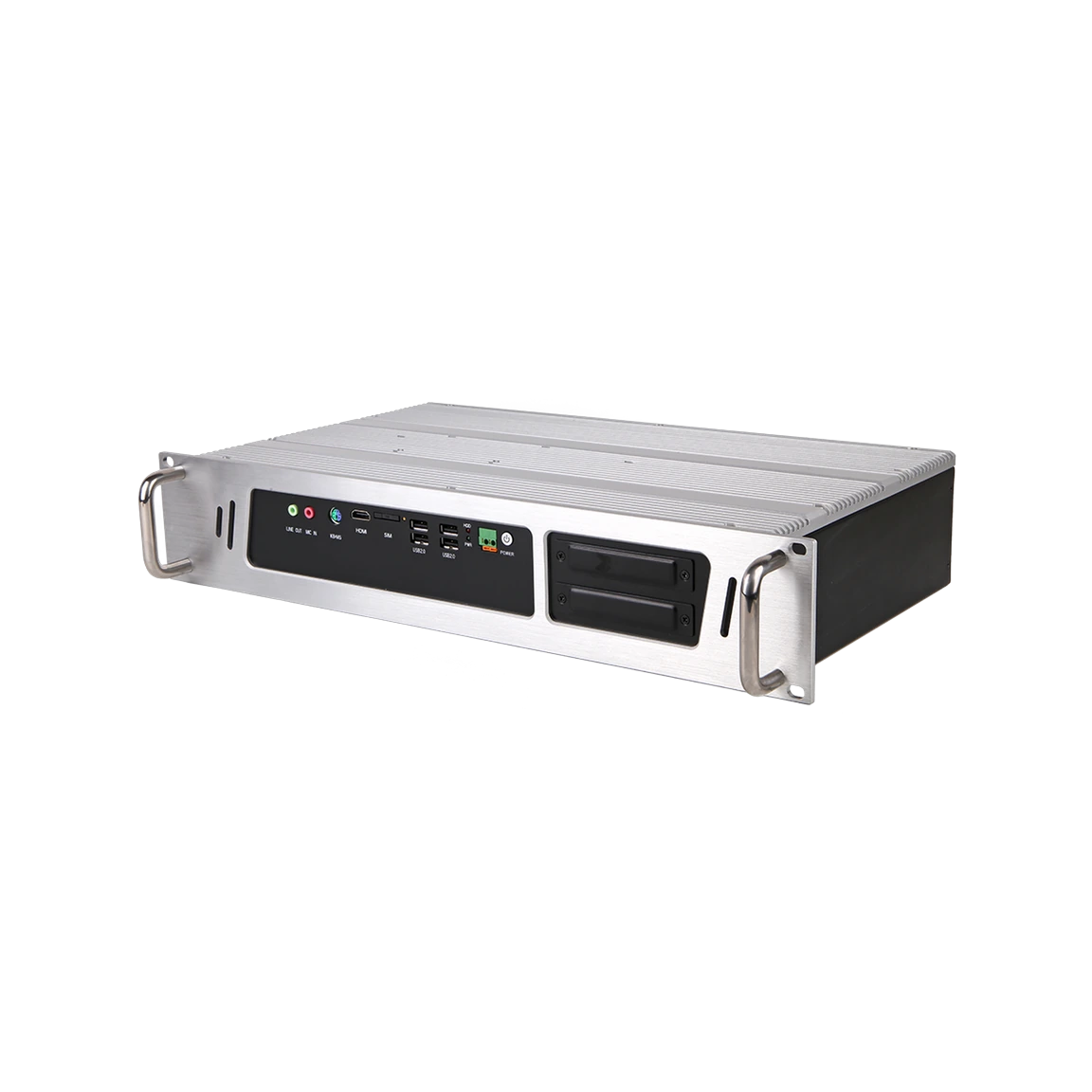

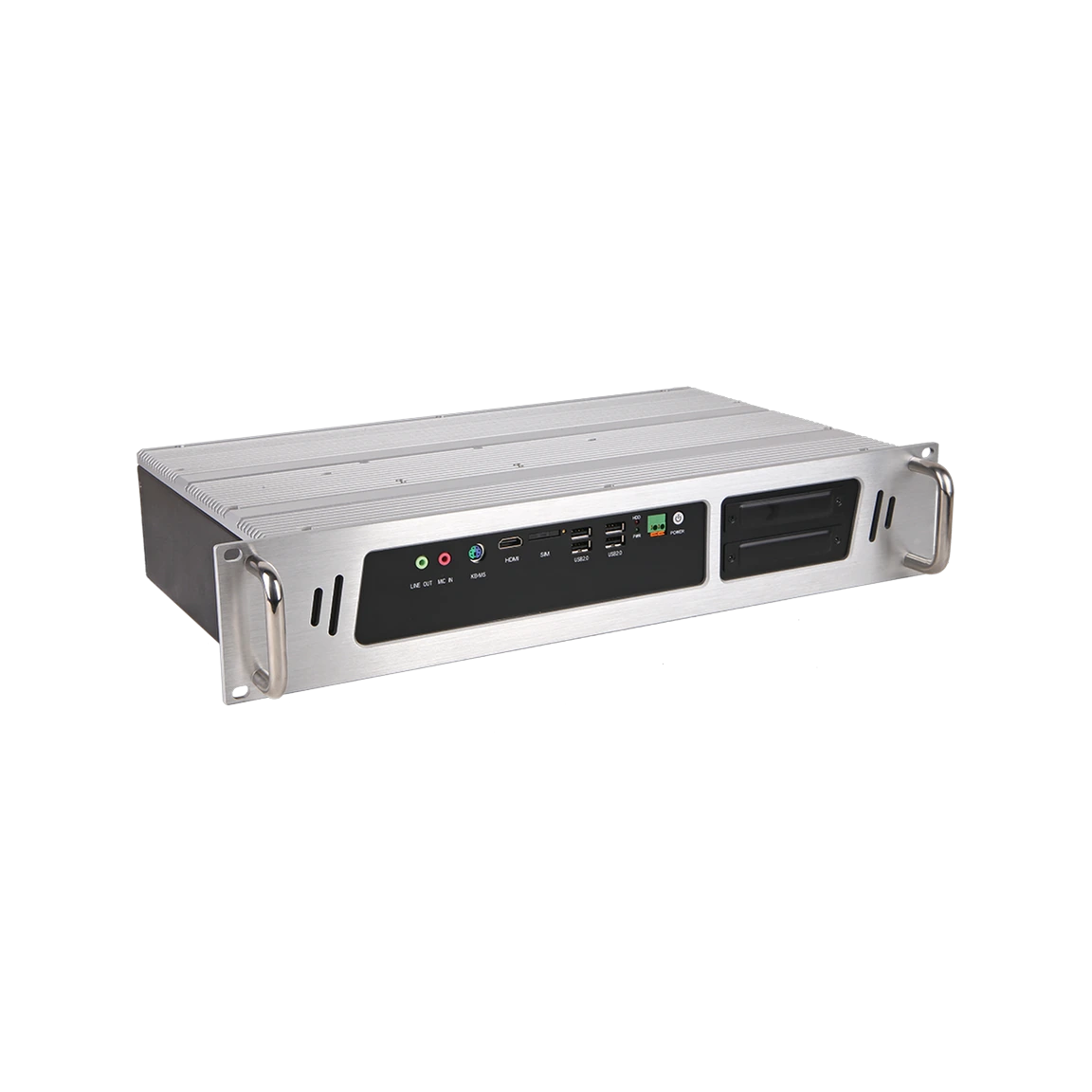

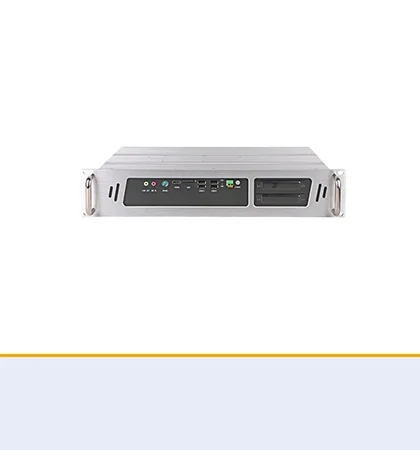

eBOX-3000-ETC | Rackmount Industrial PC with Digital I/O, PCI/PCIe, and Multi-LAN Support

19” rackmount industrial PC with support for Intel 6th/7th Gen CPUs, flexible COM and LAN expansion, digital I/O, and versatile PCI/PCIe/Mini PCIe connectivity

  • 19″ rackmount fan-cooled aluminum alloy enclosure
  • Supports Intel(r) 6th/7th Gen Core / Pentium / Celeron CPUs (LGA1151)
  • Expansion: 2 x Mini PCIe, 1 x PCIe x16 or 1 x PCI (optional)
  • Triple display support: HDMI, DVI, VGA
  • 4 x RS232 COM ports (expandable to 8 x COM)
  • 8 x USB ports: 4 x USB 3.0 + 4 x USB 2.0
  • Dual LAN standard (expandable to 6 x Intel GbE LAN)
  • Optional Digital I/O: 8DI + 8DO for automation control
  • Storage: 2 x 2.5″ SATA HDD + 1 x mSATA SSD
  • External AT power adapter with 90-264V AC input
  • Operating temperature: -20°C to 60°C (SSD)

Fanless Industrial Box PC Product Information

Technical Specifications
System
ModeleBOX-3000-ETC
CPUIntel® Core™ i7/i5/i3, Pentium, Celeron (6th/7th Gen, LGA1151)
ChipsetIntel® H110 Express
BIOSAMI EFI 64Mbit
Memory2 x DDR4-2400 SODIMM, up to 32GB
Display
VGA1920 × 1200
DVI1920 × 1200
HDMI1920 × 1200
Multi-DisplayVGA + DVI + HDMI supported
I/O Interfaces
COM4 x RS232 (expandable to 8 x COM)
USB8 x USB (4 x USB3.0/2.0/1.1 + 4 x USB2.0)
LAN2 x Intel i210/i211 GbE (expandable to 6 x LAN)
LPT1 x optional
Digital I/OOptional 8DI + 8DO
Watchdog0–255 seconds programmable
Expansion
Mini PCIe2 x full-size PCIe with SIM holder (support LAN or COM expansion)
PCIe / PCI1 x PCIe x16 or 1 x 32-bit PCI slot
Storage
HDD2 x 2.5” HDD bays (SATA III 6Gb/s)
SSD1 x mSATA
OS Support
Microsoft WindowsWindows 7 / Windows 7 Embedded / Windows 10
LinuxUbuntu
Power
TypeAT (external adapter)
Input VoltageAC 90–264V
No-load / Full-load27W / 55W (Max 100W)
Mechanical
StructureAluminum alloy box
MountingRack-mountable
Dimensions483mm × 252mm × 88mm (19.02" × 9.92" × 3.46")
Net Weight7.2 kg
Environmental
Operating Temperature-20°C to 60°C (with wide-temp SSD), 0°C to 45°C (HDD/SSD)
Storage Temperature-40°C to 80°C
Humidity5%–95% RH (non-condensing)
Vibration1.5 Grms, 5–500Hz, IEC 60068-2-64
Shock10G, 11ms, IEC 60068-2-64
EMCCE/FCC Class A
CertificationCCC
Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information
ModelPower SupplyDescription
eBOX-3000-ETCExternal AC 90–264VRack-mount industrial PC with Intel 6th/7th Gen CPU support, 2 x 2.5" HDD, mSATA, optional 8DI + 8DO, 2 Mini PCIe, 1 PCIe x16 or PCI, HDMI/DVI/VGA, 6 LAN (optional), 8 COM (optional)



Optional Items
CPU SupportIntel® Core™ i7/i5/i3, Pentium, Celeron (6th/7th Gen, LGA1151)
MemoryUp to 32GB DDR4 SODIMM (2 x slots)
Storage2 x 2.5” HDD (SATA III), 1 x mSATA SSD
Expansion2 x Mini PCIe, 1 x PCIe x16 or 1 x 32-bit PCI
Digital I/OOptional 8DI + 8DO
COM ExpansionSupports expansion up to 8 x COM ports
LAN ExpansionSupports expansion up to 6 x Intel GbE LAN
Mounting19” rack-mount configuration
