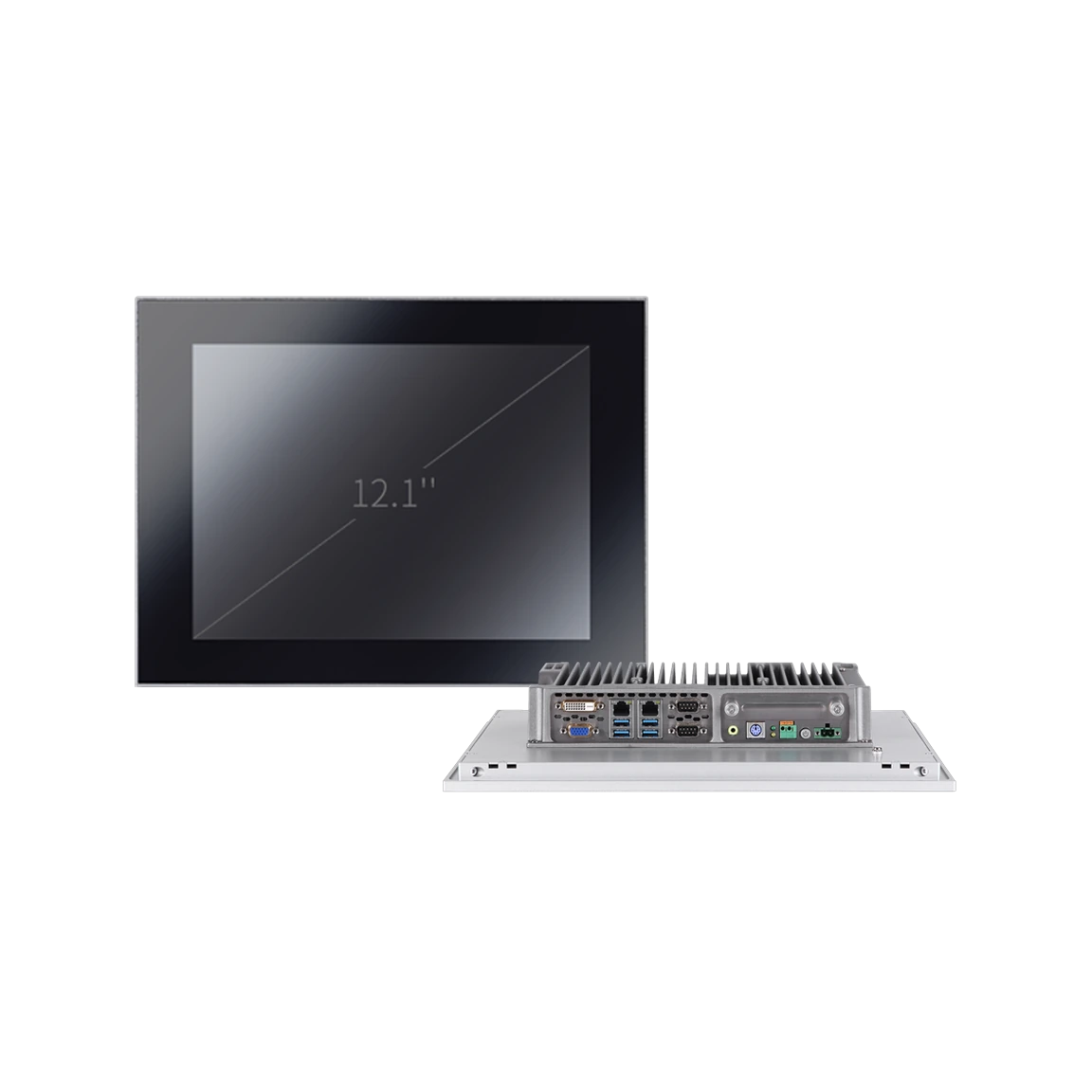

TPC6000-D123-LH Series | 12.1" Bezel-Free Resistive Touch Panel PC

Bezel-free fanless HMI panel PC with 12.1″ resistive touchscreen, Intel® J1900/J6412/N97/N305 CPU, dual LAN, 2×COM, 4×USB, VGA/DVI, 12–24V DC input, panel and VESA mount.

Features

  • 12.1" XGA (1024×768) TFT LCD with resistive touchscreen
  • Fanless design with bezel-free front panel and IP65 protection
  • Intel(r) J1900 / J6412 / N97 / N305 processor options
  • Up to 4 × USB (including USB3.0), 2 × COM, 2 × GbE LAN
  • Supports DVI, VGA, Line-out (except J1900), PS/2
  • Wide voltage DC input: 12-24V
  • Panel mount and VESA mount supported
  • Mini-PCIe and EasyBUS expansion slot for add-ons (e.g. Wi-Fi/4G)

Inustrial Panel PCs Product Information

Technical Specifications -- TPC6000-D123-LH
Model Name TPC6000-D123-LH
System
CPU Intel Celeron J1900 Quad-core 2.0GHz Intel Celeron J6412 Quad-core 2.0GHz Intel Processor N97 up to 3.6GHz Intel Core i3-N305 up to 3.8GHz
Memory 1 × DDR3L 1600MHz, up to 8GB 1 × DDR4 2400MHz, up to 16GB 1 × DDR5 4800MHz, up to 16GB 1 × DDR5 4800MHz, up to 16GB
Storage 1 × 2.5" SATA bay + 1 × mSATA
I/O Interfaces
USB 1 × USB3.0, 3 × USB2.0 2 × USB3.0, 2 × USB2.0 2 × USB3.0, 2 × USB2.0 2 × USB3.0, 2 × USB2.0
Serial Ports 2 × RS-232 (RS-485 optional) with surge protection
Ethernet 2 × Intel 1000Mbps RJ-45

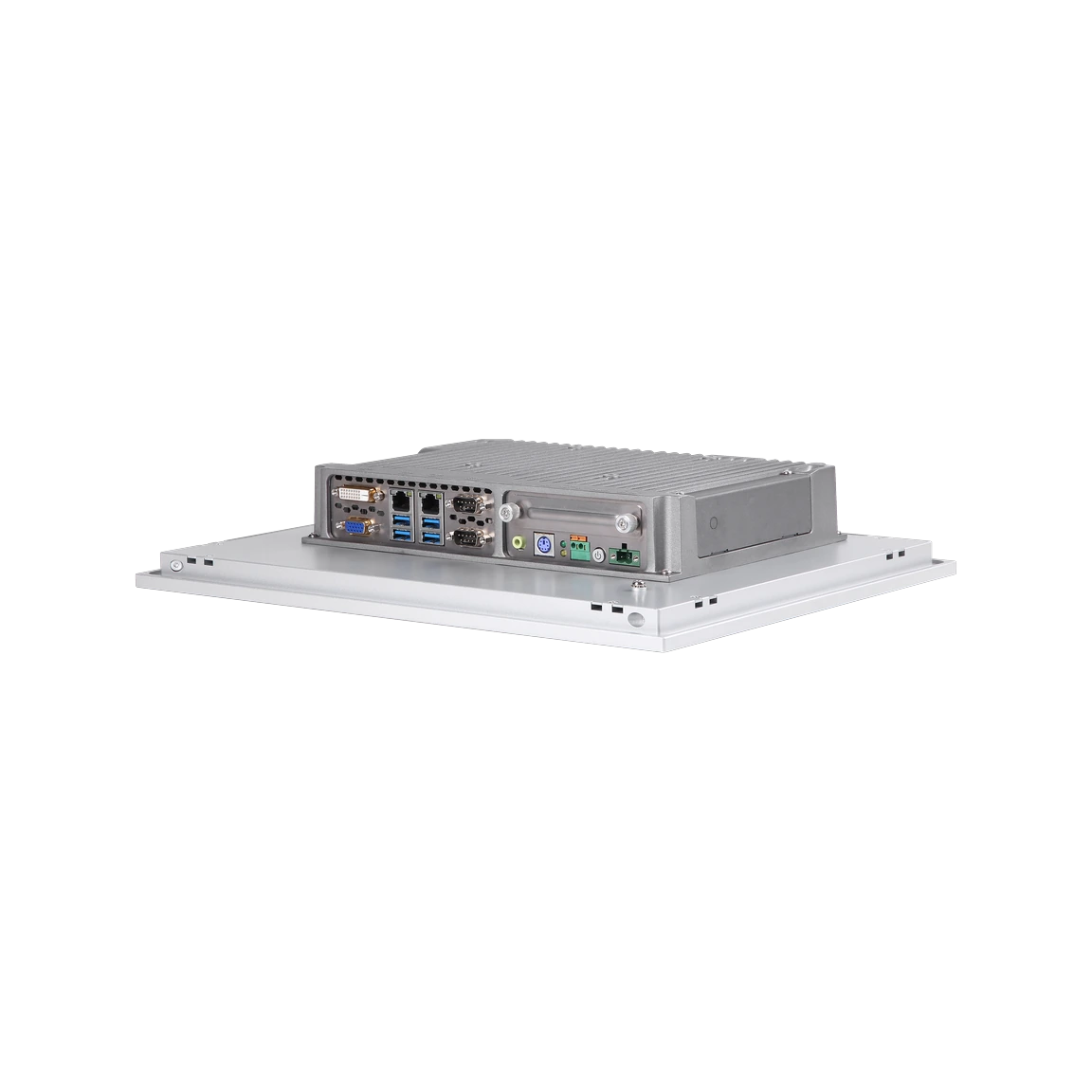

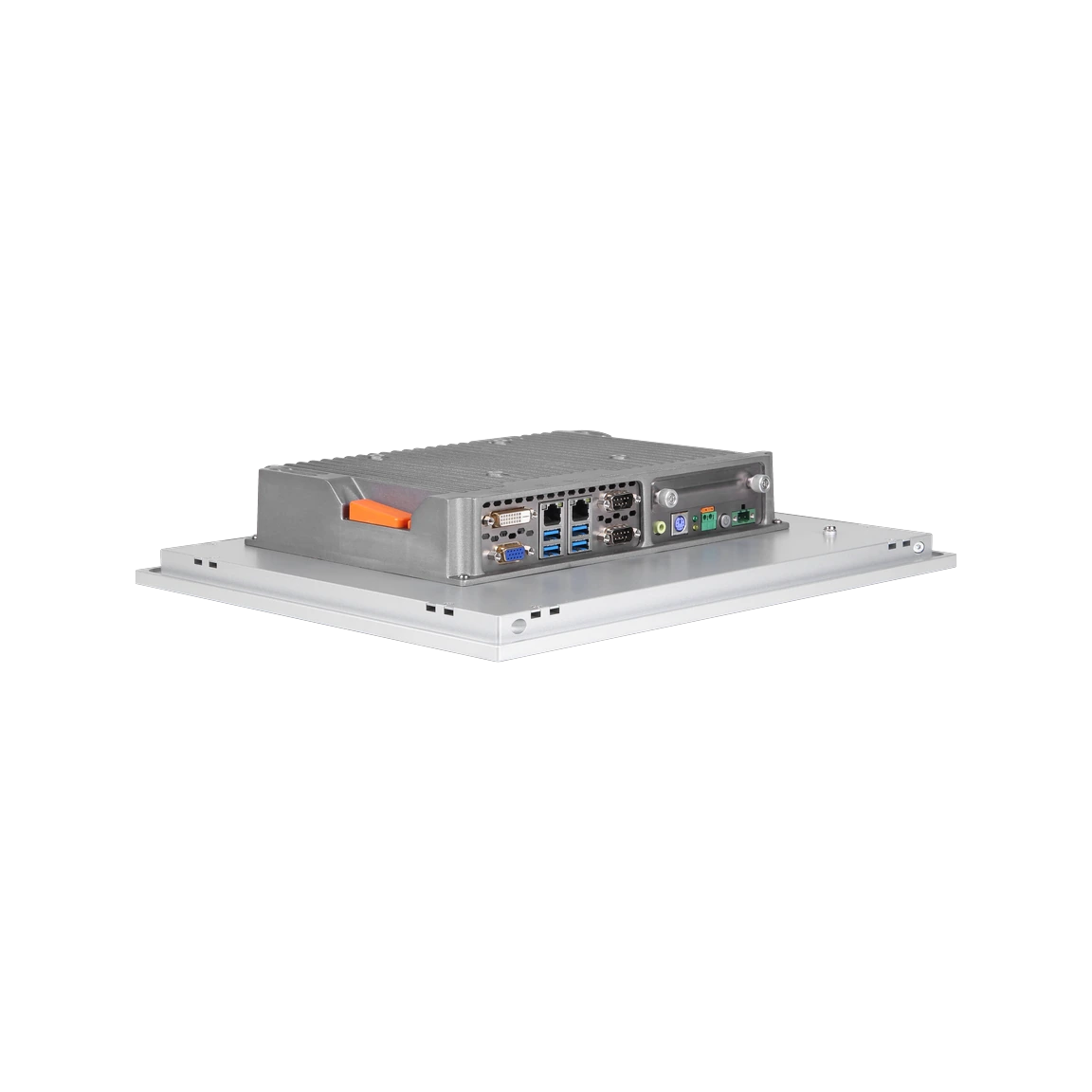

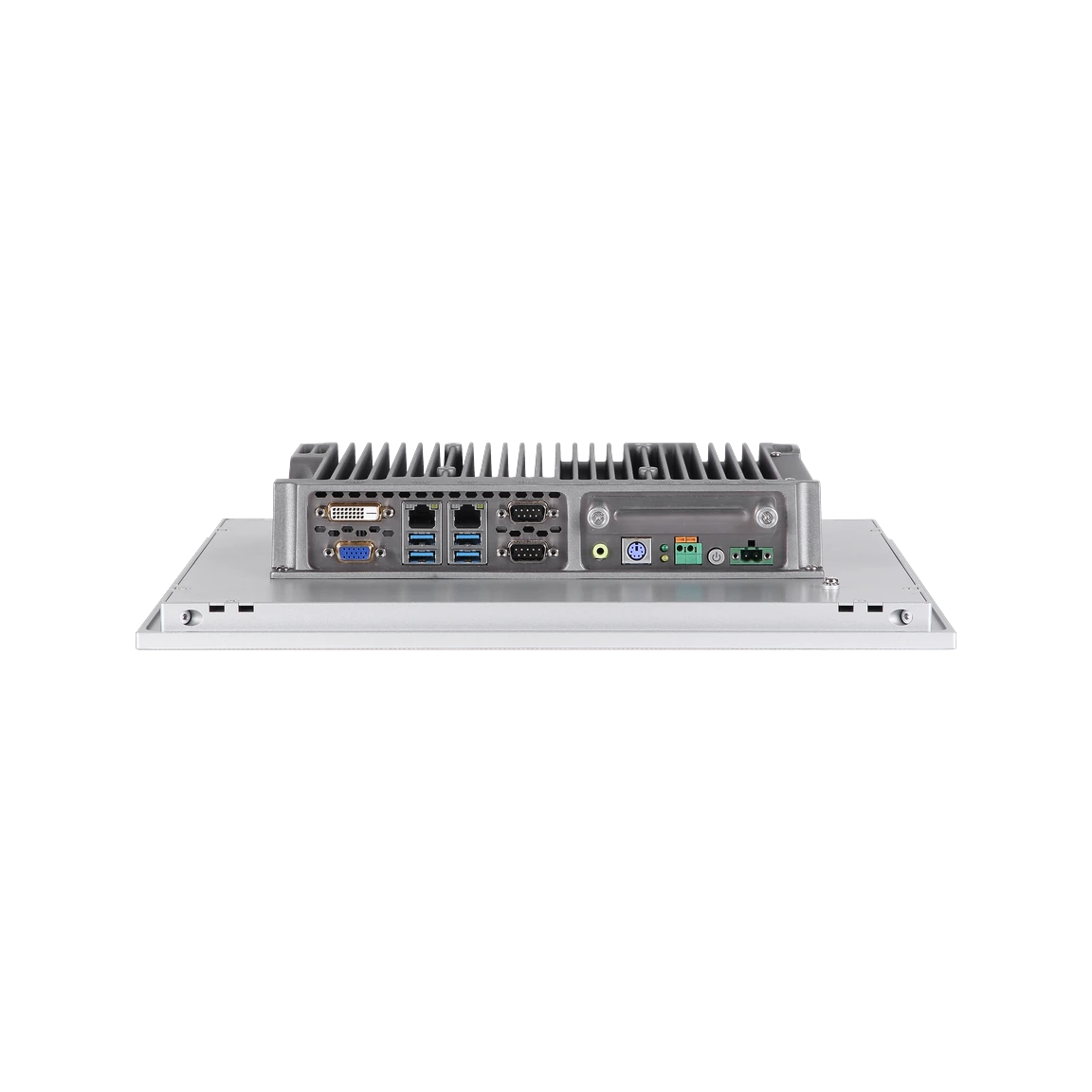

Rear I/O 1 × DVI, 2 × LAN, 4 × USB, 2 × COM, 1 × PS/2, 1 × Line-out (except J1900)
Expansion Slot 1 × Mini-PCIe (expandable for 4G/Wi-Fi), 1 × EasyBUS slot
OS Support Microsoft Windows 10, Linux
LCD
LCD Size 12.1" XGA
Resolution 1024 × 768
Luminance 350 cd/m²
MTBF 30,000 hours
Contrast Ratio 800:1
Viewing Angle (L/R/T/B) 80 / 80 / 80 / 80
Touch Screen
Type Resistive touch screen
Transmittance ≥ 75%
Controller Interface USB
Power
Input Voltage DC 12-24V
Maximum Power < 60W
Chassis
Structure Ultra-compact and fanless design, IP65 front panel
Dimensions (W × H × D) 321mm × 247mm × 66mm
Cut-out Size (W × H) 304mm × 230mm
Net Weight 3.54 kg
Environmental
Operating Temperature 0 ~ 50°C
Storage Temperature -20 ~ 60°C
Relative Humidity 5%-95% @ 40°C (non-condensing)
Vibration 1.5 Grms, IEC 60068-2-64, 5-500Hz, 1 hr/axis (SSD applied)
Shock 10G, IEC 60068-2-27, half sine wave, 11ms (SSD applied)
EMC CE/FCC Class A



Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads



Ordering Information -- TPC6000-D123-LH
Model Name Description
TPC6000-D123-LH-BTJ1900 12.1" LCD / Intel J1900 Quad Core 2.0GHz CPU / No Memory / No Hard / 2 × RS-232/485 (Optional) / 2 × LAN / 1 × USB3.0 / 3 × USB2.0 / 1024 × 768 / DC12V-24V input
TPC6000-D123-LH-J6412 12.1" LCD / Intel J6412 Quad Core 2.0GHz CPU / No Memory / No Hard / 2 × RS-232/485 (Optional) / 2 × LAN / 2 × USB3.0 / 2 × USB2.0 / 1024 × 768 / DC12V-24V input
TPC6000-D123-LH-N97 12.1" LCD / Intel N97 CPU / No Memory / No Hard / 2 × RS-232/485 (Optional) / 2 × LAN / 2 × USB3.0 / 2 × USB2.0 / 1024 × 768 / DC12V-24V input
TPC6000-D123-LH-N305 12.1" LCD / Intel N305 CPU / No Memory / No Hard / 2 × RS-232/485 (Optional) / 2 × LAN / 2 × USB3.0 / 2 × USB2.0 / 1024 × 768 / DC12V-24V input
Options
Expansion Card 4G/3G module (optional EC20, EC25, EG25 ...) -- Mini PCIe
DDR3L (J1900) 4GB, 8GB
DDR4 (J6412) 4GB, 8GB, 16GB
DDR5 (N97, N305) 8GB, 16GB
mSATA 128GB, 256GB, 512GB ...
