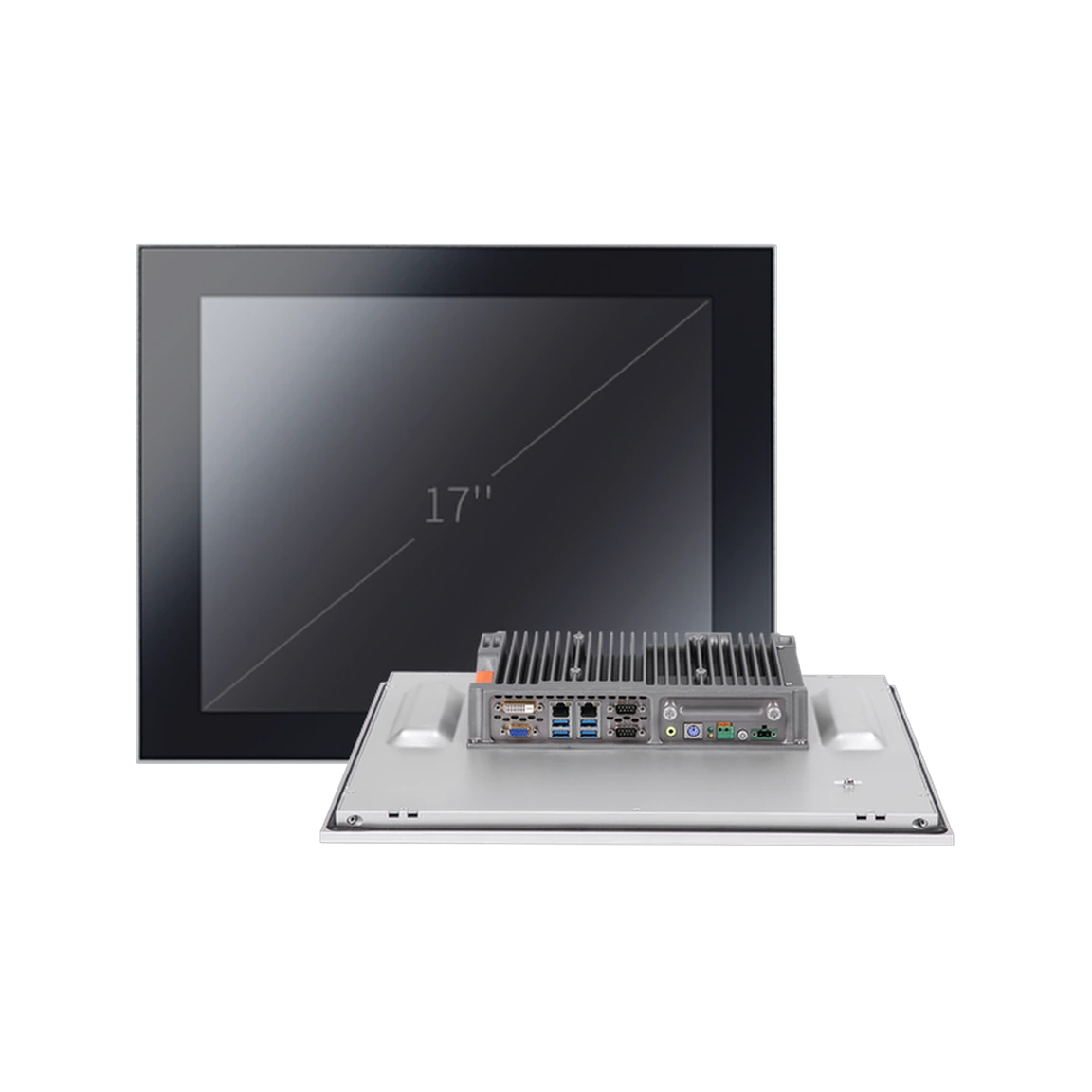

TPC6000-D173-L Series | 17" Fanless Industrial Panel PC with IP65 Front Panel

17″ fanless industrial panel PC with resistive touchscreen, Intel Celeron/Core CPU options, dual LAN & COM ports, and flexible mounting options

Features

17” SXGA (1280×1024) resistive touchscreen for industrial applications
Supports Intel® Celeron™ & Core™ i3/i5 CPUs
Dual Intel 1000Mbps LAN ports for reliable networking
2 x COM (RS232/485) for industrial communication
4 x USB3.0/2.0/1.1 for multiple peripheral connections
Flexible storage options: 1 x 2.5” SATA + 1 x mSATA
Fanless aluminum chassis for silent and durable operation
Mounting options: Panel Mount & VESA Mount
IP65 front panel for dust & water resistance

Industrial Panel PCs Product Information

Technical Specifications
Model Name	TPC6000-D173-L
LCD
Size	17" SXGA TFT
Resolution	1280x1024
Brightness	250cd/m²
Contrast Ratio	1000:1
Viewing Angle	(L) 85 / (R) 85 / (T) 80 / (B) 80
MTBF	30,000 hours
System
CPU	Intel® Celeron M J1900 (Quad Core 2.0GHz) / J6412 (Quad Core 2.0GHz) / Intel® Celeron 4205U (Dual Core 1.8GHz) / Intel® Core™ i3-8145U (Dual Core 2.1GHz) / Intel® Core™ i5-7200U (Dual Core 2.5GHz)
L3 Cache	1.5MB - 4MB (Varies by CPU)
Chipset	Integrated PCH-LP
Memory	1 x DDR3L-1600 (Max 8GB) / 1 x DDR4-2400MHz (Max 16GB)
Storage	1x2.5" SATA bay + 1 x mSATA
I/O Interfaces
Network (LAN)	2 x Intel 1000Mbps RJ-45 Ethernet
USB	4 x USB3.0/2.0/1.1
Serial Ports	2 x RS-232 / RS-485
Expansion Slot	1 x Mini-PCIe slot (Supports WiFi, 3G) / 1 x EasyBUS slot
Rear I/O	DVI-I/2 x GLAN / 4 x USB / 2 x COM / 2 x PS2 / Line-out / Mic-in
Chassis
Weight	5.54kg
Installation	Panel Mount & VESA Mount
Dimensions (WxHxD)	428 mm x 342mm x 66mm
Cut-out Size (WxH)	411mm x 325mm
Operating System Support
OS Compatibility	Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Ubuntu, VXWORKS, QNX
Power
Input Voltage	DC12~24V ±10%, Over-current, Over-voltage, and Polarity Inverse Protection
Power Consumption	41W
Touch Screen
Type	Resistive Touch Screen
Resolution	4096x4096
Transmittance	>78%
Response Time	<5ms
Surface Hardness	Mohs Hardness 3H
Environmental
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-30°C ~ 80°C
Humidity	5~95% (Non-condensing)
Vibration Resistance	1.5Grms (IEC 60068-2-64, 5~500Hz)
Shock Resistance	10G Peak Acceleration (IEC 60068-2-27, 11ms)
Waterproof Rating	IP65 Compliant (Front Panel)

Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Ordering Information
Model Name	TPC6000-D173-L
Description	17" SXGA LCD, Resistive Touch, Intel Celeron/Core CPU, 2 x LAN, 4 x USB, 2 x COM, Panel & VESA Mount, DC12~24V Input
Options
CPU	Intel® Celeron ™™ J1900 (Quad Core 2.0GHz) / J6412 (Quad Core 2.0GHz) / Intel® Celeron 4205U (Dual Core 1.8GHz) / Intel® Core™ i3-8145U (Dual Core 2.1GHz) / Intel® Core™ i5-7200U (Dual Core 2.5GHz)
Memory	1 x DDR3L-1600 (Max 8GB) / 1 x DDR4-2400MHz (Max 16GB)
Storage	1x2.5" SATA bay + 1 x mSATA
WiFi Kit	Mini-PCIe WiFi Kit (Supports 3G)
Mounting Option	Panel Mount & VESA Mount
