| Technical Specifications |
|---|
| System |
|---|

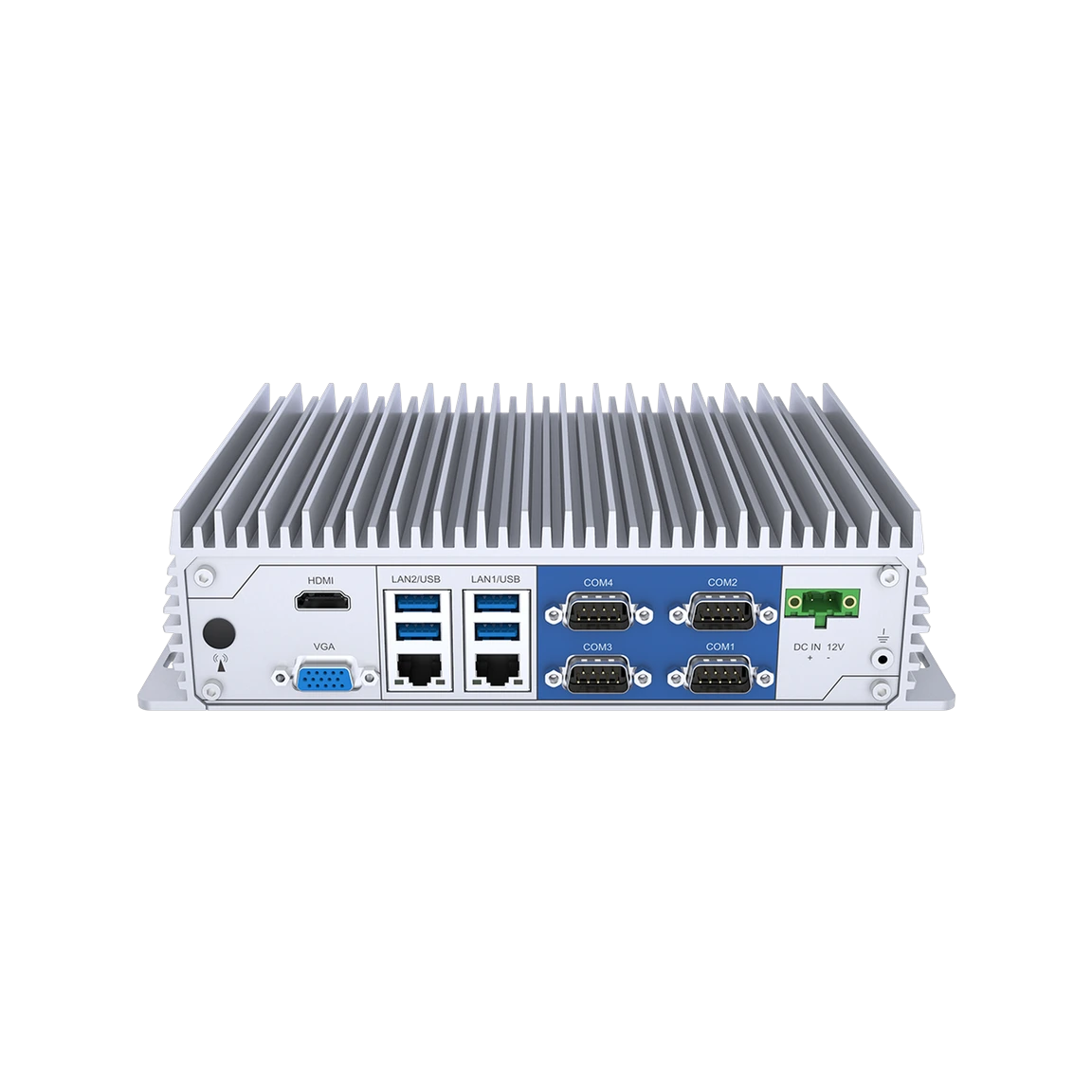

| Model Name | eBOX-3240 |
| CPU | Intel(r) CeleronTM J6412, 2.0GHz, 1.5MB Cache |
| Memory | 2 x DDR4 2666/2933/3200MHz SO-DIMM, Max 32GB |
| Storage | 1 x 2.5" SATA, 1 x M.2 Key-M Slot (SATA SSD, 2242/2280) |
| I/O Interfaces |
|---|
| USB | 4 x USB 3.0, 2 x USB 2.0 |
| COM Ports | COM1-COM4: RS232/RS485, COM5-COM6: RS232 |
| LAN | 2 x Realtek GbE Ethernet |
| Display |
|---|
| HDMI | 4096 x 2160 @30Hz |
| DP | 4096 x 2160 @30Hz |
| VGA | 1920 x 1200 @60Hz |
| Expansion |
|---|
| Mini PCIe | 1 x Full-size Mini PCIe slot with SIM holder |
| M.2 Slot | 1 x M.2 slot for 5G module with extensible USB protocol |
| Power |
|---|
| Input Voltage | DC 12V ±10%, overcurrent, overvoltage, polarity inverse protection |
| Power Consumption | Typical: 10-15W |
| Mechanical |
|---|
| Structure | Aluminum-magnesium alloy box, Fanless, Wall-mounted |
| Dimensions | 234mm (L) x 150mm (W) x 60mm (H) |
| Net Weight | 1.8Kg |
| Environmental |
|---|
| Operating Temperature | -20°C ~ 60°C (with airflow, mSATA) |
| Storage Temperature | -40°C ~ 80°C (with airflow, mSATA) |
| Humidity | 5-95% RH (Non-condensing) |
| Vibration | 5-500Hz, 1.5Grms with SSD (IEC60068-2-64) |
| Shock | 10G peak acceleration, 11ms (IEC60068-2-27) |
| EMC | CE/FCC Class B |
| OS Support |
|---|
| Microsoft Windows | Windows 10 IoT |
| Linux | Ubuntu |
| Ordering Information |
|---|
| Model | CPU | Description |
| eBOX-3240 | Intel(r) Celeron J6412 | Fanless embedded PC with 6 x COM, 2 x LAN, 6 x USB, HDMI + DP + VGA, Mini PCIe + M.2, SATA + M.2 SSD, DC 12V input, wall mount |
| Optional Items |
|---|
| Memory | 4GB, 8GB, 16GB, 32GB DDR4 SO-DIMM |
| Storage | 2.5" SATA SSD/HDD, M.2 SATA SSD (2242/2280) |
| Wireless Expansion | Mini PCIe Wi-Fi / 4G module with SIM support, M.2 5G module |
| Power Adapter | 12V/5A AC/DC adapter with Phoenix connector |
| Mounting Kit | Wall-mount bracket (included) |
