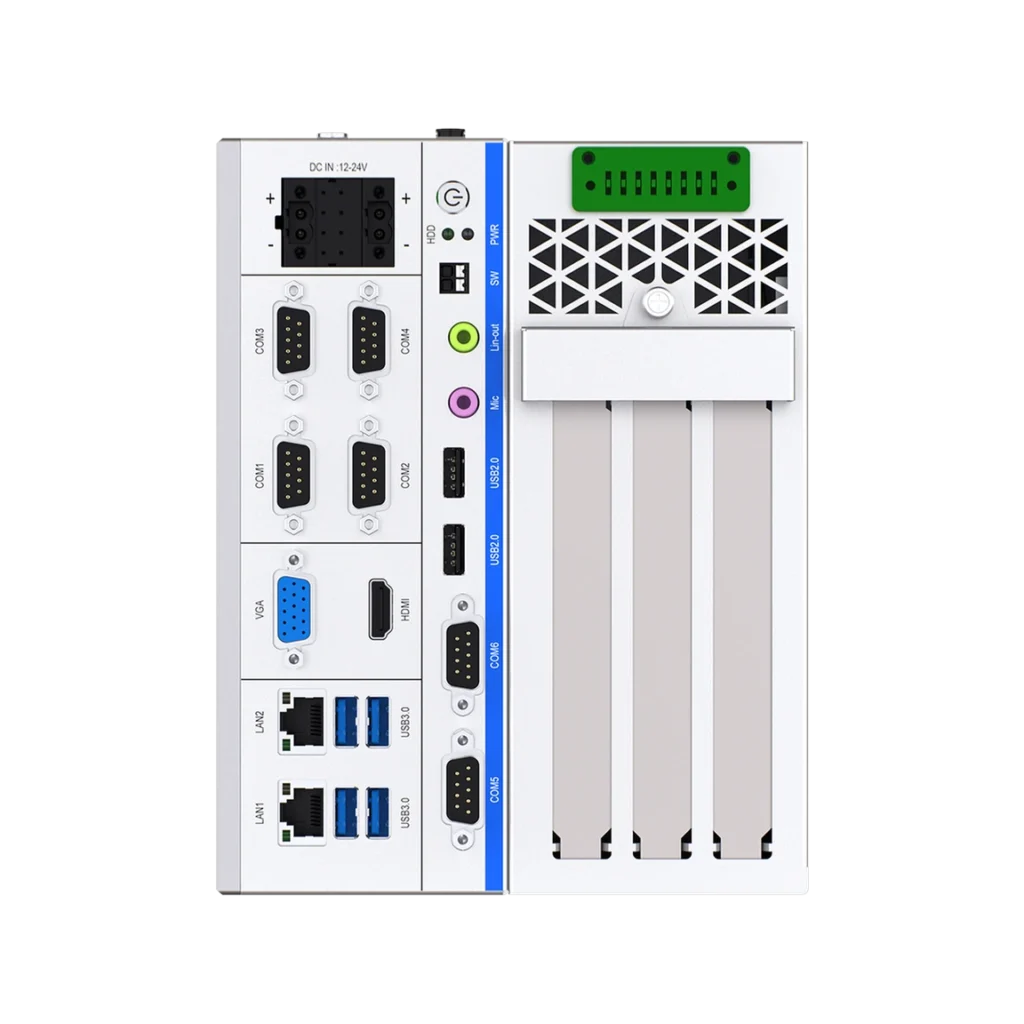

eBOX-3670-P/E | Compact Industrial Box PC with PCI/PCIe Expansion

Fanless aluminum-magnesium box PC supporting Intel Core CPUs with 6 COM ports, PCI/PCIe expansion slots, dual LAN, and 4G/WiFi via mini-PCIe

Fanless Industrial Box PC with aluminum-magnesium alloy enclosure
Supports Intel® LGA1151 (6/7/8th Gen) or LGA1200 (10/11th Gen) CPUs (TDP 35W)
Dual independent display: HDMI (4K) + VGA
6 serial ports (COM1~COM6): RS232 & RS485 support
2 x Realtek GbE LAN for industrial networking
6 x USB ports (4 x USB 3.0, 2 x USB 2.0)
2 x Mini-PCIe slots with SIM slot for Wi-Fi/4G communication modules
Supports 1 x PCIe x16, 2 x PCI or 1 x PCIe x16, 2 x PCIe x1 expansion slots (varies by model)
Supports 2.5” SATA HDD and M.2 SSD 2280 (SATA interface)
DC12–24V input with protection from overcurrent, overvoltage, and reverse polarity
Compact wall-mount design with rugged shock and vibration resistance

Technical Specifications
Model Name	eBOX-3670-AP	eBOX-3670-AE	eBOX-3670-BP	eBOX-3670-BE
System
CPU	Intel 6/7/8th Gen. LGA1151 (TDP 35W)		Intel 10/11th Gen. LGA1200 (TDP 35W)
Chipset	H110	H110	H510	H510
Memory	2 x DDR4 2400MHz SO-DIMM, Max 32GB
Storage	1 x 2.5" SATA + 1 x M.2 Key-M (SATA SSD, 2280)
USB	4 x USB 3.0, 2 x USB 2.0
COM	COM1~COM2: RS232/RS485; COM3~COM6: RS232
LAN	2 x Realtek GbE LAN
HDMI	4096 × 2160 @ 30Hz
VGA	1920 × 1200 @ 60Hz
Extension Interface	2 x Full-size mini PCIe with SIM slot, support WiFi/4G
Expansion Card	1 x PCIe, 2 x PCI	1 x PCIe X16, 2 x PCIe X1	1 x PCIe, 2 x PCI	1 x PCIe X16, 2 x PCIe X1
Watchdog	Level 1-255 programmable settings
Operating System
Windows	Windows 10 IoT, Windows 11
Linux	Ubuntu
Power
Input Voltage	DC12-24V ±10%, with overcurrent, overvoltage, and reverse polarity protection
Power Consumption	35W
Mechanical
Structure	Aluminum-magnesium alloy box, wall-mounted
Dimensions (W x D x H)	230mm x 192mm x 154mm
Net Weight	3.6 kg
Environment
Operating Temperature	-20°C to 60°C (with air flow, mSATA), 5-95% RH (non-condensing)
Storage Temperature	-40°C to 80°C (with air flow, mSATA), 5-95% RH (non-condensing)
Humidity	5-95% RH (non-condensing)
Vibration	5-500Hz, 1.5Grms with SSD, IEC60068-2-64
Shock	10G peak acceleration, 1ms duration, IEC60068-2-27
EMC	CE / FCC Class B

Ordering Information
P/N	Model Name	Specifications
603990039	eBOX-3670-AP	Quasi-system, L510 core module, support 6/7/8th generation 35W CPU, expansion of 1 x PCIe x16, 2 x PCI, DC12~24V input, 6 serial ports, 6 x USB, 2 x LAN, HDMI + VGA display output
603990040	eBOX-3670-AE	Quasi-system, L520 core module, support 6/7/8th generation 35W CPU, expansion of 1 x PCIe x16, 2 x PCIe x1, DC12~24V input, 6 serial ports, 6 x USB, 2 x LAN, HDMI + VGA display output
603990041	eBOX-3670-BP	Quasi-system, L520 core module, support 10/11th generation 35W CPU, expansion of 1 x PCIe, 2 x PCI, DC12~24V input, 6 serial ports, 6 x USB, 2 x LAN, HDMI + VGA display output
603990042	eBOX-3670-BE	Quasi-system, L520 core module, support 10/11th generation 35W CPU, expansion of 1 x PCIe x16, 2 x PCIe x1, DC12~24V input, 6 serial ports, 6 x USB, 2 x LAN, HDMI + VGA display output
