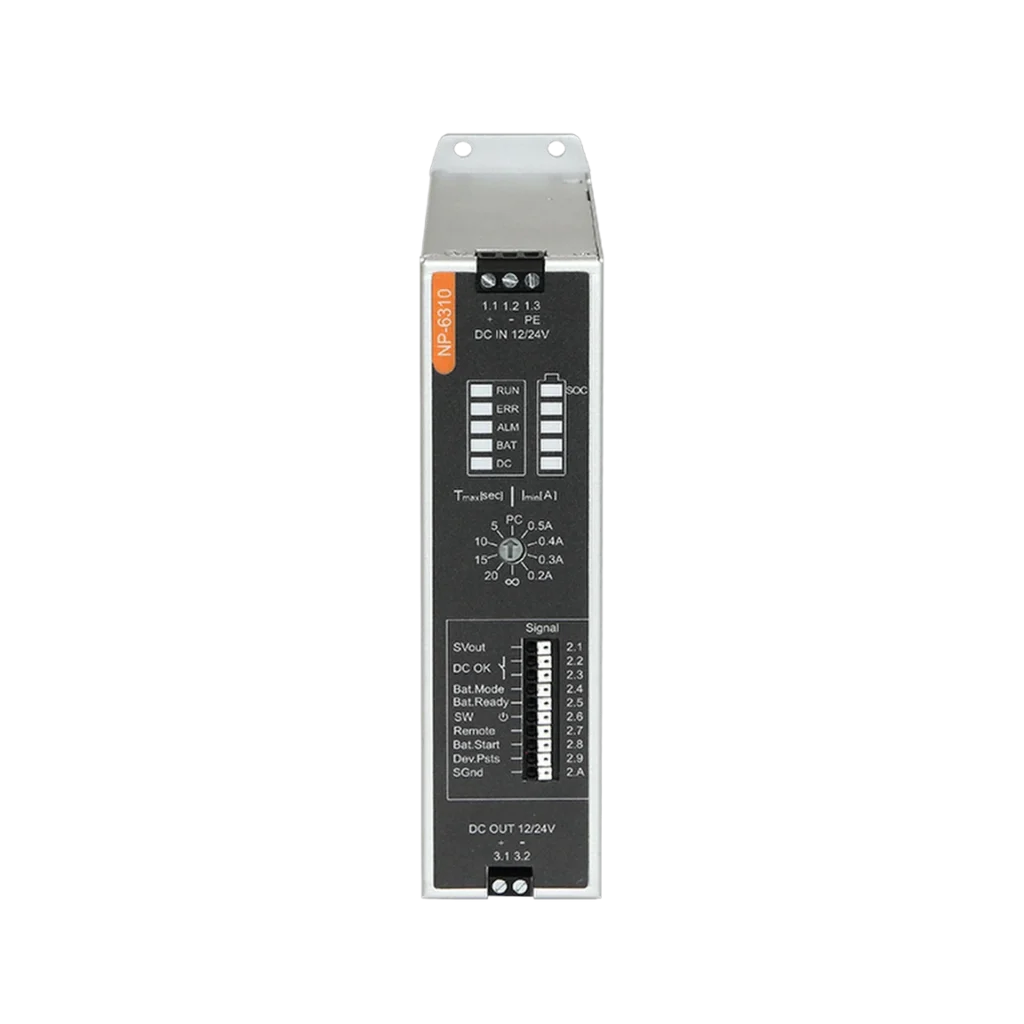

NP-6310-A / NP-6310-A-R | Supercapacitor UPS with 12V/24V DC Backup Power
Supercapacitor-based DC UPS with 12V/24V output, 1080Ws energy storage, RS232/RS485 Modbus RTU, digital I/O, overcurrent protection, and DIN-Rail mounting
Features
- Supercapacitor-based DC UPS for reliable industrial backup power
- 12V/24V DC Output, 9A Max – Ideal for embedded & automation systems
- 1080Ws Energy Storage ensuring extended backup operation
- Supports RS232 & RS485 (Modbus RTU Protocol) for real-time monitoring
- Digital I/O for power event control – Remote start, battery status monitoring
- 500,000 Charge/Discharge Cycles for long-term industrial durability
- Built-in Overcurrent, Surge, and Reverse Connection Protection
- DIN-Rail & Wall-Mounting Options for flexible installation
- Compact and fanless design for high-reliability applications
Supercapacitor UPS Product Information
| Technical Specifications | |
|---|---|
| Model Name | NP-6310-A / NP-6310-A-R |
| System | |
| Power Input (DC_IN) | DC12V / DC24V, 12A |
| Input Protection | Overvoltage, power anti-reverse connection protection, EFT ±1500V, electrical surge DC2000V |
| Power Output (DC_OUT) | DC12V / DC24V, 9A |
| Output Protection | Overcurrent protection |
| Idle Power Consumption | 3W |
| Maximum Power | 60W/12V, 120W/24V |
| Maximum Charging Current | 3A |
| Supercapacitor Capacity | 1080 Ws |
| Charge/Discharge Cycles | Up to 500,000 times |
| I/O and Communication | |
| I/O Voltage | DC24V |
| Isolation Mode | Optocoupler |
| Isolation Voltage | 3.75kV |
| Digital Inputs | Bat.Start (NPN), Remote (NPN), Dev.Psts (NPN) |
| Digital Outputs | DC OK (Relay NO), Bat.Mode (NPN), Bat.Ready (NPN), SW (NPN) |
| Data Interface | DB9 (RS232 / RS485, Modbus RTU Protocol) |
| Default Communication Parameters | Baud Rate: 115200bps, 8-bit Data, 1-bit Stop, No Parity |
| Environmental Parameters | |
| Operating Temperature | -20ºC ~ 60ºC |
| Storage Temperature | -40ºC ~ 80ºC |
| Operating Humidity | 5~95% (Non-condensing) |
| Mechanical & Mounting | |
| Mounting Options | Wall-Mounted or DIN-Rail |
| Dimensions (W x H x D) | 180mm x 43mm x 125.2mm |
| Weight | 850g |
| Ordering Information | |
|---|---|
| Model Name | NP-6310-A / NP-6310-A-R |
| Description | Supercapacitor-based **12V/24V DC UPS with 1080Ws energy storage**, **RS232/RS485 communication (Modbus RTU)**, **digital I/O**, **overcurrent & surge protection**, and **DIN-Rail/Wall mounting**. |
| Options | |
| Input Voltage | DC12V / DC24V, 12A |
| Output Voltage | DC12V / DC24V, 9A |
| Supercapacitor Capacity | 1080 Ws |
| Charge/Discharge Cycles | Up to 500,000 times |
| Communication Interface | RS232 / RS485 (Modbus RTU Protocol) |
| Mounting Option | Wall-Mounted or DIN-Rail |
