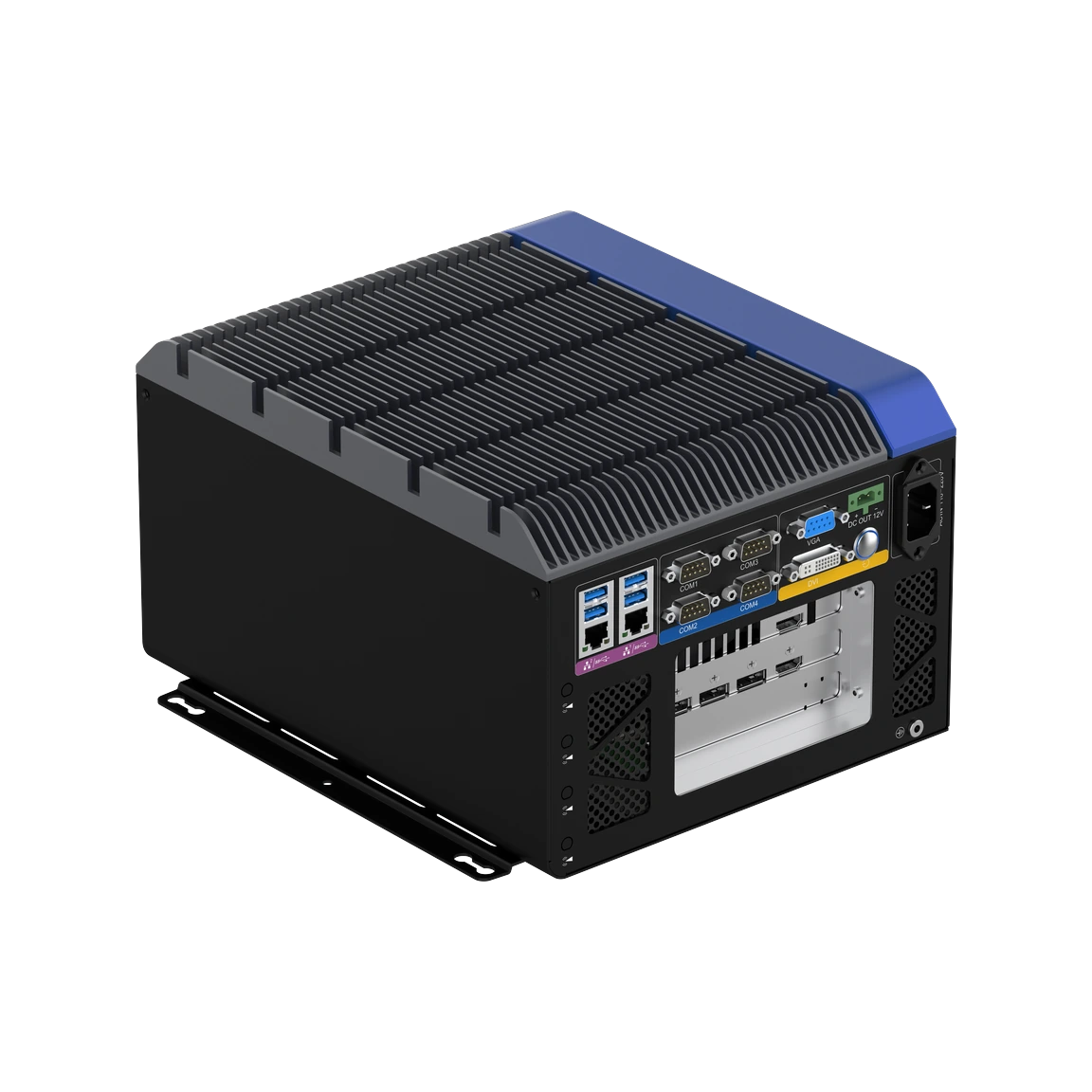

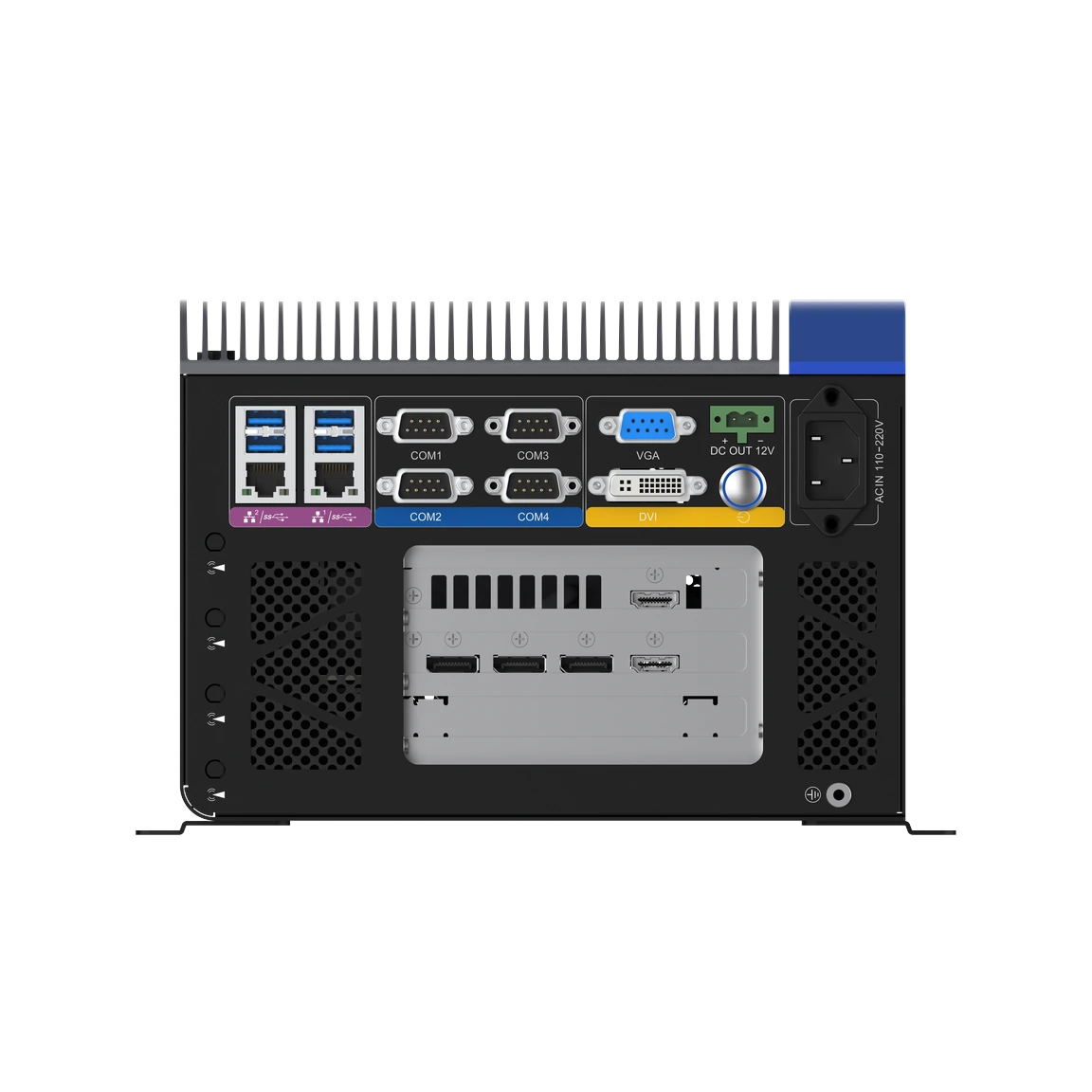

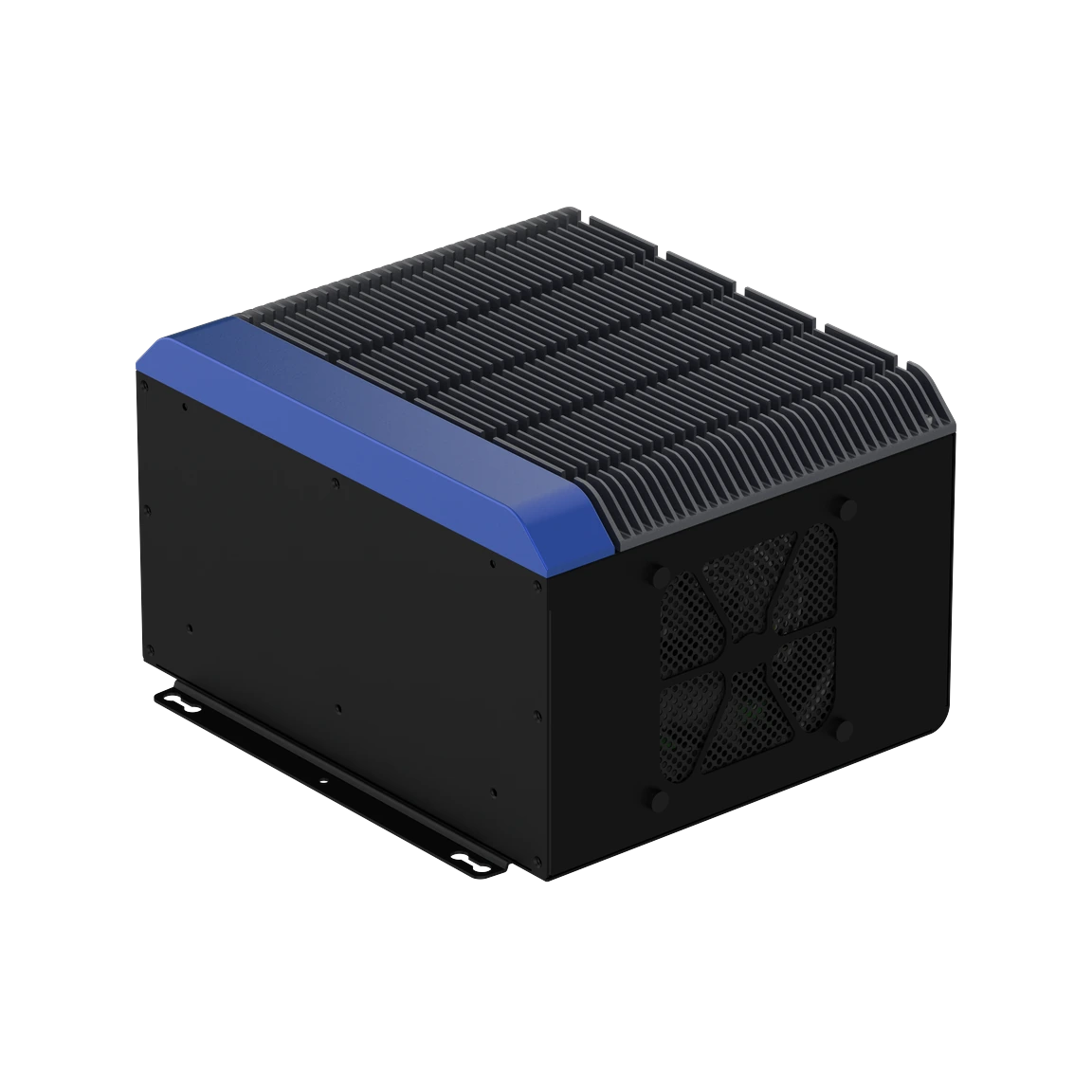

AIPC-3000-AH6-3S | High Performance Tower / Wallmount Industrial PC
Compact high-performance tower/wallmount industrial PC with Intel® 12th–14th Gen CPU support (up to 65W), 2×Intel GbE, 4×RS-232, 4×USB 3.0, VGA+DVI dual display, PCIe x16+x4 expansion for GPU (up to 230mm), Mini PCIe + M.2 Key-B for wireless/5G modules, and 500W power supply.
Features
- Supports Intel® 12th/13th/14th Gen Celeron/Pentium/Core™ i processors (up to 65W TDP)
- Compact tower/wallmount chassis for control cabinets and space-limited installations
- Dual Intel GbE LAN for reliable industrial networking
- 4 × RS-232 serial ports for PLCs, instruments, and legacy equipment
- PCIe expansion: 1 × PCIe x16 + 1 × PCIe x4; supports GPU cards up to 230mm
- Wireless-ready: Mini PCIe for WiFi/4G modules and M.2 Key-B for 5G modules
- Storage support: M.2 2242/2280 (SATA) + 2 × 2.5″ SATA bays
- VGA + DVI dual display up to 1920 × 1200 @ 60Hz (asynchronous)
- Wide-range AC 90–264V input with 500W power supply
- Watchdog timer with 1–255 programmable levels
Tower / wall mount Industrial PC Product Information
| Technical Specifications -- AIPC-3000-AH6-3S | |
|---|---|
| Model Name | AIPC-3000-AH6-3S |
| System | |
| CPU | Intel® 12/13/14th Generation Celeron/Pentium/Core™ i series processor, TDP up to 65W |
| BIOS | AMI UEFI 128Mbit |
| Chipset | Intel® H610 Chipset |
| Memory | 2 × 260-pin DDR4 3200MHz SO-DIMM slots, up to 64GB |
| Storage | 1 × M.2-2242/2280 Key M slot SATA3.0 (up to 6Gb/s) 2 × 2.5" SATA3.0 (up to 6Gb/s) |
| USB | 4 × USB3.0 |
| COM | 4 × RS-232 (COM1–4) |
| Expansion Slot | 1 × PCIe16X + 1 × PCIe4X (expandable graphics cards up to 230mm in length) 1 × Mini PCIe with expandable WiFi and 4G modules 1 × M.2 Key-B Slot for expandable 5G modules |
| LAN | 2 × Intel GbE LAN |
| DVI | The highest resolution is 1920 × 1200 @ 60Hz, supports asynchronous dual display |
| VGA | The highest resolution is 1920 × 1200 @ 60Hz, supports asynchronous dual display |
| Watchdog | 1–255 levels programmable setting |
| OS Support | |
| Microsoft Windows | Windows 10, Windows 11 |
| Linux | Linux |
| Power | |
| Input Voltage | AC 90~264V |
| Power Consumption | 500W |
| Output Voltage | DC12V |
| Chassis | |
| Structure | All-steel box structure |
| Dimensions (L × W × H) | 280mm × 260mm × 169.5mm |
| Net Weight | 8Kg |
| Environment | |
| Operating Temperature | 0°C ~ 35°C (Use SSD) |
| Storage Temperature | -40°C ~ 80°C (Use SSD) |
| Relative Humidity | 5~95% RH @ 40°C, non-condensing |
| Vibration | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis |
| Shock | SSD applied: 10G, IEC 60068-2-27, half sine wave, lasting 11ms |
| EMC | CE/FCC Class A |
| Ordering Information -- AIPC-3000-AH6-3S | |
|---|---|
| Part Number | A63.AIPCH.3S.0001 |
| Model Name | AIPC-3000-AH6-3S |
| Description | Barebones: H610 chipset / 1 × PCIe16X + 1 × PCIe4X / 4 × COM / 2 × LAN / 4 × USB3.0 / AC220V input |
| Options | |
| DDR4 SO-DIMM | 4GB, 8GB, 16GB, 32GB |
| M.2 SATA | 128GB, 256GB, 512GB, 1TB |
| 2.5" Solid State Drives | 128GB, 256GB, 512GB, 1TB |
| 3.5" Hard Drive | 1TB, 2TB, 4TB |
