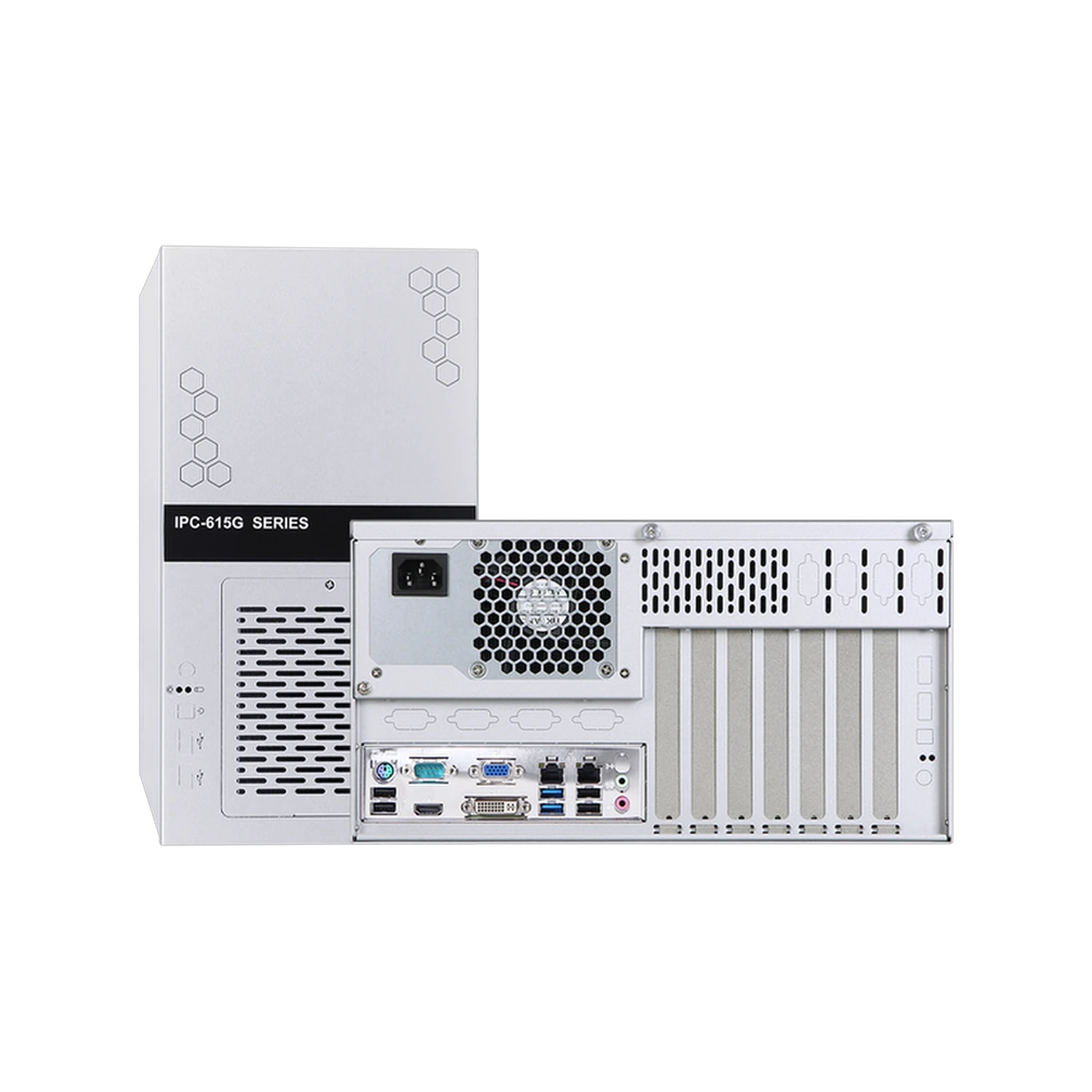

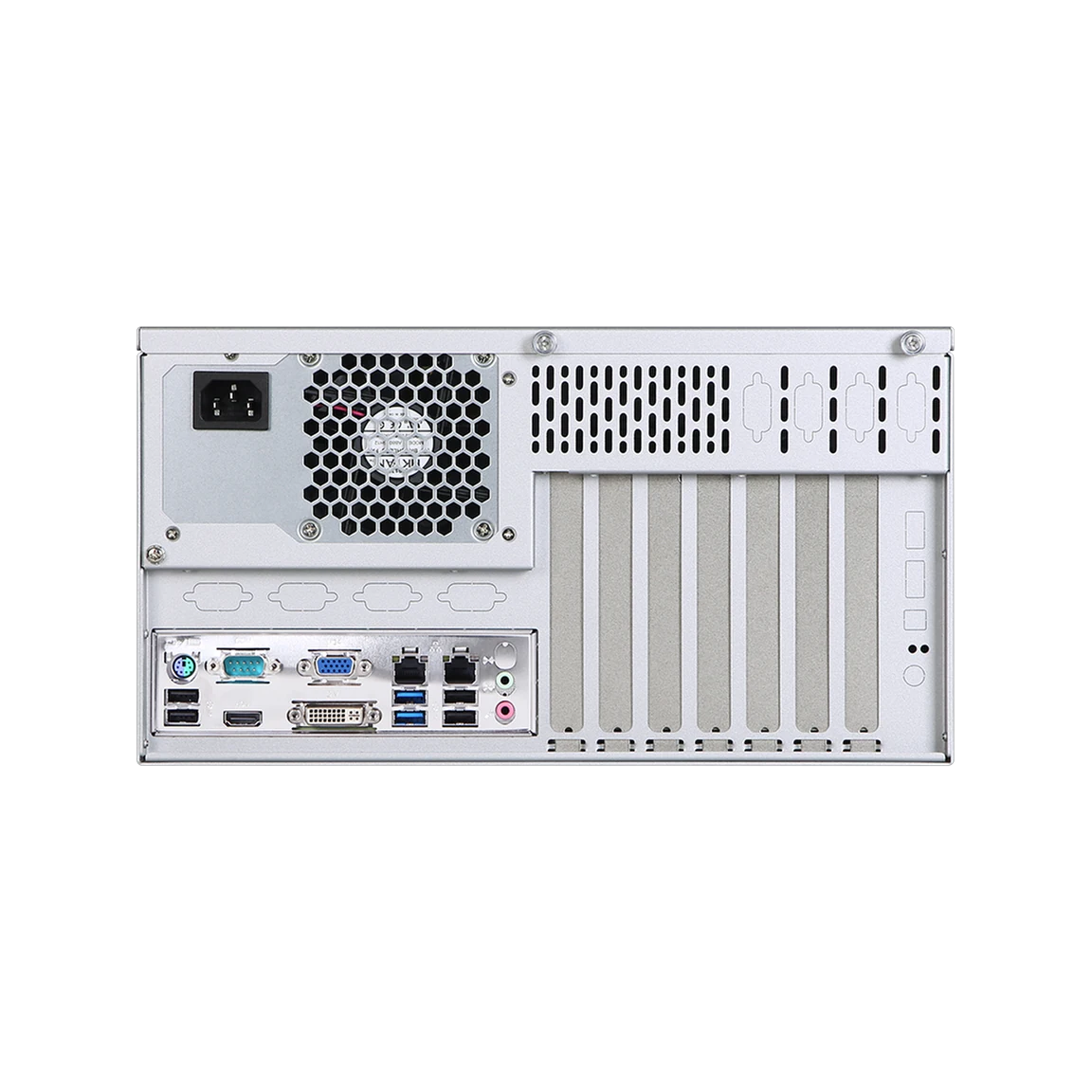

IPC615G2-H81 | Desktop Industrial PC

Support Intel Pentium/Celeron/4th Generation Core i3/5/7 CPU, LGA1150Support Intel Pentium/Celeron/4th Generation Core i3/5/7 CPU, LGA1150

Features

  • Intel Core i3,i5,i7,E3,Pentium,Celeron, LGA11
  • Intel® H81 Chipset
  • 2×Intel GbE LAN controller
  • 1×2.5″ HDD Bay, 1×3.5″ HDD Bay
  • 1×full size mSATA SSD
  • 5xRS232, 1 x RS232 or RS485 or RS422(COM1)
  • 2 x USB3.0, 6 x USB2.0
  • 1 x PCIe x16 slot, 1 x PCIe x4 slot; 5 x 32bits PCI slot

Desktop Industrial PC

Processor
CPUIntel Core i3, i5, i7, E3, Pentium, Celeron LGA1150
ChipsetIntel® H81
Memory architectureSupport DDR4 2400
Memory capacityup to 16GB
DIMM2×U-DIMM Slot
L2 CacheUp to 8MB
BIOSAMI EFI 16Mbit
I/O Interface
LAN2×Intel GbE LAN controller
USB2 x USB3.0, 6 x USB2.0
COM5×RS232, 1×RS232 or RS485 or RS422 (COM1)
AudioOptional
PS21×PS2 Port (Keyboard & Mouse)
Display
VGASupports max resolution up to 1920x1200@60Hz
DVISupports DVI-D with max resolution up to 1920x1200@60Hz
HDMISupports max resolution up to 4096x2160@30Hz
Dual displaySupports asynchronous dual display
Physical
Dimensions370mm x 326.2mm x 187.2mm
Weight8.2KG
Box StructureHot dip galvanized sheet steel shell
Mounting
MountDesktop installation
Operating System
Microsoft WindowsWindows 7/10
LinuxUbuntu
Power
Power AdapterAC180~264V
Power DissipationDepending on the CPU (select 300W, 400W, 500W, 600W, 750W)
TypeATX
Environment
Work temperature-20 ~ 60° C (Using Wide Temperature Grade SSD); 0 ~ 45° C (Using normal HDD)
Storage Temperature-40 ~ 80°C
Relative Humidity5~95% (No condensation)
VibrationSSD applied: 1.5 Grms IEC 60068-2-64 random 5 ~ 500 Hz 1 hr/axis
ShockSSD applied: 10 G IEC 60068-2-64 Half-sine wave 11ms duration
EMC
EMCCE/FCC Class B
Safety Certification
Safety CertificationCCC
Other
SSD1×full size mSATA SSD
HDD1×2.5" HDD Bay, 1×3.5" HDD Bay
WatchDog255 seconds programmable
Expansion Slot
PCIe1 x PCIe x16 slot, 1 x PCIe x4 slot
PCI5 x 32bits PCI slots
Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Product Type Description
IPC-615G2-H81-P300 NO CPU/NO SODIMM /5*RS232/1*(RS232/485/422)/ 2×LAN /8*USB2.0 (Include 2xUSB3.0)/DVI/VGA/HDMI /5PCI/2PCI-E /Power 300W/AC IN 220V / Two-year warranty
IPC-615G2-H81-P400 NO CPU/NO SODIMM /5*RS232/1*(RS232/485/422)/ 2×LAN /8*USB2.0 (Include 2xUSB3.0)/DVI/VGA/HDMI /5PCI/2PCI-E /Power 400W/AC IN 220V / Two-year warranty
IPC-615G2-H81-P500 NO CPU/NO SODIMM /5*RS232/1*(RS232/485/422)/ 2×LAN /8*USB2.0 (Include 2xUSB3.0)/DVI/VGA/HDMI /5PCI/2PCI-E /Power 500W/AC IN 220V / Two-year warranty
IPC-615G2-H81-P600 NO CPU/NO SODIMM /5*RS232/1*(RS232/485/422)/ 2×LAN /8*USB2.0 (Include 2xUSB3.0)/DVI/VGA/HDMI /5PCI/2PCI-E /Power 600W/AC IN 220V / Two-year warranty
IPC-615G2-H81-P750 NO CPU/NO SODIMM /5*RS232/1*(RS232/485/422)/ 2×LAN /8*USB2.0 (Include 2xUSB3.0)/DVI/VGA/HDMI /5PCI/2PCI-E /Power 750W/AC IN 220V / Two-year warranty
