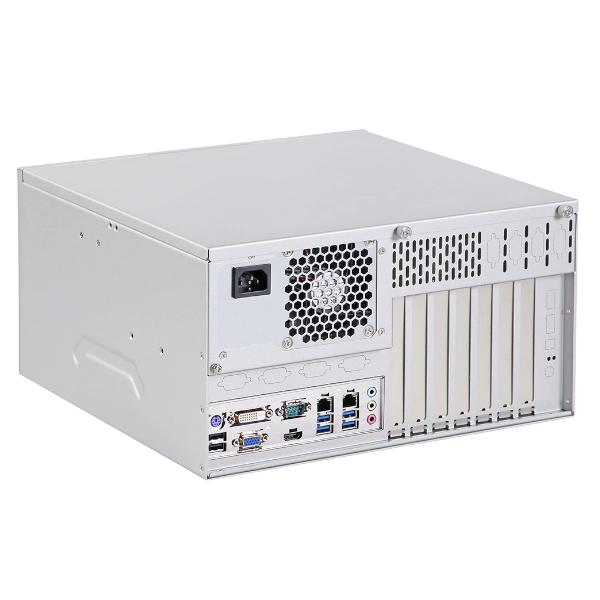

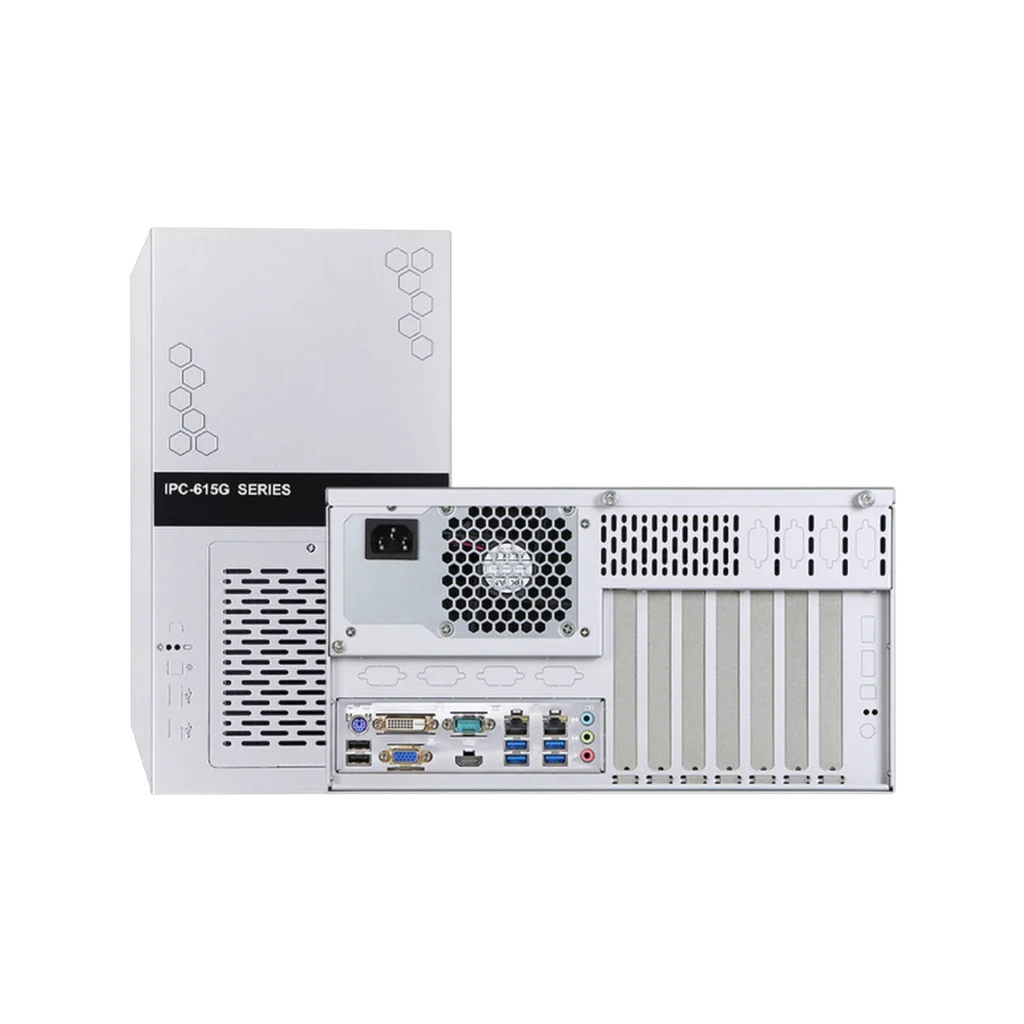

IPC615G2-Q370 | Desktop Industrial PC

Supports 8-9th Generation Intel® Core/Pentium/Celeron Processors, LGA1151

Features

  • Intel® Core ™ 8th/9th i7 / i5 / i3 / Pentium / Celeron, LGA1151
  • Intel® Q370 Chipset
  • 2 x Intel GbE LAN controller
  • 1 x 2.5″ HDD Bay, 1 x 3.5″ HDD Bay
  • 1 x full size mSATA SSD
  • 4 x RS232, 1 x RS232 or RS485(com3), 1 x RS232 or RS485 or 422(com4)
  • 4 x USB3.0, 4 x USB2.0
  • 1 x PCIe x16 slot, 4 x PCIe x4 slot; 2 x 32bits PCI slot

Desktop Industrial PC

Processor
CPUIntel® Core™ 8th/9th i7 / i5 / i3 / Pentium / Celeron LGA1151
ChipsetIntel® Q370
Memory architectureSupport DDR4 2400
Memory capacityup to 64GB
DIMM4×U-DIMM Slot
L2 CacheUp to 8MB
BIOSAMI EFI 16Mbit
I/O Interface
LAN2×Intel GbE LAN controller
USB4×USB3.0, 4×USB2.0
COM4×RS232, 1×RS232 or RS485 (com3), 1×RS232 or RS485 or 422 (com4)
AudioRealtek ACL662 Audio controller Line-out Mic-in
DIOptional
LPT1 support SPP/EPP/ECP mode (Option)
PS21×PS2 Port (Keyboard & Mouse)
Display
VGASupports max resolution up to 1920x1200@60Hz
DVISupports DVI-D with max resolution up to 1920x1200@60Hz
HDMISupports max resolution up to 4096x2160@30Hz
Dual displaySupports three asynchronous displays
Physical
Dimensions370mm x 326.2mm x187.2mm
Weight8.2KG
Box StructureHot dip galvanized sheet steel shell
Mounting
MountDesktop installation
Operating System
Microsoft WindowsWindows 10
LinuxUbuntu
Power
Power AdapterAC180~264V
Power DissipationDepending on the CPU (select 300W, 400W, 500W, 600W, 750W)
TypeATX
Environment
Work temperature-20 ~ 60°C (Using Wide Temperature Grade SSD); 0 ~ 45°C (Using normal temperature grade mechanical hard disk)
Storage Temperature-40 ~ 80°C
Relative Humidity5~95% (Non condensation)
VibrationSSD applied: 1.5 Grms IEC 60068-2-64 random 5 ~ 500 Hz 1 hr/axis
ShockSSD applied: 10 G IEC 60068-2-64 Half-sine wave 11ms duration
EMC
EMCCE/FCC Class B
Safety Certification
Safety CertificationCCC
Other
SSD1×2.5" HDD Bay, 1×3.5" HDD Bay
HDD1×full size mSATA SSD
WatchDog255 seconds programmable
Expansion Slot
PCIe1×PCIe×16 slot, 4×PCIe×4 slot
PCI2×32bits PCI slots
Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Product Type Description
IPC-615G2-Q370-P300 NO CPU/NO SODIMM/4*RS232/2*(RS232/485)/2×LAN/8×USB2.0 (Include 4xUSB3.0)/DVI/VGA/HDMI/2xPCI/5xPCI-E / AC IN 220V / Built-in 300W power/Two-year warranty
IPC-615G2-Q370-P400 NO CPU/NO SODIMM/4*RS232/2*(RS232/485)/2×LAN/8×USB2.0 (Include 4xUSB3.0)/DVI/VGA/HDMI/2xPCI/5xPCI-E / AC IN 220V / Built-in 400W power/Two-year warranty
IPC-615G2-Q370-P500 NO CPU/NO SODIMM/4*RS232/2*(RS232/485)/2×LAN/8×USB2.0 (Include 4xUSB3.0)/DVI/VGA/HDMI/2xPCI/5xPCI-E / AC IN 220V / Built-in 500W power/Two-year warranty
IPC-615G2-Q370-P600 NO CPU/NO SODIMM/4*RS232/2*(RS232/485)/2×LAN/8×USB2.0 (Include 4xUSB3.0)/DVI/VGA/HDMI/2xPCI/5xPCI-E / AC IN 220V / Built-in 600W power/Two-year warranty
IPC-615G2-Q370-P750 NO CPU/NO SODIMM/4*RS232/2*(RS232/485)/2×LAN/8×USB2.0 (Include 4xUSB3.0)/DVI/VGA/HDMI/2xPCI/5xPCI-E / AC IN 220V / Built-in 750W power/Two-year warranty
