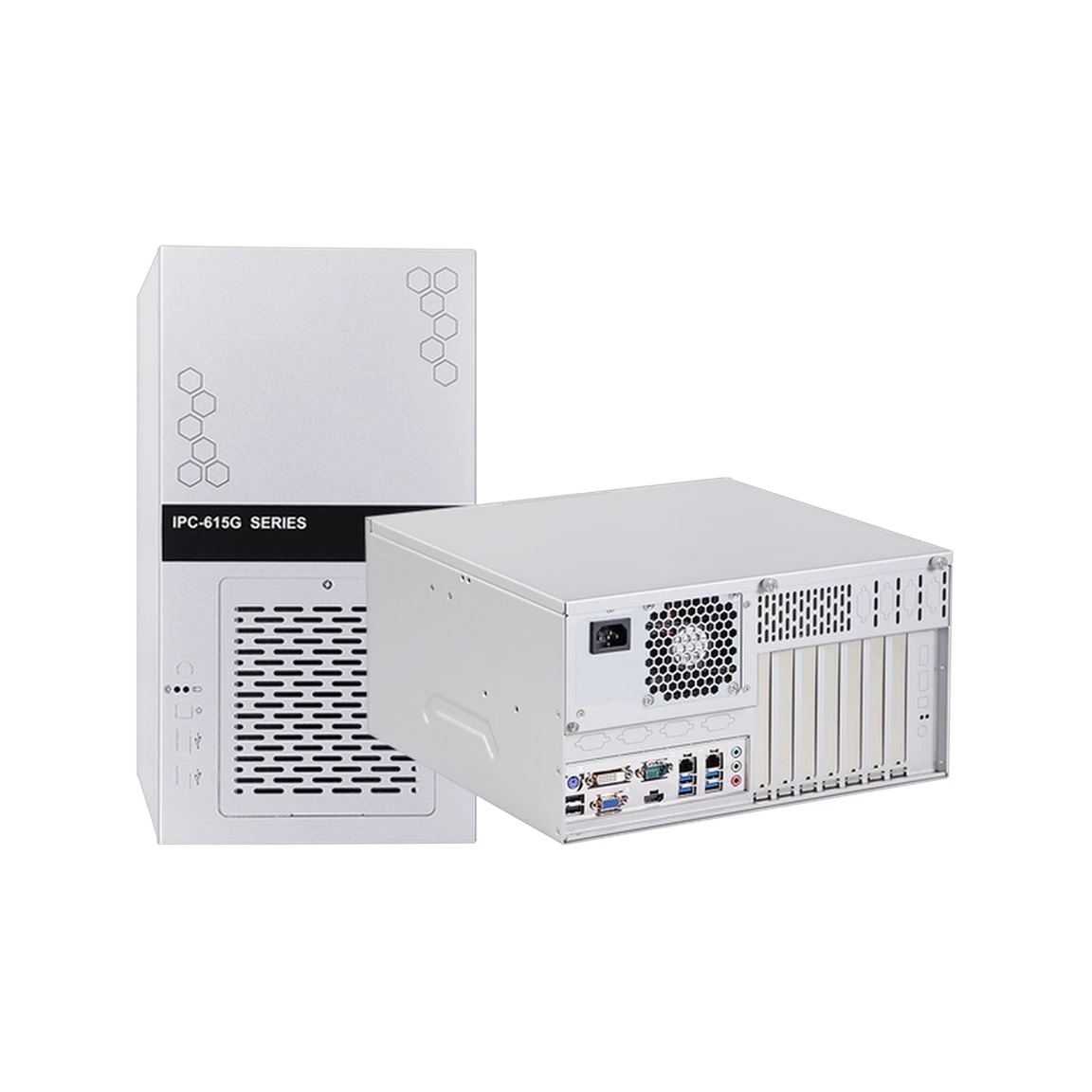

IPC615G2-W580 | Desktop Industrial PC

Supports Intel® 10/11th Generation Core / Pentium/ Celeron Desktop CPU, LGA1200 Support MAX CPU TDP: Deca-Core 125W

Features

  • Supports 10-11th Generation Intel® Core/Pentium/Celeron Desktop
  • CPU, LGA1200
  • Intel® W580 Chipset
  • 2×Intel GbE LAN controller
  • 10×USB3.0, 2×USB2.0
  • 6×COM(COM1&2 support RS232/422/485,COM3-6 support RS232)
  • 1 ×M.2 2242/2280 Key-M SSD supports SATA bus or Nvme x4 (only Gen11 support),4×SATA3.0
  • 4 x PCIe x4 slot + 1 x PCIe x16 slot +1 x PCIe x16 slot(X8signal)1 x 32bits PCI slot

Desktop Industrial PC

Processor
CPUIntel® 10/11th Generation Core / Pentium/ Celeron Desktop CPU LGA1200 Support MAX CPU TDP: Deca-Core 125W
ChipsetIntel® W580
Memory architectureDDR4-2133/2400/2666/2933/3200
Memory capacityup to 128GB
DIMM4× 288PIN DDR4 UDIMM

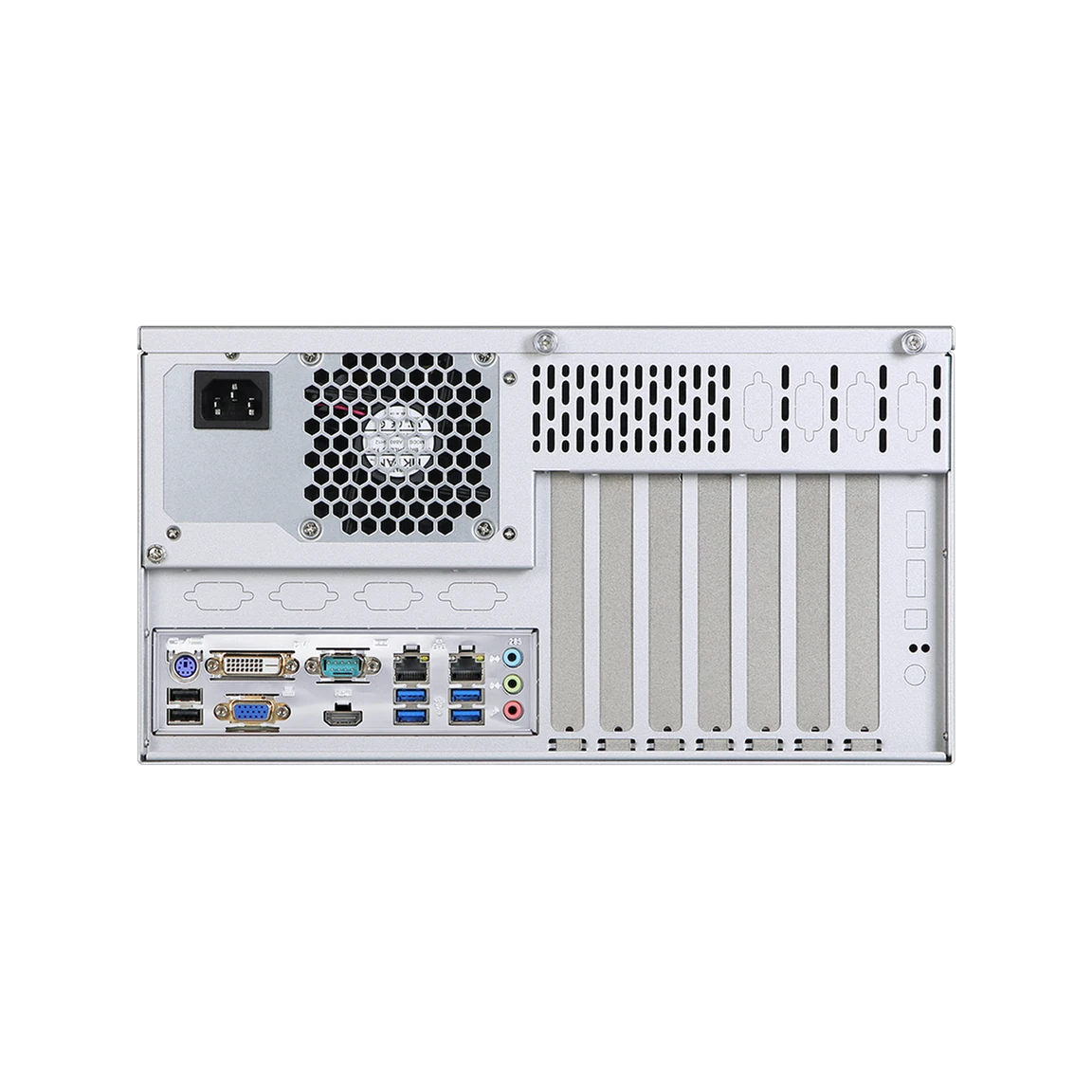

I/O Interface
LAN2×Intel GbE LAN controller
USB10×USB3.0 (TYPE-A Rear IO), 2×USB2.0 (TYPE-A Rear IO)
COM6 COM (COM1&2 support RS232/422/485, COM3-6 support RS232)
AudioOptional
LPT1 support SPP/EPP/ECP mode (Option)
PS21×PS2 Port (Keyboard & Mouse)
Display
DP2×Support 4096x2160@30Hz
HDMISupports max resolution up to 4096x2160@30Hz
Dual displaySupports three asynchronous displays
Physical
Dimensions370mm x 326.2mm x 187.2mm
Weight8.2KG
Box StructureHot dip galvanized sheet steel shell
Mounting
MountDesktop installation
Operating System
Microsoft WindowsWindows 10
LinuxUbuntu
Power
Power AdapterAC180~264V or AC 200~240V
Power DissipationDepending on the CPU (select 300W, 400W, 500W, 600W, 750W)
TypeATX
Environment
Work temperature-20 ~ 60° C (Using Wide Temperature Grade Solid State Disk) 0 ~ 45° C (Using normal temperature grade mechanical hard disk)
Storage Temperature-40 ~ 80°C
Relative Humidity5~95% (Non condensation)
VibrationSSD applied: 1.5 Grms IEC 60068-2-64 random 5 ~ 500 Hz 1 hr/axis
ShockSSD applied: 10 G IEC 60068-2-64 Half-sine wave 11ms duration
EMC
EMCCE/FCC Class B
Safety Certification
Safety CertificationCCC
Other
SSD1×M.2 2242/2280 Key-M SSD supports SATA bus or Nvme x4 (only Gen11 support), 4×SATA3.0
Expansion Slot
PCIe4×PCIe x4 slot + 1×PCIe x16 slot + 1×PCIe x16 slot (X8 signal)
PCI2×32bits PCI slot
Click the link below to download datasheets or drivers:

Datasheet Downloads
Driver Downloads

Product Type Description
IPC-615G2-W580-P300 NO CPU/NO SODIMM/4*RS232/ 2*(RS232/485/422)/2×LAN /12*USB2.0 (Include 10xUSB3.0)/DP*2/HDMI/ PCI/6PCI-E / AC IN 220V / Built-in 300W power / Two-year warranty
IPC-615G2-W580-P400 NO CPU/NO SODIMM/4*RS232/ 2*(RS232/485/422)/2×LAN /12*USB2.0 (Include 10xUSB3.0)/DP*2/HDMI/ PCI/6PCI-E / AC IN 220V / Built-in 400W power / Two-year warranty
IPC-615G2-W580-P500 NO CPU/NO SODIMM/4*RS232/ 2*(RS232/485/422)/2×LAN /12*USB2.0 (Include 10xUSB3.0)/DP*2/HDMI/ PCI/6PCI-E / AC IN 220V / Built-in 500W power / Two-year warranty
IPC-615G2-W580-P600 NO CPU/NO SODIMM/4*RS232/ 2*(RS232/485/422)/2×LAN /12*USB2.0 (Include 10xUSB3.0)/DP*2/HDMI/ PCI/6PCI-E / AC IN 220V / Built-in 600W power / Two-year warranty
IPC-615G2-W580-P750 NO CPU/NO SODIMM/4*RS232/ 2*(RS232/485/422)/2×LAN /12*USB2.0 (Include 10xUSB3.0)/DP*2/HDMI/ PCI/6PCI-E / AC IN 220V / Built-in 750W power / Two-year warranty
