Resistive Touch PC TPC6000-DXXX3 Series

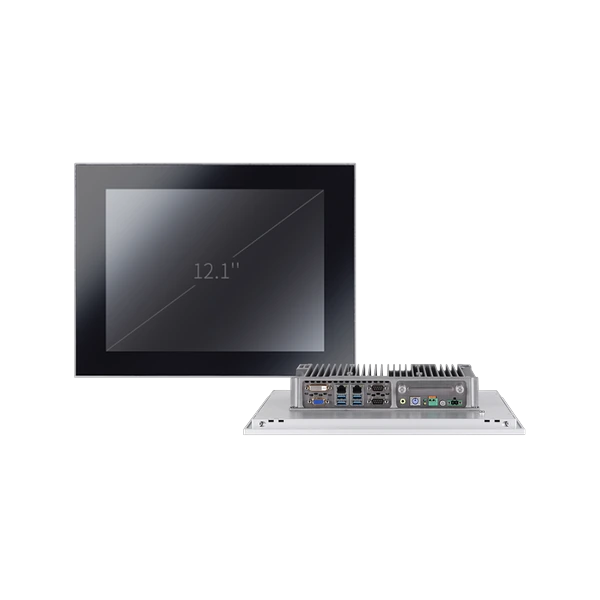

TPC6000-D123-LH
12.1″ XGA fanless industrial panel PC with resistive touch and bezel-free front design, powered by Intel J1900, J6412, N97, or N305 processors. Offers 2 GbE, 2 COM, 4 USB, DVI, wide voltage input (12–24V), and IP65-rated front panel.
TPC6000-D123W-L
12.3″ WSVGA fanless industrial Panel PC with bezel-free resistive touchscreen, powered by Intel J1900, J6412, N97, or N305 CPU. Features include dual LAN, 2 COM, 4 USB ports, and wide 12–24V DC input in a rugged, fanless, IP65-rated front panel design.

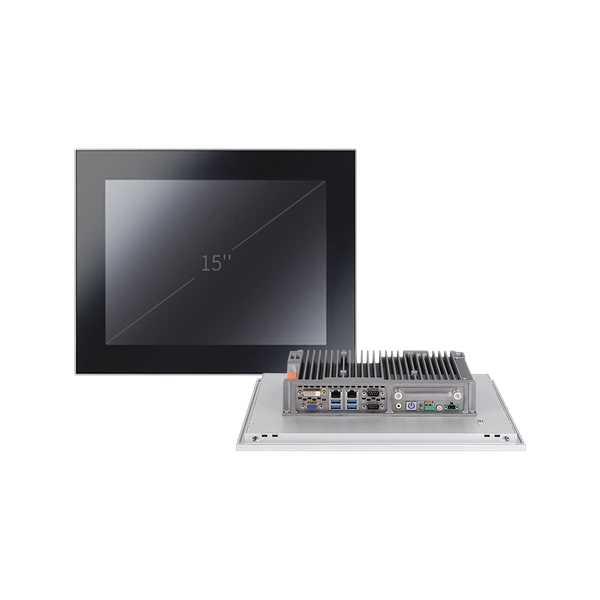

TPC6000-D153-L
15″ fanless industrial Panel PC with bezel-free resistive touchscreen, supporting Intel J1900, J6412, N97, or N305 CPU. Designed for harsh environments with 2 × COM, 2 × GbE LAN, 4 × USB ports, and rugged IP65-rated front panel. Ideal for HMI and control applications.
TPC6000-D1563-L
15.6” WXGA (1366×768) / FHD (1920×1080) fanless industrial panel PC with capacitive touchscreen, Intel Celeron/Core processors, dual LAN, 2 COM ports, 4 USB ports, 2.5” SATA & mSATA storage, and a rugged IP65-rated front panel
TPC6000-D1563-LH
15.6″ FHD bezel-free industrial fanless Panel PC with resistive touchscreen. Powered by Intel J1900, J6412, N97, or i3-N305 processor. Ideal for automation, control, and embedded HMI use cases with dual LAN, 2 × COM, and IP65 front protection.
TPC6000-D173-L
17” SXGA (1280×1024) fanless industrial panel PC with resistive touchscreen, Intel Celeron processors, dual LAN, 2 COM ports, 4 USB ports, 2.5” SATA & mSATA storage, and a rugged IP65-rated front panel
TPC6000-DXXX3 Resistive Touch Fanless Panel PC Series Features
The TPC6000-DXXX3 Series provides a resistive touch industrial Panel PC solution in sizes from 12.1" to 18.5". Powered by Intel® J1900, J6412, N97, or Core™ i3-N305 processors, these fanless PCs support DDR3L/DDR4 memory and integrate dual Intel® Gigabit LAN, up to 6 COM ports, and multiple USB ports. Expansion and storage are enabled via Mini-PCIe and mSATA/SSD. The wide 12–24V DC input ensures stable operation across industrial power conditions. IP65-rated front panels and resistive touchscreens provide glove-friendly, reliable input in harsh factory or outdoor environments.
Show More
Application Areas
These panel PCs are used in factory automation, SCADA operator panels, edge computing gateways, AGV/AMR systems, energy monitoring, logistics control terminals, and cleanroom or medical devices. Their rugged resistive touch design makes them ideal where glove-based operation, durability, and environmental resistance are critical.
| Model | Screen Size | Resolution | CPU Support | LAN | Serial / USB | Expansion & Storage | Mounting |
|---|---|---|---|---|---|---|---|
| TPC6000-D123 | 12.1" | 1024 × 768 (XGA) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | mSATA, Mini-PCIe | Panel / VESA |
| TPC6000-D123W | 12.3" | 1280 × 800 (WXGA) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | mSATA, Mini-PCIe | Panel / VESA |
| TPC6000-D123W-H | 12.3" | 1280 × 800 (WXGA) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | mSATA, Mini-PCIe | Panel / VESA |
| TPC6000-D153 | 15" | 1024 × 768 (XGA) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | mSATA, Mini-PCIe | Panel / VESA |
| TPC6000-D1563 | 15.6" | 1366 × 768 (HD) / 1920 × 1080 (FHD) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | mSATA, Mini-PCIe | Panel / VESA |
| TPC6000-D173 | 17" | 1280 × 1024 (SXGA) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | mSATA, Mini-PCIe | Panel / VESA |
| TPC6000-D1853 | 18.5" | 1366 × 768 (HD) | Intel(r) J1900 / J6412 / N97 / i3-N305 | 2× GbE | Up to 6× COM / 4× USB | mSATA, Mini-PCIe | Panel / VESA |
