Tower/Wallmount Industrial PCs IPC615G3-XXXX Series
IPC-615G3-C236
High-performance tower/wall-mount industrial PC based on the Intel® C236 chipset, supporting Intel® 6th to 9th Gen Core-i processors, dual GbE LAN, triple-display output, PCIe/PCI slots, M.2 and SATA storage, and AC input
IPC-615G3-H110
High-performance industrial PC based on the Intel® H110 chipset, supporting Intel® 6th to 9th Gen Core-i processors, dual GbE LAN, multiple PCIe/PCI slots, triple-display output, M.2/SATA storage, and AC power input
IPC-615G3-H420E
High-performance industrial PC based on the Intel® H420E chipset, supporting Intel® 10th and 11th Gen Core-i processors, dual LAN, triple display output, rich PCIe/PCI expansion, and AC power input
IPC-615G3-H610
High-performance industrial PC based on the Intel® H610 chipset, supporting Intel® 12th and 13th Gen Core-i processors, triple display, PCIe Gen4/Gen3 expansion, M.2/SATA storage, and AC power input
IPC-615G3-Q170
High-performance industrial PC based on Intel® Q170 chipset, supporting 6th to 9th Gen Core-i processors. Offers triple-display output, 5 PCIe slots, RAID-enabled SATA storage, and AC power input
IPC-615G3-Q470
Industrial PC powered by Intel® Q470 chipset, supporting 10th/11th Gen Core-i processors. Offers triple 4K display, PCIe/PCI expansion, M.2 SSD and SATA RAID, built for AI, vision, and automation
IPC-615G3-Q670
High-performance industrial PC built with Intel® Q670 chipset, supporting up to 14th Gen Core-i CPUs, DDR5 memory, PCIe Gen4, triple 4K display, M.2 and RAID storage, and AC power input. Ideal for AI vision and factory automation

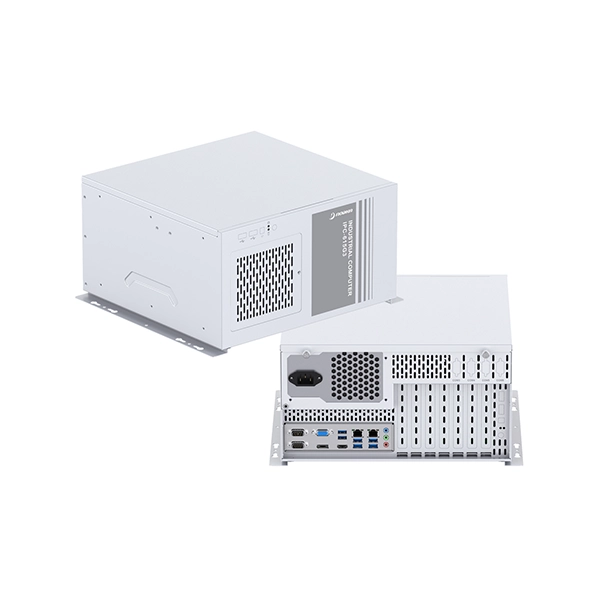

IPC-615G3 Series Tower/Wall-mount Industrial PC Features
The IPC-615G3 Series supports a wide range of Intel® processors from 6th to 14th Gen Core-i/Celeron/Pentium CPUs, combined with chipsets including H110, Q170, Q470, H420E, H610, and Q670. Memory configurations scale from DDR4 to DDR5 SO-DIMM, up to 64GB. Each system offers multiple PCIe Gen3/Gen4 and legacy PCI slots, triple independent display (VGA, HDMI, DP) with support for 4K output, and flexible storage options including SATA RAID and M.2 SSD. I/O configurations feature dual GbE LAN, multiple USB3.0/3.2 and RS232/RS485 COM ports, as well as onboard watchdog and audio. Housed in a rugged steel tower/wall-mount chassis with AC 100–240V input, this series is optimized for high-load GPU, frame grabber, and control card integration.
Show More
Application Areas
The IPC-615G3 Series is ideal for a wide variety of industrial applications including machine vision inspection, industrial automation, AI edge inference, robotic and AMR control, CNC/laser cutting systems, high-speed data acquisition, and GPU-accelerated computing. Its expandability and power efficiency make it suitable for control cabinets, vision stations, and intelligent computing platforms in smart factories.
| Model | Chipset | CPU Support | Memory | PCIe / PCI Slots | LAN | Display | Storage |
|---|---|---|---|---|---|---|---|
| IPC-615G3-C236 | Intel C236 | 6th-9th Gen | DDR4 up to 64GB | 5 PCIe, 2 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA, M.2 |
| IPC-615G3-H110 | Intel H110 | 6th-9th Gen | DDR4 up to 64GB | 4 PCIe, 3 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA |
| IPC-615G3-H420E | Intel H420E | 10th-11th Gen | DDR4 up to 64GB | 4 PCIe, 3 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA |
| IPC-615G3-H610 | Intel H610 | 12th-13th Gen | DDR4 up to 64GB | 3 PCIe, 3 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA, M.2 |
| IPC-615G3-Q170 | Intel Q170 | 6th-9th Gen | DDR4 up to 64GB | 5 PCIe, 2 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA (RAID), M.2 |
| IPC-615G3-Q470 | Intel Q470 | 10th-11th Gen | DDR4 up to 64GB | 5 PCIe, 2 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA (RAID), M.2 |
| IPC-615G3-Q670 | Intel Q670 | 12th-14th Gen | DDR5 up to 64GB | 5 PCIe, 2 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA (RAID), M.2 |
