IP65 Stainless Arm-Mount Panel PC WP2151-H-C Series
WP2151-H-C
21.5″ IP65 stainless steel Panel PC with Intel® N97 or Core™ i5-1235U, built-in NFC, Wi-Fi, dual GbE, 2× COM, 2× USB 2.0, M.2 SATA SSD, DC 12–24 V input, and an integrated mounting arm adapter with internal cable routing for hygienic environments.
IP65 Stainless Arm-Mount Waterproof Panel PC

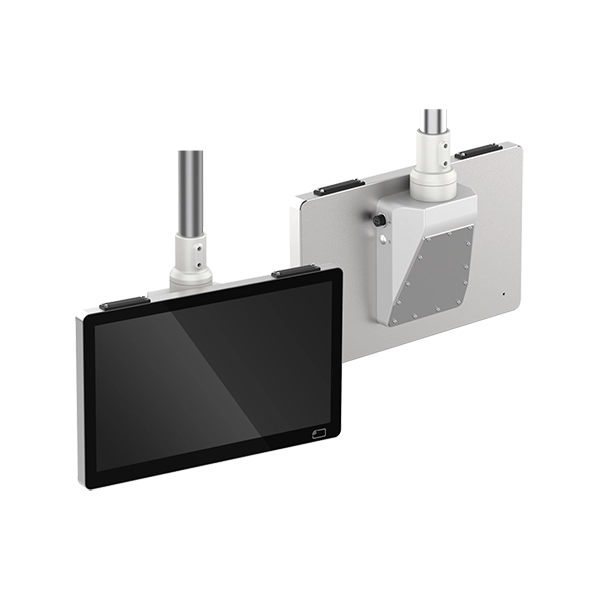

The WP2151-H-C Series is an IP65-rated stainless steel fanless Panel PC designed for hygienic and washdown industrial environments. It features a fully enclosed stainless steel housing with a smooth surface for easy cleaning and an integrated mounting arm adapter, allowing direct installation on a support tube from above. The connecting cables are routed internally through the mounting arm, ensuring a clean, waterproof cable layout.
Available with a 21.5" FHD multi-touch display, the series supports Intel Processor N97 or Intel Core i5-1235U processors and up to 32GB DDR4-3200 memory. Each unit integrates dual GbE LAN, 2×USB, 2×COM (RS-232/RS-485), Wi-Fi, and built-in NFC for operator identification and access management. Its M.2 SSD slot offers flexible storage expansion. With DC 12–24V power input and full IP65 protection, the WP2151-H-C Series delivers reliable performance and durability in sanitary and industrial conditions.
Show More
Application Areas
The WP2151-H-C Series is ideal for food & beverage production, pharmaceutical manufacturing, chemical process control, marine systems, and industrial automation. The built-in NFC module enables secure, contactless operator authentication, while the arm-mount installation provides ergonomic usability and cable protection. This makes it suitable for MES terminals, traceability workstations, and operator panels in environments demanding both hygiene and flexibility.
| Model | Display Size | CPU Support | LAN Ports | Serial Ports | Expansion & Storage | Mounting Type | Protection / Housing |
|---|---|---|---|---|---|---|---|
| WP2151-H-C-N97 | 21.5" | Intel; Processor N97 | 2× GbE (Intel i210-AT) | 2× RS-232 (RS-485 optional) | 1× M.2 2242 SSD (SATA 3.0); Wi-Fi & NFC built-in | Integrated mounting arm adapter | IP65 stainless steel enclosure |
| WP2151-H-C-1235U | 21.5" | Intel; Core; i5-1235U | 2× GbE (Intel i210-AT) | 2× RS-232 (RS-485 optional) | 1× M.2 2280 SSD (SATA 3.0); Wi-Fi & NFC built-in | Integrated mounting arm adapter | IP65 stainless steel enclosure |
