Automation PC NP-6122/6132 Series
NP-6122 / NP-6132
Control cabinet industrial automation PC supports Intel Core processors (Max. 65W TDP), 2 x LAN, 2 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6122-8PoE / NP-6132-8PoE
Machine Vision automation PC supports Intel Core processors (Max. 65W TDP), 8 x PoE LAN, 2 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6122-CAN2 / NP-6132-CAN2
Control cabinet industrial automation PC supports Intel Core processors (Max. 65W TDP), 2 x CAN Bus, 2 x LAN, 2 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6122-H1 / NP-6132-H1
Machine Vision Automation PC supports Intel Core processors (Max. 65W TDP), 4 x PoE LAN, 8DI/8DO, 4 x PWM Light Control, 2 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6122-H1B / NP-6132-H1B
Machine Vision automation PC supports Intel Core processors (Max. 65W TDP), 4 x PoE LAN, 16DI/16DO, 2 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations

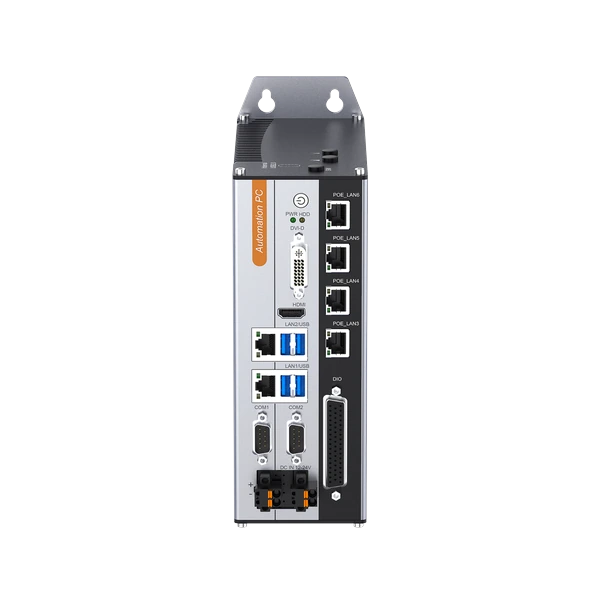

NP-6122-H1BP / NP-6132-H1BP
High-performance Machine Vision Automation PC with Intel 6th–11th Gen CPU support, active cooling, 16DI/16DO, 6 LAN (including 4 PoE), 2 COM, HDMI/DVI display, and flexible storage and mounting options
NP-6122-H7
Machine Vision Automation PC supports Intel Core processors (Max. 65W TDP), 8DI/8DO, 4 x PWM Light Control, 2 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6122-JH2 / NP-6132-JH2
Machine Vision Automation PC supports Intel Core processors (Max. 65W TDP), 2 x PoE LAN, 8DI/8DO, 4 x PWM Light Control, 2 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6122-JH2B / NP-6132-JH2B
Machine Vision Automation PC supports Intel Core processors (Max. 65W TDP), 2 x PoE LAN, 16DI/16DO, 2 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6122-JH3 / NP-6132-JH3
Control cabinet industrial automation PC supports Intel Core processors (Max. 65W TDP), 2 x CAN Bus (Optional), 8DI/8DO, 4 x RS232/RS485, mSATA & M.2 storage, and DC12~24V input. Designed for DIN Rail and wall-mounted installations
NP-6122 / NP-6132 Series Automation PC Features
The NP-6122/6132 Automation PC Series provides fanless, compact computing for control cabinet integration. The NP-6122 supports Intel® Core™, Pentium®, and Celeron® processors up to 8th Gen, while the NP-6132 supports 10th–11th Gen processors. Both series feature 12–24V DC input, wide operating temperature support, and a front-access I/O layout for streamlined cabinet wiring. Models are available with 2–8 GbE LAN, PoE options, RS232/RS485 serial ports, DI/DO with relay outputs, CAN bus, and PWM light control. Storage and expansion include mSATA, SATA, miniPCIe, and M.2 slots.
Show More
Application Areas
These Automation PCs are widely deployed in control cabinet environments. Multi-LAN variants (L2, L4) support motion control and robotics when paired with CodeSys or industrial Ethernet software. Machine vision variants (H1, H1B, H1BP, H7, MVS-style) integrate PoE ports, DI/DO, and PWM light control for multi-camera inspection and robotic vision. CAN bus models (CAN2, JH3 opt., JH5 with module) serve AGV/AMR navigation and fleet management. High-density DI/DO and relay models (JH4, JH5, 16I16O style) handle discrete automation and process control. Standard and HDD-based models are also used as gateways and industrial IoT edge computing devices, customizable for OEM branding.
| Model | CPU Support | LAN / PoE | Serial | DIO / Light / CAN | Expansion & Storage | Mounting |
|---|---|---|---|---|---|---|
| NP-6122 | Intel(r) CoreTM 6th-8th Gen (LGA1151) | 2× GbE | 2× RS232/RS485 | -- | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6122-8PoE | Intel(r) CoreTM 6th-8th Gen | 8× PoE + 2× GbE | 2× RS232/RS485 | -- | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6122-CAN2 | Intel(r) CoreTM 6th-8th Gen | 2× GbE | 2× RS232/RS485 | 2× CAN 2.0 A/B | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6122-H1 | Intel(r) CoreTM 6th-8th Gen | 2× GbE + 4× PoE | 2× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6122-H1B | Intel(r) CoreTM 6th-8th Gen | 2× GbE + 4× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6122-H1BP | Intel(r) CoreTM 6th-8th Gen | 2× GbE + 4× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6122-H7 | Intel(r) CoreTM 6th-8th Gen | 2× GbE | 2× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light + Triggers | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6122-JH2 | Intel(r) CoreTM 6th-8th Gen | 2× GbE + 2× PoE | 2× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6122-JH2B | Intel(r) CoreTM 6th-8th Gen | 2× GbE + 2× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6122-JH3 | Intel(r) CoreTM 6th-8th Gen | 2× GbE | 4× COM | 8× DI, 8× DO; 2× CAN (opt.) | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6122-JH4 | Intel(r) CoreTM 6th-8th Gen | 2× GbE | 2× RS232/RS485 + 8× RS485 | 8× DI; 4× Relay DO | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6122-JH5 | Intel(r) CoreTM 6th-8th Gen | 3× GbE | 2× RS232/RS485 + 8× RS485 | 16× DI; 8× DO + 8× Relay DO | 1× mSATA, 1× M.2 SATA; 2× miniPCIe + 1× M.2 2230 Key-E (opt. CAN) | DIN-rail / Wall-mount |
| NP-6122-L2 | Intel(r) CoreTM 6th-8th Gen | 4× GbE | 2× RS232/RS485 | -- | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| Model | CPU Support | LAN / PoE | Serial | DIO / Light / CAN | Expansion & Storage | Mounting |
|---|---|---|---|---|---|---|
| NP-6132 | Intel(r) CoreTM 10th-11th Gen (LGA1200) | 2× GbE | 2× RS232/RS485 | -- | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6132-8PoE | Intel(r) CoreTM 10th-11th Gen | 8× PoE + 2× GbE | 2× RS232/RS485 | -- | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6132-CAN2 | Intel(r) CoreTM 10th-11th Gen | 2× GbE | 2× RS232/RS485 | 2× CAN 2.0 A/B | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6132-H1 | Intel(r) CoreTM 10th-11th Gen | 2× GbE + 4× PoE | 2× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6132-H1B | Intel(r) CoreTM 10th-11th Gen | 2× GbE + 4× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6132-H1BP | Intel(r) CoreTM 10th-11th Gen | 2× GbE + 4× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6132-H7 | Intel(r) CoreTM 10th-11th Gen | 2× GbE | 2× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light + Triggers | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6132-JH2 | Intel(r) CoreTM 10th-11th Gen | 2× GbE + 2× PoE | 2× RS232/RS485 | 8× DI, 8× DO; 4× PWM Light | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6132-JH2B | Intel(r) CoreTM 10th-11th Gen | 2× GbE + 2× PoE | 2× RS232/RS485 | 16× DI, 16× DO | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6132-JH3 | Intel(r) CoreTM 10th-11th Gen | 2× GbE | 4× COM | 8× DI, 8× DO; 2× CAN (opt.) | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
| NP-6132-JH5 | Intel(r) CoreTM 10th-11th Gen | 3× GbE | 2× RS232/RS485 + 8× RS485 | 16× DI; 8× DO + 8× Relay DO (NO) | 1× mSATA, 1× M.2 SATA; 2× miniPCIe + 1× M.2 2230 Key-E (opt. CAN) | DIN-rail / Wall-mount |
| NP-6132-L2 | Intel(r) CoreTM 10th-11th Gen | 4× GbE | 2× RS232/RS485 | -- | 1× mSATA, 1× M.2 SATA; 1× miniPCIe | DIN-rail / Wall-mount |
