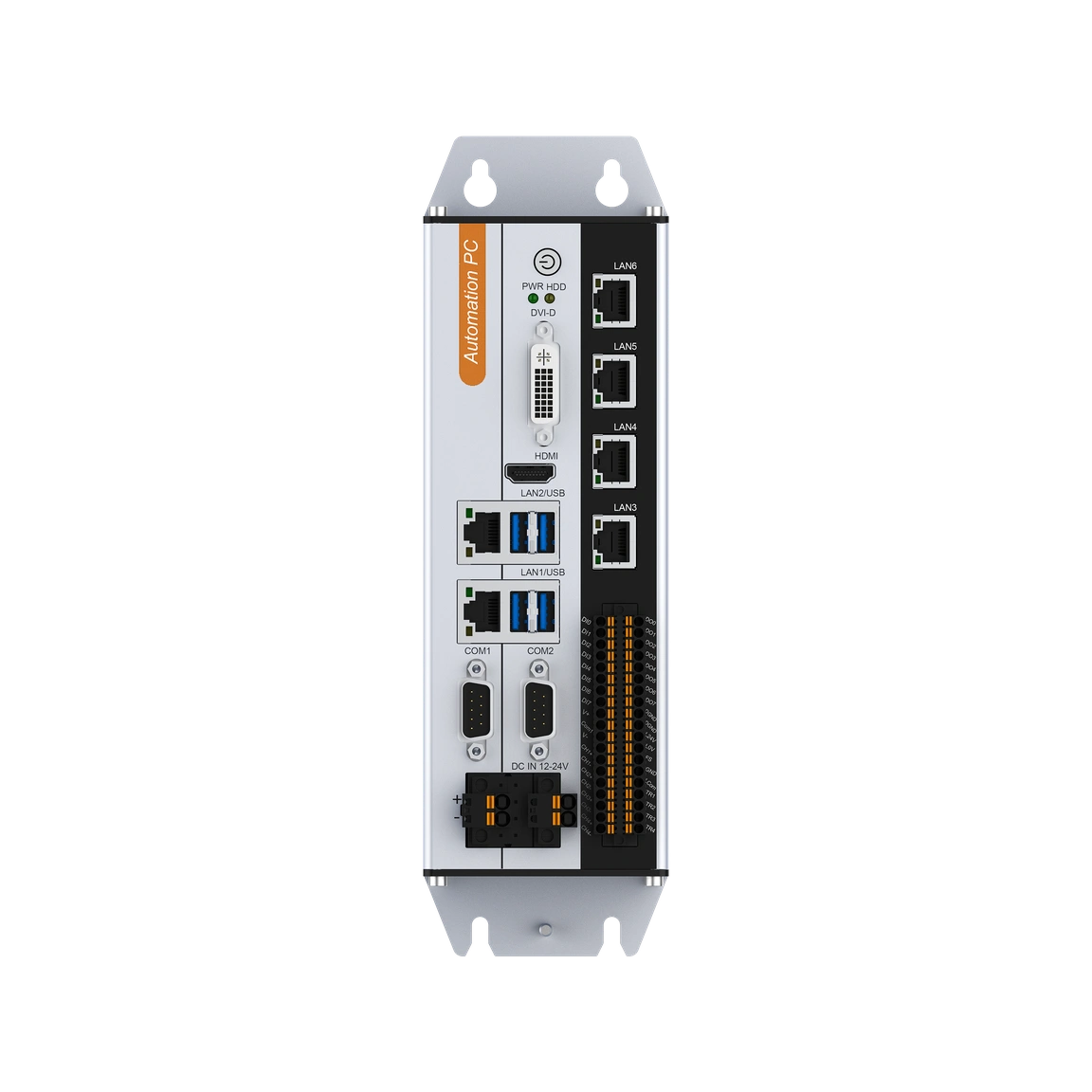

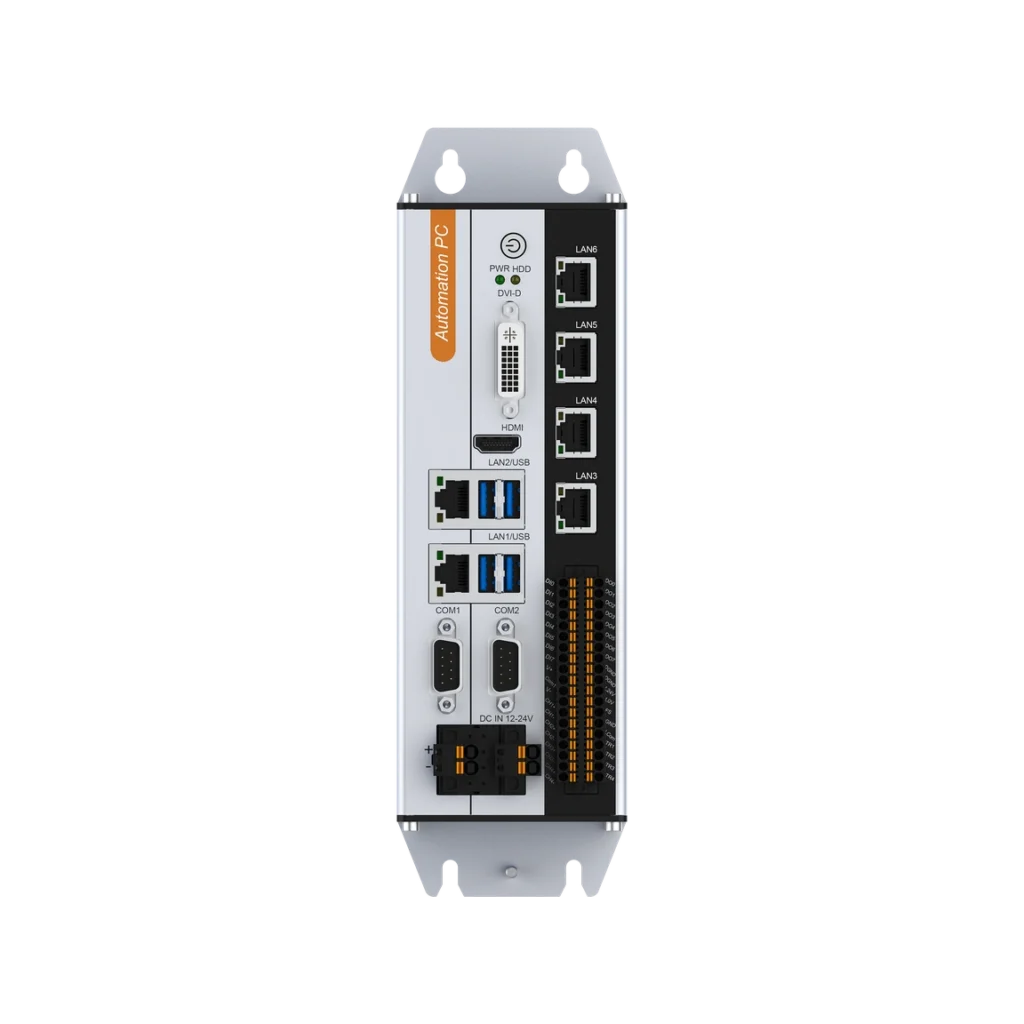

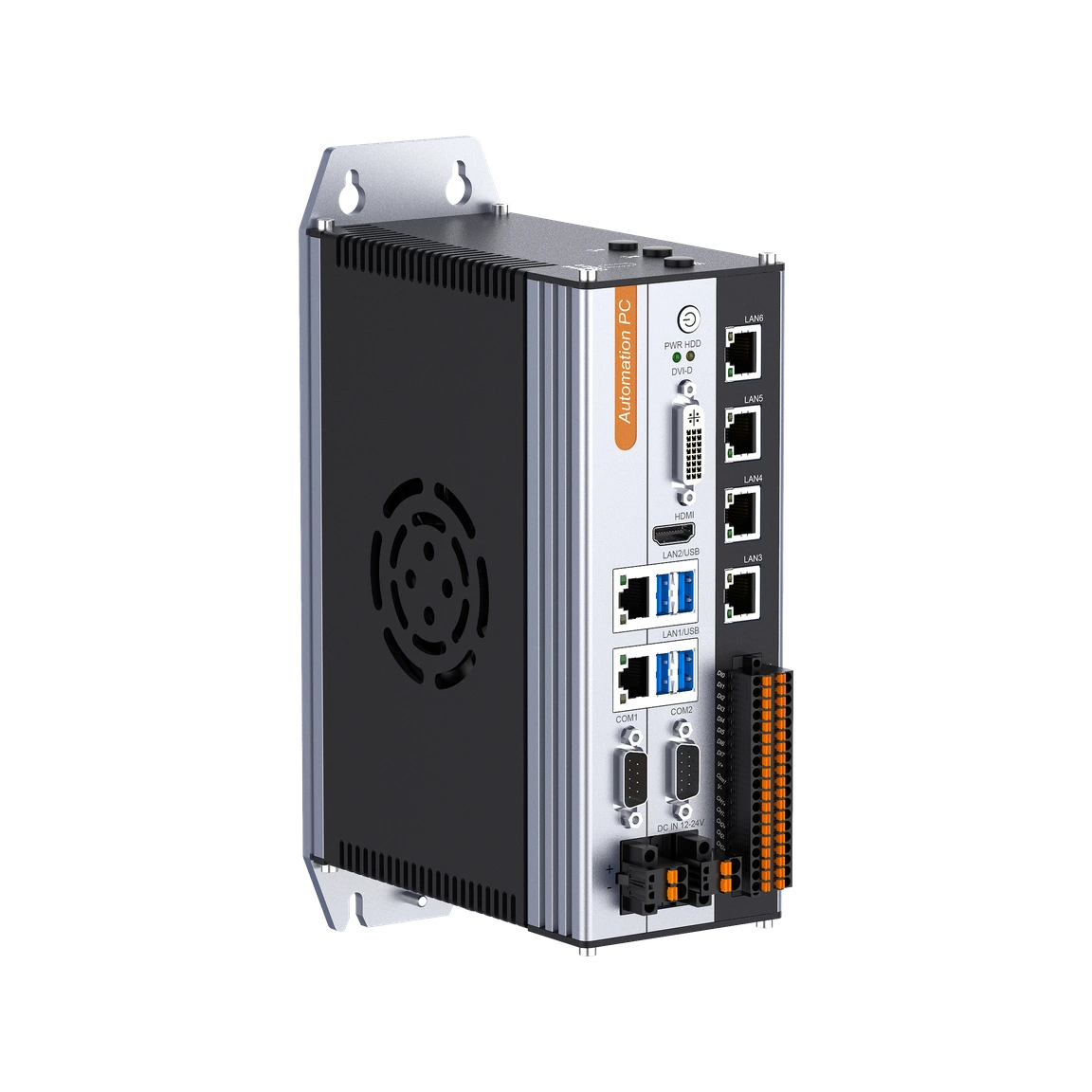

NP-6122/32-H1B Machine Vision Automation PC PoE & 16DI/16DO

NP-61x2-H1B | 4-PoE Automation PC with 16DI/16DO

Intel® Core™ NP-6122 / NP-6132 / NP-6142 automation PC configurations for PoE cameras plus high-density digital I/O; 2 GbE, 4 PoE, 16DI, 16DO; DC 12–24 V.

Features

Intel® Core™ 6th–14th Gen processor platforms across NP-6122, NP-6132 and NP-6142, up to 65 W CPU TDP
Dual DDR4-3200 SO-DIMM slots (up to 32 GB) on NP-6122/NP-6132; Dual DDR5-4800 SO-DIMM slots (up to 64 GB) on NP-6142
2 × Intel® i210-AT GbE LAN ports; 4 × IEEE 802.3af PoE GbE ports, up to 15 W per port
4 × USB 3.0; onboard USB 2.0 Type-A for USB dongle
2 × selectable RS-232/RS-485 interfaces, max. 115.2 kbit/s
16 isolated digital inputs and 16 isolated digital outputs, max. 0.5 A/DO channel
mSATA SATA 3.0 and M.2 2280 Key-B SATA 3.0 storage interfaces
Full-size mini-PCIe expansion slot with SIM holder
DVI-D up to 1920 × 1080 at 60 Hz and HDMI up to 3840 × 2160 at 30 Hz
DC 12–24 V ±10% power input, maximum 180 W power consumption
Embedded-fan aluminum-magnesium chassis, 200 × 150.5 × 74.6 mm; DIN-rail/wall mount
Operating temperature −20 °C to +60 °C with airflow and SSD

Machine Vision Automation PC Product Information

Technical Specifications — NP-61x2-H1B
Model Name	NP-6122-H1B	NP-6132-H1B	NP-6142-H1B
System
CPU	Intel® Core™ 6th/7th/8th Gen i7/i5/i3/Pentium/Celeron, LGA1151	Intel® Core™ 10th/11th Gen i7/i5/i3, LGA1200	Intel® Core™ 12th/13th/14th Gen i7/i5/i3, LGA1700
CPU TDP	65 W
BIOS	AMI UEFI BIOS
Memory	2 × SO-DIMM DDR4-3200 MT/s, up to 32 GB		2 × SO-DIMM DDR5-4800 MT/s, up to 64 GB
Storage	1 × mSATA slot, SATA 3.0; 1 × M.2 2280 Key-B slot, SATA 3.0
USB	4 × USB 3.0; 1 × onboard USB 2.0 Type-A for dongle
COM	2 × selectable RS-232/RS-485 (COM1–COM2), max. 115.2 kbit/s
Ethernet	2 × Intel® i210-AT GbE LAN controllers
PoE LAN	4 × Intel® GbE PoE LAN; IEEE 802.3af, up to 15 W per channel, Alternative A (pairs 1/2 and 3/4)
Remote switch	1 × SW
Digital inputs (DI)	16 × isolated DI, NPN/PNP
Digital outputs (DO)	16 × isolated DO, NPN; max. 0.5 A per channel
DVI-D	Up to 1920 × 1080 at 60 Hz
HDMI	Up to 3840 × 2160 at 30 Hz
Expansion	1 × full-size mini-PCIe slot with SIM card holder
Watchdog timer	1–255 programmable levels
TPM	fTPM
OS
Microsoft Windows	Windows 10; Windows 11
Linux	Ubuntu; Debian; CentOS
Power
Voltage input	DC 12–24 V ±10%; overcurrent, overvoltage and reverse-polarity protection
Power consumption	Max. 180 W
Chassis
Construction / cooling	Aluminum-magnesium alloy enclosure with embedded fan-assisted cooling; wall or DIN-rail mounting
Dimensions (L × W × H)	200 × 150.5 × 74.6 mm
Net weight	2.4 kg
Environment
Operating temperature	−20 °C to +60 °C (−4 °F to +140 °F), with airflow and SSD
Storage temperature	−40 °C to +80 °C (−40 °F to +176 °F)
Relative humidity	95% at 40 °C, non-condensing
Operating vibration	5–500 Hz, 3 Grms, SSD and wall-mounted; IEC 60068-2-64
Operating shock	30 G peak acceleration, 11 ms, SSD and wall-mounted; IEC 60068-2-27
EMC	CE EMC: EN 55032, EN 55035, EN IEC 61000-6-2, EN IEC 61000-6-4; FCC Class A
Safety	EN IEC 62368-1

Click the links below to search for datasheets or drivers:

NP-61x2-H1B Series — Datasheet NP-6122-H1B — Drivers NP-6132-H1B — Drivers NP-6142-H1B — Drivers

DIO SDK and API Download

Ordering Information — NP-61x2-H1B
Part No.	Model	Description (unconfigured/base unit)
B73.61220.04.0002	NP-6122-H1B	CPU: NULL; RAM: NULL; mSATA: NULL; M.2: NULL; 2 × selectable RS-232/RS-485; 2 × GbE LAN; 4 × PoE LAN; 4 × USB 3.0; 16 × isolated DI; 16 × isolated DO; HDMI/DVI-D; DC 12–24 V input
B73.61320.04.0001	NP-6132-H1B	CPU: NULL; RAM: NULL; mSATA: NULL; M.2: NULL; 2 × selectable RS-232/RS-485; 2 × GbE LAN; 4 × PoE LAN; 4 × USB 3.0; 16 × isolated DI; 16 × isolated DO; HDMI/DVI-D; DC 12–24 V input
B73.61420.0R.0001	NP-6142-H1B	CPU: NULL; RAM: NULL; mSATA: NULL; M.2: NULL; 2 × selectable RS-232/RS-485; 2 × GbE LAN; 4 × PoE LAN; 4 × USB 3.0; 16 × isolated DI; 16 × isolated DO; HDMI/DVI-D; DC 12–24 V input

Options — NP-61x2-H1B
Item	NP-6122-H1B	NP-6132-H1B	NP-6142-H1B
CPU i3	i3-6100, i3-6100T, i3-7100, i3-7100T, i3-8100, i3-8100T, i3-9100, i3-9100T	i3-10100, i3-10100T	i3-12100, i3-12100T, i3-13100, i3-13100T, i3-14100, i3-14100T
CPU i5	i5-6500, i5-6500T, i5-7500, i5-7500T, i5-8500, i5-8500T, i5-9500	i5-10500, i5-10500T, i5-11500, i5-11500T	i5-12500, i5-12500T, i5-13500, i5-13500T, i5-14500, i5-14500T
CPU i7	i7-6700, i7-6700T, i7-7700, i7-7700T, i7-8700, i7-8700T, i7-9700, i7-9700T	i7-10700, i7-10700T, i7-11700, i7-11700T	i7-12700, i7-12700T, i7-13700, i7-13700T, i7-14700, i7-14700T
CPU i9	i9-9900, i9-9900T	i9-10900, i9-10900T, i9-11900, i9-11900T	i9-12900, i9-12900T, i9-13900, i9-13900T, i9-14900, i9-14900T
CPU Other	G3900, G4400	—
Memory	DDR4-3200: 4, 8 or 16 GB		DDR5-4800: 8, 16 or 32 GB
mSATA SSD	64 GB, 128 GB, 256 GB, 512 GB, 1 TB
M.2 SSD	128 GB, 256 GB, 512 GB, 1 TB, 2 TB
Wi-Fi set (mini-PCIe)	AX210 / 7260 series with cylindrical antenna
3G/4G module (mini-PCIe)	EC20, EG25, EC25
Mount option	DIN-rail

Parts Information — NP-61x2-H1B
Name	Part No.	Specification
2-pin power supply terminal	JF7.000037.00.D03	5.08 mm, 1 × 2-pin wiring terminal
38-pin I/O terminal	JF7.000027.00.D03	3.5 mm, 2 × 19-pin wiring terminal
DIN-rail bracket	C78.570001.00.NDJ	DIN-rail bracket, IEC 60715, 35 mm wide, 1 mm thick
Wall-mount bracket	L21.000225.10.NKC	Hanging board
Intel AX210 Wi-Fi set	F06.000014.00.NDJ	mini-PCIe Wi-Fi 6, external 2.4/5 GHz rubber antenna (single)
Intel 7260AN Wi-Fi set	F06.000087.00.NDJ	mini-PCIe Wi-Fi 5, external 2.4/5 GHz rubber antenna (single)
Intel 7260AN Wi-Fi set	F06.000089.00.NDJ	mini-PCIe Wi-Fi 5, external 2.4/5 GHz magnetic-mount antenna, 3 m cable
EC20 4G module	F06.000031.00.NDJ	mini-PCIe, China 7-mode network, external rubber antenna (single)
EC20 4G module	F06.000034.00.NDJ	mini-PCIe, China 7-mode network, external magnetic-mount antenna, 3 m cable
