Industrial 3.5inch SBC NK-6XXX Series
NK-6120
The NK-6120 is a 3.5″ industrial-grade single board computer (SBC) powered by Intel Celeron J1900 processor. Designed for embedded and industrial applications, it features wide-range DC input, multiple COM and USB interfaces, and support for dual display outputs. The board is ideal for use in box PCs, panel PCs, gateways, and smart automation controllers
NK-6121
The NK-6121 is a 3.5″ industrial-grade single board computer (SBC) based on Intel Celeron J1900. It features multi-display support (HDMI, VGA, LVDS, eDP), dual GbE LAN, rich I/O including 6 COM and 6 USB, and offers wide 12–24V DC input. Designed for industrial PCs, panel PCs, and embedded applications
NK-6170
The NK-6170 is a compact, high-performance 3.5″ industrial single board computer (SBC) powered by Intel Celeron® J6412 processor. Designed for next-generation industrial PC and panel PC systems, it features quad display output, dual M.2 expansion, wide voltage DC input, and a wide range of I/O ports for embedded automation and control applications
NK-6171
The NK-6171 is a high-performance 3.5″ industrial single board computer (SBC) built on Intel® Celeron J6412 architecture. With advanced display support, rich I/O, and flexible expansion via dual M.2 and Mini PCIe, it’s ideal for embedded applications such as industrial PCs, panel PCs, and edge computing systems
NK-6172
The NK-6172 is a high-performance 3.5″ industrial SBC powered by Intel Celeron® J6412 processor. Designed for rugged industrial environments, it offers quad LAN ports, dual display support, rich COM and USB interfaces, and reliable 12~24V DC input. Ideal for industrial edge computing, HMI, and gateway applications
NK-6180
The NK-6180 is a next-generation 3.5″ industrial single board computer (SBC) built on Intel Alder Lake-N processors. Featuring support for DDR5 memory, PCIe 4.0 NVMe storage, high-speed USB 3.2 Gen2, and 4K-capable display outputs, this board is ideal for performance-demanding embedded systems, smart automation, and compact industrial PCs
NK-6183
The NK-6183 is a high-performance 3.5″ industrial single board computer powered by Intel N97 or Intel Cor i3-N305 processors. It offers next-gen processing with DDR5 support, M.2 SATA/NVMe storage, dual LAN, and triple display output. Ideal for advanced embedded computing, automation, and edge platforms

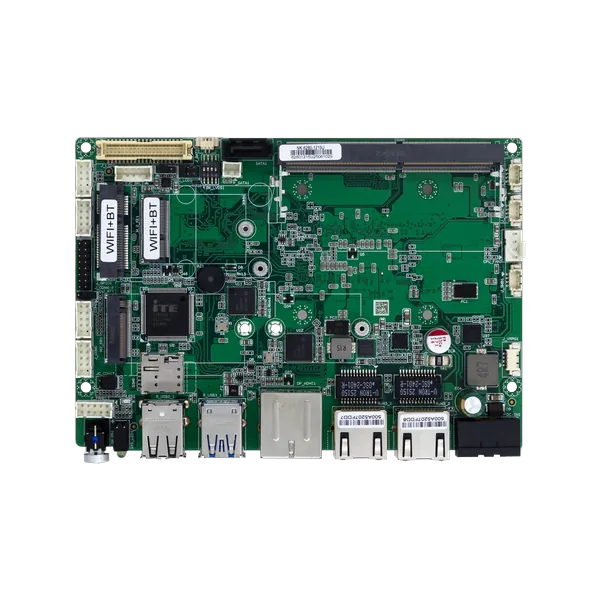

NK-6280
3.5″ embedded industrial motherboards with Intel® Core™ i3/i5/i7 U-series processors, dual Intel® GbE, 2 x COM, 4 x TTL, triple display, SATA + M.2 storage, Mini-PCIe + M.2 Key E expansion, and 9~36V DC input.
Industrial 3.5 inch SBC NK-6xxx Series Features
The NK-6xxx series is a family of embedded industrial motherboards in the 146 x 102 mm 3.5 inch SBC form factor, covering Intel® Celeron® J1900, Intel® Celeron® J6412, Intel® Core™ N97, Intel® Core™ i3-N305, and Intel® Core™ i3/i5/i7 U-series platforms. Depending on model, the series supports up to 32GB DDR3L, DDR4, or DDR5 memory, dual or quad GbE, 1 x RS232/485, 1 x RS232, 4 x TTL, USB 3.0 or USB 3.2 plus USB 2.0, and display combinations including VGA, HDMI, DP, LVDS, and eDP with dual-display or tri-display support. Storage and expansion options vary by model and may include SATA, M.2-2242, M.2-2280, M.2-3042, Mini-PCIe, M.2 Key E, and wireless-ready Nano-SIM support for Wi-Fi, 4G, or 5G integration. The series is designed for embedded system integration with watchdog support, GPIO, internal headers, operating temperature support as high as -20°C to 65°C on selected models, and wide-range power input of 12~24V DC or 9~36V DC.
Show More
Application Areas
The NK-6xxx series is suitable for embedded control, OEM machine design, compact controller platforms, industrial gateway systems, and custom industrial computing platforms where a small embedded motherboard with serial I/O, LAN connectivity, and flexible expansion is required. Models with dual-display or tri-display support are well suited for embedded HMI back ends, digital signage controllers, and edge devices with local display output, while quad-LAN and wireless-ready configurations fit industrial IoT gateways, machine networking nodes, robotics subsystems, AGV or AMR communication platforms, and field data acquisition systems. With compact dimensions, onboard COM and TTL interfaces, M.2 and Mini-PCIe expansion, and wide DC input, the series also fits kiosks, self-service terminals, transportation systems, and other space-constrained industrial embedded designs.
| Model | CPU / Platform | Memory | LAN | Display Interfaces | Storage / Expansion | Power Input |
|---|---|---|---|---|---|---|
| NK-6120 | Intel® Celeron® J1900 | 1 x DDR3L SO-DIMM, up to 8GB | 2 x GbE | VGA, HDMI, LVDS/eDP | M.2-2242 (SATA2.0), Mini-PCIe with Nano-SIM | 12~24V DC |
| NK-6121 | Intel® Celeron® J1900 | 1 x DDR3L SO-DIMM, up to 8GB | 2 x GbE | VGA, HDMI, LVDS/eDP | M.2-2242 (SATA2.0), Mini-PCIe with Nano-SIM | 12~24V DC |
| NK-6170 | Intel® Celeron® J6412 | 1 x DDR4 SO-DIMM, up to 32GB | 2 x GbE | DP, HDMI, LVDS/eDP tri-display | M.2-2242 / 3042, M.2-2230, Mini-PCIe, dual Nano-SIM | 12~24V DC |
| NK-6171 | Intel® Celeron® J6412 | 1 x DDR4 SO-DIMM, up to 32GB | 2 x GbE | DP, HDMI, LVDS/eDP tri-display | M.2-2242, M.2-2230, Mini-PCIe with Nano-SIM | 12~24V DC |
| NK-6172 | Intel® Celeron® J6412 | 2 x DDR4 SO-DIMM, up to 32GB | 4 x GbE | DP, HDMI dual-display | M.2-2242, M.2-2230, Mini-PCIe with Nano-SIM | 12~24V DC |
| NK-6180-N97 | Intel® Core™ N97 | 1 x DDR5 SO-DIMM, up to 16GB | 2 x GbE | DP, HDMI, LVDS/eDP tri-display | M.2-2242 / 2280, Mini-PCIe with Nano-SIM | 12~24V DC |
| NK-6180-N305 | Intel® Core™ i3-N305 | 1 x DDR5 SO-DIMM, up to 16GB | 2 x GbE | DP, HDMI, LVDS/eDP tri-display | M.2-2242 / 2280, Mini-PCIe with Nano-SIM | 12~24V DC |
| NK-6183-N97 | Intel® Core™ N97 | 1 x DDR5 SO-DIMM, up to 16GB | 2 x GbE | DP, HDMI, LVDS/eDP tri-display | M.2-2242 / 2280 (SATA3.0/NVMe), Mini-PCIe with Nano-SIM | 12~24V DC |
| NK-6183-N305 | Intel® Core™ i3-N305 | 1 x DDR5 SO-DIMM, up to 16GB | 2 x GbE | DP, HDMI, LVDS/eDP tri-display | M.2-2242 / 2280 (SATA3.0/NVMe), Mini-PCIe with Nano-SIM | 12~24V DC |
| NK-6280-1215U | Intel® Core™ i3-1215U | 1 x DDR4 SO-DIMM, up to 32GB | 2 x Intel® i210-AT GbE | DP, HDMI, LVDS/eDP tri-display | SATA3.0, M.2 KB (SATA/NVMe), Mini-PCIe, M.2 KE | 9~36V DC |
| NK-6280-1235U | Intel® Core™ i5-1235U | 1 x DDR4 SO-DIMM, up to 32GB | 2 x Intel® i210-AT GbE | DP, HDMI, LVDS/eDP tri-display | SATA3.0, M.2 KB (SATA/NVMe), Mini-PCIe, M.2 KE | 9~36V DC |
| NK-6280-1255U | Intel® Core™ i7-1255U | 1 x DDR4 SO-DIMM, up to 32GB | 2 x Intel® i210-AT GbE | DP, HDMI, LVDS/eDP tri-display | SATA3.0, M.2 KB (SATA/NVMe), Mini-PCIe, M.2 KE | 9~36V DC |
