Industrial HMIs
Intuitive interfaces for enhanced user interaction and operational efficiency, perfect for factories and more
Industrial HMI Product Line
Button-integrated HMI products with a comprehensive range of solutions, including button-integrated panel PCs, touch monitors, and arm-mounted options designed to enhance operational efficiency and interface usability.
Arm-Mounted Panel PCs
IP65 button-integrated Panel PC, size of 15", 18.5", 19" and 21.5", support Intel® CeleronTM 4205U/J1900/Core i5 7200U, top or bottom swing arm system options
Arm-Mounted Automation Panel
IP65 button-integrated touch monitor, size of 18.5", 19" and 21.5", support VGA+HDMI or eLink HDBaseT RJ45 inputs, top or bottom swing arm system options
Button-integrated Panel PCs
21.5” portrait format button-integrated Panel PC, support Intel® CeleronTM 3855U/J1900/Core i5 7200U processors, panel mount and other custom options
Button-integrated Automation Panel
21.5” button-integrated touch monitor, support VGA+ DVI or eLink HDBaseT RJ45 inputs, panel mount and other custom options
Nodka's Button-integrated HMI Product Line
Nodka’s Industrial HMI product line features versatile and robust solutions tailored for industrial automation environments. This line includes arm-mounted and button-integrated panel PCs and automation panels, ranging in size from 15″ to 21.5″. The panel PCs are equipped with Intel® processors. The product line is available with multiple mounting options, including top or bottom swing arm-mount, panel mount, or other custom design options. These devices are enhanced with advanced multi-touch capabilities and customizable button configurations using RAFI components for optimal operational flexibility.
Customizable Button Options
Nodka offers a wide array of customizable button options to enhance functionality and user interaction. These include the versatile RAFIX 22 FS+ pushbutton, which comes with five interchangeable colored lenses and features both normally closed and normally open contacts, as well as white LED illumination. Additionally, the line features RAFIX 22 FS+ selector and key switches, an emergency stop button, an IP65 USB feed-through, and RAFIX FS switching elements with emergency stop and universal PCBs with light guides, providing robust solutions for diverse industrial requirements.
Industrial HMIs (Operator Panels) in Action
NODKA Industrial HMIs and Operator Panels are deployed across manufacturing, automation, process industries, and equipment control environments to provide reliable human–machine interaction at the machine level. Many models feature full IP65-rated front (and selected models full IP65 enclosure protection), ensuring protection against dust ingress and water spray in demanding industrial environments.
From arm-mounted swing panels on CNC machines to panel-mounted button-integrated HMIs in control cabinets, these systems combine touchscreen visualization with physical push buttons and emergency stop interfaces for safe and intuitive machine operation.
Below are common real-world deployment scenarios demonstrating how button-integrated and arm-mounted HMI platforms align with industrial control requirements.

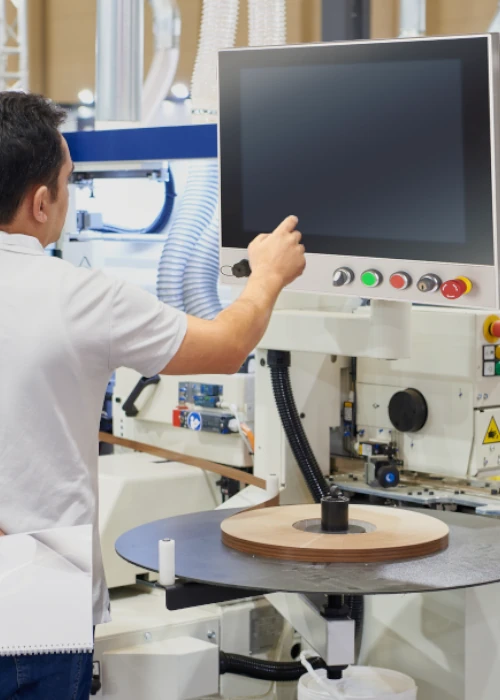

Use Case 1: Machine-Level Operator Control Stations
Industrial HMIs are widely used as primary operator stations on standalone machines and automated equipment.
Best for:
- CNC machines and machining centers
- Injection molding machines
- Laser cutting systems
- Packaging and labeling machines
- Robotic workcells
- Automated assembly machines
- Machine retrofit projects
- Equipment requiring local manual override control
Key fit:
- Integrated physical push buttons and E-stop for safe machine operation
- Touchscreen visualization for machine status and parameter adjustment
- Arm-mounted or panel-mounted options depending on machine design
- Fanless industrial computing platforms for 24/7 operation
Multiple serial and Ethernet ports for PLC and field device communication - Clean cable routing through arm structures for safer installation
- Full IP65 protection for resistance against dust, coolant splash, and washdown during daily machine operation
Related Products:
ICP69XXX Arm-Mounted Gen III Panel PC Series
ICP69XXX Arm-Mounted Panel PC Series
TPC6000 Button-Integrated Panel PC Series
Show More

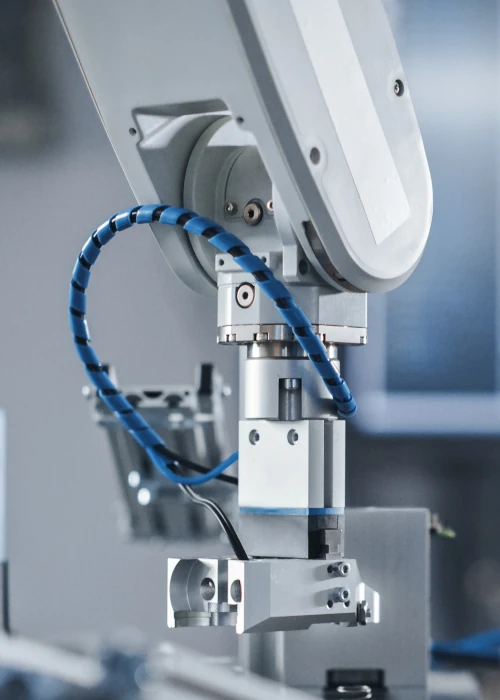

Use Case 2: Robotic Cells & Flexible Manufacturing Workstations
Robotic Cells & Flexible Manufacturing Workstations
Best for:
- Robotic welding cells
- Pick-and-place automation
- Collaborative robot (cobot) stations
- Flexible manufacturing systems (FMS)
- Multi-station assembly workcells
- Testing and inspection stations
Key fit:
- Arm-mounted swing design for adjustable viewing angles
Physical control buttons for quick jog and manual mode operations - Integrated touch monitor or panel PC options depending on system architecture
- Industrial-grade enclosure resistant to vibration and dust
- Full IP65-rated panel to withstand harsh shop-floor environments
- Optional integration with external Automation PCs for control separation
Related Products:
ICP69XXX Arm-Mounted Gen III Panel PC Series
IDP59XXX Gen III Arm-Mounted Automation Panel Series

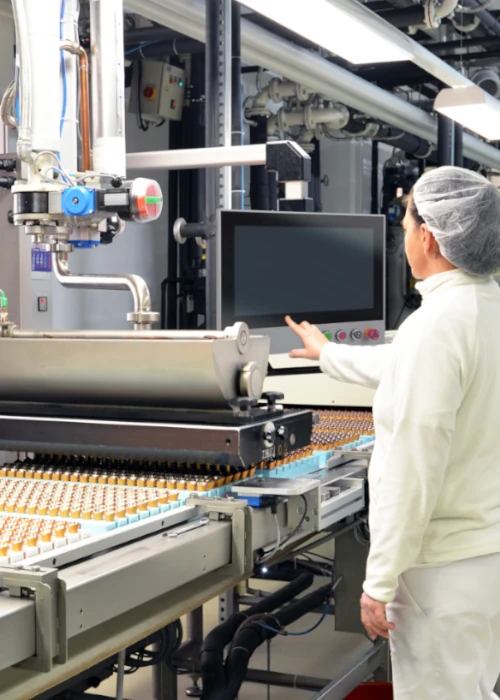

Use Case 3: Production Line Operator Panels
On assembly and packaging lines, operators require clear visualization combined with immediate physical control access.
Best for:
- Bottling and filling lines
- Carton sealing systems
- Conveyor systems
- Automotive assembly lines
- Electronics manufacturing lines
- Operator workcells with start/stop/reset requirements
Key fit:
- Panel-mount installation for integration into control cabinets
- Integrated push buttons reduce need for external button boxes
- Touch monitor versions allow connection to centralized Automation PCs
- Multi-touch or resistive touch options depending on operating environment
- Clean front bezel design suitable for production floors
- Full IP65 front protection for dusty assembly and packaging environments
Related Products:
TPC6000 Button-Integrated Panel PC Series
LC5000 Button-Integrated Automation Panel Series
Use Case 4: PLC-Controlled Equipment & Open Control Systems
Industrial HMIs are frequently paired with PLCs or IPC-based controllers to provide visualization and manual control in open control architectures.
Best for:
- PLC-based machine control systems
- Soft PLC and CODESYS environments
- EtherCAT-based control systems
- Modular machine architectures
- Distributed control systems
Key fit:
- Automation panel (touch monitor) models for external controller integration
- Panel PC versions for integrated control + HMI architecture
- Rich I/O interfaces for PLC, fieldbus, and network connectivity
- Industrial mounting options for cabinet or swing-arm deployment
- IP65-rated for protection against oil mist, coolant splash, and airborne particles
- Long lifecycle components for machine builder standardization
Related Products:
IDP59XXX Arm-Mounted Automation Panel Series
LC5000 Button-Integrated Automation Panel Series
ICP69XXX Arm-Mounted Panel PC Series

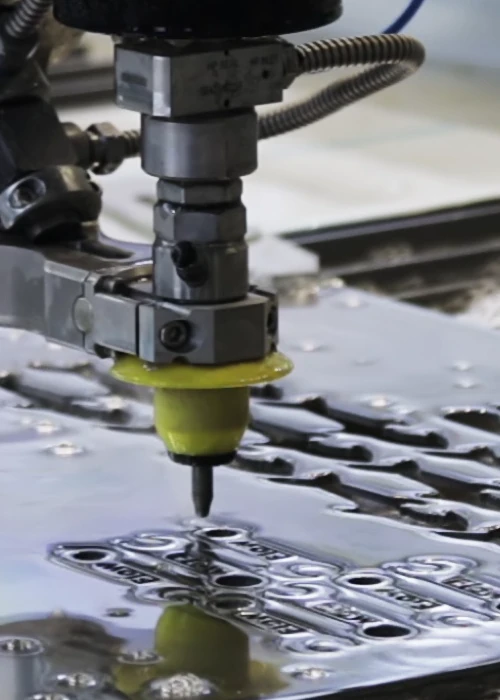

Use Case 5: Machine Retrofits & Control Upgrades
When upgrading legacy machines, integrated HMI panels simplify modernization without complete cabinet redesign.
Best for:
- Replacing legacy membrane keypads
- CRT or outdated HMI replacements
- PLC upgrade projects
- Machine control panel redesign
- Brownfield factory modernization
Key fit:
- Button-integrated design reduces need for additional wiring
- Standard cut-out sizes for easier panel replacement
- Touchscreen interface improves usability Compatible with modern Windows and Linux systems
- Flexible mounting (panel mount or arm mount) to match existing mechanical layoutsFull IP65 to maintain protection when upgrading legacy equipment
Related Products:
TPC6000 Button-Integrated Panel PC Series
ICP69XXX Arm-Mounted Panel PC Series
LC5000 Button-Integrated Automation Panel Series
Use Case 6: Harsh Industrial & Continuous Operation Environments
Industrial HMIs are often installed in environments with vibration, dust, and continuous machine operation requirements.
Best for:
- Metal fabrication workshops
- Heavy machinery environments
- Wood processing plants
- Industrial manufacturing floors
- Equipment exposed to vibration and airborne particles
Key fit:
- Rugged industrial-grade enclosure
- Full IP65 protection against dust ingress and water spray in harsh manufacturing environments
- Fanless thermal design for reduced maintenance
- Stable operation under continuous duty cycles
- Industrial connectors and structured cable routing
- Optional industrial touch technologies for glove operation
Related Products:
ICP69XXX Arm-Mounted Gen III Panel PC Series
TPC6000 Button-Integrated Panel PC Series
Common Requirements We Can Customize
To meet the diverse needs of machine builders and system integrators, NODKA Industrial HMIs can be customized across hardware, mechanical, and system levels.
Hardware & Performance Options
- Intel® Celeron®, Processor N-series, and Core™ CPU options
- ARM-based platform options for low-power deployments
- Memory capacity configuration
- SSD storage options (SATA / M.2)
Display & Touch Options
- Screen sizes across compact to large-format panels
- Projected capacitive (P-CAP) multi-touch
- Resistive touch for glove or wet environments
- High-brightness display options
- Optional protective glass treatments
I/O & Connectivity Customization
- Configurable USB, COM (RS-232/485), and LAN ports
- Optional wireless modules (Wi-Fi / 4G / 5G)
- Fieldbus expansion compatibility via external controller
- Custom button layout and function mapping
Mechanical & Installation Options
- Arm-mounted swing design with internal cable routing
- Panel-mount flush installation
- Custom cut-out dimensions (OEM projects)
- Industrial-grade aluminum or steel enclosure options
Customizable Arm Mounting Options
NODKA arm-mounted Industrial HMIs support multiple mechanical configurations to adapt to diverse machine layouts and ergonomic requirements. Systems are compatible with top or bottom arm mounting and support Rittal CP40-compatible suspension systems for seamless integration into standard industrial installations.
Available mounting elements include:
- 90-degree elbow joints
- Flange couplings
- Setup joints
- Intermediate joints
- Base brackets
- Elbow couplings
- Rotation bases
- Wall joints
- Suspension tubes (various lengths)
- Optional keyboard shelves
This modular arm system allows machine builders to design ergonomic operator stations with adjustable viewing angles, optimized reach distance, and structured internal cable routing for improved safety and maintenance access.
System & Software
- Windows and Linux OS support
- Soft PLC and HMI software compatibility
- BIOS customization and I/O mapping
- Long-term revision control for machine builders
Environmental & Reliability
- Fanless cooling options
- Full IP65 front or enclosure protection options depending on model selection
- Industrial temperature components
- Vibration-resistant mechanical design
- 24/7 continuous operation validation
Lifecycle & OEM Services
- Long lifecycle product availability
- Branding and private labeling support
- Custom front panel design
- Project-level technical integration support
