Multi-Touch Panel PC TPC-CXXX-S Series
TPC-C104H-S
10.4″ compact fanless panel PC with capacitive multi-touch screen and powerful Intel J6412, N97, or 12th Gen Core processors. Designed for HMI and industrial control applications with rich I/O, front IP65 protection, and panel/VESA mount support.

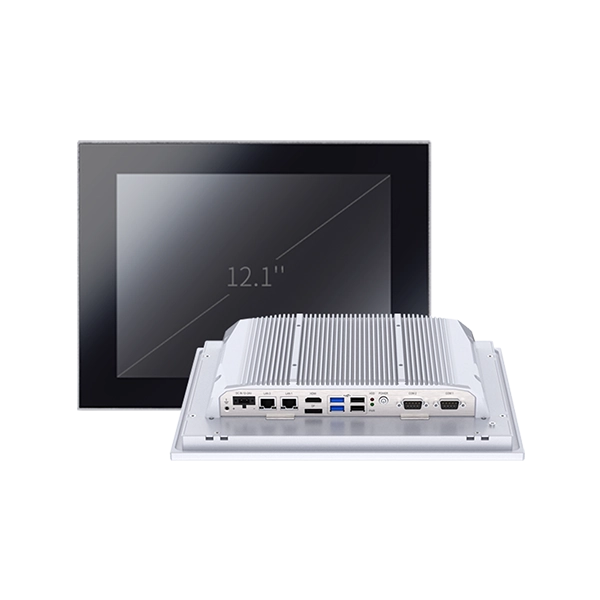

TPC-C121H-S
12.1″ industrial-grade fanless panel PC featuring capacitive multi-touch, wide voltage input, rich I/O, and high-performance Intel processors. Ideal for automation, smart building, and embedded control applications.

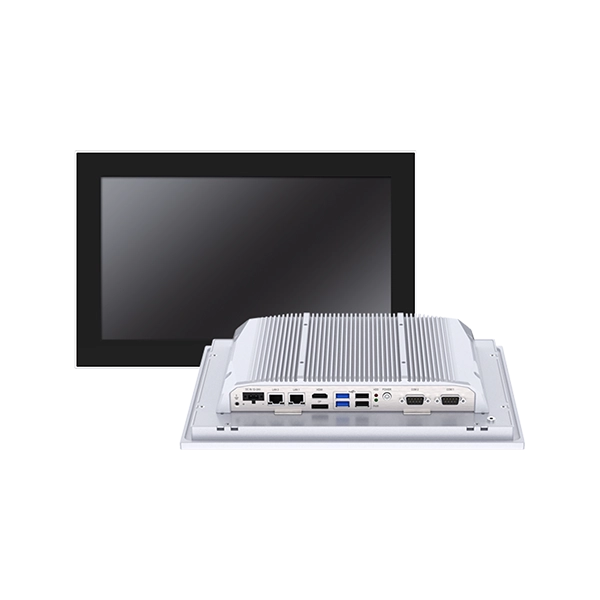

TPC-C121W-S
12.1″ widescreen fanless panel PC with capacitive multi-touch and Intel J6412, N97, or 12th Gen i3/i5/i7 processors. Designed for factory automation, smart HMI, and embedded control solutions.

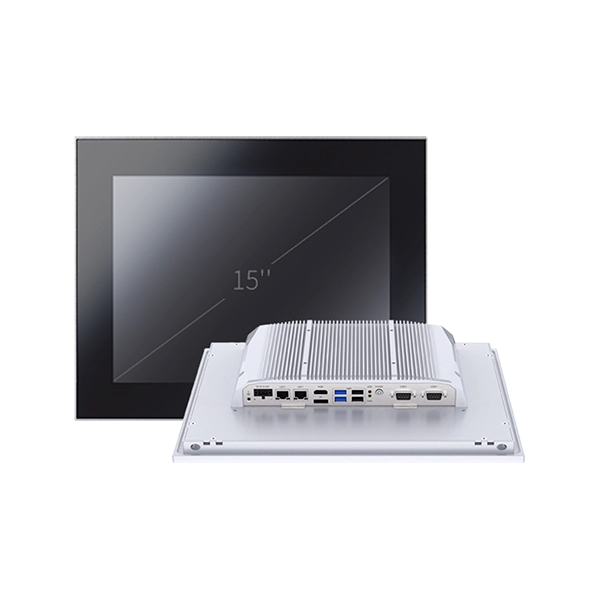

TPC-C150-S
15″ fanless industrial panel PC with capacitive touch, Intel J6412, N97, and 12th Gen Core processors. Ideal for industrial HMI, machine interfaces, and embedded automation control.
TPC-C156-S
15.6″ widescreen fanless panel PC with capacitive touch, Intel J6412, N97, and 12th Gen Core CPUs. Designed for industrial HMI, smart control panels, and data acquisition systems.

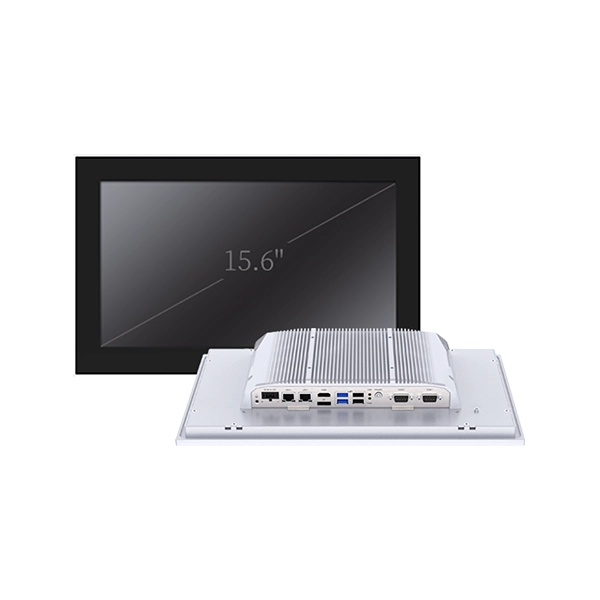

TPC-C156H-S
15.6″ Full HD fanless panel PC with capacitive touch and Intel J6412, N97, and 12th Gen Core processors. Built for industrial control, data collection, and edge automation systems.

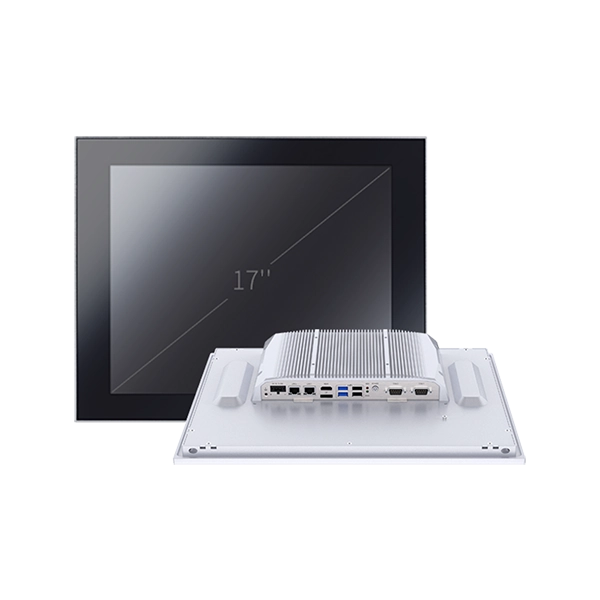

TPC-C170-S
17″ SXGA fanless panel PC with capacitive touchscreen, Intel J6412, N97, and 12th Gen Core CPUs. Designed for industrial control, factory automation, and machine interfaces.
TPC-C185-S
18.5″ HD fanless industrial panel PC with capacitive touch, supporting Intel J6412, N97, and 12th Gen Core CPUs. Engineered for machine interface, factory control, and smart applications.

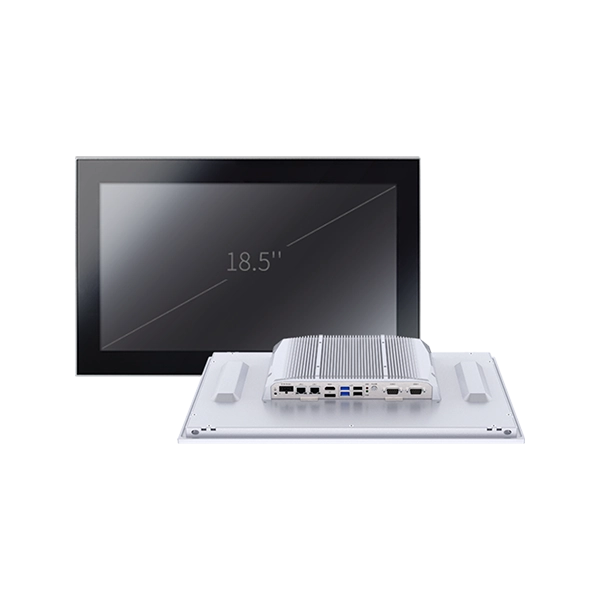

TPC-C185H-S
18.5″ Full HD fanless panel PC with capacitive touch screen, powered by Intel J6412, N97, or 12th Gen Core processors. Ideal for factory automation, industrial control, and smart systems.
TPC-C190-S
19″ SXGA (1280×1024) fanless industrial panel PC with capacitive touch, powered by Intel J6412, N97, or 12th Gen Core CPUs. Designed for automation, equipment control, and embedded interfaces.
TPC-CXXX-S Panel PC Series Features
The TPC-CXXX-S Panel PC Series combines fanless multi-touch displays with modern Intel® processors including J6412, N97, and 12th Gen Core™ i3/i5/i7. Screen sizes range from 10.4" to 23.8", with resolutions up to Full HD. These units feature dual Gigabit LAN, multiple COM and USB interfaces, and storage options via mSATA and M.2 SSDs. Expansion is supported through Mini-PCIe and M.2 slots for WiFi/4G modules. With a 12–24V DC power input, IP65-rated front panels, and panel/VESA mounting options, the series is designed for durable, continuous industrial operation.
Show More
Application Areas
The TPC-CXXX-S series is widely used in industrial automation, robotics, and IIoT. Typical applications include SCADA HMIs, MES/PLC operator panels, edge computing gateways, AGV/AMR navigation terminals, machine vision systems, power and utility monitoring, medical diagnostic equipment, and smart kiosks. Their fanless design ensures silent, reliable operation in harsh industrial and commercial environments.
| Model | Screen Size | Resolution | CPU Support | LAN | Serial / USB | Expansion & Storage | Mounting |
|---|---|---|---|---|---|---|---|
| TPC-C104-S | 10.4" | 1024 × 768 (XGA) | Intel(r) J6412 / N97 | 2× GbE | 4× COM / 4× USB | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC-C121-S | 12.1" | 1024 × 768 (XGA) | Intel(r) J6412 / N97 | 2× GbE | 4× COM / 4× USB | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC-C121W-S | 12.1" | 1280 × 800 (WXGA) | Intel(r) J6412 / N97 | 2× GbE | 4× COM / 4× USB | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC-C150-S | 15" | 1024 × 768 (XGA) | Intel(r) J6412 / N97 | 2× GbE | 4× COM / 4× USB | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC-C156-S | 15.6" | 1366 × 768 (HD) / 1920 × 1080 (FHD) | Intel(r) J6412 / N97 / 12th Gen CoreTM | 2× GbE | 4× COM / 4× USB | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC-C170-S | 17" | 1280 × 1024 (SXGA) | Intel(r) J6412 / N97 / 12th Gen CoreTM | 2× GbE | 4× COM / 4× USB | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC-C185W-S | 18.5" | 1366 × 768 (HD) / 1920 × 1080 (FHD) | Intel(r) J6412 / N97 / 12th Gen CoreTM | 2× GbE | 4× COM / 4× USB | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC-C190-S | 19" | 1280 × 1024 (SXGA) | Intel(r) J6412 / N97 / 12th Gen CoreTM | 2× GbE | 4× COM / 4× USB | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC-C215W-S | 21.5" | 1920 × 1080 (FHD) | Intel(r) J6412 / N97 / 12th Gen CoreTM | 2× GbE | 4× COM / 4× USB | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
| TPC-C238W-S | 23.8" | 1920 × 1080 (FHD) | Intel(r) J6412 / N97 / 12th Gen CoreTM | 2× GbE | 4× COM / 4× USB | 1× mSATA, 1× M.2, 1× Mini-PCIe | Panel / VESA |
