iPAC Industrial Automation PC Controllers

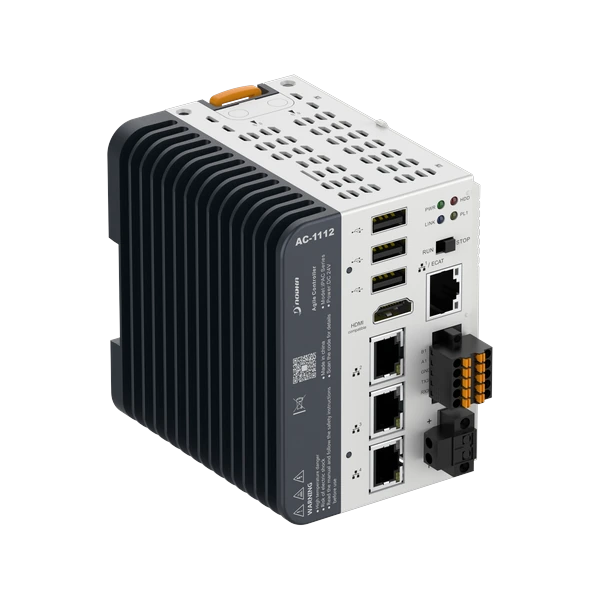

iPAC AC-1112
The AC-1112 iPAC Series is a compact, fanless DIN-rail Industrial IPC Controller powered by Intel Celeron J6412 or N97 processors. With support for EtherCAT, modular E-BUS expansion, and rich industrial I/O, it’s built for modern edge computing and real-time control
iPAC AC-1121
The AC-1121 is a high-performance DIN-rail mountable Industrial IPC Controller featuring Intel® Core™ i3/i5/i7 processors (6th–8th Gen), 5 LAN ports, EtherCAT, HDMI + DP display, and programmable I/O. Designed for cabinet integration, it supports real-time automation tasks, advanced networking, and modular expansion

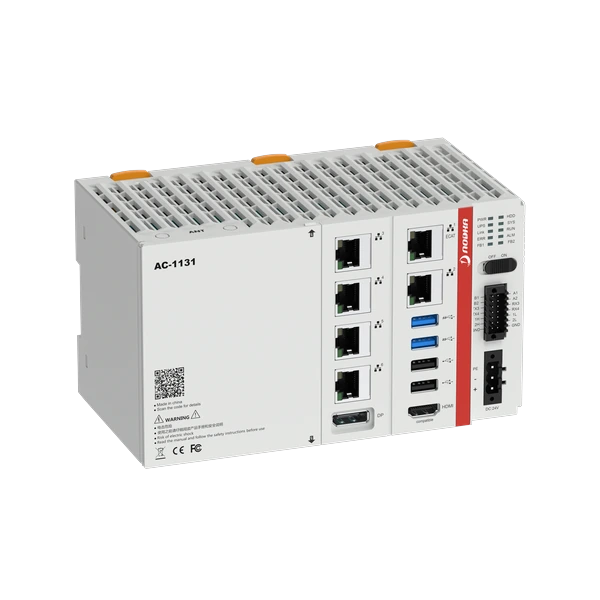

iPAC AC-1131
DIN-rail industrial automation PC with Intel® Core™ 12th/13th Gen processors, 5 x LAN, 1 x EtherCAT OUT, 4 x COM, HDMI/DP, Mini PCIe expansion, M.2 SATA storage, and DC24V input.

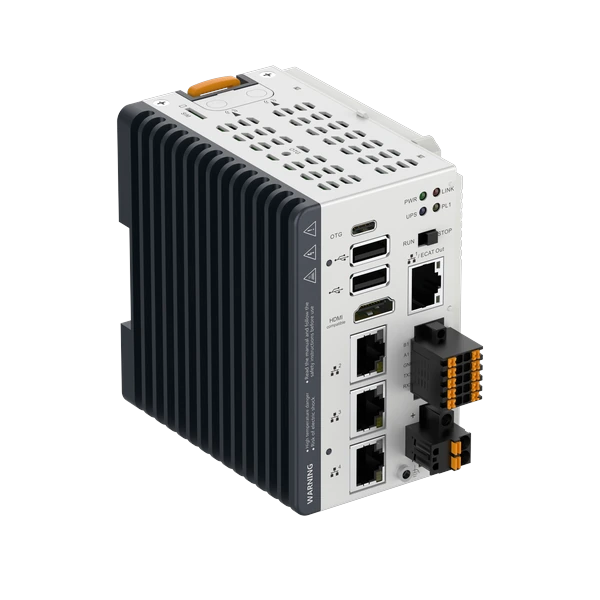

iPAC AC-1181
The AC-1181 is a compact, low-power ARM-based DIN-rail Agile Controller designed for industrial control and data acquisition applications. Powered by a quad-core ARM Cortex™-A53 processor, it integrates 2 LAN ports, EtherCAT, digital I/O, and E-BUS modular expansion for real-time automation
iPAC Industrial Automation PC Controller Series Features
The iPAC Industrial Automation PC Controllers series is a family of DIN-rail industrial automation controllers built around both Intel® x86 and ARM platforms, including Intel® Celeron N97, Intel® Core™ 6th/7th/8th Gen, Intel® Core™ 12th/13th Gen, and ARM Cortex™-A53 based configurations. Depending on model, the series provides 2 or 5 LAN ports, 1 x EtherCAT interface, 2 x RS-485 and 2 x RS-232 on the x86 models or 1 x RS-485 with 8 DI and 8 DO on the ARM model, along with USB 3.0/2.0 or USB Type-C connectivity. Storage and expansion options include M.2 SATA, full-size Mini PCIe with SIM card holder, E-BUS modular I/O expansion, and optional wireless modules, while the hardware platform also includes HDMI and DP display outputs on the x86 models, programmable LEDs, watchdog support, super capacitor UPS support on selected models, DC 24V input with protection, compact fanless construction, DIN-rail mounting, and operating temperature support from -20°C to 60°C.
Show More
Application Areas
The iPAC Industrial Automation PC Controllers series is suitable for soft PLC control, PLC replacement, machine control, motion control, robotics, automated production lines, packaging systems, process automation, and industrial data acquisition. Its combination of EtherCAT communication, modular I/O expansion, serial connectivity, multiple LAN options, and compact DIN-rail industrial design makes it well suited for CODESYS-based control platforms, distributed automation architectures, smart machinery, control cabinet installations, and edge control systems that require reliable real-time communication and flexible field integration.
| Model | CPU / Platform | LAN | Serial / Control I/O | Expansion / I/O Architecture | Display / USB | Mounting |
|---|---|---|---|---|---|---|
| AC-1112 | Intel® J6412 or Intel® Celeron N97 | 3 x Intel i210-AT LAN + 1 x EtherCAT | 2 x RS-485, 2 x RS-232, 5 x programmable LEDs | E-BUS, 1 x full-size Mini PCIe with SIM, optional 2 x CAN | HDMI / DP, 2 x USB 3.0, 2 x USB 2.0 | DIN-rail |
| AC-1121 | Intel® Core™ 6th/7th/8th Gen i7/i5/i3 | 5 x Intel i210-AT LAN + 1 x EtherCAT | 2 x RS-485, 2 x RS-232, 5 x programmable LEDs | E-BUS, 1 x full-size Mini PCIe with SIM, optional 2 x CAN | HDMI / DP, 2 x USB 3.0, 2 x USB 2.0 | DIN-rail |
| AC-1131 | Intel® Core™ 12th/13th Gen i7/i5/i3 | 5 x Intel i210-AT LAN + 1 x EtherCAT OUT | 2 x RS-485, 2 x RS-232, 5 x programmable LEDs | E-BUS, 1 x full-size Mini PCIe with SIM, optional 2 x CAN | HDMI / DP, 2 x USB 3.0, 2 x USB 2.0 | DIN-rail |
| AC-1181 | ARM T507 Quad-core Cortex™-A53 1.5GHz | 2 x LAN (RJ45) + 1 x EtherCAT | 1 x RS-485, 8 x DI, 8 x DO | E-BUS, EXP-A / EXP-B options | 1 x USB Type-C OTG | DIN-rail |
