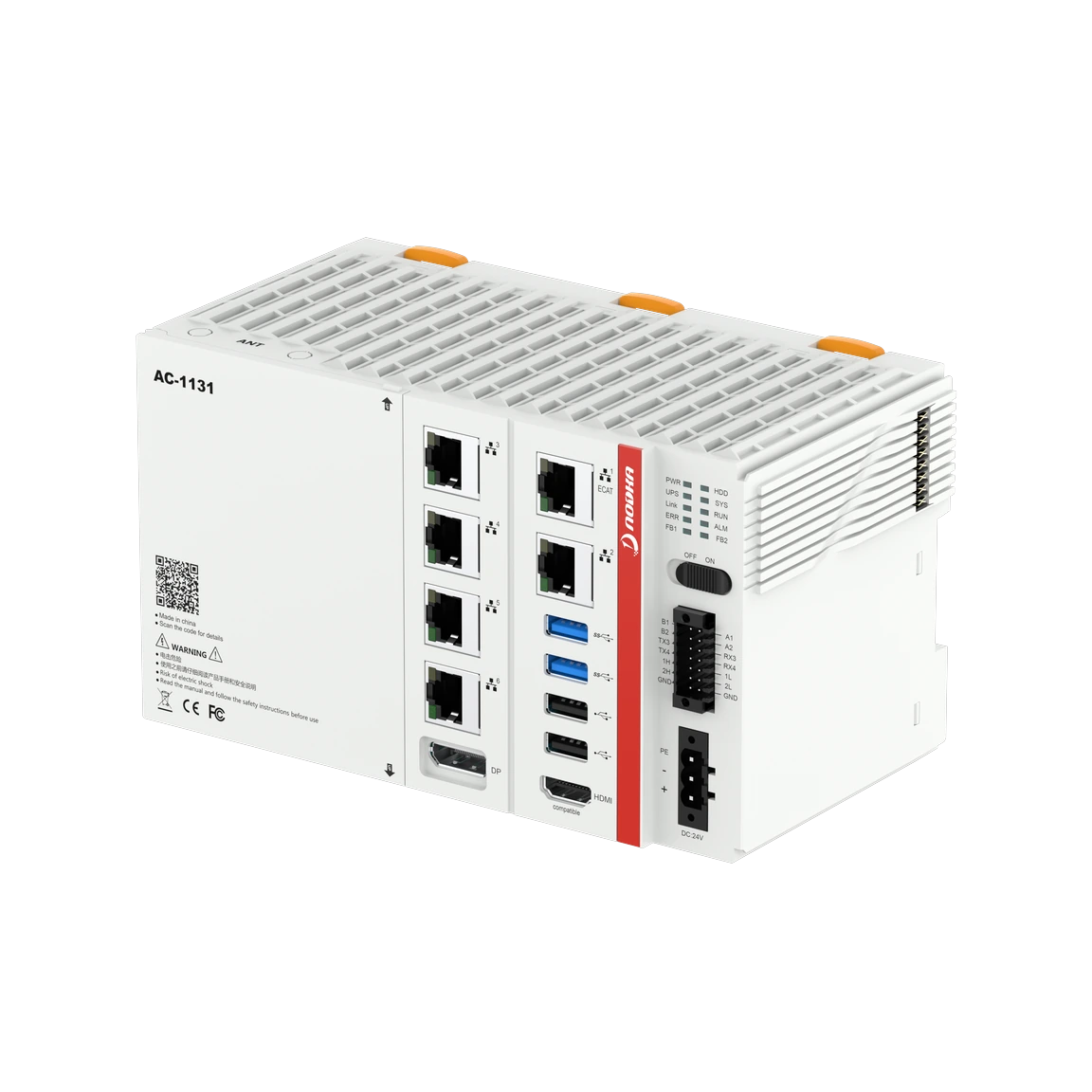

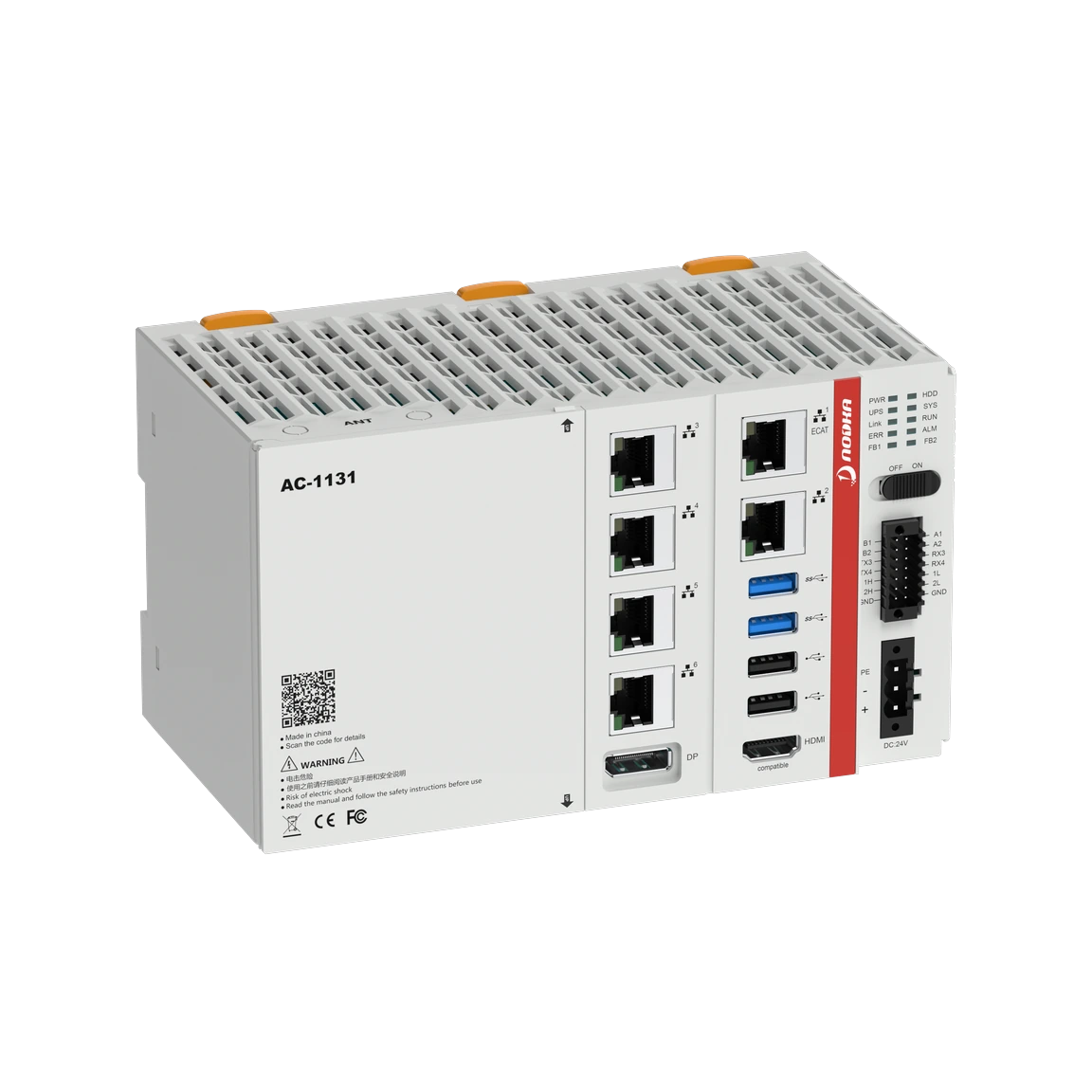

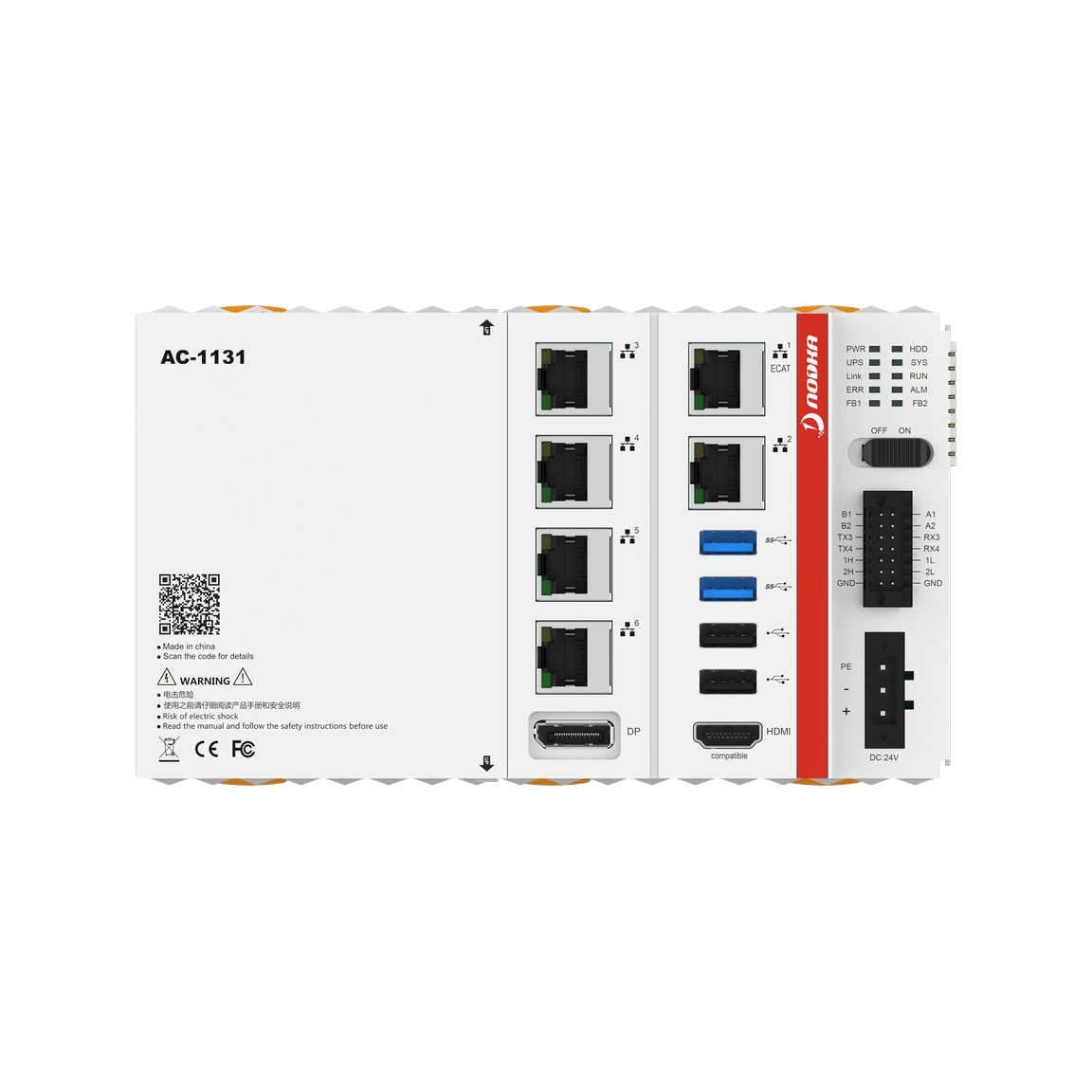

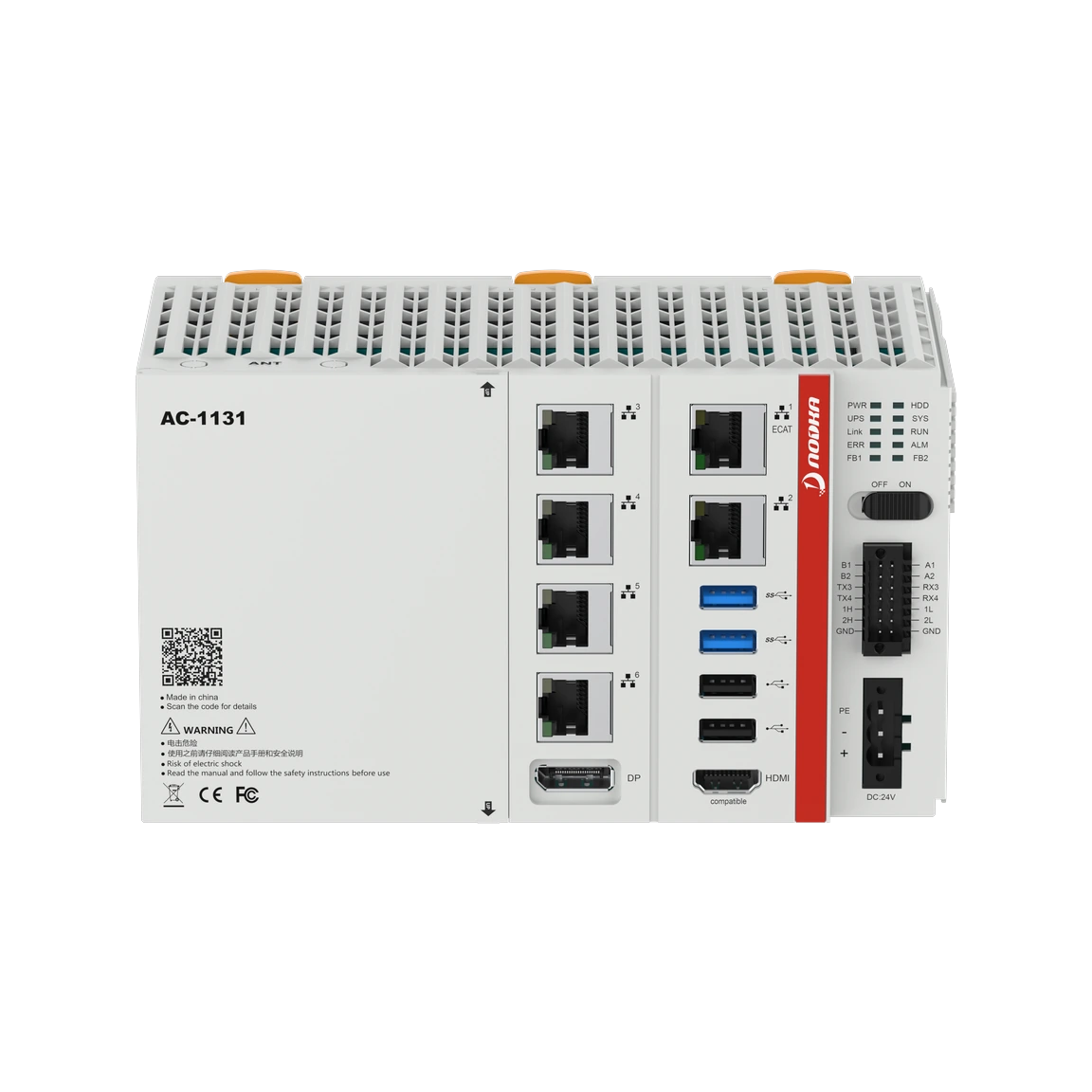

AC-1131 | Industrial Automation PC Controller with EtherCAT
DIN-rail control cabinet industrial PC with Intel® Core™ 12th/13th Gen processors, 5 x LAN, 1 x EtherCAT OUT, 2 x RS485, 2 x RS232, HDMI/DP, Mini PCIe expansion, and DC24V input.
Features
- Supports Intel® Core™ 12th/13th generation i7/i5/i3 high performance processors
- 5 x Intel i210-AT LAN controller
- 1 x EtherCAT OUT
- 2 x USB3.0 and 2 x USB2.0
- 2 x RS485 and 2 x RS232
- 1 x full-size Mini PCIe slot with SIM card holder for WiFi / 3G / 4G expansion
- E-BUS I/O expansion support
- 5 x programmable LEDs and 1 x programmable switch
- HDMI and DP display outputs
- DC24V power input with overcurrent, overvoltage, and polarity inverse protection
- Integrated super capacitor UPS support, full load for 10s
- Wide operating temperature from -20°C to 60°C

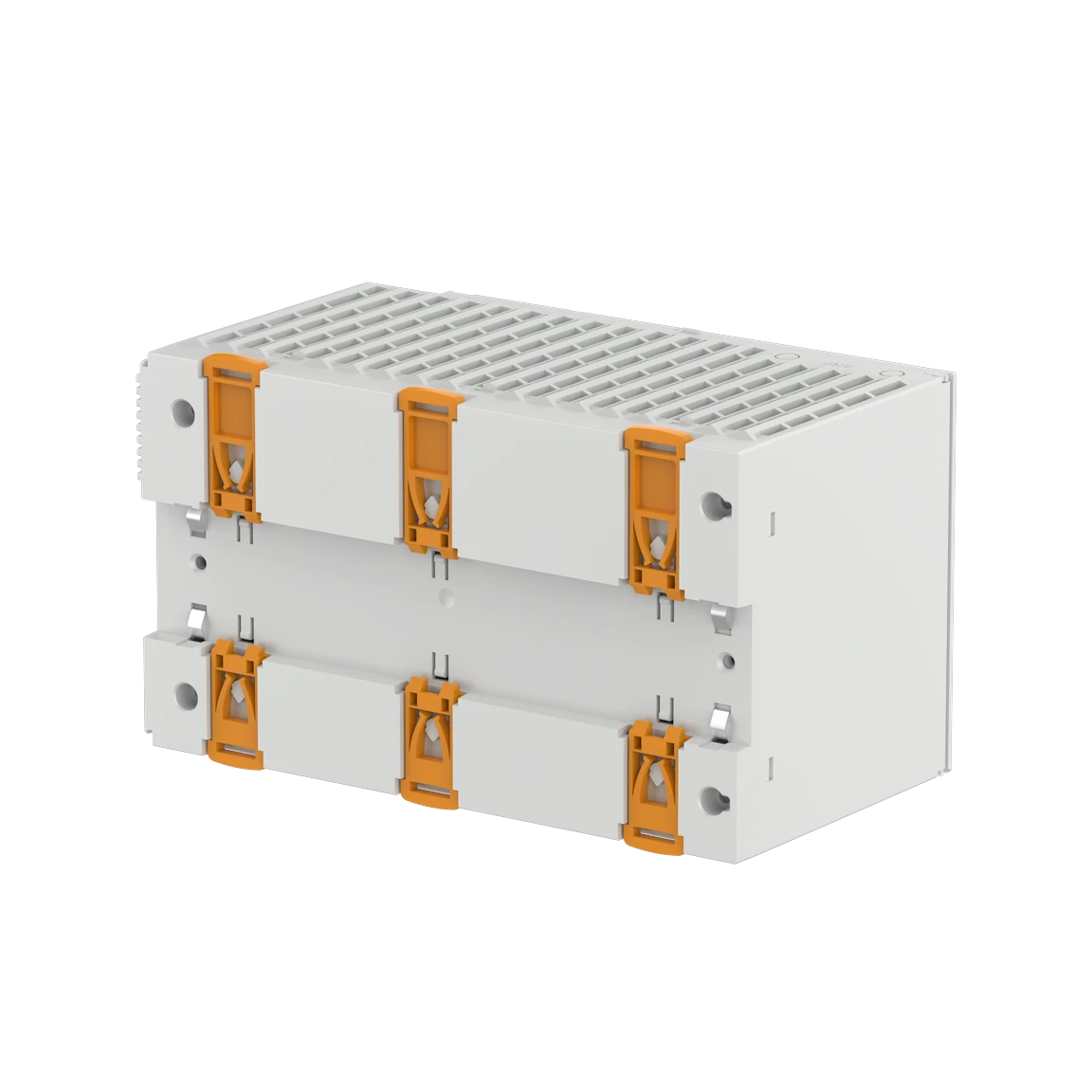

- Compact fanless DIN-rail design for control cabinet deployment
DIN-Rail Industrial IPC Controller Product Information
| Technical Specifications -- AC-1131 | |
|---|---|
| Model Name | AC-1131 |
| System | |
| CPU | Intel® Core™ 12th/13th generation i7/i5/i3 high performance processors |
| TDP | 65W |
| BIOS | AMI UEFI BIOS |
| Memory | 2 x SO-DIMM DDR4, max up to 32GB |
| Storage | 1 x M.2 (B Key, Type 2242) bay support SATA |
| USB | 2 x USB3.0, 2 x USB2.0 1 x USB2.0 Type A on the board for USB dongle |
| COM | 2 x RS485 (COM1/COM2) 2 x RS232 (COM3/COM4) |
| Ethernet | 5 x Intel i210-AT LAN controller |
| EtherCAT OUT | 1 x RJ45 |
| IO Expansions | E-BUS |
| Expansions | 1 x Full-size PCIe Mini slot with SIM card holder |
| LEDs | 1 x POWER, 1 x HDD, 1 x UPS, 1 x SYS, 1 x EC-LINK 5 x Programmable LEDs (1 x Run, 1 x Error, 1 x ALM, 2 x FB) |
| Switch | 1 x Programmable Switch |
| HDMI | Support up to 1920 x 1080 @60Hz |
| DP | Support up to 4096 x 2160 @60Hz |
| Watch Dog | 1~255 levels programmable |
| OS Support | |
| Microsoft Windows | Windows 10 |
| Linux | Ubuntu, CentOS, Debian |
| Power | |
| Voltage Input | DC24V -15%/+20%, overcurrent, overvoltage and polarity inverse protection, Super capacitors integrated, full load for 10s |
| Power Consumption | Max. 120W |
| Chassis | |
| Dimensions | (L)180mm x (W)107mm x (H)97mm |
| Net Weight | 1.25Kg |
| Environment | |
| Working Temperature | -20°C ~ 60°C (-4°F ~ 140°F) with air flow (SSD) |
| Storage Temperature | -40°C ~ 80°C (-40°F ~ 176°F) with air flow (SSD) |
| Relative Humidity | 5~95% (Non-condensing) |
| Operating Vibration | 5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64 |
| Operating Shock | 20G peak acceleration (11ms duration) with SSD, Follow IEC60068-2-27 |
| EMC | CE/FCC Class A |
| Ordering Information -- AC-1131 | ||
|---|---|---|
| Part No. | Product | Description |
| B73.113.11.00.0001 | AC-1131 | CPU: NULL, RAM: NULL, M.2: NULL, 2 x RS485, 2 x RS232, 5 x LAN, 1 x EtherCAT, 2 x USB3.0, 2 x USB2.0, 5 x LEDs, 1 x Switch, 2 x CAN2.0 (Optional), HDMI/DP display, DC24V DC IN |
| Options | ||
| Parts | Description | |
| DDR4L Memory | DDR4-3200MHz: 4GB, 8GB, 16GB | |
| M.2 SSD | 64GB, 128GB, 256GB, 512GB, 1TB | |
| Wifi Set | mini PCIE: Intel 7260 | |
| 3G/4G Module | mini PCIE: EC20, EG25, EC25 | |
