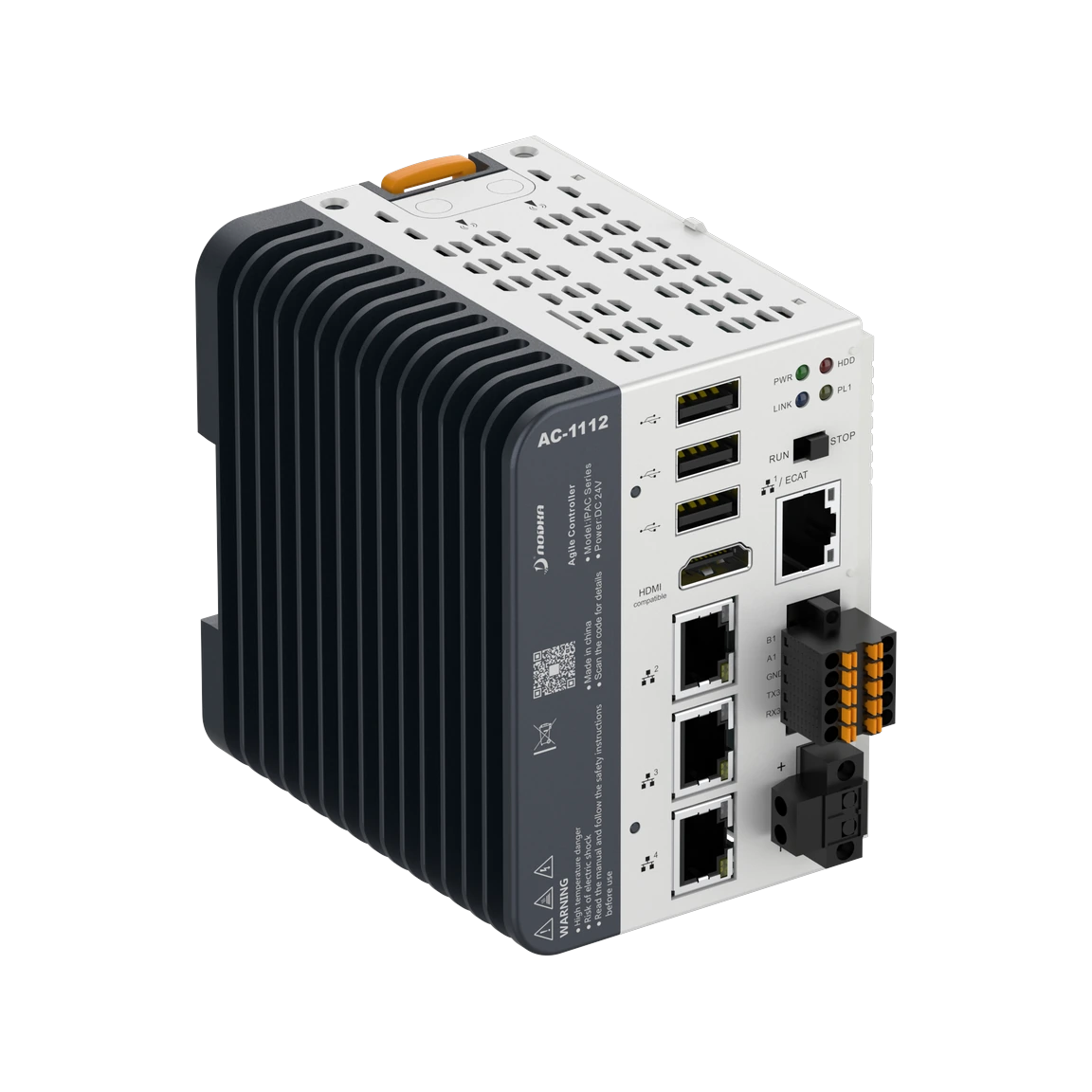

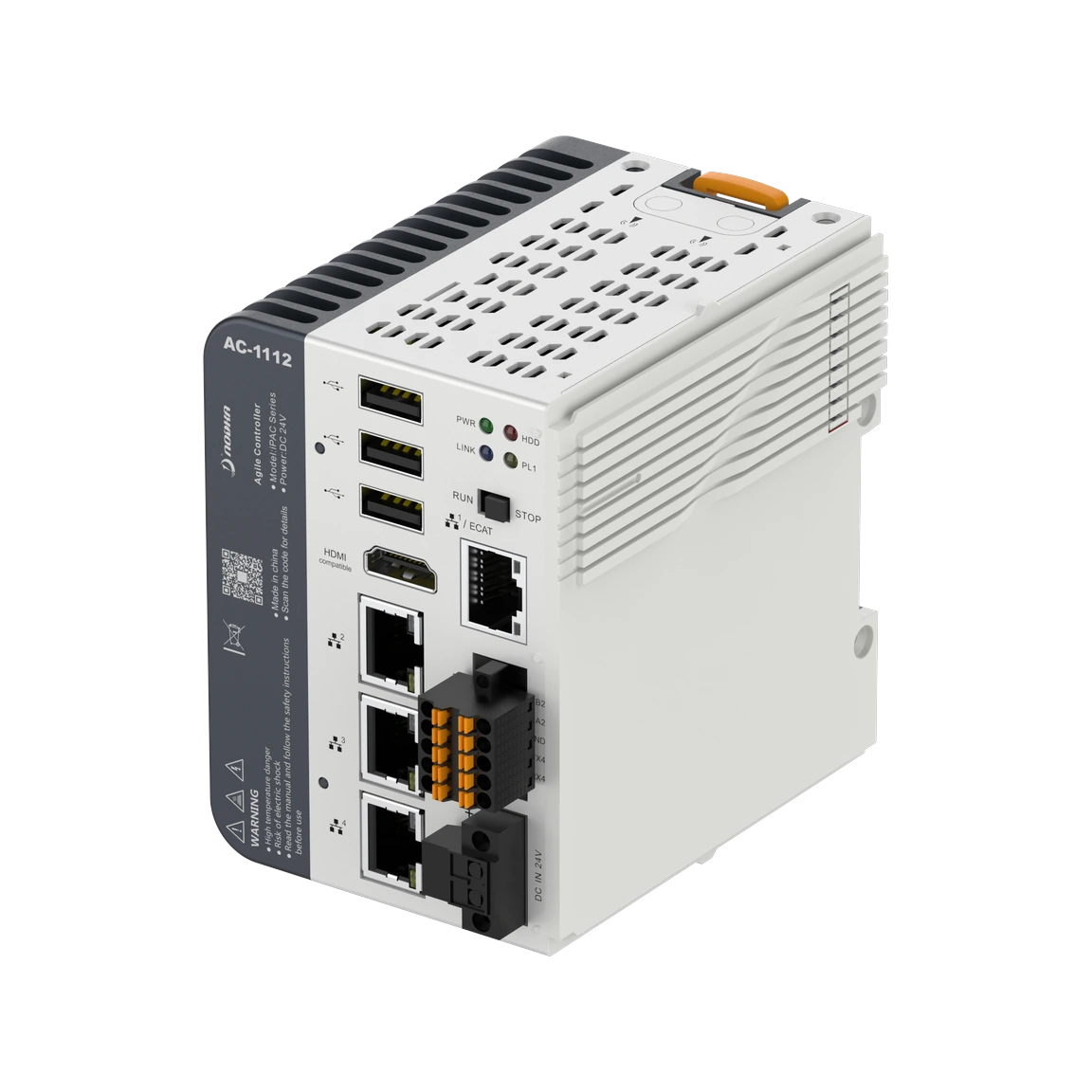

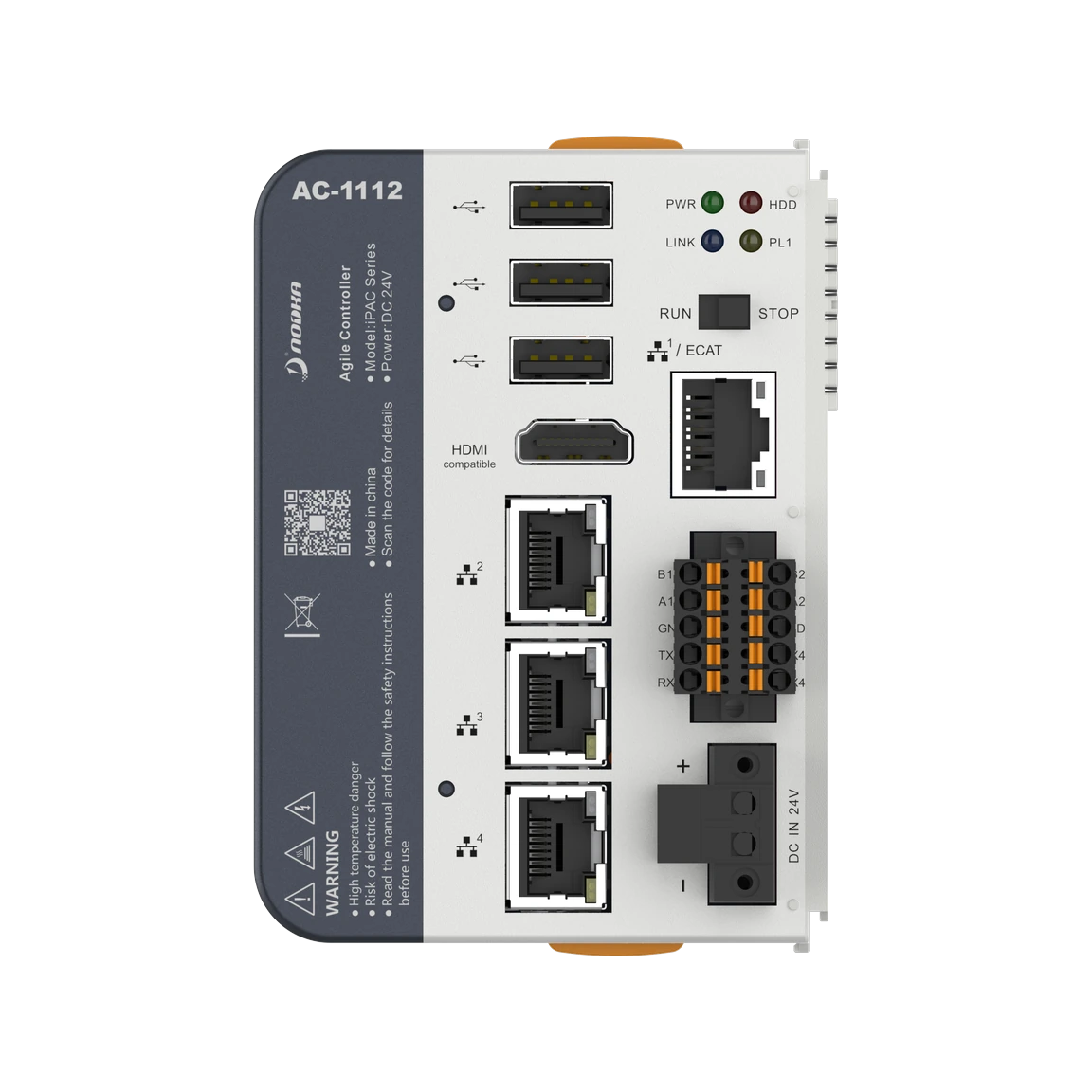

AC-1112-J1900 | Agile Controller Industrial Automation PC
Compact fanless DIN-rail industrial automation PC with Intel® Celeron J1900, 4 x GbE LAN, 2 x RS485, 2 x RS232, 3 x USB2.0, M.2 expansion, HDMI display output, and DC24V input
Features
- Supports Intel® Celeron J1900 processor
- Compact fanless DIN-rail industrial controller design
- 4 x GbE LAN including 2 x Intel i210-AT and 2 x RTL8111H
- 2 x RS485 and 2 x RS232 serial ports
- 3 x USB2.0
- HDMI display output
- 1 x M.2 slot supporting SATA SSD or 4G/5G module expansion
- Integrated super capacitor support with full load for 5 seconds
- DC24V power input with overcurrent, overvoltage, and polarity inverse protection
- Wide operating temperature from -20°C to 60°C
- Passive heat dissipation aluminum-magnesium alloy chassis
- Programmable watchdog support
DIN-Rail Industrial IPC Controller Product Information
| Technical Specifications -- AC-1112-J1900 | |
|---|---|
| Model Name | AC-1112-J1900 |
| System | |
| CPU | Intel® Celeron J1900, 2.0GHz, 4 cores/4 threads, 2MB L2 cache |
| TDP | 10W |
| BIOS | AMI UEFI BIOS |
| Memory | 1 x SO-DIMM DDR3-1600MT/s (max up to 8GB) |
| Storage | 1 x M.2 slot, 2242 KEY-B, SATA3.0 or 1 x M.2 slot, 3042/3052 KEY-B, expansion slot, support 4G/5G with SIM card holder |
| USB | 3 x USB2.0 |
| COM | 2 x RS485 (COM1-2), maximum baud rate: 115.2kbit/s 2 x RS232 (COM3-4), maximum baud rate: 115.2kbit/s |
| Ethernet | 2 x Intel i210-AT GbE LAN controller (LAN1-LAN2) 2 x RTL8111H GbE LAN controller (LAN3-LAN4) |
| LEDs | 1 x POWER (green) 2 x Programmable led (1 x PL2 green, 1 x PL1 yellow) |
| Switch | 1 x Switch |
| HDMI | Support up to 1920 x 1080 @60Hz |
| Watch Dog | 1~255 levels programmable |
| OS | |
| Microsoft Windows | Windows 7, Windows 10 |
| Linux | Ubuntu, Debian, CentOS |
| Power | |
| Voltage Input | DC24V, -15%/+20%, overcurrent, overvoltage and polarity inverse protection, Super capacitors integrated, Full load for 5s. |
| Power Consumption | Max.45W |
| Chassis | |
| Structure | Passive heat dissipation of aluminum-magnesium alloy BOX |
| Dimensions | (L)103mm x (W)97mm x (H)74.5mm |
| Net Weight | 0.65Kg |
| Installation | DIN-Rail IEC 60715 (width:35mm, thickness:1mm) |
| Environment | |
| Work Temperature | -20ºC ~ 60ºC (-4ºF ~ 140ºF) with air flow (SSD) |
| Storage Temperature | -40ºC ~ 80ºC (-40ºF ~ 176ºF) |
| Relative Humidity | 95%@40 ℃ (Non-condensing) |
| Operating Vibration | 5~500Hz, 3Grms@with SSD, Follow IEC60068-2-64 |
| Operating Shock | 30G peak acceleration (11ms duration) with SSD, Follow IEC60068-2-27 |
| EMC | CE EMC, Follow EN 55032, EN55035, EN 55011, EN 61131-2, EN IEC 61000-6-2, EN IEC 61000-6-4, FCC Class A |
| Safety | Follow EN IEC 61010-1 |
| Ordering Information -- AC-1112-J1900 | ||
|---|---|---|
| Part No. | Product | Description |
| B73.11121.00.0005 | AC-1112-J1900-eMMC64G | CPU: J1900, RAM: NULL, eMMC: 64GB, M.2: NULL, 2 x RS485, 2 x RS232, 4 x LAN, 3 x USB2.0, 2 x Programmable led, 1 x Switch, HDMI display port, 24V Power input |
| Options | ||
| Parts | Description | |
| Memory | DDR3L-1600MT/s: 4GB, 8GB | |
| M.2 | SSD: 128GB, 256GB, 512GB, 1TB | |
| 4G Module | EM05 | |
