Industrial ATX Motherboard NK-7xxx Series

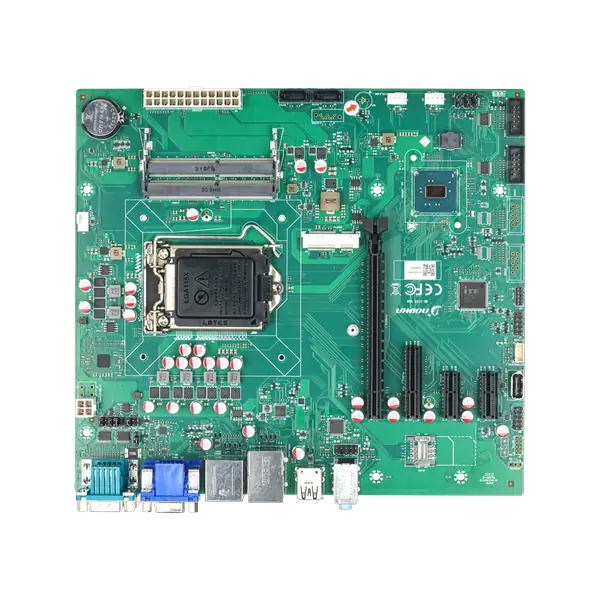

NK-5105 Micro-ATX Board
The NK-5105 is a Micro-ATX industrial motherboard with Intel® H110 chipset and LGA1151 socket, supporting 6th–9th Gen Intel® Core™, Pentium, and Celeron CPUs. It features DDR4 up to 64GB, GbE LAN, SATA/mSATA, RS232/485, USB2.0/3.0, and PCIe/Mini-PCIe expansion.

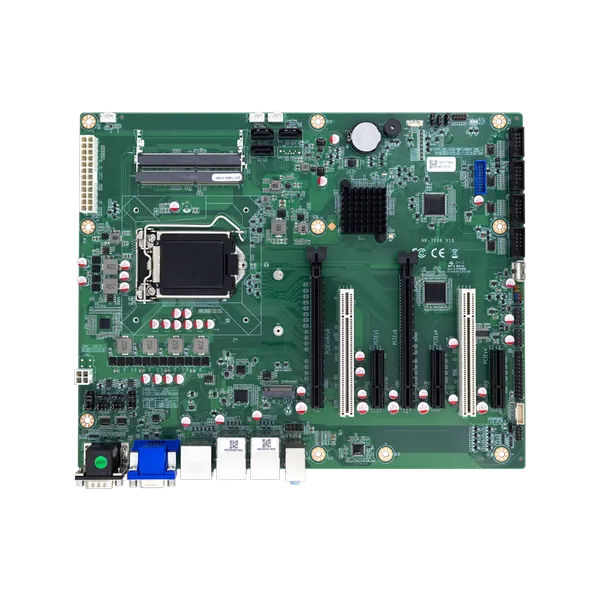

NK-7106 ATX Motherboard
The NK-7106 is an ATX industrial motherboard powered by Intel® Q170/C236 chipset with LGA1151 socket, supporting Intel® 6th–9th Gen Core™, Pentium, and Celeron processors. It features DDR4 memory up to 64GB, dual GbE LAN, rich serial and USB ports, SATA/M.2 storage, and PCIe/PCI expansion slots.

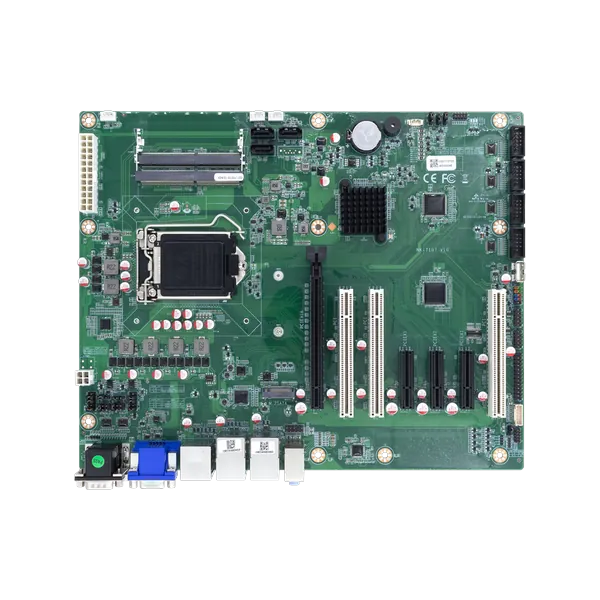

NK-7107 ATX Motherboard
The NK-7107 is an ATX industrial motherboard with Intel® C236/H110 chipsets and LGA1151 socket, supporting Intel® 6th–9th Gen Core™, Pentium, and Celeron CPUs. It provides DDR4 memory up to 64GB, dual GbE LAN, RS232/485, SATA/M.2 storage, and PCIe/PCI expansion slots for industrial applications.

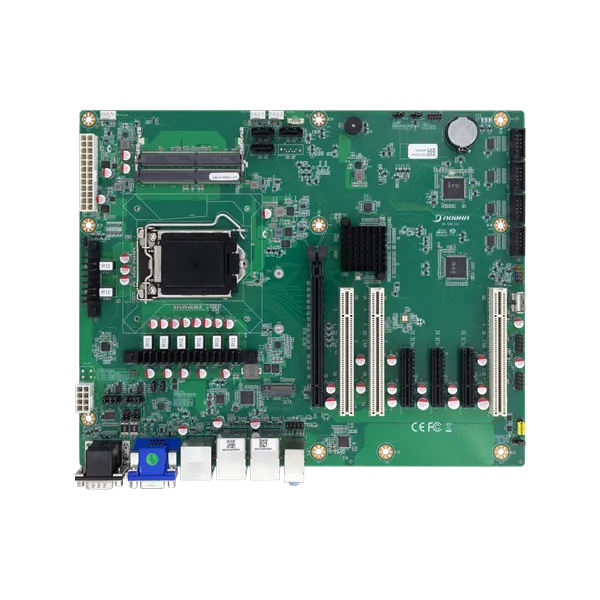

NK-7205 ATX Motherboard
The NK-7205 is an ATX industrial motherboard with Intel® H420E chipset and LGA1200 socket, supporting 10th/11th Gen Intel® Core™, Pentium, and Celeron CPUs. It offers DDR4 up to 64GB, dual GbE LAN, SATA/M.2 storage, RS232/485, USB, and PCIe/PCI expansion slots for industrial PC applications.

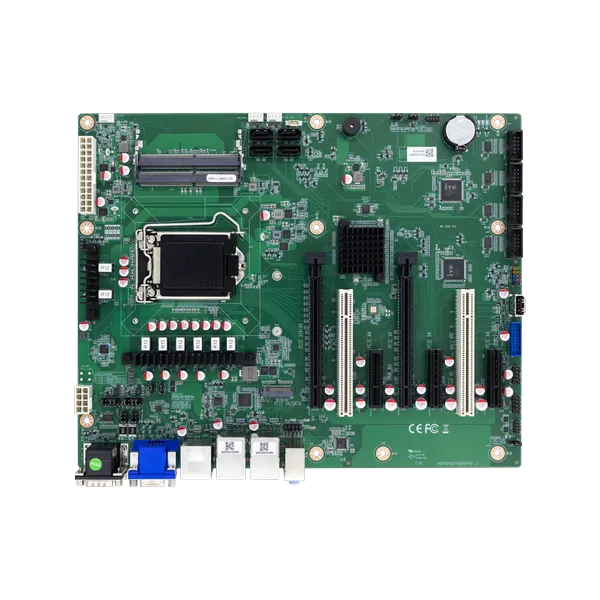

NK-7208 ATX Motherboard
The NK-7208 is an ATX industrial motherboard with Intel® Q470E chipset and LGA1200 socket, supporting 10th/11th Gen Intel® Core™, Pentium, and Celeron CPUs. It provides DDR4 up to 64GB, dual GbE LAN, SATA/M.2 storage, RS232/485, USB, and PCIe/PCI expansion slots for industrial PC applications.

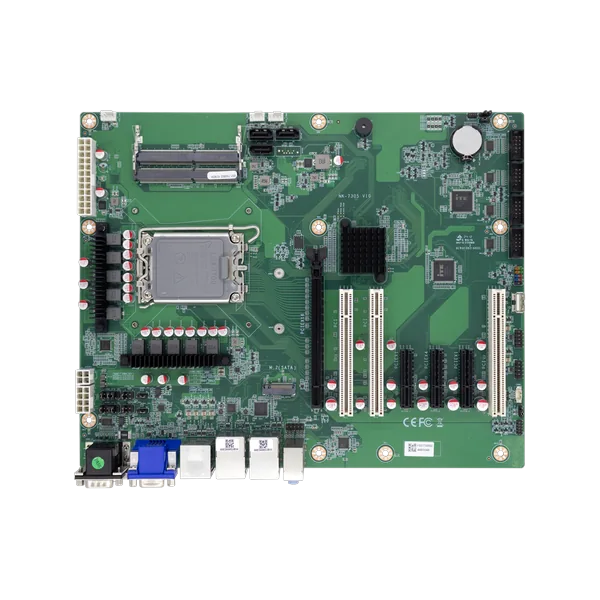

NK-7305 ATX Motherboard
The NK-7305 is an ATX industrial motherboard with Intel® H610/H610E chipsets and LGA1700 socket, supporting 12th–14th Gen Intel® Core™, Pentium, and Celeron CPUs. It features DDR4 up to 64GB, dual GbE LAN, SATA/M.2 storage, RS232/485, USB, and PCIe/PCI expansion slots for industrial PC applications.

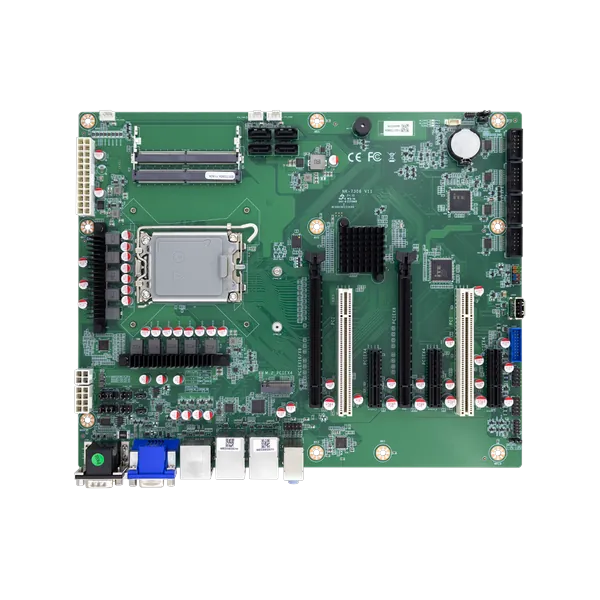

NK-7306 ATX Motherboard
The NK-7306 is an ATX industrial motherboard with Intel® Q670/Q670E chipsets and LGA1700 socket, supporting 12th–14th Gen Intel® Core™, Pentium, and Celeron CPUs. It provides DDR5 up to 64GB, dual GbE LAN, SATA/M.2 storage, RS232/485, USB, and PCIe/PCI expansion for high-performance industrial PCs.
NK-7xxx Industrial ATX Motherboard Series Features
The NK-7xxx Industrial ATX Motherboard Series is designed as a high-performance foundation for building industrial PCs, rackmount IPCs, and automation systems. Models support Intel® Core™ processors ranging from 6th to 14th Gen, with chipsets including Intel® Q170, C236, Q470, H420E, H610, and Q670. These boards integrate multiple Intel® GbE LAN ports, RS232/RS485 serial communication, SATA storage interfaces, and USB 2.0/3.0 connectivity. Expansion capability is provided through PCIe x16, PCIe x4, and legacy PCI slots for GPU cards, frame grabbers, motion controllers, and other add-on cards. Designed to ATX standards, the boards operate with ATX power input and deliver long-life stability required for industrial environments.
Show More
Application Areas
The series serves applications such as industrial PCs, 4U rackmount IPCs, machine vision systems, CNC and laser controllers, motion control, and automation PCs requiring high-performance computing and expansion card support. With support for GPU acceleration, frame grabbers, and real-time industrial control, the NK-7xxx series provides a reliable platform for industrial automation and embedded computing.
NK-7xxx Industrial ATX Motherboard Series Cross Reference
| Model | CPU Support | Chipset | LAN Ports | Serial Ports | Expansion | Storage |
|---|---|---|---|---|---|---|
| NK-7106 | Intel(r) 6th-7th Gen CoreTM i7/i5/i3, Pentium, Celeron (LGA1151) | Intel(r) Q170 | 2 × GbE | Up to 10 × COM (RS232/422/485) | 1 × PCIe x16, 1 × PCIe x4, 5 × PCI | 6 × SATA III |
| NK-7107 | Intel(r) Xeon E3-1200 v5/v6, CoreTM 6th-7th Gen (LGA1151) | Intel(r) C236 | 2 × GbE | Up to 10 × COM | 1 × PCIe x16, 1 × PCIe x4, 5 × PCI | 6 × SATA III |
| NK-7205 | Intel(r) 10th Gen CoreTM i9/i7/i5/i3 (LGA1200) | Intel(r) Q470 | 2 × GbE | 6 × COM | 1 × PCIe x16, 1 × PCIe x4, 5 × PCI | 6 × SATA III |
| NK-7208 | Intel(r) 10th-11th Gen CoreTM i9/i7/i5/i3 (LGA1200) | Intel(r) H420E | 2 × GbE | 6 × COM | 1 × PCIe x16, 1 × PCIe x4, 5 × PCI | 6 × SATA III |
| NK-7305 | Intel(r) 12th-13th Gen CoreTM i9/i7/i5/i3 (LGA1700) | Intel(r) H610 | 2 × GbE | 6 × COM | 1 × PCIe x16, 1 × PCIe x4, 4 × PCI | 4 × SATA III |
| NK-7306 | Intel(r) 12th-14th Gen CoreTM i9/i7/i5/i3 (LGA1700) | Intel(r) Q670 | 2 × GbE | 6 × COM | 1 × PCIe x16, 2 × PCIe x4, 3 × PCI | 6 × SATA III |
